CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 6

4. CONTROL PANEL............................................................................................. 7

5. PROGRAMME SELECTION.............................................................................. 8

6. BASIC SETTINGS ........................................................................................... 10

7. BEFORE FIRST USE....................................................................................... 13

8. DAILY USE....................................................................................................... 14

9. HINTS AND TIPS............................................................................................. 17

10. CARE AND CLEANING..................................................................................18

11. TROUBLESHOOTING....................................................................................21

12. PRODUCT INFORMATION SHEET ..............................................................25

13. ADDITIONAL TECHNICAL INFORMATION...................................................26

14. GUARANTEE ................................................................................................ 26

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damage that are the result

of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away from the appliance unless continuously

supervised.

•Children of less than 3 years of age should be kept

away from the appliance unless continuously

supervised.

•Do not let children play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

ENGLISH 3

•The operating water pressure (minimum and

maximum) must be between 0.5 (0.05) / 8 (0.8) bar

(MPa)

•Follow the maximum number of 13 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Put the cutlery in the cutlery basket with the sharp

ends pointing down or put them in the cutlery drawer

in a horizontal position with the sharp edges down.

•Do not leave the appliance with the open door

unattended to avoid stepping accidentally onto it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•If the appliance has ventilation openings in the base,

they must not be covered e.g. by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not use the appliance before

installing it in the built-in structure due

to safety manner.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Install the appliance in a safe and

suitable place that meets installation

requirements.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

www.electrolux.com4

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance is fitted with a 13 A

mains plug. If it is necessary to

change the mains plug fuse, use only

a 13 A ASTA (BS 1362) fuse (UK and

Ireland only).

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

• Without electrical power, the water

protection system is not active. In this

case there is a risk of flooding.

• The water inlet hose has a safety

valve and a sheath with an inner

mains cable.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,

immediately close the water tap and

disconnect the mains plug from the

mains socket. Contact the Authorised

Service Centre to replace the water

inlet hose.

2.4 Use

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Dishwasher detergents are

dangerous. Follow the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

complete. Some detergent may

remain on the dishes.

• Do not sit or stand on the open door

of the appliance.

• The appliance can release hot steam

if you open the door while a

programme operates.

2.5 Service

• To repair the appliance contact the

Authorised Service Centre.

• Use original spare parts only.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

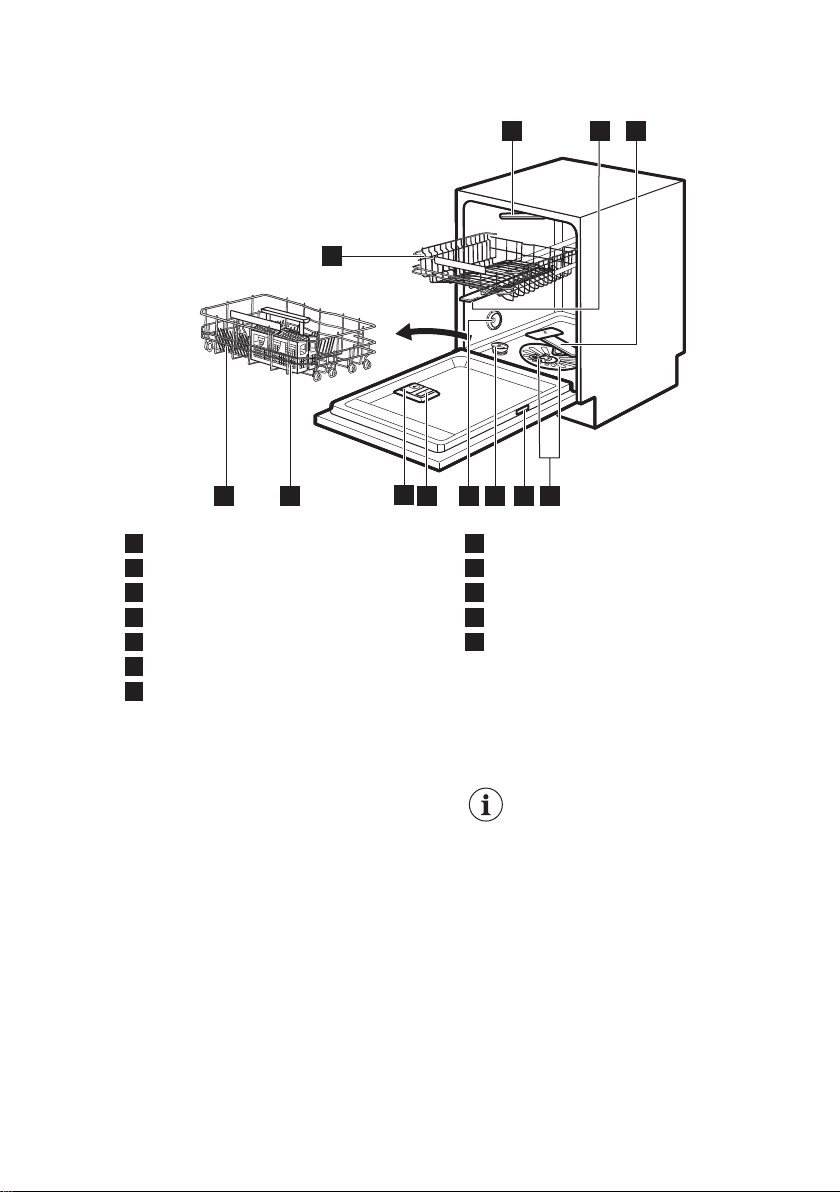

3. PRODUCT DESCRIPTION

9 8

11 10

1Ceiling spray arm

2Upper spray arm

3Lower spray arm

4Filters

5Rating plate

6Salt container

7Air vent

8Rinse aid dispenser

9Detergent dispenser

10 Cutlery basket

11 Lower basket

12 Upper basket

3.1 Beam-on-Floor

The Beam-on-Floor is a light that is

displayed on the floor below the

appliance door.

• A red light comes on when a

programme starts. It remains on for

the duration of the programme.

• A green light comes on when the

programme is complete.

• The red light flashes when the

appliance has a malfunction.

The Beam-on-Floor is off

when the appliance is

deactivated.

www.electrolux.com6

4. CONTROL PANEL

1 2 3 4 5 6

1On/Off button

2Delay Start button

3Display

4MY TIME selection bar

5EXTRAS buttons

6AUTO Sense button

4.1 Display

CB B

A. ECOMETER

B. Indicators

C. Time indicator

4.2 ECOMETER

The ECOMETER indicates how the

programme selection impacts energy

and water consumption. The more bars

are on, the lower the consumption is.

indicates the most

environmentally friendly programme

selection for a normally soiled load.

4.3 Indicators

Indicator Description

Rinse aid indicator. It is on when the rinse aid dispenser needs refill‐

ing. Refer to "Before first use".

Salt indicator. It is on when the salt container needs refilling. Refer to

"Before first use".

Machine Care indicator. It is on when the appliance needs internal

cleaning with the Machine Care programme. Refer to "Care and

cleaning".

Drying phase indicator. It is on when a programme with the drying

phase is selected. It flashes when the drying phase operates. Refer to

"Programme selection".

ENGLISH 7

5. PROGRAMME SELECTION

5.1 MY TIME

Using MY TIME selection bar, you can

select a suitable wash cycle based on

programme duration, ranging from 30

minutes to four hours.

CA B D E

A. •Quick is the shortest programme

(30min) suitable for washing a

load with fresh and light soil.

• Pre-rinse (15min) is a

programme for rinsing off food

remains from the dishes. It

prevents odours forming in the

appliance. Do not use detergent

with this programme.

B. 1h is a programme suitable for

washing a load with fresh and lightly

dried-on soil.

C. 1h 30min is a programme suitable

for washing and drying normally

soiled items.

D. 2h 40min is a programme suitable

for washing and drying heavily soiled

items.

E. ECO is the longest programme (4h)

offering the most efficient use of

energy and water consumption for

crockery and cutlery with normal soil.

This is the standard programme for

test institutes.

5.2 EXTRAS

You can adjust the programme selection

to your needs by activating EXTRAS.

ExtraPower

ExtraPower improves the washing

results of the selected programme. The

option increases the wash temperature

and duration.

GlassCare

GlassCare provides special care for a

delicate load. The option prevents rapid

changes in the wash temperature of the

selected programme and reduces it to 45

°C. This protects glassware in particular

from damaging.

5.3 AUTO Sense

The AUTO Sense program automatically

adjusts the wash cycle to the type of

load.

The appliance senses the degree of soil

and the amount of dishes in the baskets.

It adjusts the temperature and quantity of

water as well as the wash duration.

5.4 Programmes overview

Pro‐

gramme

Type of load Degree of

soil

Programme phases EXTRAS

Quick • Crockery

• Cutlery

• Fresh • Wash 50 °C

• Intermediate rinse

• Final rinse 45 °C

• AirDry

• ExtraPower

• GlassCare

Pre-rinse

• All types

of loads

• All de‐

grees of

soil

• Prewash EXTRAS are not

applicable to this

programme.

www.electrolux.com8

Pro‐

gramme

Type of load Degree of

soil

Programme phases EXTRAS

1h • Crockery

• Cutlery

• Fresh

• Lightly

dried-on

• Wash 60 °C

• Intermediate rinse

• Final rinse 50 °C

• AirDry

• ExtraPower

• GlassCare

1h 30min • Crockery

• Cutlery

• Pots

• Pans

• Normal

• Lightly

dried-on

• Wash 60 °C

• Intermediate rinse

• Final rinse 55 °C

• Drying

• AirDry

• ExtraPower

• GlassCare

2h 40min • Crockery

• Cutlery

• Pots

• Pans

• Normal to

heavy

• Dried-on

• Prewash

• Wash 60 °C

• Intermediate rinse

• Final rinse 60 °C

• Drying

• AirDry

• ExtraPower

• GlassCare

ECO • Crockery

• Cutlery

• Pots

• Pans

• Normal

• Lightly

dried-on

• Prewash

• Wash 50 °C

• Intermediate rinse

• Final rinse 55 °C

• Drying

• AirDry

• ExtraPower

• GlassCare

AUTO

Sense

• Crockery

• Cutlery

• Pots

• Pans

The pro‐

gramme ad‐

justs to all de‐

grees of soil.

• Prewash

• Wash 50 - 60 °C

• Intermediate rinse

• Final rinse 60 °C

• Drying

• AirDry

EXTRAS are not

applicable to this

programme.

Machine

Care

• No load The pro‐

gramme

cleans the

appliance in‐

terior.

• Wash 70 °C

• Intermediate rinse

• Final rinse

• AirDry

EXTRAS are not

applicable to this

programme.

Consumption values

Programme 1) Water (l) Energy (kWh) Duration (min)

Quick 9.3 - 11.4 0.54 - 0.66 30

Pre-rinse 4.1 - 5.1 0.01 - 0.04 15

1h 10.6 - 12.9 0.80 - 0.93 60

1h 30min 10.4 - 12.7 0.97 - 1.10 90

2h 40min 10.8 - 13.2 0.97 - 1.11 160

ENGLISH 9

Programme 1) Water (l) Energy (kWh) Duration (min)

ECO 10.5 0.821 240

AUTO Sense 9.6 - 13.1 0.74 - 1.06 120 - 170

Machine Care 8.9 - 10.9 0.58 - 0.70 60

1) The pressure and the temperature of the water, the variations of the mains supply, the

options and the quantity of dishes can change the values.

Information for test institutes

To receive the necessary information for

conducting performance tests (e.g.

according to EN60436), send an email

to:

[email protected]

In your request please include the

product number code (PNC) found on

the rating plate.

For any other questions regarding your

dishwasher please refer to the service

book provided with your appliance.

6. BASIC SETTINGS

You can configure the appliance by

changing basic settings according to

your needs.

Number Setting Values Description1)

1Water hard‐

ness

From level 1L

to level 10L

(default: 5L)

Adjust the level of the water softener ac‐

cording to the water hardness in your

area.

2Rinse aid level From level 0A

to level 6A (de‐

fault: 4A)

Adjust the level of the rinse aid accord‐

ing to the necessary dosage.

3End sound On

Off (default)

Activate or deactivate the acoustic signal

for the end of a programme.

4Auto door open On (default)

Off

Activate or deactivate the AirDry.

5Key tones On (default)

Off

Activate or deactivate the sound of the

buttons when pressed.

6Latest pro‐

gramme selec‐

tion

Off (default)

Enable or disable the automatic selec‐

tion of the most recently used pro‐

gramme and options.

1) For more details, refer to the information provided in this chapter.

You can change the basic settings in

setting mode.

When the appliance is in setting mode,

the bars of the ECOMETER represent

available settings. For each setting, a

dedicated bar of the ECOMETER

flashes.

www.electrolux.com10

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Electrolux Lave-vaisselle

Electrolux

Electrolux ESL75440RA Manuel utilisateur

Electrolux

Electrolux ESI 6105 Manuel utilisateur

Electrolux

Electrolux ESL 68040 Manuel utilisateur

Electrolux

Electrolux ESI 66065 Manuel utilisateur

Electrolux

Electrolux ESF5201LOW Manuel utilisateur

Electrolux

Electrolux ESL 65070R Manuel utilisateur

Electrolux

Electrolux ESL5335LO Manuel utilisateur

Electrolux

Electrolux ESF8725RKX Manuel utilisateur

Electrolux

Electrolux EEQ47215L Manuel utilisateur

Electrolux

Electrolux WT730 TCW Manuel utilisateur

Electrolux

Electrolux ESA47205SX Manuel utilisateur

Electrolux

Electrolux ESF 6162 Manuel utilisateur

Electrolux

Electrolux FAVORIT 99020 I Manuel utilisateur

Electrolux

Electrolux ESI 6251 Manuel d'utilisation

Electrolux

Electrolux ESI 6231 Manuel d'utilisation

Electrolux

Electrolux ESL 47030 Manuel utilisateur

Electrolux

Electrolux DIVA 60 Manuel utilisateur

Electrolux

Electrolux EIDW6305GB - Semi-Integrated Dishwasher Manuel utilisateur

Electrolux

Electrolux "DIVA" EDW 500 Manuel utilisateur

Electrolux

Electrolux ESI 4120 Manuel utilisateur

Electrolux

Electrolux ESF 45030 Manuel utilisateur

Electrolux

Electrolux ESL 4114 Manuel utilisateur

Electrolux

Electrolux GA60KV Manuel utilisateur

Electrolux

Electrolux ESM48210SX Manuel utilisateur

Manuels Lave-vaisselle populaires d'autres marques

KitchenAid

KitchenAid KUDB230B Manuel utilisateur

Brandt

Brandt BDJ424DB Manuel utilisateur

Asko

Asko DSD767UXXL.AU Manuel utilisateur

Beko

Beko DFN26210W Manuel utilisateur

NEFF

NEFF S153ITX00E Fiche technique

Midea

Midea SV 4.45 wi Manuel utilisateur

LG LDF7932 Manuel utilisateur

Gorenje

Gorenje GV63214 Manuel utilisateur

Hotpoint

Hotpoint HDA1100ZWH Manuel de service

Blomberg

Blomberg LDFN2240W Manuel utilisateur

AEG

AEG FFB83836PM Manuel utilisateur

Cylinda

Cylinda DM3220RFD Manuel utilisateur

Atag

Atag DW8214MB Manuel utilisateur

GE GLD8000 Series Manuel utilisateur

Siemens

Siemens SN23HI02KE Fiche technique

Omega

Omega ODW717X Manuel utilisateur

BORETTI

BORETTI BVW-683 Manuel utilisateur

Siemens

Siemens SN 56N591 Manuel utilisateur
