Electrolux R410A Manuel utilisateur

INVERTER SPLIT - TYPE (R410A)

Contact an authorised service technician for repair or maintenance of this unit.

Contact the installer for installation of this unit.

The air conditioner is not intended for use by young children or infirmed persons

without supervision.

Young children should be supervised to ensure that they do not play with the air

conditioner.

This air conditioner should be installed in accordance with AS/NZS 3000:2000

and your electricity suppliers rules.

There are local council rules regarding maximum allowable noise levels emitted

by air conditioners.

If the power cord is to be replaced, replacement work shall be performed by

authorised personnel only.

Installation work must be performed in accordance with the national wiring standards

by authorised personnel only. Wrong connection can cause over heating or fire.

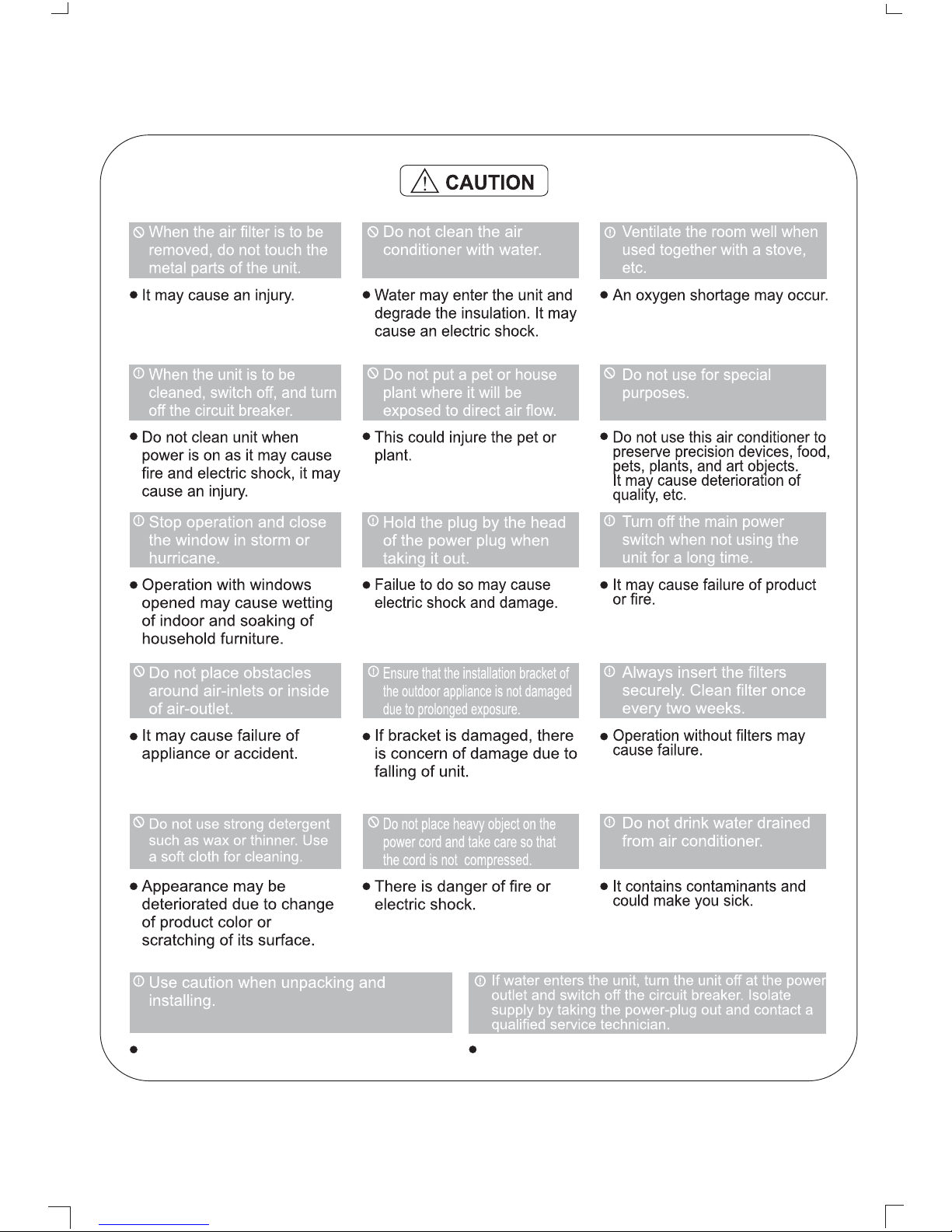

Take care not to catch fingers on the fan when adjusting vertical louvres.

This air conditioner uses R410A refrigerant.

It may cause fire.

It may cause fire and electric

shock.

It may cause an explosion or fire.

Do not use the socket if it is

loose or damaged.

Do not open the unit

during operation.

Sharp edges could cause injury. There is danger of fire or electric shock.

Mode

Cooling operation

Heating operation

Drying operation

Temperature

1. If air conditioner is used outside of the above conditions, certain safety protection

features may come into operation and cause the unit to function abnormally.

2. Room relative humidity less than 80%, if the air conditioner operates in excess of this

figure, the surface of the air conditioner may attract condensation. Please sets the horizontal

air flow louvre to its maximum angle (vertically to the floor), and set HIGH fan mode.

3. Optimum performance will be achieved within these operating temperature.

Room temperature

Outdoor temperature

17 C 32 C 17 C 27 C 10 C 32 C

CAUTION:

18 C 50 C -15 C 34 C 10 C 50 C

AUTO

COOL

DRY

FAN

HIGH

MED

LOW

TEMPTEMP

MODE ON/OFFON/OFF FAN

SWINGSWING ECONONY TIMERTIMER

RESET

RESETLOCK

LOCK

CANCEL

DIGITALDISPLAY

HEAT

AIR

DIRECTION

TIMER ON

AIR

DIRECTION

TURBO

TIMER OFF

Timer on button

Timer off button

Press the TIMER OFF button to

set the auto-off time sequence.

To cancel the auto-off time

sequence press the TIMER OFF

button until the auto-off time is

set to .

"0:00"

Press the TIMER ON button to

set the auto-on time sequence.

To cancel the auto-on time

sequence press the TIMER ON

button until the auto-on time is

set to .

"0:00"

Turbo button

Press the TURBO button

to activate the fast cooling

operation. Press again

to cancel.

Air direction button

Press the AIR DIRECTION

button to adjust the angle

of the horizontal louvre.

Press the AIR DIRECTION

button for more than 2

seconds to activate auto

SWING function. Press

the AIR DIRECTION

button again to stop the auto

SWING function.

When you press the recessed

LOCK button, all current

settings are locked-in and the

remote control does not accept

any operation except that of the

LOCK. Use the lock mode when

you want to prevent settings

from being changed accidentally.

Press the LOCK button again

when you want to cancel the

LOCK mode. A lock symbol will

appear on the bottom left hand

side of the remote control display

when the lock function is activated.

AUTO, COOL, DRY, HEAT to

AUTO, COOL, DRY, HEAT and FAN only (Refer to

note below) and back to AUTO.

TIMER ON

AIR

DIRECTION

TURBO

TIMER OFF

When you set the air conditioner in AUTO mode, it

will automatically select cooling, heating or fan only

operation depending on what temperature you have

selected and the room temperature.

TIMER ON

TIMER OFF

AIR

DIRECTION

TURBO

TIMER ON

TIMER OFF

AIR

DIRECTION

TURBO

Press to select COOL, HEAT or FAN only.
