Electrolux FAK103N1 Manuel utilisateur

Product No. FAK103N1V

Series Slider/Casement

Volts 115

BTU-Cooling 10000

Owner's Guide 309000854

Market North America

P40l2004.eps FAK103N1V.eps A232012.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995413134

04/07/14

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAK103N1

Publication No: 5995413134 FAK103N1V

07/04 2

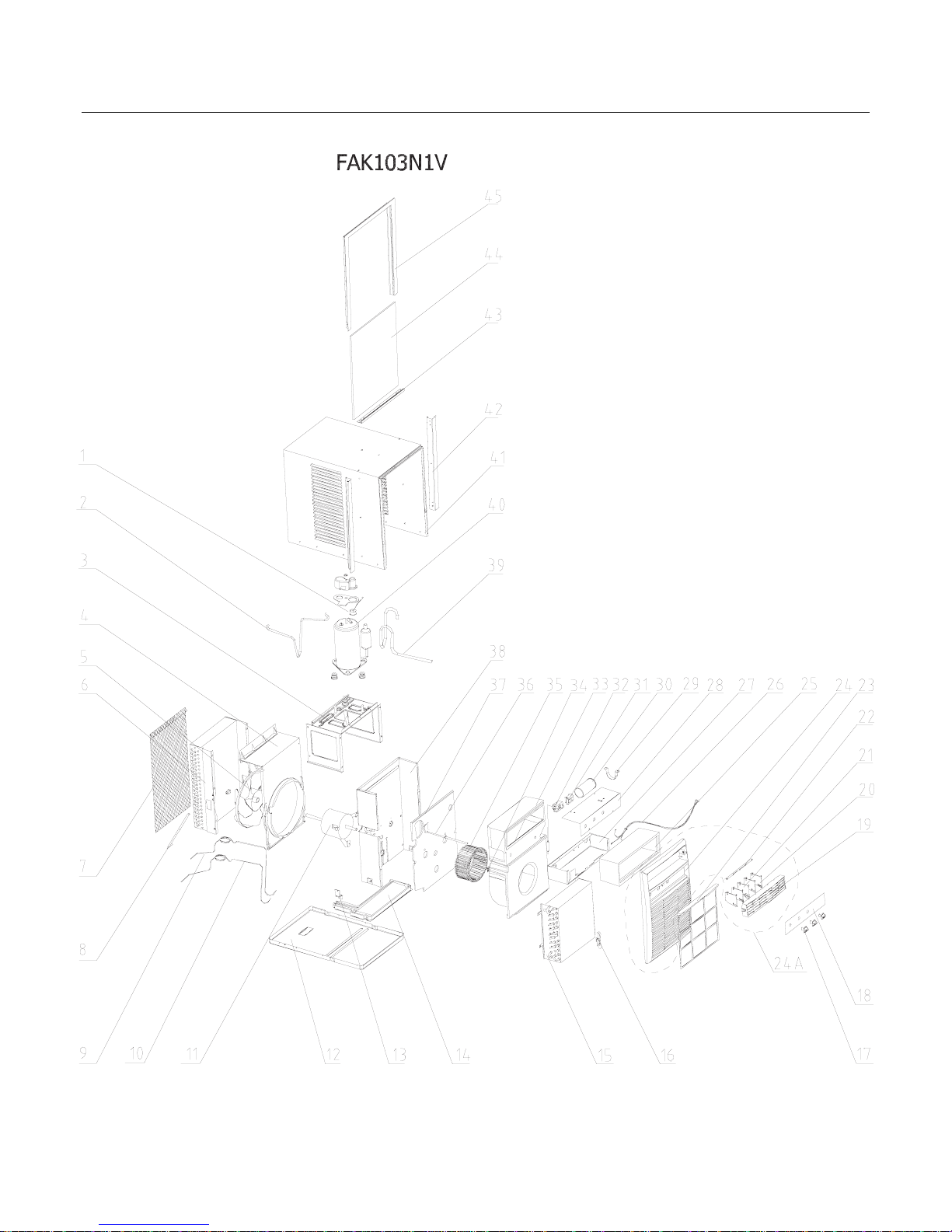

RECOMMENDED SPARE PARTS

FAK103N1V Publication No: 5995413134

# Functional Parts 3 07/04

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

POS. NO PART NO. DESCRIPTION

1 # 5304430489 Overload Protector

2 # 309260901 Tube, discharge, formed

3 309614106 Base, compressor mtg., with studs

4 309642301 Housing, fan shroud

5 # 309626001 Fan Blade, condenser

6 # 309617311 Condenser

7 5303317604 Grille, rear

8 # 5304417604 Tube, process, cond. outlet

9 # 309261501 Tube, capillary, top

10 # 309261601 Tube, capillary, bottom

11 # 309646001 Motor, fan

12 309621003 Base, casement unit, with seal

13 309102701 Bracket, condenser/base

14 309624101 Tray, evaporator drip

15 # 309617007 Evaporator

16 309321201 Clip, temp sensor mtg, thermostat

17 309307013 Knob, control

18 309622609 Dial Plate

19 309622204 Louver, horizontal

20 309622103 Louver, vertical

21 309622104 Louver, vertical, w/handle

22 5303303089 Link, louver

23 309622304 Filter, air, front

24 309621804 Frame, cabinet front

24A 309622404 Front Assy, complete

25 309624901 Adapter, scroll/housing, front

26 # 309343105 Cord-electric power, type A, 16 AWG

27 309606402 Control Box

28 309606501 Panel, control mount

29 5303303077 Strap, capacitor mtg.

30 # 5304426452 Capacitor, 250 V, 50+15 mfd

31 # 5303323284 Switch, selector, 7 posn, 3 speed

32 # 5303321674 Control, temperature

33 309624801 Housing, blower scroll

34 309112101 Clamp, blower wheel mt, compression

35 # 309625201 Blower Wheel, plastic

36 309625301 Door Opener, vent mechanism

37 309624601 Plate, scroll/housing, back

38 309615202 Partition, shroud/scroll, galv-steel

39 # 309261201 Tube, suction, formed

40 # 309260401 Compressor

41 309622004 Cabinet, wrapper/sleeve

42 309305302 Channel, slide, side mt., (2)

43 5304414112 Retainer, window panel

44 309335102 Panel, window, 19.02 x 15.15, plastic, translucent, corrugated

45 5304414118 Frame, expander, sliding

Publication No: 5995413134 FAK103N1V

07/04 4

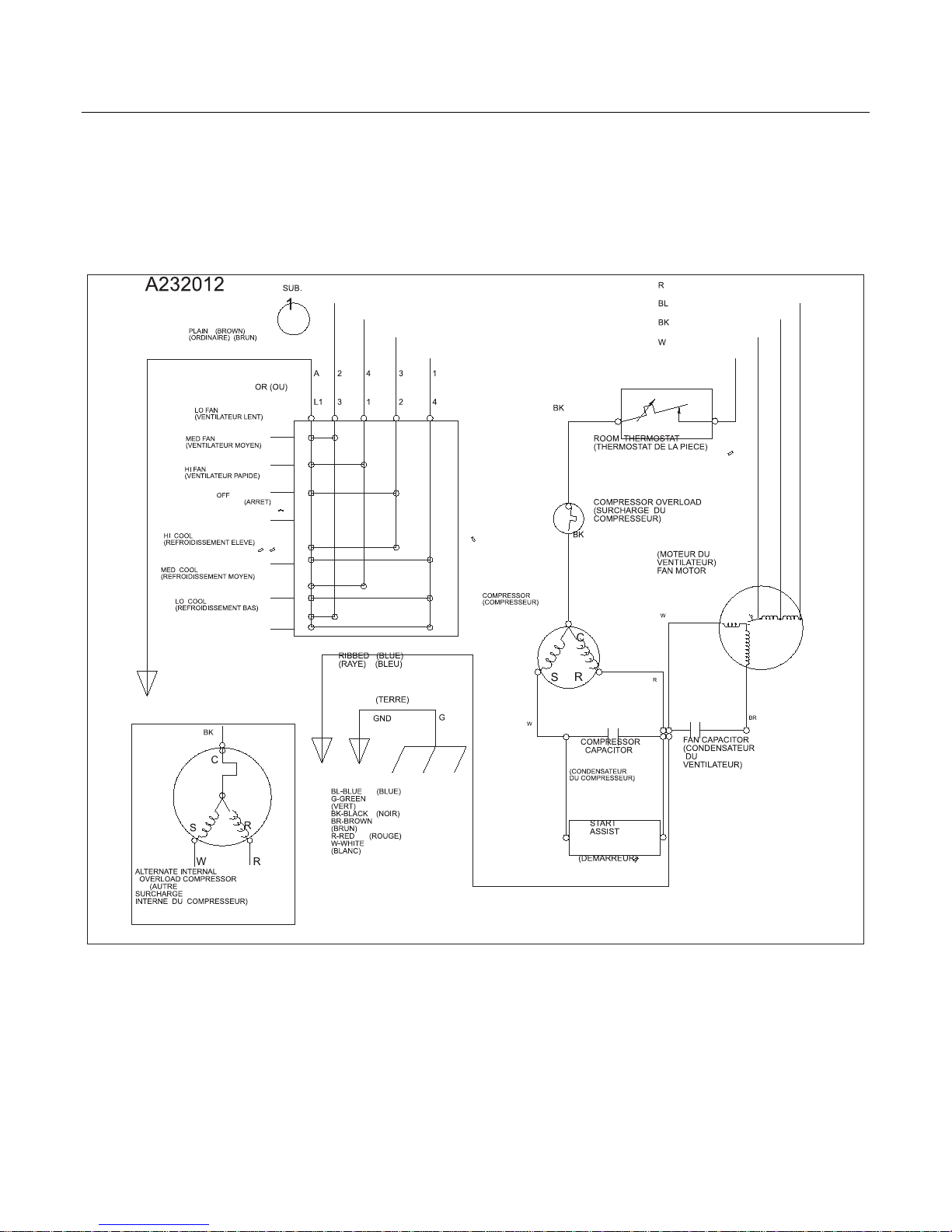

WIRING DIAGRAM
