Electro-Voice ZXA5 Manuel utilisateur

A unique combination of audio performance, versatility, aesthetics, and light weight.

• No-compromisedesign

• Elegantenclosurewithfull-face

 grilleforclean,professionallook

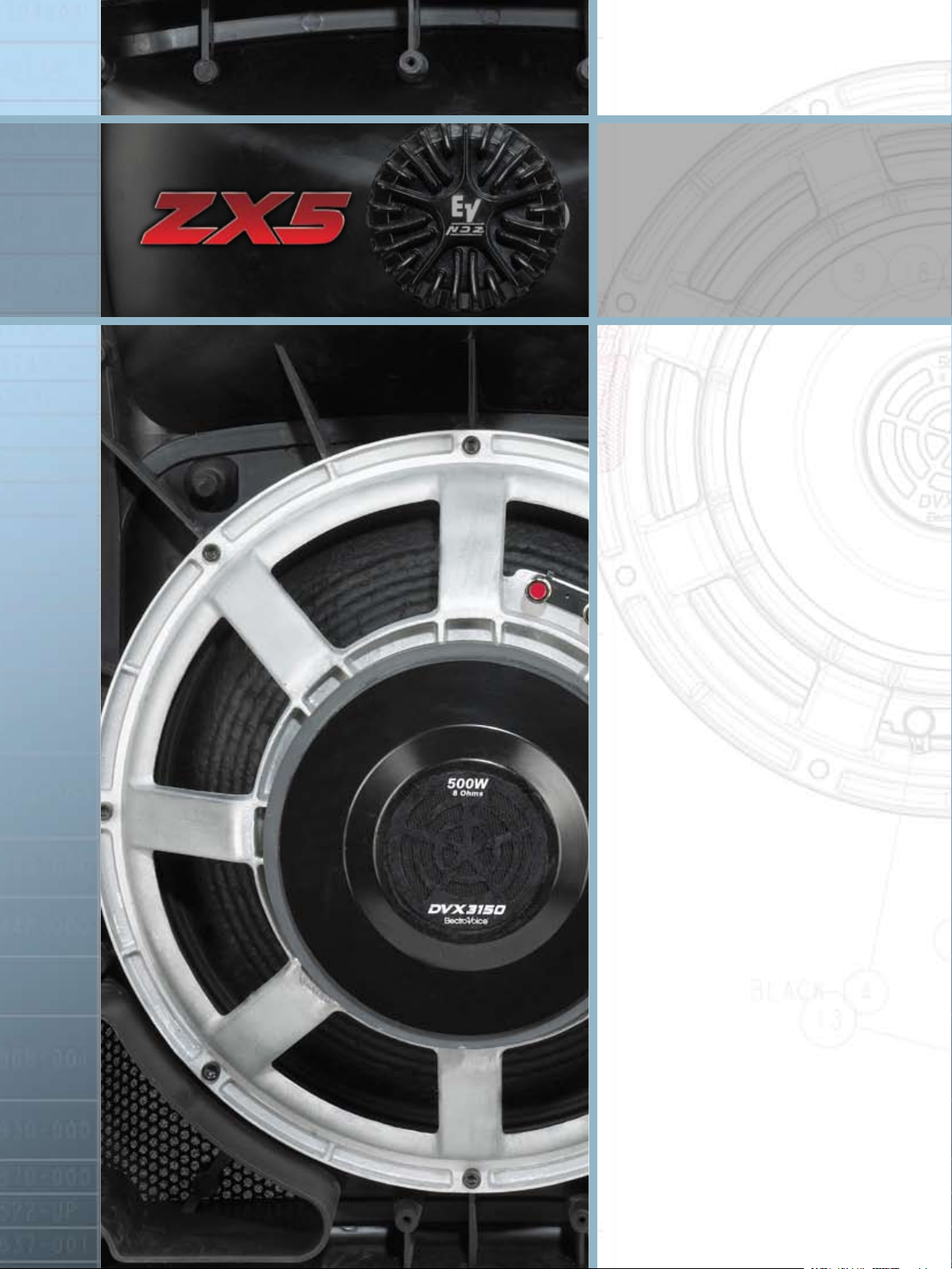

• AllnewDVX315015-inch

 wooferoffers500watts(AES)

 continuouspowerhandling

• AllnewND2,2-inchvoicecoil,

 1-inchexitneodymiumdriver

• 60°x60°or90°x50°

 coveragepattern

• Adjustablemonitorangle

 (45°or55°)

• Integralriggingpointsand

 insertsforunlimitedying

 options

• Fulllineofaccessoriesforall

 typesofinstallations

• Switchforoptionalbi-amp

 operation

With the launch of the 100S in 1982, Electro-Voice pioneered the design and manufacture of

composite enclosure professional loudspeakers. The 100S was followed by the very popular

S200 in 1984. At this time, high-tech industries began developing superior composites for

increasingly sophisticated applications. Electro-Voice set even higher performance standards

with the debut of the Sx200 in 1994, maximizing the lightweight, high-strength properties of

these composites. In keeping with our philosophy of constant improvement, we introduced

the Sx300 in 1997, incorporating breakthrough RMD™ (Ring-Mode-Decoupling) transducer

technology. The Sx Series quickly became the industry standard for professional loudspeaker

applications worldwide.

Moving forward, EV has raised the bar once again by introducing the ZX Series: a unique

combination of incredible sonic performance, application ﬂexibility, streamlined aesthetics,

and super-light weight. The ZX5 and powered ZXA5 offer a range of features and a level of

versatility unmatched in other 15-inch two-way loudspeakers.

A unique combination of audio performance, versatility, aesthetics, and light weight.

You won’t ﬁnd another speaker system on the market that offers the out-

standing sound quality, range of versatility, and tremendous output capability

of the ZX5 anywhere near its size and weight.

The relationship between enclosure

and component is crucial to optimizing

loudspeaker system performance.

By designing and manufacturing its

own components, EV ensures this

critical balance is achieved in every

loudspeaker that leaves the factory. ZX5

epitomizes this approach by utilizing

tour grade DVX series woofers and

ND2 neodymium compression drivers.

Electro-Voice Components

— The Key to Performance

Snapshots of Dynamic FEA for a high

power signal (100V) for a conventional design (top)

versus DVX (bottom). The changing colors in the gap

indicate an extreme variation of the magnetic ﬂux for the

conventional design, while there is only slight variation

with DVX. The result is a more even travel of the DVX

voice coil, signiﬁcantly reducing harmonic distortion.

Electro-Voice DVX®Transducer Technology

EV is a globally renowned pioneer and leader in transducer designs for

professional loudspeaker systems. The result of an ongoing multi-million dollar R&D project,

the groundbreaking DVX woofer series sets a new benchmark for performance, high SPL

output, and low distortion. DVX motor structure and suspension is optimized for very linear

movement using state-of-the-art development tools, such as computer simulation software for

dynamic ﬁnite element analysis (Dynamic FEA).

In conventional woofer designs, high power signals with peaks up to and beyond 100V

create a wide variation in the magnetic ﬁeld, disturbing the linear movement of the voice coil

and resulting in audible distortion. Unique DVX motor geometry greatly reduces these changes

in magnetic ﬂux, reducing harmonic distortion up to 20dB. DVX frames are designed with

integrated Forced Air Voice Coil Cooling™. The movement of cone and voice coil forces air

inside the woofer, taking heat away from the voice coil and exhausting it out the rear vent. This

results in drastically cooler operation and reduced power compression, so DVX can provide

continuously higher output. The asymmetric suspension of DVX provides a perfectly harmonic

system, eliminating typical loudspeaker resonances that can cause audible sound coloration.

First used in the late ‘90s, this process of Ring-Mode Decoupling was designed into DVX

using advanced techniques. Computer modeled die cast frames are optimized to be rugged

and lightweight, while specially forged steel motor components provide higher sensitivity and

additional weight savings.

Offering an unprecedented level of sonic clarity, dynamic capability, very high output, and long-

term endurance and reliability, the amazing performance of DVX woofers needs to be heard to

be believed.

With every excursion, cool air is drawn

through the voice coil, removing heat. This

signiﬁcantly reduces power compression,

resulting in higher long-term SPL.

Electro-Voice DVX®Transducer Technology

DVX and ND2 are found in the world’s ﬁnest compact format line array systems – EV XLC™ and XLD™

ND2’s high energy, compact neodymium motor

provides extended HF response in an extremely lightweight design. An aluminum heatsink

dissipates thermal energy, allowing for additional power handling and maximum output, while

the ultra thin (0.5 mm, 0.002 inch) titanium diaphragm provides reliability and exceptional

transient response. All of ND2’s critical internal parts, including the diaphragm, voice coil,

and phase plug, are produced in-house, using proprietary high precision tooling. Each

manufacturing process is monitored with the most accurate equipment available, guaranteeing

every driver delivers consistent, correct sound quality.

ND2 Compression Driver

Two-Inch Voice Coil Diameter

ZX5 – The monitor

By design, the ZX5 is also a perfect solution for stage monitor applications. As different stage

depths require different monitor angles, the ZX5 offers two angles to optimize performance

without additional accessories.

Installations

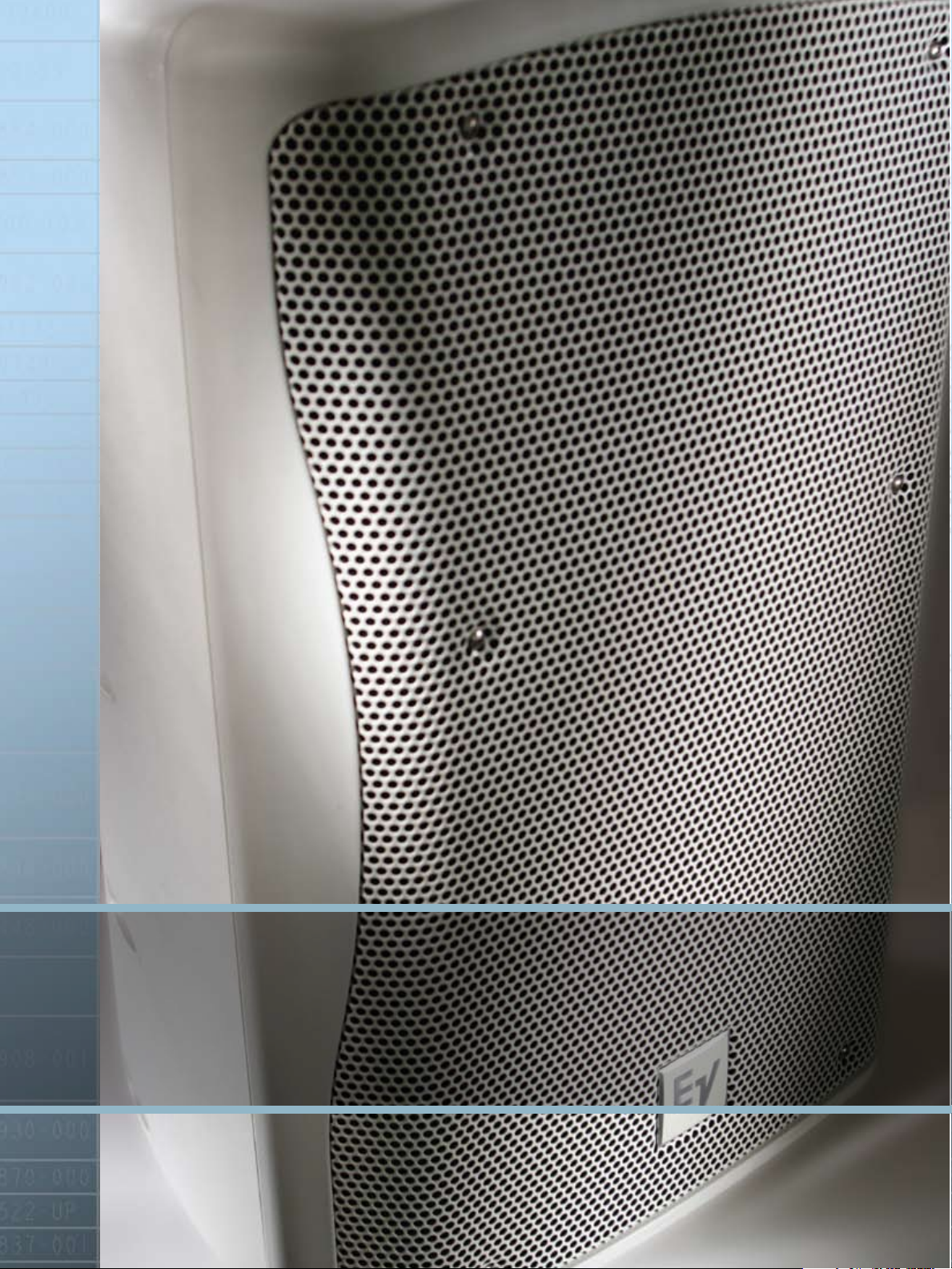

The ZX5 is available in black or white ﬁnishes to meet the aesthetic requirements of most

installations. A cloth backed full face grille completes the clean, professional look. Weatherized

versions feature hydrophobic grille cloth and a waterproofed input panel.

Computer Optimized HF Waveguides

EV designs its superior waveguides to accurately control high- and mid-frequency dispersion.

To address different coverage requirements, ZX5 is available in two horn patterns: 90° x 50°

for wider areas; 60° x 60° for longer throw applications. Both provide smooth, even response

on- and off-axis.

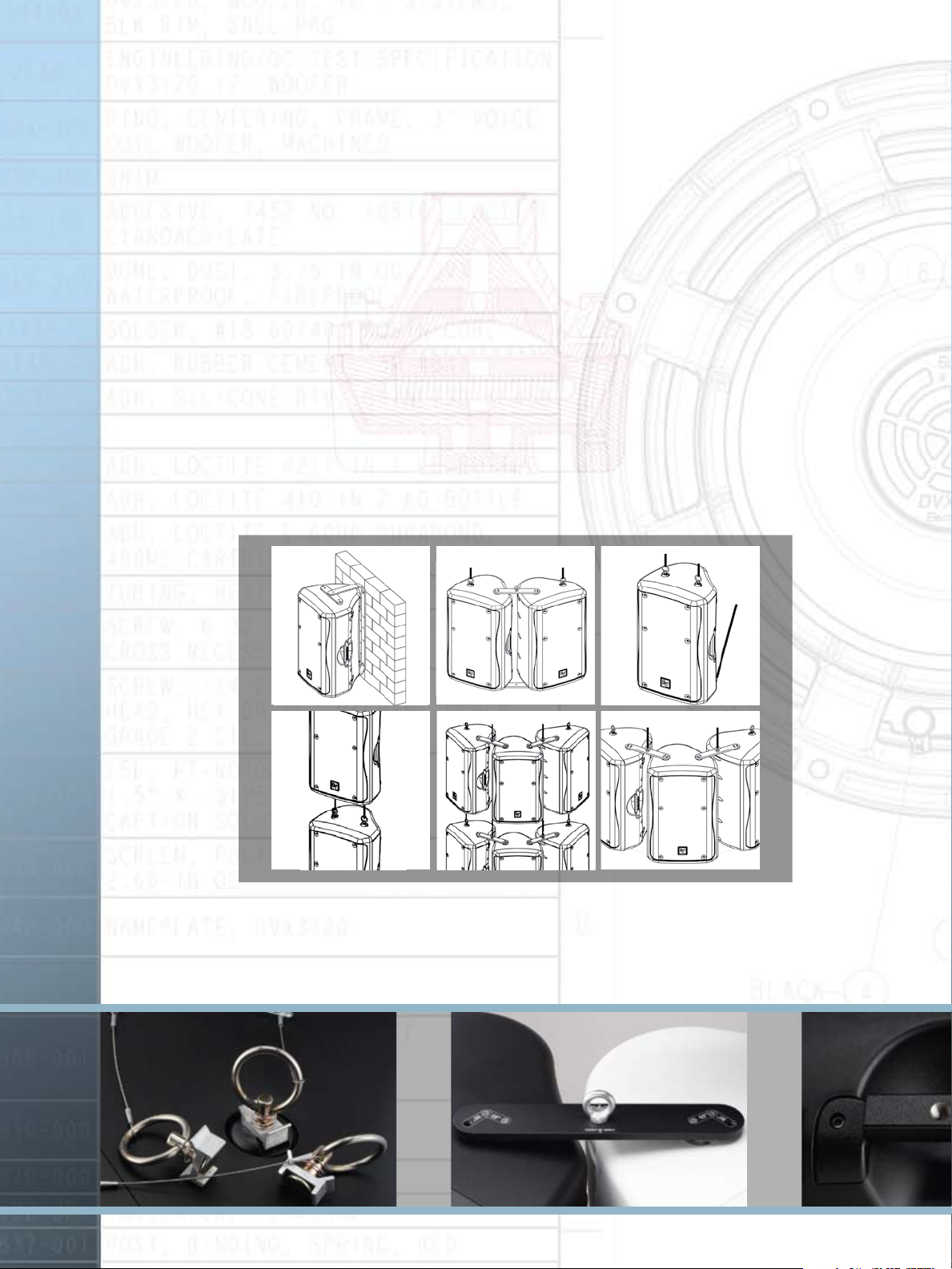

Integrated Rigging and Suspension

ZX5 is equipped with ten M8 threaded suspension points, allowing for a wide range of rigging

conﬁgurations. Single stud ﬁttings are standard on ﬁve of these points, including top, bottom,

and rear.

SSK-1 CB5 HA5

Accessories for Added Versatility
