Electro-Voice Plasma Plasma P1 Manuel utilisateur

Technical Specifications:

The Electro-Voice®Plasma P1 integrates premium EV

transducers with high power class H amplification and

signal processing to provide an outstanding combination

of sonic detail, SPL, and ease of use. A EVX155 15" uses

a Kevlar reinforced cone with RMD driven by a 4" voice coil

for well-defined transient response while maintaining

articulate vocals at all SPLs. An ND6 compression driver

with a 3" diaphragm and 1.4" exit provides extended HF

response with very low distortion. A class H two-channel

amplifier requires no fans for quiet operation, low

maintenance, and long-term reliability. Coupled with signal

processing for linear acoustic response, and unobtrusive

protection it delivers the power required for high-level

reinforcement. Dynamic linearity is another benefit of

amplifiers designed for system integration with large format

transducer motors.

L-track is embedded into P1 to provide convenient multi

axis suspension and attachment points for an optional

suspension arm. The very compact multi-angle enclo-

sure can be used in monitor position (in left and right con-

figurations), or arrayed.

The P1 is acoustically designed for uniform coverage in

both horizontal and vertical planes adding to its versatility.

P1’s applications are for where the highest quality sound

is required; Theater, A/V, Stage monitoring, Sound rein-

forcement.

General Description:

Plasma P1 (Left/Right)

15-InchTwo-Way

Powered 80°x55°

Speaker System

Key Features:

• Compact, Ergonomic Size

• 550W + 150 W Dynamic Output Power

• EVX155RMD 15” LF Transducer

• ND6 Compression Driver

• Simple,VersitileSuspension

• High Sensitivity, 132 dB Maximum SPL

• Linear Response, Fail-Safe Operation with

VoiceCoilTrackingTechnology

• Switchable High-Pass Filter for use with P2

Subwoofer

:)Bd3-(esnopseR.qerFzHk71-zH54

)Bd01-(egnaR.qerF

:zHk91-zH83

:LPSxaMdetaluclaCBd231

:egarevoClatnoziroH°08

:egarevoClacitreV°55

:ngiseDreifilpmAHssalC

:DHT%10.0<

:ecnadepmItupnIK02 Ω

:rewoPreifilpmAFL)kaePW055(SMRW064

:rewoPreifilpmAFH)kaePW051(SMRW041

revossorCssaP-hgiH :)elbahctiwS( zH001

:lortnoCleveL-θBd6+ot

:ytivitisneStupnItuptuollufrofBd6+

:recudsnarTFLDMR551XVE)mm183("51

:recudsnarTFHrevirD.pmoC6DNtixe)mm6.53("4.1

:srotcennoC :stupnIeniLdecnalaB :tuptuOdecnalaB noitanibmoCenohp"¼dnaRLX RLX

:tnemeriuqeRrewoPzH06-05,CAV042ro,032,021,001

:lairetaMerusolcnEdoowylPhcriBylp-31

:hsiniFtenibaCarutuF

:ellirGhtolChtiwleetSdetaoCredwoP

:)DxWxH(miD"7.51x"8.81x"2.42 )mm004x674x516(

:thgieWteN)gk3.24(sbl39

:thgieWgnippihS)gk0.54(sbl99

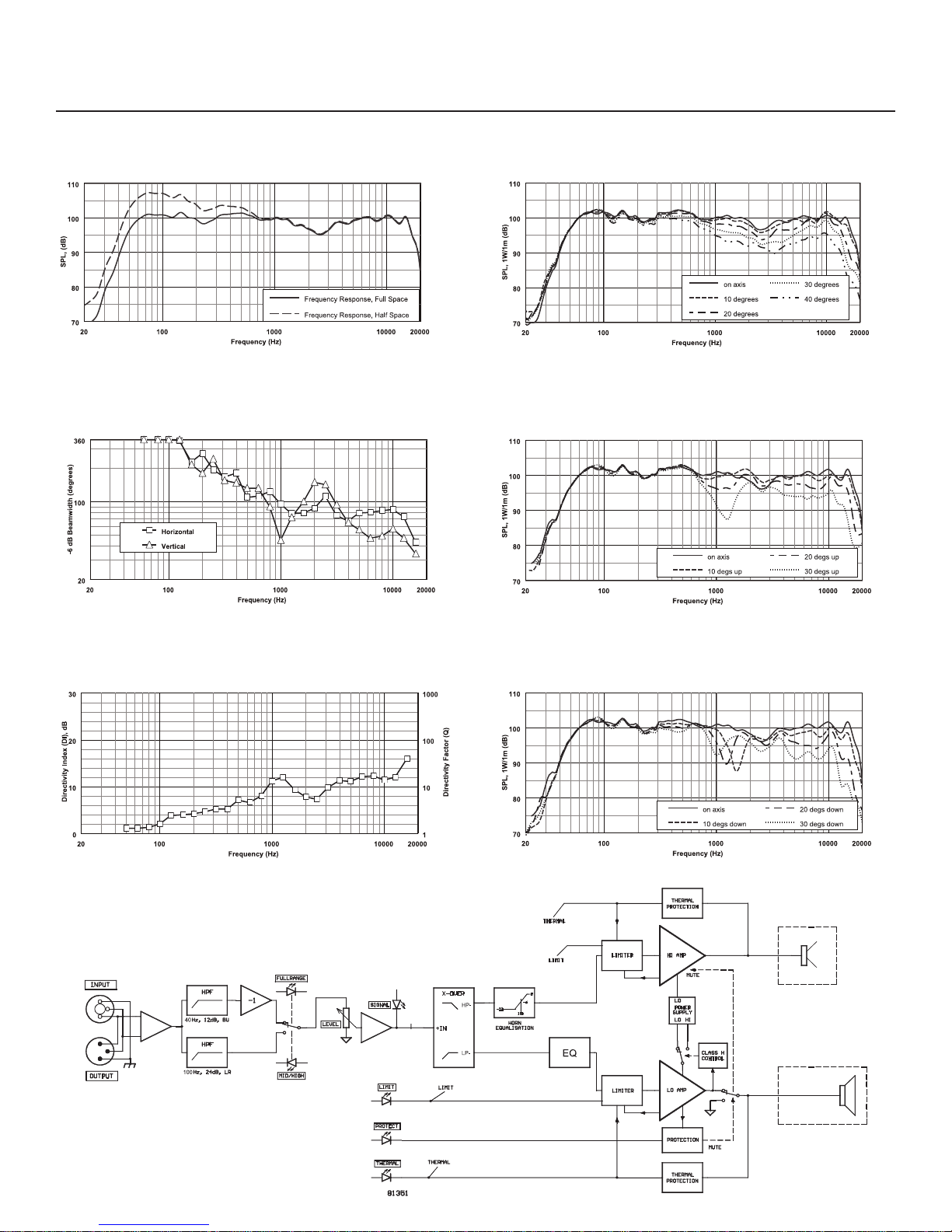

1FrequencyResponse:1/2Space

Horizontal Off Axis Frequency Response:Frequency Response (Full & Half Space):

Vertical Off Axis Frequency Response

(up):

Beamwidth:

Vertical Off Axis Frequency Response

(down):

Directivity:

Block Diagram:

Plasma P1 Full Range Loudspeaker

Horizontal 1/3 Octave Polars:

Engineering Data Sheet

Vertical 1/3 Octave Polars:

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051,Fax:952/884-0043

www.electrovoice.com

Part Number 38110-310 Rev. A

Dimension Drawings:

PlasmaP1(Right) Part Numbers

• 301504-001 - 120V

• 170297 - 230V

PlasmaP1(Left)Part Numbers

• 301505-001 - 120V

• 170296 - 230V

PerformanceMatch

• 301506-001 Plasma P2 Subwoofer, Black Futura

Accessories

• 301538-001 Suspension Arm, Vertical, PSA-V

• 301549-001 Pull-BackKit,PlasmaP1

• D112941 TrussClamp1

• D112934 PowerCon to PowerCon 1.5M (4.5ft) Cable

• D112935 PowerCon to PowerCon 8M (24ft) Cable

1RequiresSuspensionArm

Front View

Top View

Side View

PlasmaP1L(Left Version) PlasmaP1R (RightVersion)

Front View Side View

Top View
