Electro-Voice RE90TX Manuel utilisateur

RE90TX

Ultra-Miniature Condenser

Lavalier Microphone

with TA4F Connector

Key Features:

• Ultra-Miniature Size for Inconspicuous

Attachment

• Lightweight

• Omnidirectional Polar Pattern Provides Clean

Sound and Uniform Response

• CompleteAssortment of Clips

• Terminated with Female TA4 Connector

General Description:

The Electro-Voice®RE90TX is an omnidirectional back-

electret condenser lavalier microphone designed for the

ArchitecturalSeriesMicrophone

line.TheRE90TXisintended

for sound reinforcement applications such as houses of

worship, schools, or other venues where full-range, natural,

well-balanced sound is required. The omnidirectional polar

characteristics of the RE90TX provide clean and accurate

sonic quality and uniform output regardless of the

microphone’s position relative to the sound source. The

RE90TX is designed to attach to the talker’s clothing using

the supplied clips. The electronics housing features a side

clip to facilitate attachment to a belt or pocket. In addition, the

extremely compact size of the RE90TX is ideal for

performance or house of worship applications where the

microphone must remain as inconspicuous as possible to

the viewing audience. The RE90TX comes supplied with 4

feet of cable, terminated with a 4-pin TA4F connector, and a

tie clasp with non-reflecting black finish.

Technical Specifications:

:tnemelEgnitareneGtertcelekcab,resnednoC

:esnopseRycneuqerFzH000,02ot02

:nrettaPraloPlanoitceridinmO

tiucriC-nepO,ytivitisneS :egatloV lacsap/Vm5

:DHT%1taLPSmumixaMLPSBd041

:esioNtnelaviuqE=Bd0(dethgiewA,lacipyt,LPSBd92 )slacsaporcim02

:egnaRcimanyDBd011>

taecnadepmItuptuO :zHk1 smhO0005

:stnemeriuqeRrewoPcdV5

:noitpmusnoCtnerruClacipytAm0.1

:ytiraloPmgarhpaidehtnoerusserpevitisopA tuptuonoegatlovevitisopasecudorp )+(2nip

:hsiniFkcalbgnitcelfernoN

:htgneL).ni523.0(mm3.8

:retemaiDydoB).ni591.0(mm5

:htgneLelbaCrotcennoCF4AT/w,).tf6(m8.1

:thgieWteN).zo2.1(g5.33

:thgieWgnippihS).zo3.8(g532

:seirosseccAdehsinruFneercsdniWlanretxE pilCeiTlasrevinU caTeiT gaBgiGdereppiZ

:seirosseccAlanoitpOpilCenohporciMlauD

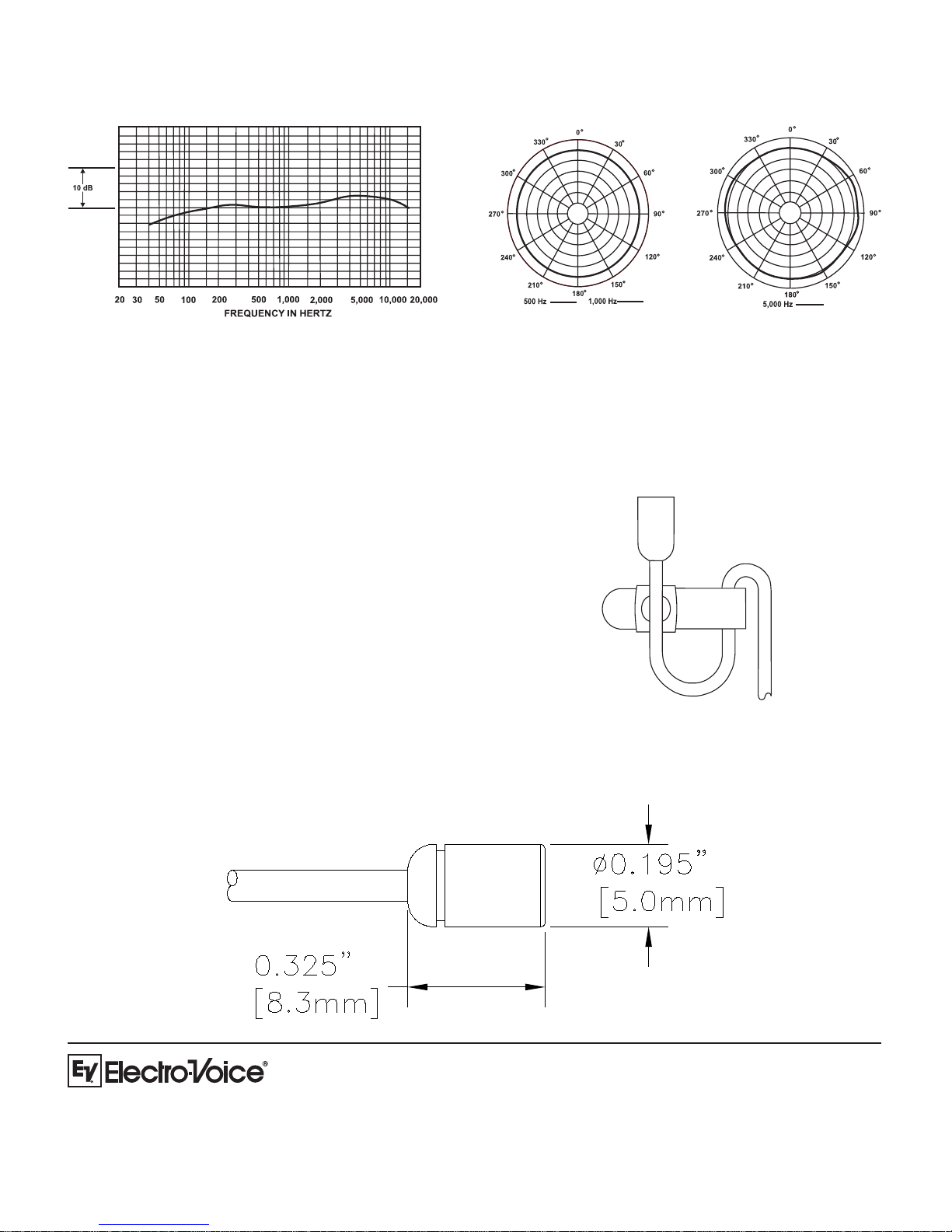

Frequency Response: Polar Response:

Using the Windscreen

The RE90TX includes a windscreen that can be used anytime wind noise or breath pop is a problem. To install the

windscreen, simply press it on the top of the microphone. The windscreen has an internal frame that includes a stop

to help positioned the windscreen correctly. When installing the windscreen, make sure to push it down on the

microphone as far as it will go. This will ensure that the frame inside the windscreen doesn’t cover any of the acoustic

side ports on the microphone.

Application Notes:

Microphone Positioning (For Best Results)

Best results will be achieved with the mic positioned 3 to 6

inches below the neckline. Typical locations are on the lapel,

shirt collar, or on the shirt directly below the chin. You should

avoid covering the microphone with any cloth, since this

could change the frequency response characteristics of the

microphone.

If mechanical noise pickup from the cable is a problem, it

can be minimized by looping the cable up and through the tie

clip as shown.

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

©Telex Communications, Inc. 1/2004

Part Number 38110-339 Rev A

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe,Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/553-5992 or 402/467-5321

For technical assistance, contact Technical Support at: 800/392-3497 or 952/736-4656

Specifications subject to change without notice.

Cable Position with Tie

Clip

Dimensions:
