USER MANUAL
7KG TUMBLE DRYER
eiQFFSTD7
Thank you for choosing electriQ
Please read this user manual before using this
Tumble Dryer and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire product range
2
CONTENTS
SAFETY WARNINGS 3
PRECAUTIONS 5
KEY COMPONENTS 7
INSTALLATION 7
POSITION OF THE DRYER 7
ADJUSTING THE FEET 8
NOTES REGARDING POSITIONING 8
OPERATION 9
QUICK START 9
DRYING LABELS 9
BEFORE USE 10
CONTROL PANEL 11
FOLLOWING USE 12
DRYING PROGRAMMES TABLE 12
MAINTENANCE AND CARE 13
CLEANING THE FILTER 13
CLEANING THE CABINET AND DRUM 13
SAFETY CUT OUT 13
TROUBLESHOOTING 14
FAULT CODES 15
electriQ UK SUPPORT 15
DISPOSAL 15
PRODUCT FICHE 16
SPECIFICATION 16
3
SAFETY WARNINGS
For your continued safety and to reduce the risk of injury or electric
shock, please follow all the safety precautions listed below.
Read all instructions carefully before using the appliance and
keep them for future reference.
Retain the manual. If you pass the unit onto a third party, make
sure to include the manual.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play
with the appliance.
Children of less than 3 years should be kept away unless
continuously supervised.
The unit must be maneuvered by a minimum of 2 people.
Do not use if the power cord is damaged.
Never touch the power cord/plug with wet hands. This may
cause a short circuit or electric shock.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified person.
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Do not use extension cords or ungrounded adapters.
The tumble dryer is not to be used if industrial chemicals have
been used for cleaning.
When positioning the appliance, ensure the supply cord is not
trapped or damaged.
Use a dedicated power socket. The power socket shall not be
shared with other electrical appliances.
Ensure the socket is suitably earthed. If in any doubt a suitable
socket must be installed by a qualified electrician.
When unplugging the appliance firmly grasp the plug and pull out
4
from the socket. Do not pull the power cord.
This appliance is intended to be used in household and similar
applications and is not designed for use within a commercial
environment.
The lint trap has to be cleaned frequently.
Lint must not to be allowed to accumulate around the tumble
dryer.
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substance such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine,
waxes and wax removers should be washed in hot water with
extra detergent before being dried in the tumble dryer.
Items such as foam rubber (latex form), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in the
tumble dryer.
Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
Never stop a tumble dryer before the end of the drying cycle
unless all items are quickly removed and spread out so that the
heat is dissipated.
Diagrams within the manual are for illustrative purposes only,
due to continual product improvement the product may vary from
the illustrations. The exhaust air must not be discharged into a
flue which is used for exhausting fumes from appliance burning
gas or other fuels.
The appliance must not be install behind a lockable door, a
sliding door or a door with a hinge on the opposite side, to that of
the tumble dryer. In such a way that a full opening of the tumble
dryer door is restricted.
Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer. The items
become warm, causing an oxidation reaction in the oil. Oxidation
creates heat. If the heat cannot escape, the items can become
hot enough to catch fire. Piling, stacking or storing oil-affected
items can prevent heat from escaping and so create a fire
5
hazard.
The appliance should not be overturned during normal use or
maintenance.
Remove all objects from pockets such as lighters and
matches.
For appliances with ventilation openings in the base, that a
carpet must not obstruct the openings.
The plug must be accessible after installation.
Warning: The appliance must not be supplied through an
external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by a utility.
Remove all packaging before using the appliance. Otherwise
serious damage may result.
PRECAUTIONS
6
7
KEY COMPONENTS
INSTALLATION
POSITION OF THE DRYER
The dryer should be placed in a
ventilated area with a gap of at
least 10cm between the rear of the
unit and the wall.
It is advisable to leave a space of
at least 1.5 metres in front of the
appliance.
Do not restrict the ventilation.
8

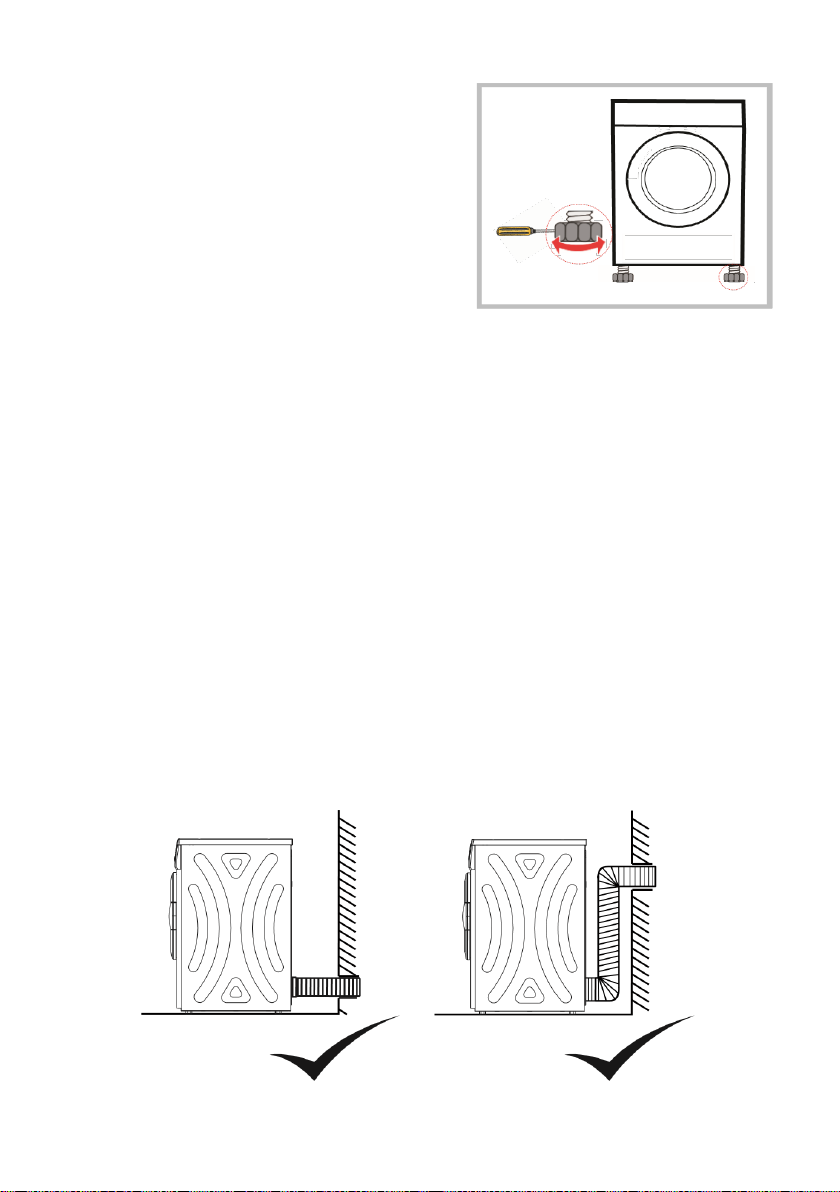

ADJUSTING THE FEET
Once the dryer is in its permanent
position it should be checked to
ensure it both level and stable.
Using a spirit level the feed should
be adjusted.
NOTES REGARDING POSITIONING
The appliance must be installed indoors. Do not install in a
position where is may be exposed to rain or excessive
moisture.
Do not place the rear of the dryer close to curtains, or
anything that could be caught by wind.
Do not place the dryer near gas appliances or close to
anything flammable.
FITTING THE VENT PIPE
Attach the vent pipe to the rear of the appliance using the
adaptor pre fitted to the vent pipe. Route the pipe so the
opposite end will expel the hot air outside. Where possible
bends to the pipework should be minimized.
9
OPERATION
QUICK START
Before use ensure the appliance is correctly installed, and there
are no signs of damage.
*If no function is selected, the appliance will start with the
default settings
DRYING LABELS
Plug In
Load Clothes
Close the door
Turn On
Choose
Function*
Start
10
BEFORE USE
Ensure the laundry is thoroughly spun in the washing machine.
This will reduce the drying time and reduce energy
consumption.
For best performance and uniform results, sort the laundry
according to the fabric type and most appropriate drying
program.
Before drying, please ensure zips, hooks and eyelets, buttons
and similar are fastened to prevent them catching during
operation.
Do not over dry clothes, because over dried clothes can
become creased easily.
Articles should be spun dried before placing in the dryer.
Putting soaking items into the dryer may result in damage.
Do not dry articles containing rubber or similar elastic materials.
The door should only be opened only after the drying
programme has finished to prevent scalding by hot steam or
over heating the dryer.
Clean the lint filter and empty the container after each use to
avoid extending the drying time and increasing energy
consumption.
Do not put clothes into the dryer if they have been dry cleaned.
Not suitable for silk or woolen textiles
Do not overload the appliance. Please see below for
approximate weights.
Mixed-
fabric
clothes
800g
Jacket
Cotton
800g
Jeans
800g
Towel
quilt
Cotton
900g
Single
bedsheet
Cotton
600g
Work
clothes
1120g
Sleepwear 200g
Long sleeve
shirt
Cotton 300g
Short
sleeve
shirt
Cotton
180g
Pants
Cotton 70g
Socks
mixed-
weave
50g
