For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Owner’s Manual

Please read this manual carefully

before operating your set.

Retain it for future reference.

Record model number and serial

number of the set.

See the label attached on the set and

quote this information to your dealer

when you require service.

DESIGNER HOOD

MODEL: EH-E9122ST(BK)

Please read this instruction carefully. It is advisable to keep this instruction

manual in a safe place for future reference.

SAFETY PRECAUTIONS

1. Keep electrical appliances out of reach from children. Do not let them to

operate the appliances without supervision.

2. To protect against the risk of electrical shock, do not immerse the product,

cord or plug into water or any other liquid.

3. This product is for household and indoor use only.

4. This product is not intended for use by person (including children) with

reduced physical, sensory or mental capabilities unless they have been

given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

5. If the power cord or plug is damaged, it must be replaced by the service

centre or a qualified service technician to avoid hazard.

6. Before installation, check if the mains supply voltage is matched with the

voltage stated on the rating plate of the hood.

7. There must be adequate air ventilation of the room when the cooker hood

is used with the cooking appliances with burning gas or other fuels.

8. Ensure that the installation of exhaust complies with the standard of local

building, gas and electrical authorities.

9. Do not ignite flames in the pans.

10.There is a risk of fire if cleaning is not carried out in accordance with this

instruction.

ASSEMBLY INSTRUCTIONS

Please check the following before installation:

Installation of hood must be carried out by an authorized or qualified technician.

Remove all packaging materials from the cooker hood. Check and make sure

that the cooker hood is not damaged.

Please ensure the power supply has switched OFF when installing the hood.

For optimum air extraction, avoid having too many windows surrounding the

cooker hood which will cause air convection.

The optimum height for the installation is between 350 to 450mm which

measure from the bottom of the hood to the top of the hob.

Make sure the hood is in level after installation to avoid oil spill over from the oil

cup collectors.

Before installing, determine the height between the bottom of the cooker hood to

the top of the hob. Mark on the wall to suit the bracket locations.

Drill 4 holes with diameter of Ø8mm and 60mm deep. Insert the screw anchors

into the holes. Fix the mounting bracket and tighten the screws.

Remove the horizontal oil cup. Hang the hood on the mounting bracket and

make sure the hood is in level.

Fix the exhaust ducting on the hood. Install the oil cups on the cooker hood.

Install the telescopic exhaust cover to the height required.

Before connecting to the mains supply, ensure that the mains voltage

corresponds to the voltage on the rating plate inside the cooker hood.

PRODUCT DESCRIPTIONS

1 Switch/Delay Function –To switch the cooker hood to standby mode and turn

off the cooker hood. Press this button during operation to schedule three

minute delay timer to turn off the cooker hood.

2 Low Fan Speed –Press this button to operate low fan speed.

3 High Fan Speed –Press this button to operate high fan speed.

4 Turbo Fan Speed –Press this button to operate turbo fan speed for one

minute (after one minute will revert to high fan speed).

5 Lamp Illumination –To switch on/off the LED lamp.

OPERATING INSTRUCTIONS

1 Press the button and press the button to operate the cooker hood in

low speed. Press the button to operate the cooker hood in high speed.

Press the button to operate the cooker hood in turbo speed. This

function will revert to high speed after one minute.

2 When the motor is running, press button to schedule the cooker hood to

turn off after three minutes. Press button again when the cooker hood in

delay off mode to turn off the cooker hood immediately.

3 Press the button to turn on the LED lamp. Press again to turn off. (This

function does not relate to the cooker hood motor).

CLEANING AND MAINTENANCE

The hood must always be disconnected from the electricity supply before

carrying out the maintenance.

Clean the hood with damp cloth, hot water and mild detergent. Do not use

chemical, steel, wooden or abrasive cleaners to clean the hood.

Remove the oil cups in horizontal direction, wash in hot soapy water, dry and fit

back into the hood. Do not use the hood without the oil cup installed.

Avoid spilling water into motor and electronic component.

CLEANING THE INNER PART

Disconnect the power supply and then pull the glass panel from the bottom with

both hands from the left and right. Remove the glass panel from the locking nut

and push the panel upward with both hands to take down the panel slowly.

Loose the screws on the air inlet ring and then take out the filter.

Turn the locknut in clockwise direction to take out the impeller.

REPLACING THE LIGHT BULB

Disconnect the power supply, push the panel upward

with both hand to take down the panel slowly

Slightly insert the screwdriver in the edge of the lamp

and pry downward to take out the LED lamp (2W).

Disconnect the connecting cable of LED lamp (2W) and

replace a new LED lamp unit (2W). Connect the power

supply to ensure LED lamp (2W) is function.

※The LED lamp bulb is shall not be greater than 2W.

TROUBLESHOOTING

Malfunctions

Possible Root Cause

Checking

Weak Suction

The distance is too far between

the hood and stove

Lower down the Hood installation

height but within the safety guideline

Strong convection due to too

much ventilation

Shut off some of the windows or

doors

Hood and light not

function

The power supply not connected

Check the plug is well connected and

power is switched on

Power cord is damaged

Contact technicians for repair

Motor function but light

not works

Light bulb is damaged

Replace a new light bulb ( 2W)

Light works but motor

not function

The bearing may be damaged

Contact technicians to repair

The internal wires or motor

capacitor may be burnout

Vibration on the hood

The screw is loosen

Tighten the screws

The hood is noisy

Exhaust pipe surface is distorted

Contact technicians to reinstall the

exhaust pipe

MAIN SPECIFICATION

Rated Voltage : 220-240V/50Hz

LED Light : 2W x 2

Suction Power : 1,400m³/hr

Motor Power : 250W

Product Dimension : 898 mm (W) x 996-1343mm (H) x 428mm (D)

PRODUCT SIZE

NOTICE

This product must not be disposed together with domestic waste. It has to be disposed at an

authorized place for recycling of electrical and electronic appliances. By collecting and recycling

waste, you help to save natural resources and make sure the product is disposed in an

environmental friendly and healthy way.

Table des matières

Autres manuels Elba hotte de ventilation

Elba

Elba EH-H9329TFT(BK) Manuel utilisateur

Elba

Elba MARS-V2-90 IS-X Manuel utilisateur

Elba

Elba 2937/90MC Manuel utilisateur

Elba

Elba Aria EH-A9023ST(SS) Manuel utilisateur

Elba

Elba EH-N9125ST Manuel utilisateur

Elba

Elba ELIO 9365 Manuel utilisateur

Elba

Elba RH-601 X Manuel utilisateur

Elba

Elba EH-G9325ST Manuel utilisateur

Elba

Elba EH-H9027ST Manuel utilisateur

Elba

Elba Covo 668 Manuel utilisateur

Elba

Elba BREEZA EH-C9041SL Manuel utilisateur

Elba

Elba FORZA EH-A9021ST Manuel utilisateur

Elba

Elba EH-N9128ST Manuel utilisateur

Elba

Elba VETRO EDDH-C9046STSS Manuel utilisateur

Elba

Elba Covo 668/90 Manuel utilisateur

Elba

Elba ESH-M7598(BK) Manuel utilisateur

Elba

Elba EH-E9121ST(BK) Manuel utilisateur

Elba

Elba HC60PCIEX1 Instructions de montage

Elba

Elba EH-M9138ST Manuel utilisateur

Elba

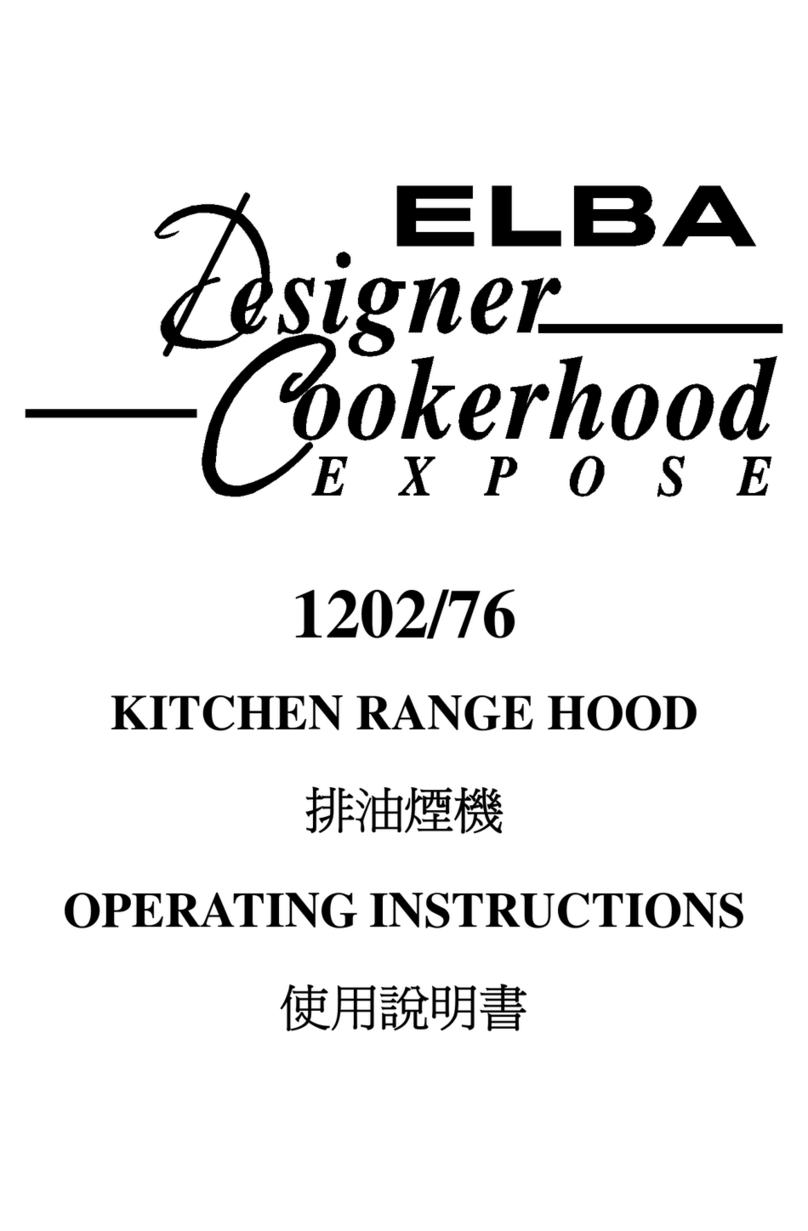

Elba 1202/76 Manuel utilisateur
