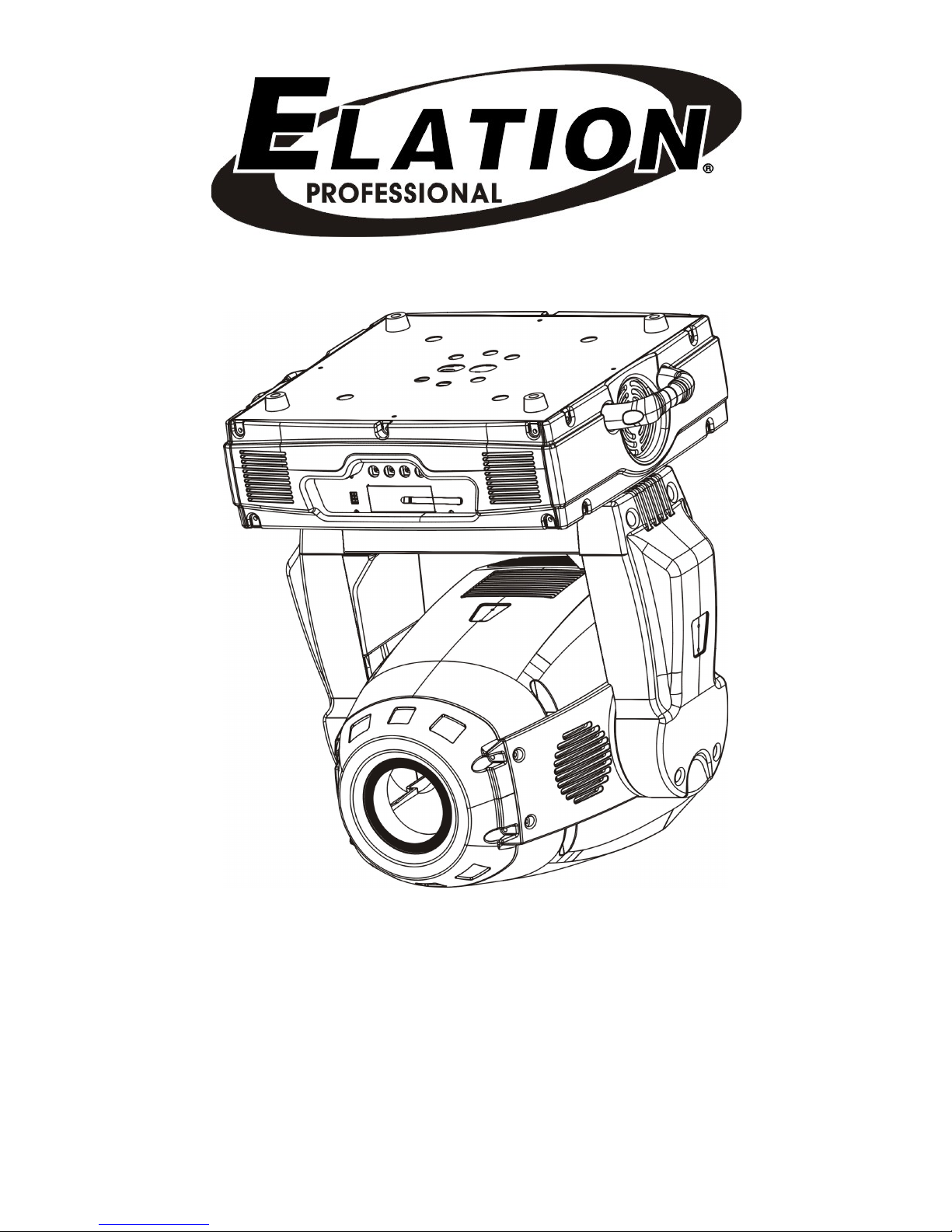

Elation Design Spot 1200C Manuel utilisateur

Rev. 1/6/2009-visage

Design Spot 1200C

Elation Professional

6122 S. Eastern Ave

Los Angeles, Ca. 90040

Design Spot 1200C™

©Elation Professional® 2 Design Spot 1200C™

Design Spot 1200C™

©Elation Professional® 3 Design Spot 1200C™

CONTENTS

1. General Information……………………………………………………………………… 4

a. Introduction………………………………………………………………………. 4

b. Customer Support…………………………………………….………………… 3

c. Warranty Registration……………………………………………………..……. 5

d. Discharge Lamp Warning………………………………………………………. 5

2. Safety Instructions………………………………………………………........…………. 7

3. Features……………………………………………………………………………………9

4. General Guidelines………………………………………………………………………. 10

5. Fixture Overview…………………………………………………………………………. 11

6. Lamp Installation…………………………………………………………………………. 12

a. Lamp installation…………………………………………………….………….. 12

b. Lamp optimization……………………………………………………..…………13

7. Mounting and Installation………………………………………………………….……. 15

a. Mounting Positions……………………………………………………………… 15

b. Mounting Points…………………………………………………………………. 16

c. Securing………………………………………………………………………….. 17

8. Understanding DMX……………………………………………………………………... 18

a. DMX Linking……..………………………………………………………………. 18

b. DMX Cable Requirements..……………………………………………………. 18

c. DMX Termination………..………………………………………………………. 20

d. DMX Addressing………………………………………………………………… 20

9. Fixture Menu……………………………………………………………………………… 22

a. Menu functions………………………………………………………………….. 23

10. Menu Functions.…………………………………………………………………………. 25

11. DMX Addressing…………………………………………………………………………. 33

12. Operation…………………………………………………………………………………. 35

13. Using the Built-In Wireless DMX Receiver……………………………………………. 37

14. Working with Built-In Programs………………………………………………………….39

15. DMX Channel Traits………………………………………………………………………45

16. Fuse Replacement………………………………………………………………………..51

17. Error Codes………………………………………………………………………………..52

18. Cleaning and Maintenance……………………………………………………………… 56

19. Photometric Data………………………………………………………………………… 59

20. Dimensional Drawings………………………………………………….……………….. 60

21. Circuit Schematic………...……………………………………………………………….61

22. Warranty…………………………………………………………………………………... 62

23. Technical Specifications…………………………………………...………….………… 64

Design Spot 1200C™

©Elation Professional® 4 Design Spot 1200C™

1. GENERAL INFORMATION

INTRODUCTION: Congratulations, you have just purchased one of the most innovative and

reliable lighting fixtures on the market today! The Design Spot 1200C,™ has been designed

to perform reliably for years when the guidelines in this booklet are followed. Please read

and understand the instructions in this manual carefully and thoroughly before attempting to

operate this unit. These instructions contain important information regarding safety during

use and maintenance.

UNPACKING: Thank you for purchasing the Design Spot 1200C™ by Elation Professional®.

Every Design Spot 1200C™ has been thoroughly tested and has been shipped in perfect

operating condition. Carefully check the shipping carton for damage that may have occurred

during shipping. If the carton appears to be damaged, carefully inspect your unit for damage

and be sure all accessories necessary to operate the unit have arrived intact. In the event

damage has been found or parts are missing, please contact our customer support team for

further instructions. Please do not return this unit to your dealer without first contacting

customer support at the number listed below.

CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to provide

set up help and to answer any question should you encounter problems during your set up

or initial operation. You may also visit us on the web at www.elationlighting.com for any

comments or suggestions. For service related issue please contact Elation Professional®.

Service Hours are Monday through Friday 8:00 a.m. to 5:00 p.m. Pacific Standard Time.

Voice: (323) 582-3322

Fax: (323) 832-9142

E-mail: [email protected]

Forum: www.ElationLighting.com/forum

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to

rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

yourself, doing so will void your manufactures warranty.

Design Spot 1200C™

©Elation Professional® 5 Design Spot 1200C™

Please do not discard the shipping carton in the trash, keep for warranty repair. Please

recycle whenever possible.

WARRANTY REGISTRATION: The Design Spot 1200C™ carries a two year (730 days)

limited warranty. Please fill out the enclosed warranty card to validate your purchase. All

returned service items whether under warranty or not, must be freight pre-paid and

accompany a return authorization (R.A.) number. The R.A. number must be clearly written

on the outside of the return package. A brief description of the problem as well as the R.A.

number must also be written down on a piece of paper and included in the shipping

container. If the unit is under warranty, you must provide a copy of your proof of purchase

invoice. Items returned without a R.A. number clearly marked on the outside of the package

will be refused and returned at customer’s expense. You may obtain a R.A. number by

contacting customer support at (323) 213-4593.

DISCHARGE LAMP WARNING: This fixture is fitted with a discharge

lamp, which is highly susceptible to damage if improperly handled.

Never touch the lamp with your bare hands, as the oil from your hands

will shorten lamp life. Also, never move the fixture until the lamp has

had ample time to cool. Remember, lamps are not covered under

warranty conditions.

UV RADIATION: This fixture emits intense UV radiation, which is harmful to the eyes and

skin. The intense luminance of the lamp can cause severe damage to the retina. Never

operate this fixture with the protective covers removed, these covers have been specially

designed to shield against UV radiation.

Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the

lamp at all times.

Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce lamp

life and intensity.

To achieve the intensity associated with discharge lamps, these lamps use a gas sealed in a

Design Spot 1200C™

©Elation Professional® 6 Design Spot 1200C™

high-pressure environment to emit a brilliant output. Due to the high pressure involved with

the construction of the lamp, the lamp may explode during prolonged extensive use. This

risk is increased with age; added care is encouraged when dealing with older lamps. Thus,

lamp should always be replaced at the end of their recommended duty cycle. Extreme

caution should be used when operated this or any fixture fitted with a gas discharge lamp.

Never open this fixture while in use!

During the initial operation of this fixture, a light smoke or smell may emit from the interior of

the fixture. This is a normal process and is caused by excess paint in the interior of the

casing burning off from the heat associated with the lamp and will decrease gradually over

time.

This device falls under protection-class 1. Therefore it is essential that the device be

grounded properly.

Only qualified personnel should perform all electrical connections.

Be sure the available voltage matches the voltage requirements of the unit.

Be sure the power cord is never crimped or damaged. If the power cord is damaged, replace

it immediately with a new one of similar power rating.

Always disconnect from main power before performing any type of service or any cleaning

procedure.

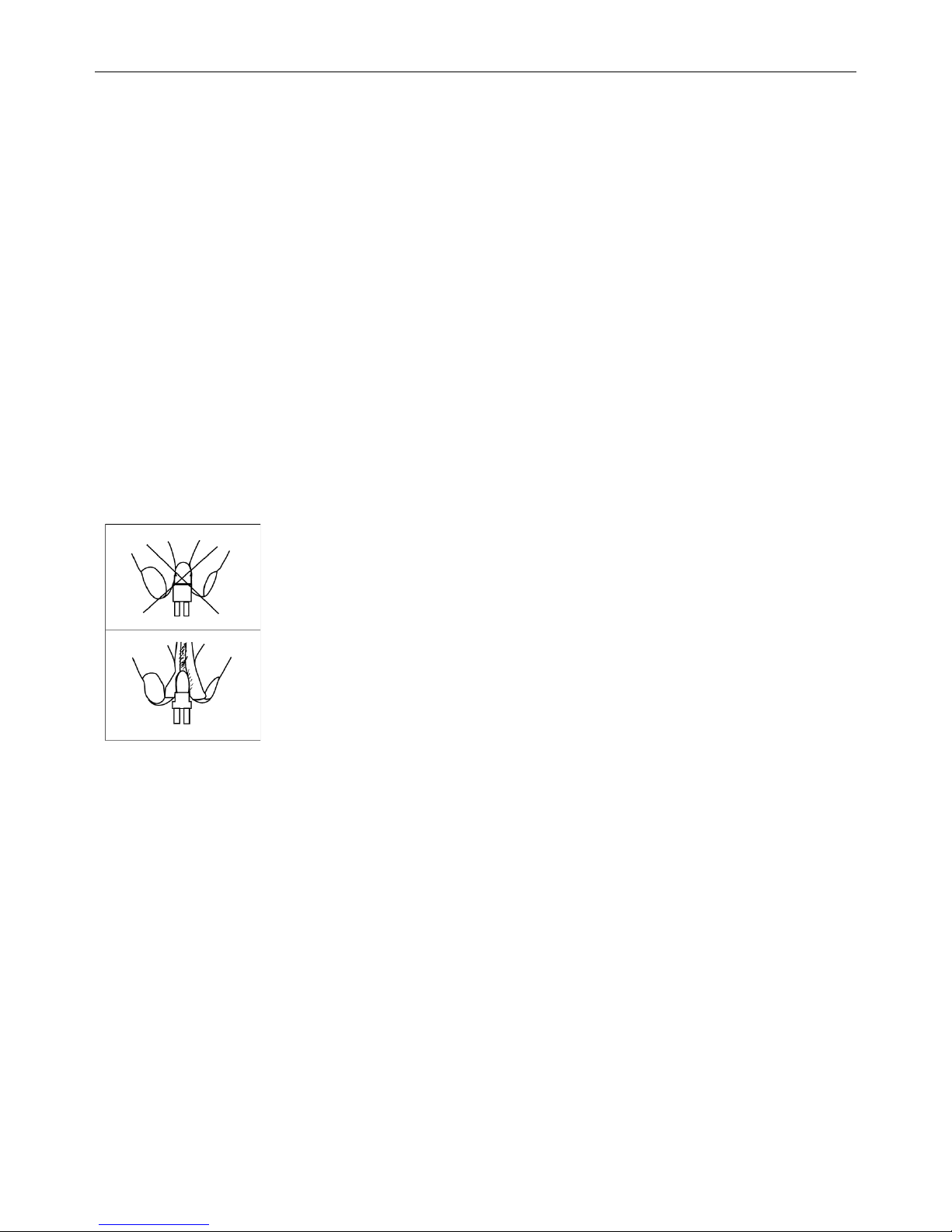

Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion of

the cord.

Please be aware that damages caused by manual modifications to the device are not

subject to warranty.

Design Spot 1200C™

©Elation Professional® 7 Design Spot 1200C™

2. SAFETY INSTRUCTIONS

The Design Spot 1200C™ is an extremely sophisticated piece of

electronic equipment. To guarantee a smooth operation, it is

important to follow the guidelines in this manual. The

manufacturer of this device will not accept responsibility for

damages resulting from the misuse of this fixture due to the

disregard of the information printed in this manual.

1. Always be sure that the fan and the air inlets remain clean and are never blocked.

Allow about 6” (15cm) between this fixture and other devices or a wall to allow for

proper cooling.

2. Never touch the fixture during normal operation. This can cause severe personal

injuries and/or damage to the fixture.

3. Be sure to unplug the Design Spot 1200C™ from the power outlet before

performing any service related issues.

4. Lamp Replacement; Please wait at least 15 minutes after disconnecting the main

power before you open the Design Spot 1200C™. To prevent personal injury,

never touch the lamp if you are not absolutely sure it has cooled.

5. Never look directly into the lamp beam. You risk injury to your retina, which may

induce blindness.

6. Be sure to track and record the lamp running time. The lamp should be changed at

the end of the specified lamp life, regardless of lamp output. You may also have to

change the lamp if it shows any deformations or damage. The same is with all

glass components, color filters, lenses and mirrors.

7. For safe operation, follow the Installation guide described in chapter five of this

manual. Operating the Design Spot 1200C™ without suited safety aids such as

safety cables or clamps can increase the risk of damage and/or personal injury.

8. Qualified and certified personnel should only perform installation.

9. When mounting this fixture, use only the original rigging parts included with this

fixture. Any structural modification will void the original manufactures warranty and

Design Spot 1200C™

©Elation Professional® 8 Design Spot 1200C™

may increase the risk of damage and/or personal injury.

10. To reduce the risk of fire or electric shock, do not expose this fixture to rain or

moisture.

11. Do not attempt to operate this fixture if the power cord has become damaged or

frayed.

Important Notice: Damages resulting from the disregard of safety and general user

instructions found in this user manual are not subject to any warranty claims.

Design Spot 1200C™

©Elation Professional® 9 Design Spot 1200C™

3. FEATURES

•Pan 540˚ or 630˚ (User selectable) / Tilt 265°

•30 Built-In Color Preset Macros

•3 operation mode: DMX Controlled, Stand-Alone or Sound Activated

•2 Gobo Wheels (Indexable/Replaceable)

oWheel 1: 5 Rotating Gobos plus Open

oWheel 2: 5 Rotating Gobos plus Open

•1 Color Wheel (Replaceable Filters), 8 Colors

•Animation/Effect Wheel

•Motorized Iris

•CMY & CTO Variable Color Mixing for Infinite Color Possibilities

•Easy to Navigate, Full Color, On-Board LCD Menu (may be turned 180°)

•Strobe Effect: 1~13 flashes per second

•Motorized Focus (Near to Far)

•Motorized Zoom 16˚~41˚

•Brilliant Phillips MSR Gold 1200 FastFit Lamp (1200w / 6300K / 750Hrs / 95,000Lm)

•Linear Dimmer from 0%~100%

•208/240v ~ 50/60Hz Operation

•Variable, Linear Frost Filter (0% ~ 100%)

•RDMX (Remote DMX addressing from any DMX console)

•Auto test for all functions

•Automatic Pan/Tilt Correction

•Glass Dichroic Reflector for Even Lamp Output

•Modular Design for easy service and maintenance

•Battery Buffered Display System

•USITT DMX-512 Complaint

o26 DMX Channels (16bit Operation)

o24 DMX Channels (8bit Operation)

•8 User Assignable Program Presets - Internal Program: Edit and save programs to

the incorporated EPROM. Maximum of 48 scenes.

•Built-In DMX Recorder, Stores Scenes from External DMX Controller

Design Spot 1200C™

©Elation Professional® 10 Design Spot 1200C™

4. GENERAL GUIDELINES

This fixture is a professional lighting effect designed for use on stage, in nightclubs, in

theatres, etc. Do not attempt operation or installation without a proper knowledge on how to

do so.

This fixture was designed for indoor use only. Use of this fixture outdoors may void the

manufactures warranty.

Consistent operational breaks may ensure that the fixture will function properly for many

years to come.

Do not shake the fixture around. Avoid brute force when installing or operating the device.

While choosing an installation location, please be sure that the fixture will not be exposed to

extreme heat, moisture or dust. The minimum distance between the fixture and a wall or flat

surface should be at least 1 meter (about 3ft).

Always install the fixture with an appropriate safety cable. When installing the fixture in a

suspended environment always be sure to use mounting hardware no less than M10 x 25

mm, also be sure the hardware is insert in the pre-arranged screw holes in the base of the

fixture.

When using the quick release “Omega” cam-lock system, be sure the four quick lock

fasteners are locked in the quick lock holes correctly.

Do not attempt to operate this fixture until you have familiarized yourself with its functions.

Do not permit operation by persons not qualified for operating this type of theatrical fixture,

as most damages are the result of operations by person unfamiliar with the operations of

these types of effects.

If service is ever need and if possible, please use the original packaging to transport the

fixture in for service.

Autres manuels pour Design Spot 1200C

Table des matières

Autres manuels Elation Équipement d'éclairage

Elation

Elation KL PANEL XL IP Manuel utilisateur

Elation

Elation High Output LED Color Changer Opti RGB Manuel utilisateur

Elation

Elation EVLED256 Video Wall Instructions d'installation

Elation

Elation CYBER PAK Manuel utilisateur

Elation

Elation ELED PAR RGB ZOOM Manuel utilisateur

Elation

Elation FUZE WASH Z120 Manuel utilisateur

Elation

Elation Arena Par Manuel utilisateur

Elation

Elation Color Spot 575 Manuel utilisateur

Elation

Elation PLATINUM WASH ZFX PRO Manuel utilisateur

Elation

Elation Design Spot 1200C Manuel utilisateur

Elation

Elation CUEPIX PANEL Manuel utilisateur

Elation

Elation PROTRON 3K Manuel utilisateur

Elation

Elation SATURA SPOT LED PRO Manuel utilisateur

Elation

Elation ELAR EXFLOOD Manuel utilisateur

Elation

Elation CUEPIX BLINDER WW4 Manuel utilisateur

Elation

Elation 216 Manuel utilisateur

Elation

Elation Platinum Spot LED Manuel utilisateur

Elation

Elation DESIGN WASH 250 Manuel utilisateur

Elation

Elation WW TONE Manuel utilisateur

Elation

Elation Opti Quad Par Manuel utilisateur

Elation

Elation Opti Tri 30 Manuel utilisateur

Elation

Elation Event Cylinder RF Manuel utilisateur

Elation

Elation Eled Light Manuel utilisateur

Elation

Elation Elation DMX OPERATOR PRO Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
