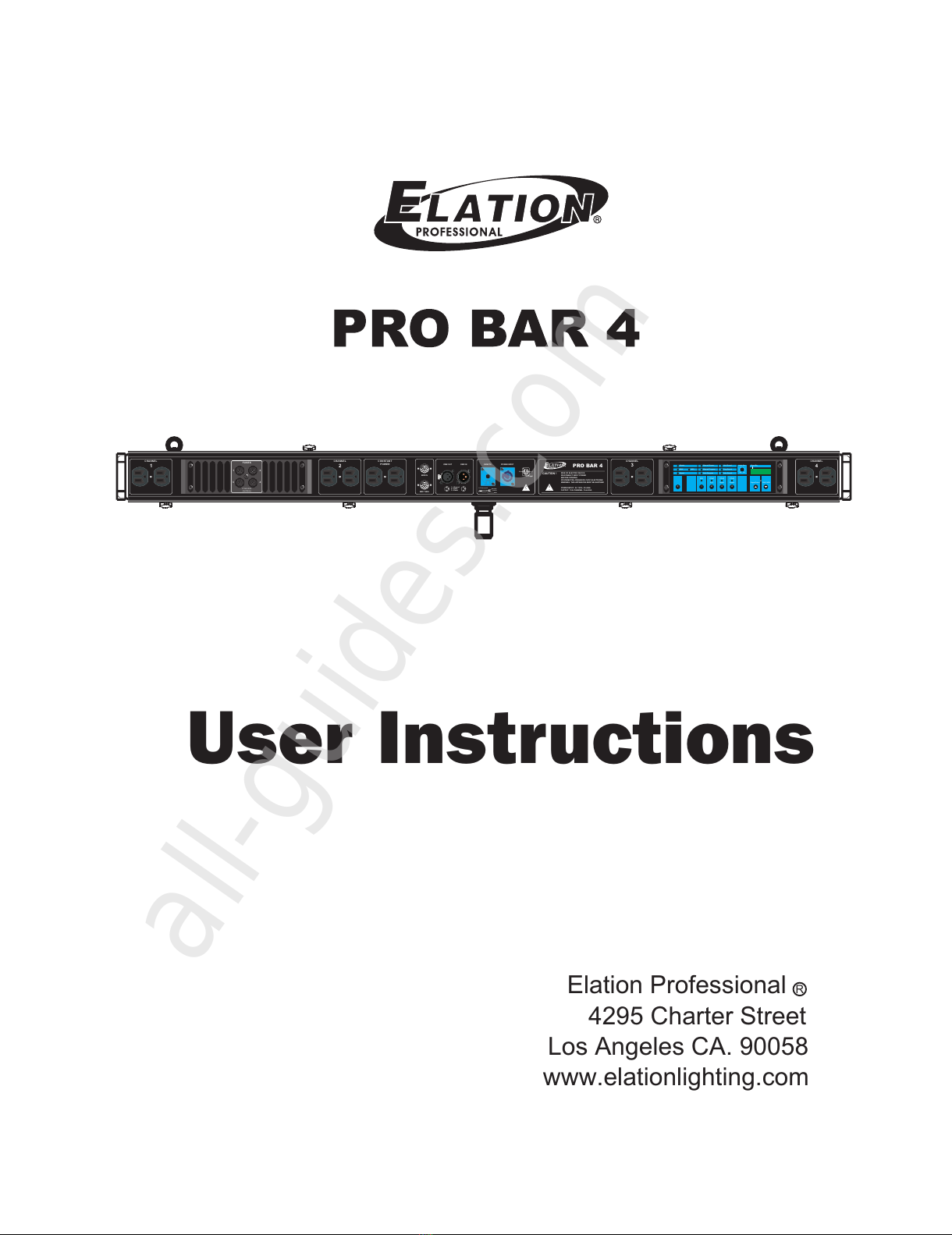

Elation PRO BAR 4 Manuel utilisateur

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

AutoProgram

Hold Sound

Prog Sound

AutoSound

StandBy

AudioSen.

MaxMin

1 2 3 4F

FUSES

F10A250V

(5x20mm)

CONSTANT

POWER

MIDI IN

MIDI THRU

1/4"stereojack

FullOn

StandBy

GND

REMOTE POWER INPUT

CHANNEL

CAUTION ! RISK OF ELECTRIC SHOCK

DISCONNECT INPUT POWER

BEFORE OPENING

N'OUVREZ PAS..RISQUEDE CHOC ELECTRIQUE

WARNING: THIS APPARATUSMUST BE EARTHED

POWER INPUT: AC 120V~ 50-60Hz

OUTPUT: 10A /CHANNEL, Total20A.

PRO BAR 4

DMX IN

DMX OUT

1 = Ground

2 = Data-

3 = Data+

CHANNEL

4295 Charter Street

Los Angeles CA. 90058

www.elationlighting.com

User Instructions

Elation Professional R

All manuals and user guides at all-guides.com

all-guides.com

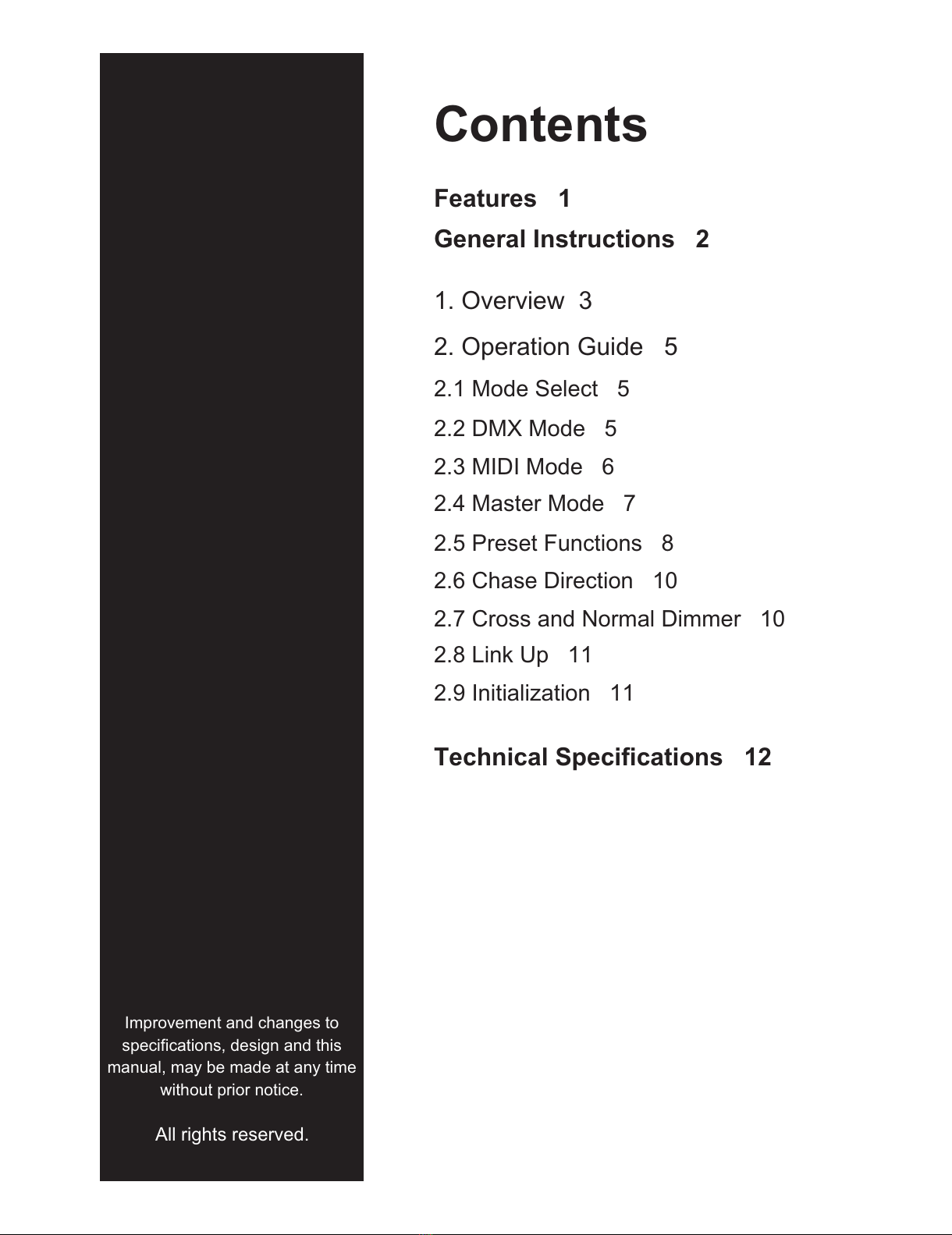

Contents

Features 1

Technical Specifications 12

General Instructions 2

1. Overview 3

2. Operation Guide 5

2.1 Mode Select 5

2.2 DMX Mode 5

2.3 MIDI Mode 6

2.4 Master Mode 7

2.5 Preset Functions 8

2.6 Chase Direction 10

2.7 Cross and Normal Dimmer 10

2.8 Link Up 11

2.9 Initialization 11

Improvement and changes to

specifications, design and this

manual, may be made at any time

without prior notice.

All manuals and user guides at all-guides.com

Contents

Features 1

Technical Specifications 12

General Instructions 2

1. Overview 3

2. Operation Guide 5

2.1 Mode Select 5

2.2 DMX Mode 5

2.3 MIDI Mode 6

2.4 Master Mode 7

2.5 Preset Functions 8

2.6 Chase Direction 10

2.7 Cross and Normal Dimmer 10

2.8 Link Up 11

2.9 Initialization 11

Improvement and changes to

specifications, design and this

manual, may be made at any time

without prior notice.

All manuals and user guides at all-guides.com

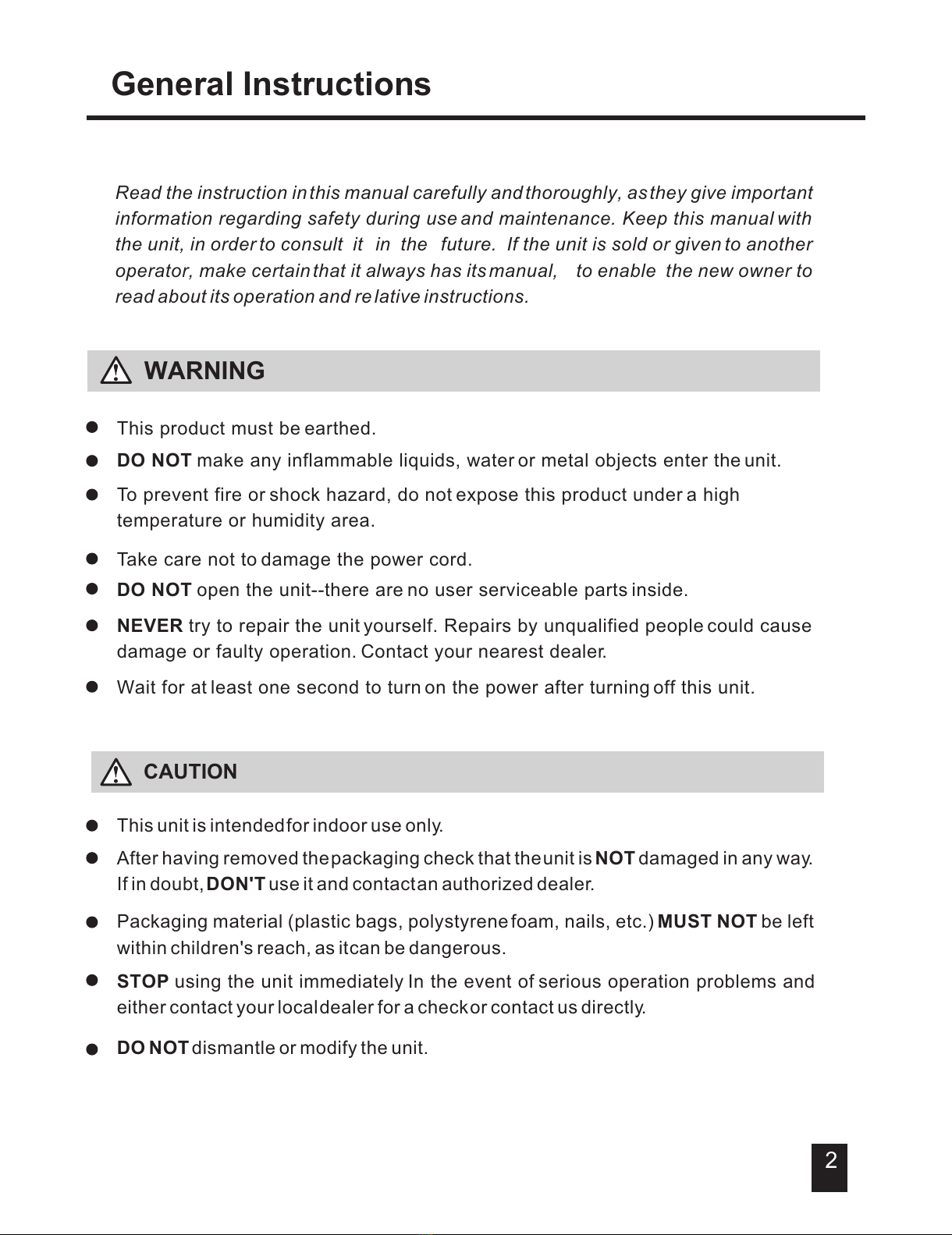

DO NOTdismantle or modify the unit.

Packaging material (plastic bags, polystyrenefoam, nails, etc.) MUST NOT be left

within children's reach, as itcan be dangerous.

After having removed thepackaging check that theunit is NOT damaged in any way.

If in doubt,DON'T use it and contactan authorized dealer.

This unit is intendedfor indoor use only.

NEVER try to repair the unit yourself. Repairs by unqualified people could cause

damage or faulty operation. Contact your nearest dealer.

Wait for at least one second to turn on the power after turning off this unit.

DO NOT open the unit--there are no user serviceable parts inside.

Take care not to damage the power cord.

STOP using the unit immediately In the event of serious operation problems and

either contact your localdealer for a checkor contact us directly.

DO NOT make any inflammable liquids, water or metal objects enter the unit.

To prevent fire or shock hazard, do not expose this product under a high

temperature or humidity area.

This product must be earthed.

Read the instruction inthis manual carefully andthoroughly, asthey give important

information regarding safety during use and maintenance. Keep this manual with

the unit, in order to consult it in the future. If the unit is sold or given to another

operator, make certainthat it always has itsmanual, to enable the new owner to

read about its operation and re lative instructions.

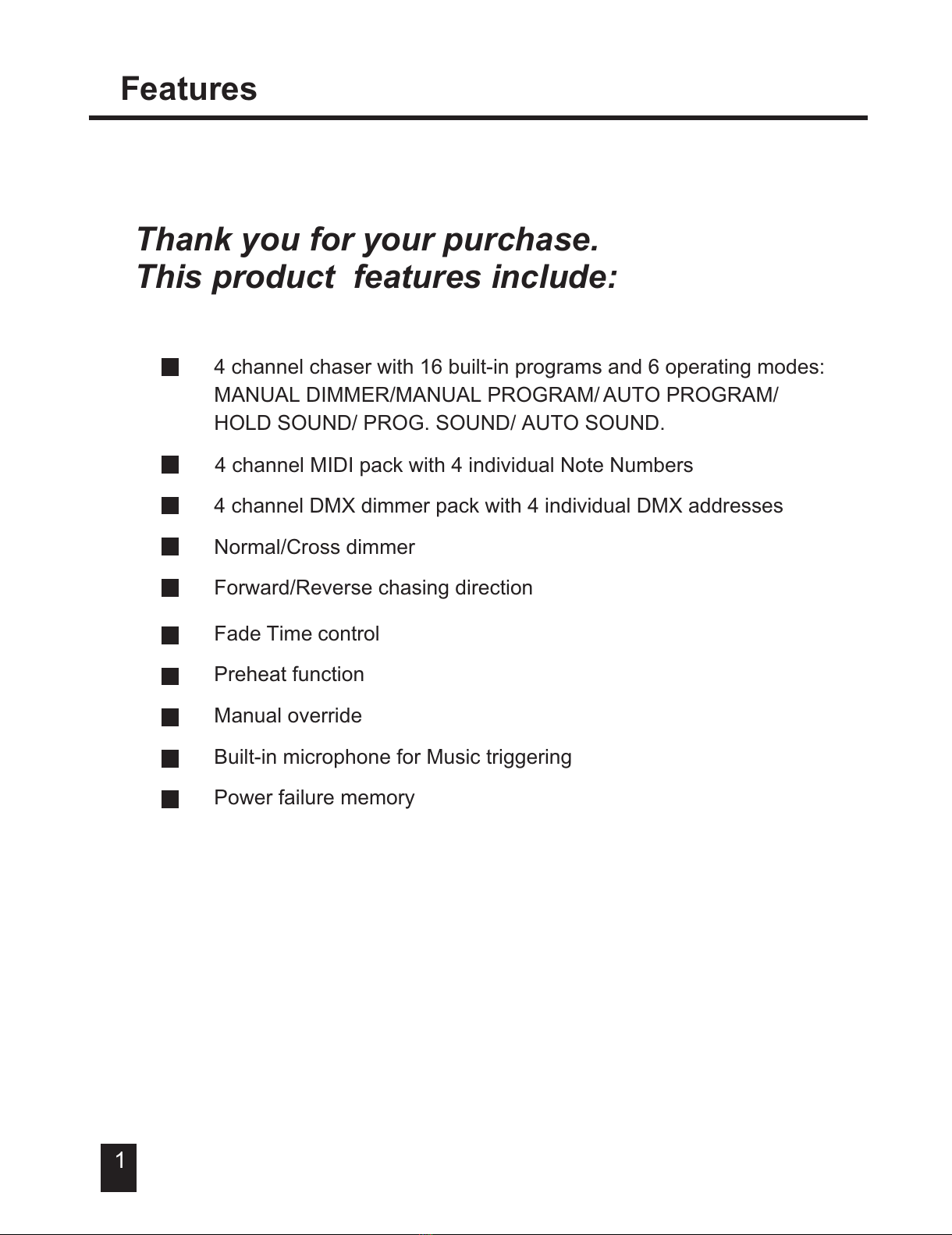

Features General Instructions

Thank you for your purchase.

This product features include:

1 2

WARNING

CAUTION

4 channel chaser with 16 built-in programs and 6 operating modes:

MANUAL DIMMER/MANUAL PROGRAM/ AUTO PROGRAM/

HOLD SOUND/ PROG. SOUND/ AUTO SOUND.

4 channel MIDI pack with 4 individual Note Numbers

4 channel DMX dimmer pack with 4 individual DMX addresses

Normal/Cross dimmer

Forward/Reverse chasing direction

Fade Time control

Preheat function

Manual override

Built-in microphone for Music triggering

Power failure memory

All manuals and user guides at all-guides.com

DO NOTdismantle or modify the unit.

Packaging material (plastic bags, polystyrenefoam, nails, etc.) MUST NOT be left

within children's reach, as itcan be dangerous.

After having removed thepackaging check that theunit is NOT damaged in any way.

If in doubt,DON'T use it and contactan authorized dealer.

This unit is intendedfor indoor use only.

NEVER try to repair the unit yourself. Repairs by unqualified people could cause

damage or faulty operation. Contact your nearest dealer.

Wait for at least one second to turn on the power after turning off this unit.

DO NOT open the unit--there are no user serviceable parts inside.

Take care not to damage the power cord.

STOP using the unit immediately In the event of serious operation problems and

either contact your localdealer for a checkor contact us directly.

DO NOT make any inflammable liquids, water or metal objects enter the unit.

To prevent fire or shock hazard, do not expose this product under a high

temperature or humidity area.

This product must be earthed.

Read the instruction inthis manual carefully andthoroughly, asthey give important

information regarding safety during use and maintenance. Keep this manual with

the unit, in order to consult it in the future. If the unit is sold or given to another

operator, make certainthat it always has itsmanual, to enable the new owner to

read about its operation and re lative instructions.

Features General Instructions

Thank you for your purchase.

This product features include:

1 2

WARNING

CAUTION

4 channel chaser with 16 built-in programs and 6 operating modes:

MANUAL DIMMER/MANUAL PROGRAM/ AUTO PROGRAM/

HOLD SOUND/ PROG. SOUND/ AUTO SOUND.

4 channel MIDI pack with 4 individual Note Numbers

4 channel DMX dimmer pack with 4 individual DMX addresses

Normal/Cross dimmer

Forward/Reverse chasing direction

Fade Time control

Preheat function

Manual override

Built-in microphone for Music triggering

Power failure memory

All manuals and user guides at all-guides.com

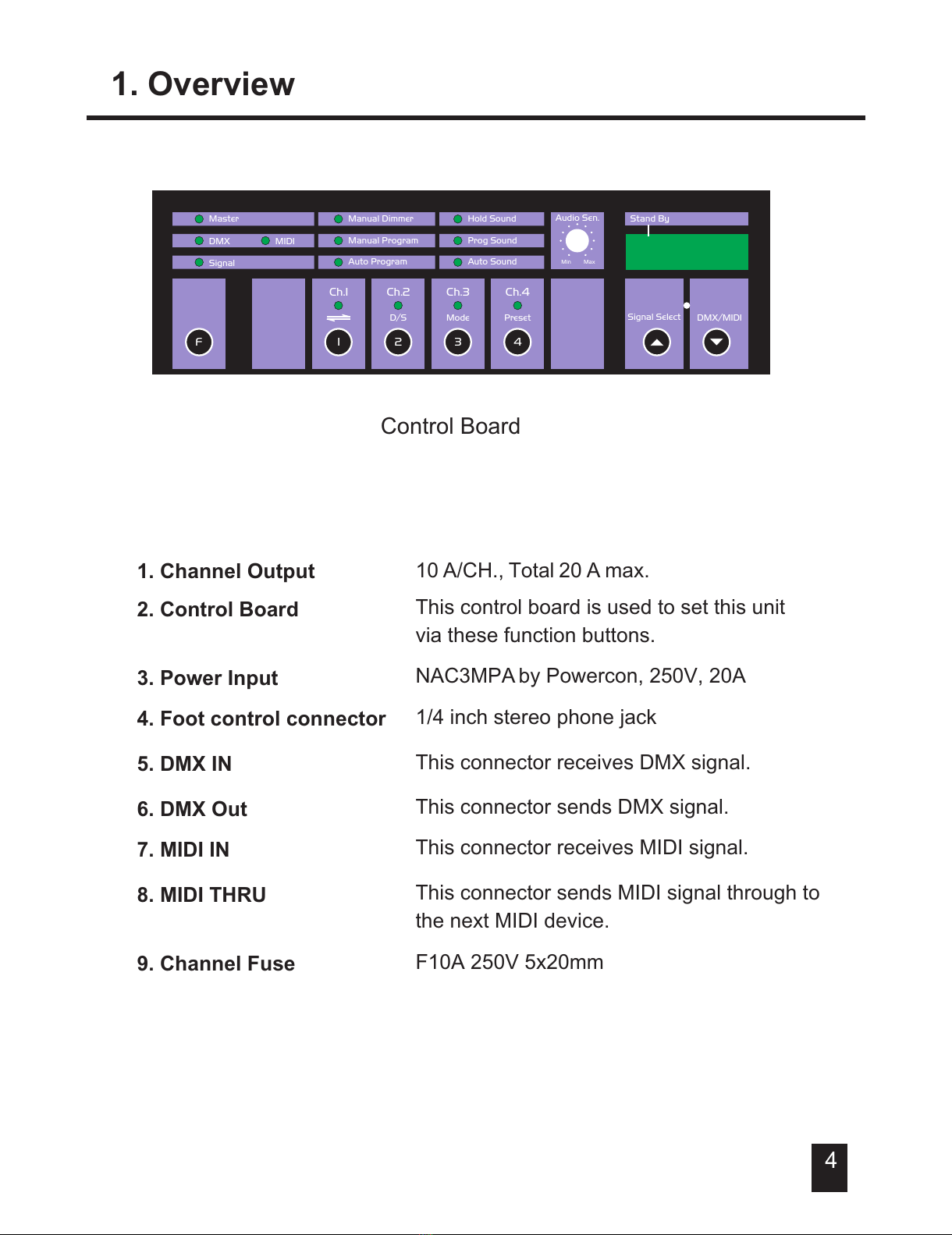

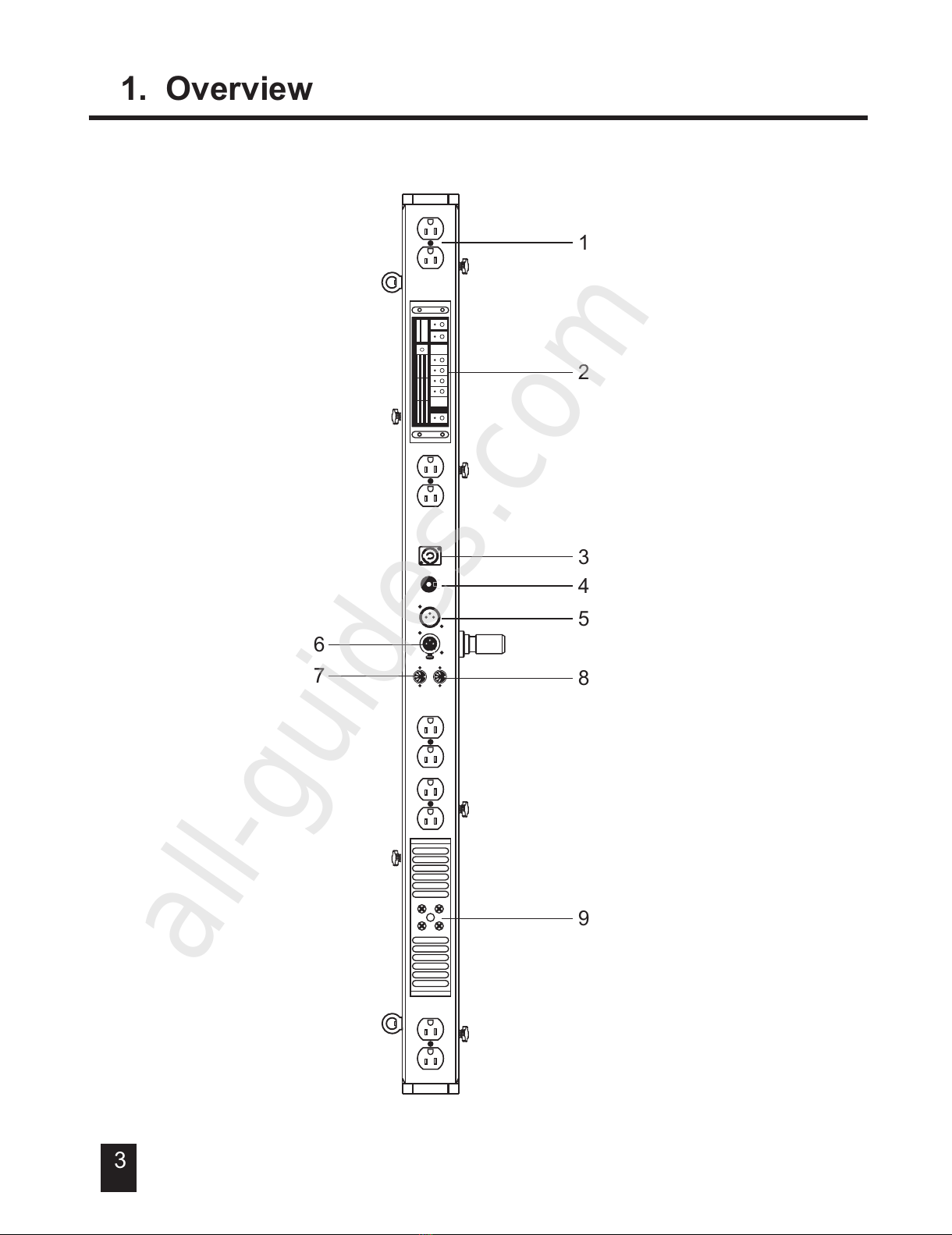

1. Overview 1. Overview

3 4

5. DMX IN

7. MIDI IN

6. DMX Out

8. MIDI THRU

9. Channel Fuse

This connector receives DMX signal.

This connector receives MIDI signal.

This connector sends DMX signal.

This connector sends MIDI signal through to

the next MIDI device.

F10A 250V 5x20mm

Control Board

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

PUSH

783. Power Input

2. Control Board

1. Channel Output

NAC3MPA by Powercon, 250V, 20A

This control board is used to set this unit

via these function buttons.

10 A/CH., Total 20 A max.

4. Foot control connector 1/4 inch stereo phone jack

All manuals and user guides at all-guides.com

all-guides.com

1. Overview 1. Overview

3 4

5. DMX IN

7. MIDI IN

6. DMX Out

8. MIDI THRU

9. Channel Fuse

This connector receives DMX signal.

This connector receives MIDI signal.

This connector sends DMX signal.

This connector sends MIDI signal through to

the next MIDI device.

F10A 250V 5x20mm

Control Board

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

PUSH

783. Power Input

2. Control Board

1. Channel Output

NAC3MPA by Powercon, 250V, 20A

This control board is used to set this unit

via these function buttons.

10 A/CH., Total 20 A max.

4. Foot control connector 1/4 inch stereo phone jack

All manuals and user guides at all-guides.com

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

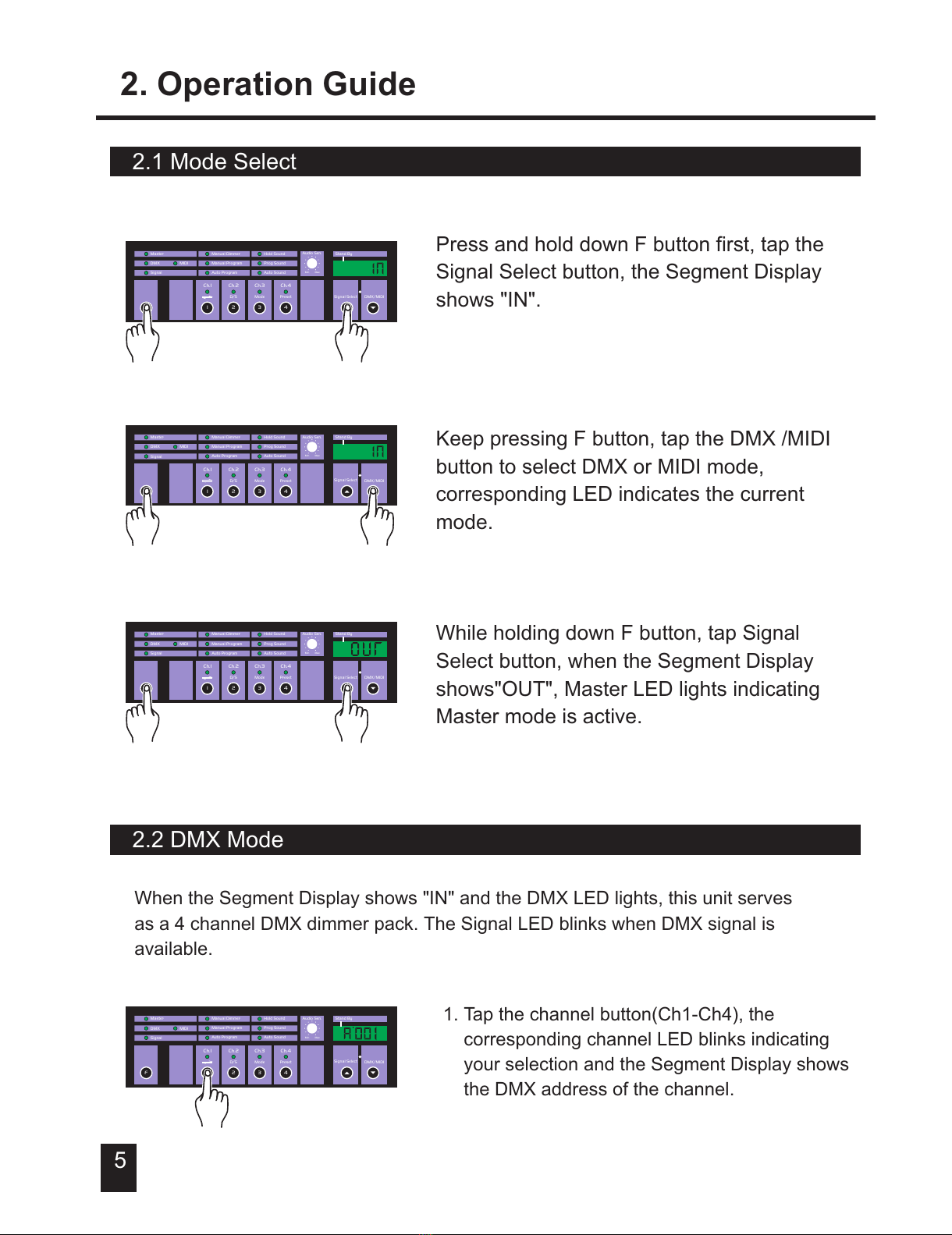

2. Operation Guide2. Operation Guide

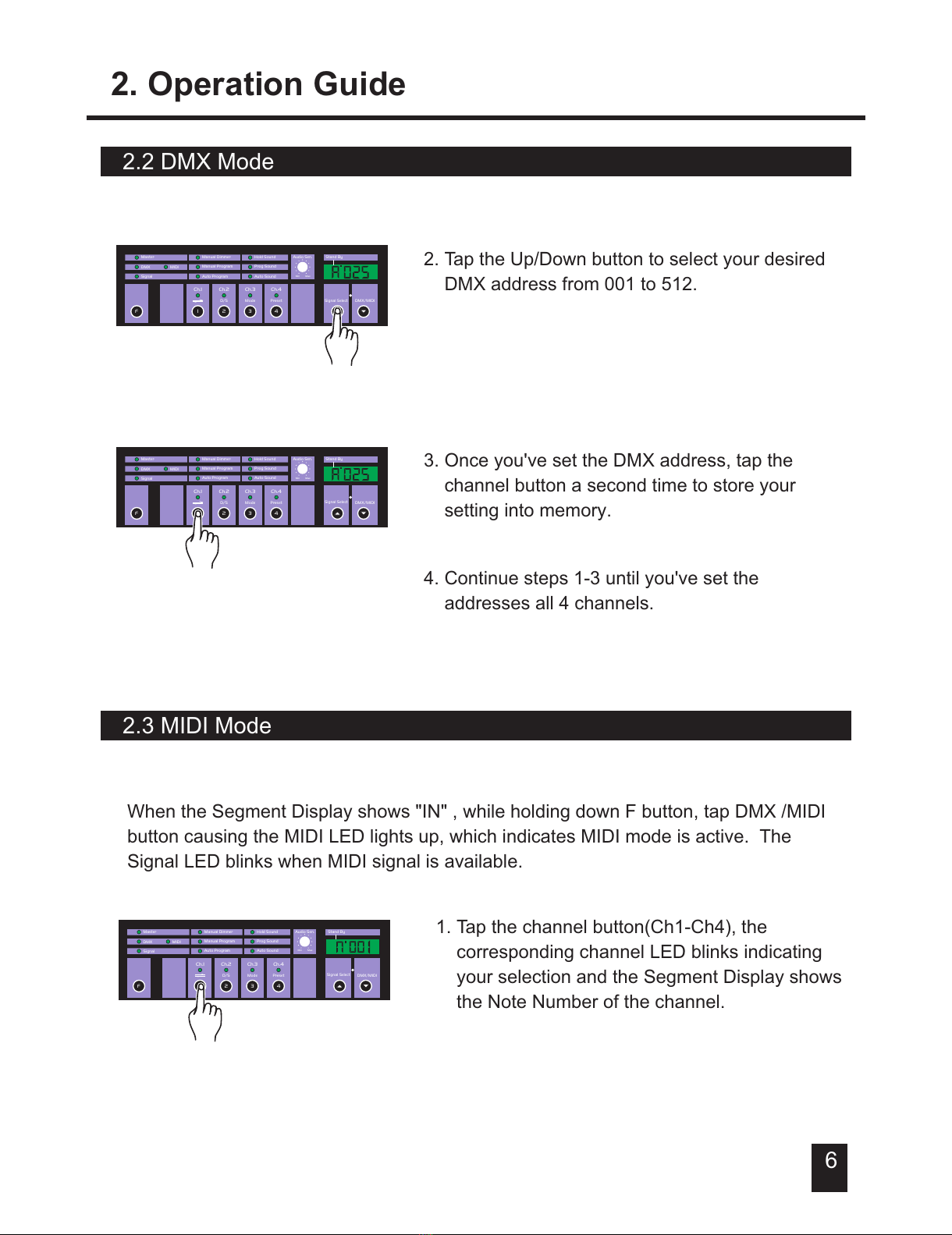

2.2 DMX Mode

2.3 MIDI Mode

2.1 Mode Select

2.2 DMX Mode

5 6

Press and hold down F button first, tap the

Signal Select button, the Segment Display

shows "IN".

Keep pressing F button, tap the DMX /MIDI

button to select DMX or MIDI mode,

corresponding LED indicates the current

mode.

While holding down F button, tap Signal

Select button, when the Segment Display

shows"OUT", Master LED lights indicating

Master mode is active.

1. Tap the channel button(Ch1-Ch4), the

corresponding channel LED blinks indicating

your selection and the Segment Display shows

the DMX address of the channel.

1. Tap the channel button(Ch1-Ch4), the

corresponding channel LED blinks indicating

your selection and the Segment Display shows

the Note Number of the channel.

2. Tap the Up/Down button to select your desired

DMX address from 001 to 512.

3. Once you've set the DMX address, tap the

channel button a second time to store your

setting into memory.

4. Continue steps 1-3 until you've set the

addresses all 4 channels.

When the Segment Display shows "IN" and the DMX LED lights, this unit serves

as a 4 channel DMX dimmer pack. The Signal LED blinks when DMX signal is

available.

When the Segment Display shows "IN" , , tap DMX /MIDI

button causing the MIDI LED lights up, which indicates MIDI mode is active. The

Signal LED blinks when MIDI signal is available.

while holding down F button

All manuals and user guides at all-guides.com

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

2. Operation Guide2. Operation Guide

2.2 DMX Mode

2.3 MIDI Mode

2.1 Mode Select

2.2 DMX Mode

5 6

Press and hold down F button first, tap the

Signal Select button, the Segment Display

shows "IN".

Keep pressing F button, tap the DMX /MIDI

button to select DMX or MIDI mode,

corresponding LED indicates the current

mode.

While holding down F button, tap Signal

Select button, when the Segment Display

shows"OUT", Master LED lights indicating

Master mode is active.

1. Tap the channel button(Ch1-Ch4), the

corresponding channel LED blinks indicating

your selection and the Segment Display shows

the DMX address of the channel.

1. Tap the channel button(Ch1-Ch4), the

corresponding channel LED blinks indicating

your selection and the Segment Display shows

the Note Number of the channel.

2. Tap the Up/Down button to select your desired

DMX address from 001 to 512.

3. Once you've set the DMX address, tap the

channel button a second time to store your

setting into memory.

4. Continue steps 1-3 until you've set the

addresses all 4 channels.

When the Segment Display shows "IN" and the DMX LED lights, this unit serves

as a 4 channel DMX dimmer pack. The Signal LED blinks when DMX signal is

available.

When the Segment Display shows "IN" , , tap DMX /MIDI

button causing the MIDI LED lights up, which indicates MIDI mode is active. The

Signal LED blinks when MIDI signal is available.

while holding down F button

All manuals and user guides at all-guides.com

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

Signal Select DMX/MIDI

Ch.1 Ch.2

D/S

Ch.3

Mode

Ch.4

Preset

MIDI

Master

DMX

Signal

Manual Dimmer

Manual Program

Auto Program

Hold Sound

Prog Sound

Auto Sound

Audio Sen.

MaxMin

1 2 3 4F

Stand By

2.3 MIDI Mode

2. Tap the Up/Down button to select the Note

Number from 001 to 128.

3. Once you've selected the Note Number, tap

the channel button a second time to store your

setting into memory.

4. Continue steps 1-3 to set Note Number of the

other channel.

2. Operation Guide

2.4 Master Mode

When the Segment Display shows "OUT" and the

Master LED lights, this unit serves as a 4 channel

DMX chaser.

Keep pressing F button, tap Mode button several

times to select chase mode from Manual Dimmer/

Manual Program/Auto Program/Auto Sound/Prog.

Sound/Hold Sound, corresponding LED indicates

your selection.

2. Operation Guide

2.4 Master Mode

Manual Dimmer Manual Dimmer LED is on, you can adjust the intensity

of individual of 4 channels using CH 1-4 and UP/DOWN

buttons.

Manual Program Manual Program LED is on, you can select any of 16

preset programs to chase.

Auto Program Auto Program LED is on, every of 16 programs will be

executed 8 times in sequence.

Hold Sound Hold Sound LED is on, channels 1-4 are controlled by

music rhythms detected by built-in microphone, its

sensitivity can be adjusted.

Prog Sound Prog Sound LED is on, the programs are executed by

Bass, 16 preset programs are selectable.

Auto Sound Auto Sound LED is on, every of 16 programs will be

Keep pressing F button, tap Preset button

several times to change functions between

Fade Time/Dimmer/Preheat/Speed/Program

/MIDI channel.

Fade Time The Segment Display shows "F"

followed by three numbers 000-

100. Tap Up/Down button to set

fade time from instant to 60 seconds.

2.5 Preset Functions

7 8

All manuals and user guides at all-guides.com

Autres manuels pour PRO BAR 4

Table des matières

Autres manuels Elation Matériel de DJ

Elation

Elation PROTEUS RAYZOR 760 Manuel utilisateur

Elation

Elation PALADIN Manuel utilisateur

Elation

Elation FSD 575 Manuel utilisateur

Elation

Elation SIX PAR Z19 IP Manuel utilisateur

Elation

Elation DTW BLINDER 700 IP Manuel utilisateur

Elation

Elation Elation Professional Scene Setter Manuel utilisateur

Elation

Elation FUZE WASH 575 Manuel utilisateur

Elation

Elation PROTEUS RAYZOR 1960 Manuel utilisateur

Elation

Elation KL Fresnel 6 PO Manuel utilisateur

Elation

Elation RAYZOR 360Z Manuel utilisateur

Elation

Elation EPV762 MH Manuel utilisateur

Elation

Elation PLATINUM 1200 WASH Manuel utilisateur

Elation

Elation CHORUS LINE 16 Manuel utilisateur

Elation

Elation TVL551 Manuel utilisateur

Elation

Elation DARTZ 360 Manuel utilisateur

Elation

Elation DESIGN WASH LED ZOOM Manuel utilisateur

Elation

Elation 1236100115 Manuel utilisateur

Elation

Elation KL FRENSEL 4 Manuel utilisateur

Elation

Elation FUZE SPOT Manuel utilisateur

Elation

Elation FUZE PROFILE CW Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Elation

Elation Proteus Lucius Manuel utilisateur

Elation

Elation DMX Operator 192 Manuel utilisateur

Elation

Elation CUEPIX 16IP Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur

KAM

KAM DMX Laser80 FScan Manuel utilisateur
