Quick Start Guide

MODEL

Use this book as a start guide when setting up the projector.

For detailed information about installation, setup and operation of projector,

refer to the owner's manual on the CD-ROM.

Read the safety instructions in the Owner's Manual before using projector.

LC-XN200

LC-WXN200

LC-XN200L*

LC-WXN200L*

*Projection lens is optional.

Quick Start Guide

MODEL

Use this book as a start guide when setting up the projector.

For detailed information about installation, setup and operation of projector,

refer to the owner's manual on the CD-ROM.

Read the safety instructions in the Owner's Manual before using projector.

LC-XN200

LC-WXN200

LC-XN200L*

LC-WXN200L*

*Projection lens is optional.

Accessories

Unpack and inspect the box contents to ensure all parts listed below are in

the box. If something is missing, please contact your dealer.

Owner's Manual(CD) AC Power cord Remote control with batteries

(AA or LR6)

VGA cable Quick start guide Rubber Cap

WiFi Dongle Zigbee Antenna Zigbee Dongle

Rubber gasket

US Type x1

Euro Type x1

Install remote control batteries

Remote Control Operating range

①Open the battery

compartment lid.

②Install new batteries

into the compartment.

③Replace the

compartment lid.

Two AA batteries

For correct polarity

(+ and –), be sure

battery terminals

are in contact

with pins in the

compartment.

To ensure safe operation, please observe the following precautions:

Point the remote control toward the projector

remote receiver (front and back) when pressing

any button.

The maximum operating range for the remote

control is about 5 meters and 60 degrees.

● Use two (2) AA or LR6 type batteries.

● Always replace batteries in sets.

● Do not use a new battery with a used battery.

● Avoid contact with water or liquid matter.

● Do not expose the remote control to moisture or heat.

● Do not drop the remote control.

● If the battery has leaked in the remote control, carefully wipe the case clean and

install new batteries.

● Risk of explosion if two batteries are replaced by an incorrect type.

● Dispose of used batteries according to the instructions on the battery or local

regulations or guides.

Installation

Positioning the projector

Note:

● The brightness in a room has a great inuence on image quality. It is recommended to limit the

ambient lighting in order to get the best image.

● All measurements are approximate and may vary from the actual sizes.

Note:

The data in "()" is the project distance for

16:9 aspect ratio.

Note:

The data in "()" is the project distance for

16:9 aspect ratio.

LC-XN200

16:9

4:3

16:10

LC-WXN200

Screen size

(WxH)mm

4:3 aspect ratio

40" 100" 150" 200" 300"

813x610 2032x1524

3048x2286

4064x3048 6096x4572

Maximum 1.38m 3.45m 5.18m 6.91m 10.36m

Minimum 2.35m 5.87m 8.81m 11.74m 17.62m

Screen size

(WxH)mm

16:9 aspect

ratio

40" 100" 150" 200" 300"

885x498 2213x1245

3320x1867

4427x2490 6641x3735

Maximum 1.50m 3.70m 5.50m 7.60m 11.30m

Minimum 2.50m 6.30m 9.50m 12.70m 19.10m

Screen size

(WxH)mm

16:10 aspect

ratio

40" 100" 150" 200" 300"

861x538 2154x1346

3231x2019

4308x2692 6462x4039

Maximum 1.30m 3.40m 5.10m 6.70m 10.10m

Minimum 2.20m 5.70m 8.50m 11.40m 17.20m

300”

200”

150”

100”

40”

300”

6.91m (7.60m)

3.45m (3.70m)

5.18m (5.50m)

1.38m (1.50m)

17.62m (19.10m)

10.36m (11.30m)

Min.

Max.

(Diagonal:Inch)

(Center)

300”

200”

150”

100”

40”

300”

6.70m (7.50m)

3.40m (3.80m)

5.10m (5.60m)

1.30m (1.50m)

17.20m (19.20m)

10.10m (11.20m)

Min.

Max.

(Diagonal:Inch)

(Center)

Adjustable feet

The projection angle can be adjusted up to 5.0

degrees with the adjustable feet.

Rotate the adjustable feet clockwise to lift the

projector to a certain height.

To lower or retract the adjustable feet, rotate

the two feet counterclockwise.

Keystone distortion of projected images can

be corrected by auto settings, remote control

operation or menu operation.

Adjustable feet

Screen size

(WxH)mm

16:9 aspect

ratio

40" 100" 150" 200" 300"

885x498 2213x1245

3320x1867

4427x2490 6641x3735

Maximum 1.50m 3.80m 5.60m 7.50m 11.20m

Minimum 2.60m 6.40m 9.60m 12.80m 19.20m

Installation

Lens shift adjustment

Projection lens can be moved from side to side and up to down.

This function makes the positioning of images easy on the screen.

The display position can be shifted upward up

to 50% elevation of the display.

The display position can be shifted to the left

up to 10% width of the display.

The display position can be shifted to the right

up to 10% width of the display.

When the lens is shifted to top.

When the lens is shifted to leftmost. When the lens is shifted to rightmost.

When the lens is shifted to bottom.

The display position can be shifted downward

up to 50% elevation of the display.

When the lens is

shifted to the center. Shifting range

50% elevation of the display and 10% width of

the display.

Installation

Connecting to computer(Digital and analog RGB)

Cables used for connection:

● VGA cable ● Serial crossover cable*

● DVI cable* ● BNC cable*

● HDMI cable*

(*=Cables not supplied with the projector)

Connecting the cables rst, then plug the power cords of both the projector and external

equipment from the AC outlet.

VGA input/output

VGA output/input

RS232 output VGA output

DVI input HDMI input

HDMI output

BNC

cable

Serial

crossover

cable

DVI

digital

cable

HDMI

cable VGA

cable

VGA

cable

VGA input

RS232 input

RGBHV signal

RGBHV input

DVI output

Installation

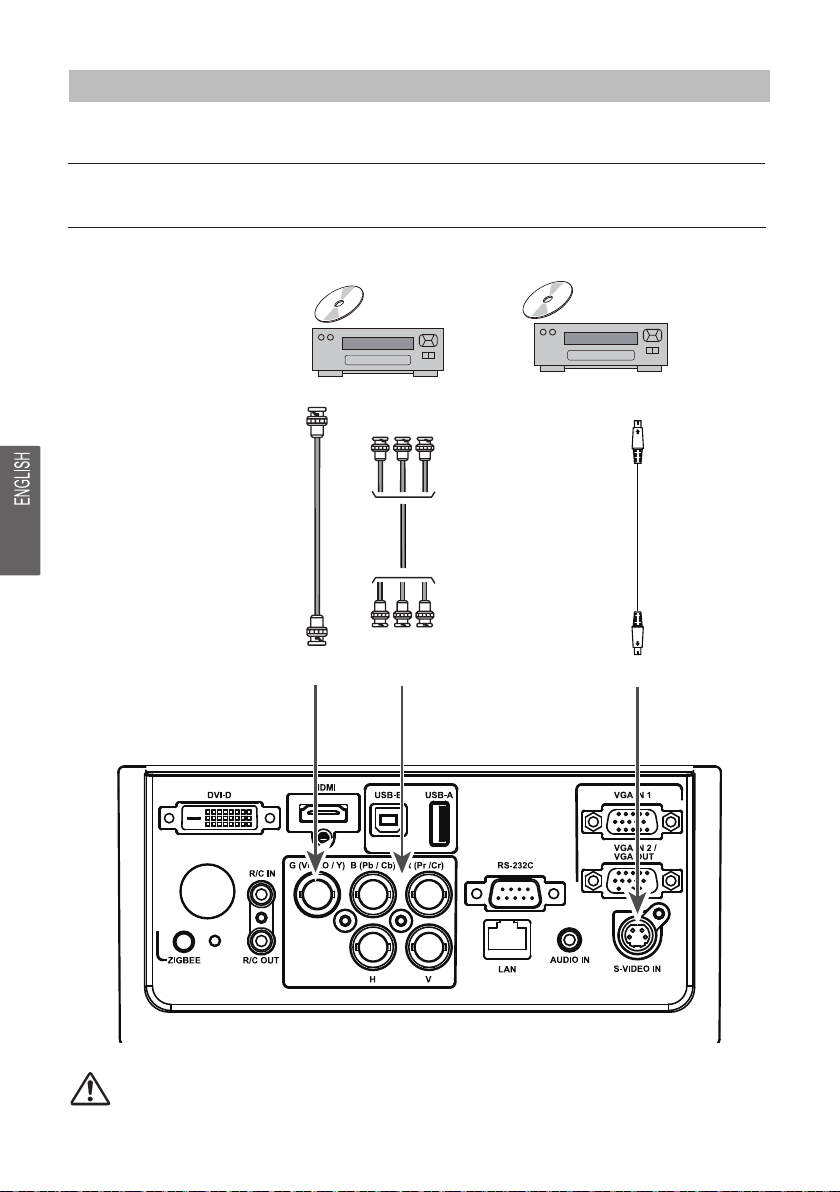

Connecting to video equipment (Video, S-Video)

Cables used for connection

● Video cable * ● RCA cable * ● BNC cable *

(*=Cables not supplied with the projector)

Connecting the cables rst, then plug the power cords of both the projector and external

equipment from the AC outlet.

Component video output

Component video input

S-Video

cable

S-video output

S-Video input

Composite video output

Composite video input

BNC

cable RCA

cable
