THE BEAUTY OF SIMPLICITY

USER MANUAL

SLIM HOOD EFCH 9106 HM SS

Table of Contents

From the Manufacturer

Specifications

SAFETY: Read this before installation

Description of Parts

Ducted vs. Re-circulating

Setting

Installation

Operation

Cleaning & Maintenance

Troubleshooting

8,9

From the Manufacturer

This appliance and the packaging are produced by processes that

minimize waste and respect the environment.

Please help us to continue the protection of the environment

by disposing the packaging in a correct way.

Safety!

Please do not allow young children to play with the plastic bag

packaging.

Before disposing of any old appliances, be sure to cut off the power cord

so that others will not be endangered by a defective electric appliance.

Specifications

Input: 220-240V/50Hz

Power

200W

2x1W

100W

2 motor version:

1 motor version:

1x1W

Dimensions

597x501x100mm60cm version:

90cm version: 897x502x100mm

LED Lamp：

LED Lamp:

SAFETY: Read this before installation

Do not connect the appliance if there are obvious signs of transportation

damage.

Read this user manual thoroughly before attempting to use this appliance.

Installation and repair should be attempted only by qualified technical

personnel.

It is dangerous to modify any part of this appliance.

The manufacturer declines all responsibility in case of failure to adopt

proper safety measures.

Ensure the location in which this appliance is installed has good,

permanent ventilation.

The distance between the bench top to the lower part of the hood must not

be less than 65cm or higher than 75cm.

Check that the voltage in your area is correct before plugging in.

The electrical connection of this appliance must be connected to earth.

Green & yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

Multiple plugs and extension cables must not be used. Overload is

dangerous and may cause a fire.

Ensure that the power supply cord is free from any heat source or sharp

objects.

The appliance should be switched off and the electrical supply

disconnected before any cleaning or maintenance work can be carried

out.

Description of Parts

Stopper

2 Charcoal filters

120mm

3 Aluminium filters( for 90CM)

6 Screws

2 Aluminium filters( for 60CM)

2 screws are used for fixing hood unit on the

wall as Installation Step 3.

Other 4 screws are used for fixing hood unit to

cabinet as well if necessary

Ducted vs. Re-circulating

Your cooker hood can be configured to operate in the ducted or re-circulating

mode:

A. DUCTED MODE (VENTED MODE)

In the ducted mode, cooking fumes are vented outdoors through suitable

connection of 125mm diameter. In this mode, only the aluminium filters are

installed.

B. RE-CIRCULATING MODE

Fumes are filtered for grease and odour through the aluminium grease filters

and the charcoal filters respectively and re-introduced into the kitchen

environment. In re-circulating mode, both the aluminium grease filters and the

charcoal filters must be installed.

Ducted hole must be

covered with stopper

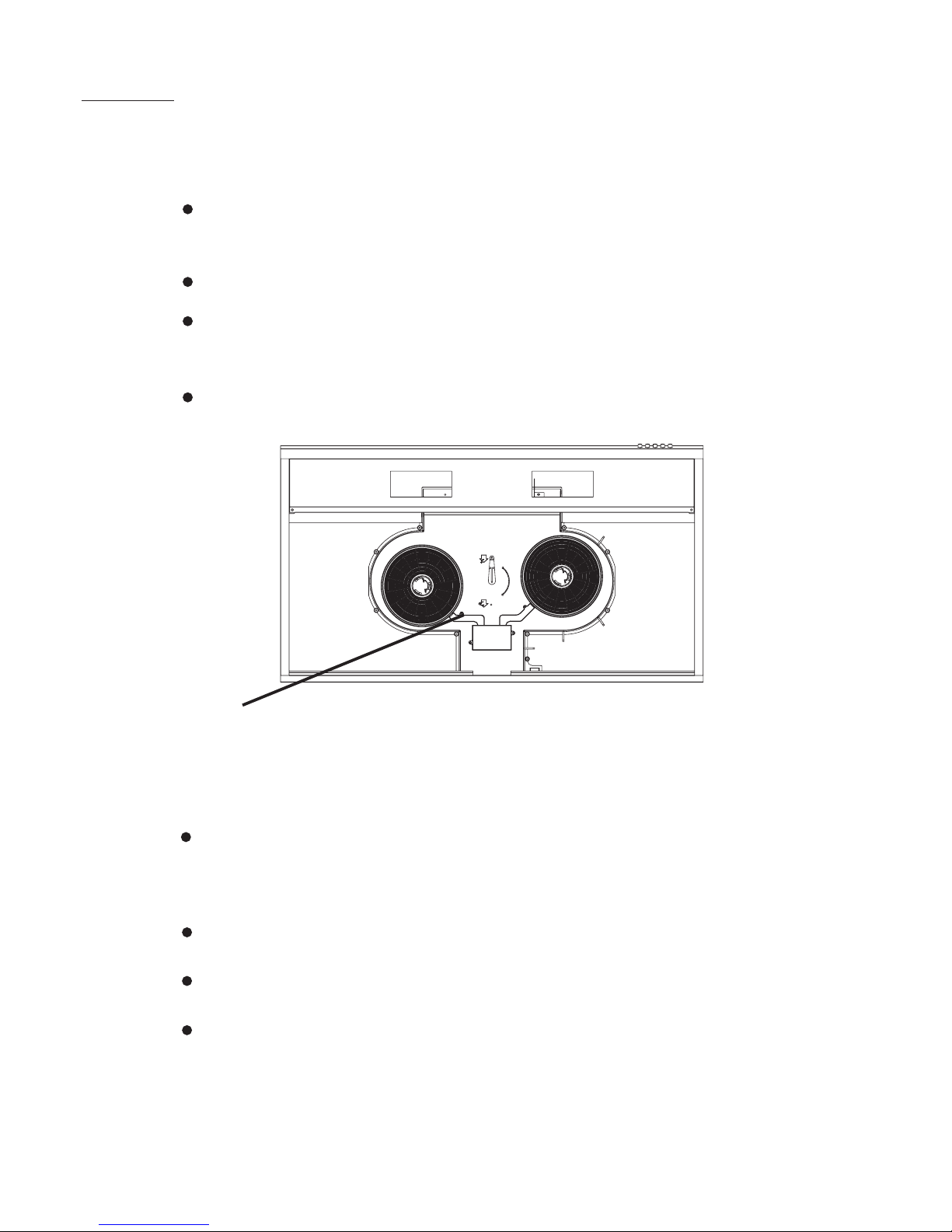

Setting

The operating mode of your cooker hood must be set before installation

A. To set your hood to operate in the ducted mode

remove the aluminium grease filters and locate the 2 setting

screws

Turn the screws clockwise until locked

Install the outlet connector the back or top outlet and the stopper

in the other.

Remove the charcoal filters if installed

B. To set your hood to operate in the re-circulation mode

remove the aluminium grease filters and locate the 2

setting screws

Turn the screws anti-clockwise until released

Install the stoppers at the top outlets

Install the charcoal filters

Setting

Installation

STEP 1: Remove the aluminium filters and place them in a safe location to

avoid damage.

STEP 2: Install the 2 screws on the wall:

700mm

Installation

STEP 3: Hang the hood

STEP 4: Tighten the 2 screws completely

Clockwise

STEP 5: Put back the aluminium filters

Operation

It is also equipped with LED lamp to illuminate your cooking area when needed.

Cleaning & Maintenance

SURFACES: Wash with warm soapy water and a soft sponge. Never use

abrasive detergent, scouring pads, steel wool or solvents on any part of this

appliance as this will cause irreparable damage.

ALUMINIUM GREASE FILTERS: Wash in the dishwashers or soak the panels

in a degreasing agent for an hour, then rinse off.

CHARCOAL FILTERS (only for re-circulating mode): Charcoal filter cannot be

reused. They must be replaced once a year or depending on the frequency of

the appliance usage.

For this appliance to function effectively, regular maintenance is a must.

Clogged filters restrict airflow and may cause the motor to overheat.

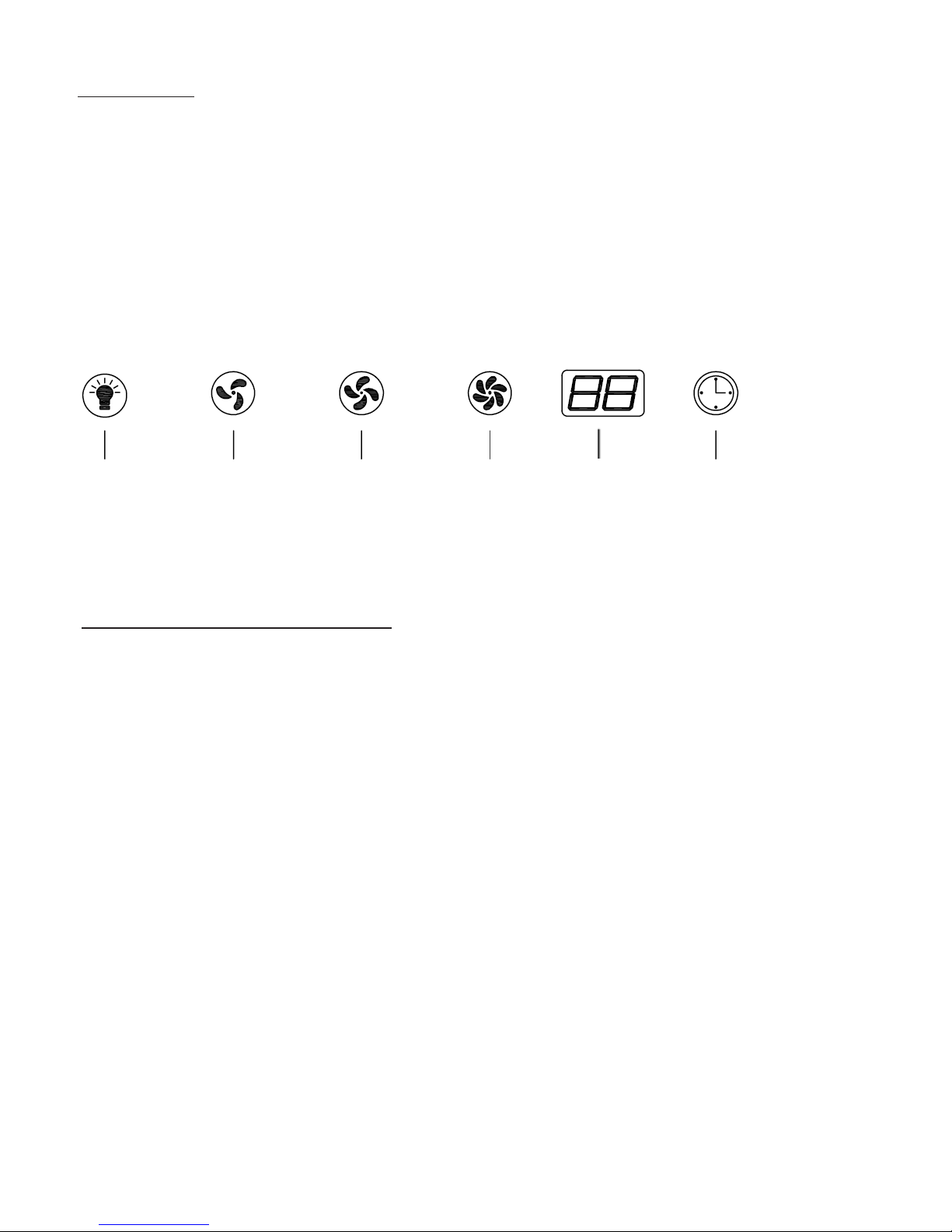

Low

Speed

Medium

Speed

High

Speed

Delay Stop

Timer

Light

The hood is equipped with 3 speed touch control.

Use the low speed for simmering,medium speed for light cooking. Use the high

speed for frying or heavy cooking.

Timer

Display
