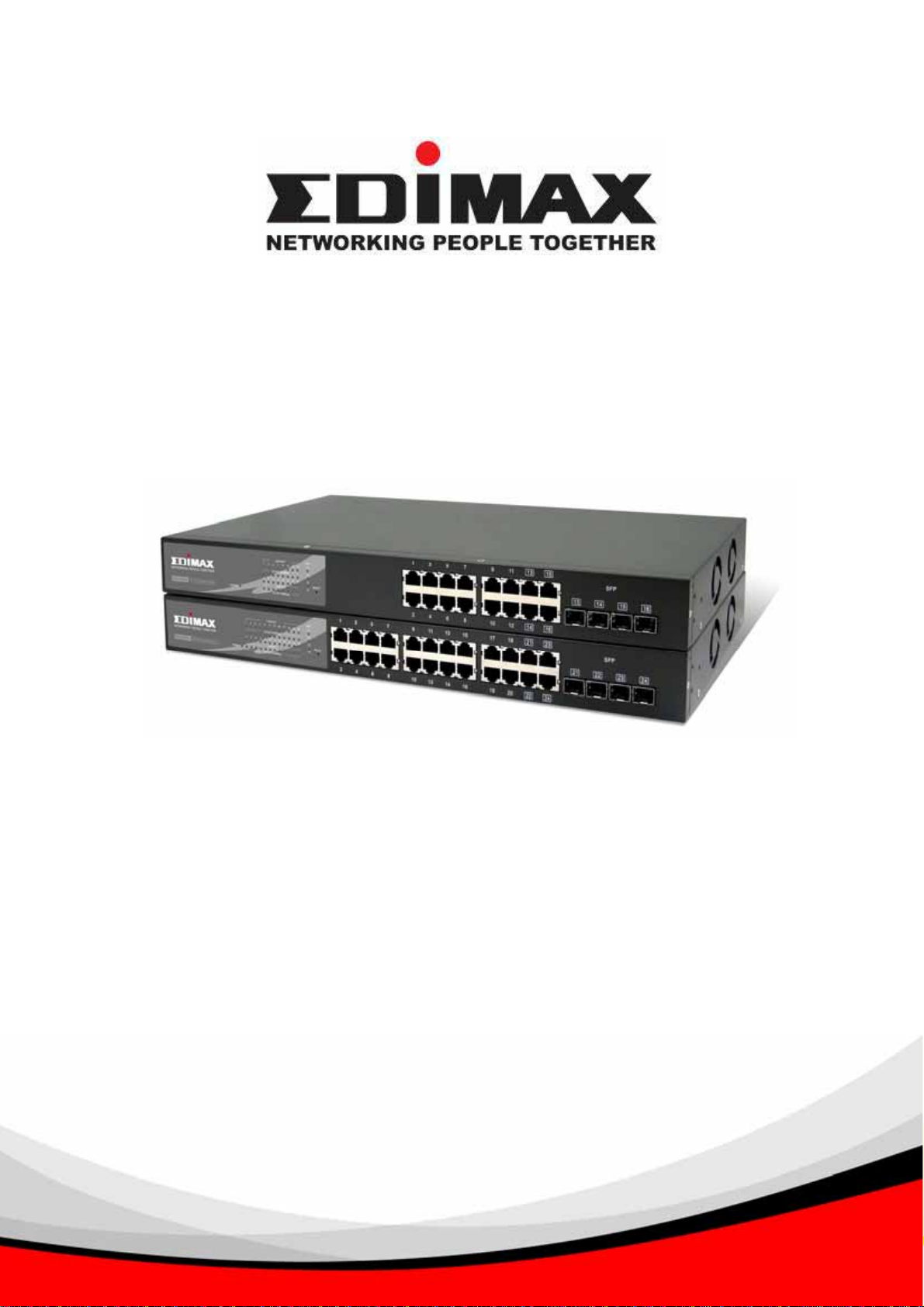

ES-5160G+ / ES-5240G+
Read Me First
Version 1.0 / June 2007
1
English Version.
1.1 Overview
ES-5160G+ / ES-5240G+ complies with IEEE 802.3/u/x/z Gigabit and
Fast Ethernet standards. The switch includes 16 or 24 10/100/1000Mbps TP
ports and 4 Gigabit SFP fiber slots. The switch can be managed through
Ethernet using Web-based management interface. The network administrator
can logon to the switch to monitor, configure and control each port’s activity.
In addition, the switch supports the QoS (Quality of Service), VLAN, and
Trunking.
In ES-5160G+, Port 13, 14, 15, 16 or ES-5240G+, Port 21, 22, 23, 24 support
two types of media --- TP(10/100/1000Mbps) and SFP(1000Mbps) Fiber (LC,
BiDi-SC…) auto-detection function.
1000Mbps LC, Multi-Mode, 220m or 550m SFP Fiber transceiver
1000Mbps LC, Single-Mode, 10km, SFP Fiber transceiver
1000Mbps LC, Single-Mode, 30km, SFP Fiber transceiver
1000Mbps LC, Single-Mode, 50km, SFP Fiber transceiver
1000Mbps BiDi-SC, 20km, 1550nm SFP Fiber WDM transceiver
1000Mbps BiDi-SC, 20km, 1310nm SFP Fiber WDM transceiver
2
10/100/1000Mbps TP is a standard Ethernet port that meets all IEEE
802.3/u/x/z Gigabit/Fast Ethernet standard. 1000Mbps SFP Fiber transceiver
is a Gigabit Ethernet port that fully complies with all IEEE 802.3z and
1000Base-SX/LX standards.
1000Mbps Single Fiber WDM (BiDi) transceiver is designed with the
optic Wavelength Division Multiplexing (WDM) technology that transmits
bi-directional full duplex signals over a single fiber simultaneously.
1.2 Key Features
QoS:
Supports 802.1p VLAN tag priority and DSCP on Layer 3 of network
framework.
VLAN:
Supports Port-based VLAN (46 groups) and IEEE802.1Q Tag VLAN (4094
groups)
Port Trunking:
Allows one or more links to be aggregated together to form a Link Aggregation
Group by the static setting.
3
• Hardware
• 16 or 24 10/100/1000Mbps Auto-negotiation Gigabit Ethernet TP ports
• 4 1000Mbps SFP fiber slots
• 400KB on-chip frame buffer
• Supports jumbo frame
• Programmable classifier for QoS (Layer 2/Layer 3)
• 8K MAC address
• Per-port shaping, policing, and broadcast storm control
• Supports IEEE802.1Q-in-Q nested VLAN with 4094 VLAN groups
• Full-duplex flow control (IEEE802.3x) and half-duplex backpressure
• Extensive front-panel diagnostic LEDs; System: Power, TP Port1-16:
LINK/ACT, 10/100/1000Mbps, SFP Port 13, 14, 15, 16(ES-5160G+) or
21, 22, 23, 24(ES-5240G+): SFP(LINK/ACT)
• Management
• Supports concisely the status of port and easily port configuration
• Supports per port traffic monitoring counters
• Supports a snapshot of the system information
• Supports port mirror function
• Supports the static trunk function
• Supports 802.1Q VLAN
• Supports user management and limits one user to login
4
• Maximal packet length can be up to 9600 bytes for jumbo frame application
• Supports Broadcasting Suppression to avoid network suspended or
crashed
• Supports to send the trap event while monitored events occur
• Restore the current configuration to default via Web UI or RESET button
on the switch
• Supports on-line plug/unplug SFP modules
• Supports Quality of Service (QoS) for real time applications based on the
information taken from Layer 2 to Layer 3.
• Built-in web-based management instead of using CLI interface, providing
a more convenient GUI for the user
1.3 Package Content:
Before you start installing ES-5160G+/ ES-5240G+, please check the
package contains the following items:
One Gigabit 16 / 24 ports Web Smart switch
One AC Power Cord
One set of mounting accessory (for 19＂rack shelf)
One User Guide CD-ROM
Please notify your sales representative immediately if any of the
aforementioned items is missing or damaged.
5
Power Requirements: AC Line
Interfaces on the Front Panel (Button, LEDs and Plugs)
There are 16 TP Gigabit Ethernet ports and 4 SFP fiber slots for SFP modules
on the front panel of the switch. LED display area, locating on the left side of
the panel, contains a Power LED, which indicates the power status and 16
ports working status of the switch.
Voltage : 100∼240 VAC
Frequency : 50∼60 Hz
Consumption : 30W
TP Port Status LEDs
Power LED
Fiber Ports Status LEDs
RESET Button:
RESET button is used
to restore the system
default setting.
Gigabit Ethernet Ports
SFP Fiber slots
Fig. 1-2 Front View of ES-5160G+
6
LED Indicators
LED Color Function
System LED
POWER Green Lit when +3.3V power is coming up
10/100/1000Ethernet TP Port 1 to 16 LED
LINK/ACT Green Lit when connection with remote device is good
Blinks when any traffic is present
10/100/1000Mbps
Green/
Amber
Lit Green when TP link on 1000Mbps speed
Lit Amber when TP link on 100Mbps speed
Off when 10Mbps or no link occurs
Blinks when any traffic is present
1000SX/LX Gigabit Fiber Port 13, 14, 15, 16 or 21, 22, 23, 24 LED
SFP(LINK/ACT) Green
Lit when SFP connection with remote device is
good
Blinks when any traffic is present
Interfaces on the Rear Panel
AC Line 100-240V 50/60 Hz
Fig. 1-3 Rear View of ES-5160G+
7
Quick Installation:
1. Install the switch in the rack with mounting accessory.
2. Connect the switch to an AC power source.
3. The connectors of port 1–16 or 1-24 are RJ-45 jack. Use Category 5 UTP
cable to connect between the switch and end station.
4. The port 13~16 or 21~24 includes two types of media --- TP and SFP
fiber module with auto-detected function.
5. The default values of the switch are as below:
IPAddress : 192.168.1.1
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.1.254
Password : admin
User can use web interface to configure the switch with the default IP address
and password. Please refer to User’s Guide in Autorun CD-ROM for details of
the parameters setting.
