Edimax GS-5008PL Manuel utilisateur

GS-5008PL

User Manual

12-2015 / v1.0

Table of Contents

Chapter 1 Product Introduction 2

1.1 Product Overview 2

1.2 Features 2

1.3 External Component Description 3

1.3.1 Front Panel 3

1.3.2 Rear Panel 5

1.4 Package Contents 5

Chapter 2 How to Login the Switch 6

2.1 Switch to End Node 6

2.2 How to Login the Switch 7

Chapter 3 Switch Configuration 8

3.1 System 9

3.1.1 Device Name Setup 10

3.1.2 IPv4 Address and Subnet Mask Setup 10

3.2 Management 11

3.3 Port 12

3.4 VLAN 13

3.4.1 IEEE 802.1Q VLAN 13

3.4.2 Port-Based VLAN 15

3.5 Trunking 16

3.6 QoS 18

3.7 Broadcast Storm Control 20

3.8 Loop Detect/Prevent 21

3.9 IGMP Snooping 22

3.10 POE 23

3.11 Password 24

3.12 Logout 25

Federal Communication Commission Interference Statement 27

Chapter 1 Product Introduction

Thank you for purchasing an Edimax PoE Web Smart Ethernet Switch. Before you install and use the

product, please read this manual carefully to make the best use of the product’s functions.

1.1 Product Overview

The Giga Ethernet POE Switch provides a seamless network connection, with integrated 1000Mbps

Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.

1.2 Features



Supports 8 10/100/1000Mbps Gigabit Ethernet ports



Support IEEE 802.3af/at PoE compliant to simplify deployment and installation



Support PoE up to 30W per port With 150W total power budget



Automatically detects power devices(PD) and power consumption levels



IEEE 802.1Q VLAN allows network segmentation to enhance performance and security



IEEE 802.1p QoS with 4 priority queues



Supports Access Control List (ACL)



Switch capacity:16Gbps, Forwarding rate:11.9Mbps



Support IGMP Snooping V1 / V2 /V3



4K MAC address table and 9K jumbo frames

1.3 External Component Description

1.3.1 Front Panel

The front panel of the Switch consists of 8 x 10/100/1000Mbps RJ-45 ports, and a series of LED

indicators as shown as below.

Front Panel

10/100/1000Mbps RJ-45 ports (1~8):

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Each has a

corresponding 10/100/1000Mbps LED.

LED indicators:

The LED Indicators will allow you to monitor, diagnose and troubleshoot any potential problem with the

Switch, connection or attached devices.

LED Indicators

The following chart shows the LED indicators of the Switch along with explanation of each indicator.

Power/System: Green LED

Off: power off or fail

On: power on

Blinking: system booting up

PoE Max: Green LED

Off: PoE power output under 70% PoE power budget

On: PoE power output over 70% PoE power budget

Port LED:

LINK/ACT: bio-color LED

Off: port disconnected or link fail

Green on: GbE connected

Amber on: 10/100M connected

Blinking: sending or receiving data

PoE

Off: PoE power output off

Green on: PoE power output on

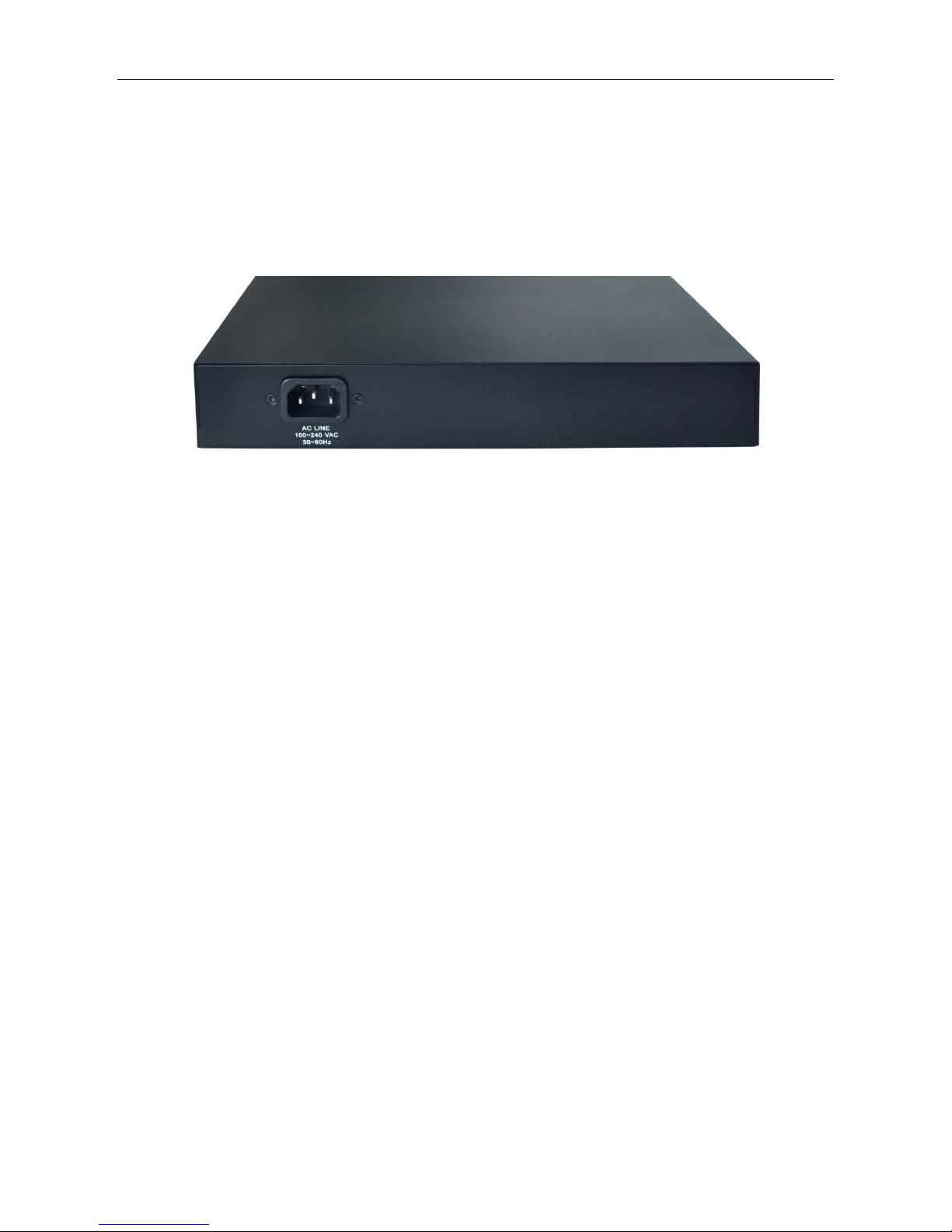

1.3.2 Rear Panel

The rear panel of the Switch houses an AC power connector as shown below.

Rear Panel

AC Power Connector:

Power is supplied through anAC power cable. It supports AC 100 - 240V, 50 - 60Hz.

1.4 Package Contents

Before you start using this product, please check if there is anything missing in the package, and contact

your dealer to claim the missing item(s):



GS-5008PL POE Web Smart Switch



Quick Installation Guide



Power Cord



Rack-Mount Kit

Chapter 2 Connect & Login

2.1 Switch to End Node

Use a standard Cat.5/5e Ethernet cable (UTP/STP) to connect the Switch to end nodes as shown below.

Switch ports will automatically adjust to the characteristics (MDI/MDI-X, speed, duplex) of the device to

which is connected.

Please refer to the LED Indicator Specification.The LINK/ACT/Speed LEDs for each port lights on when

the link is available.

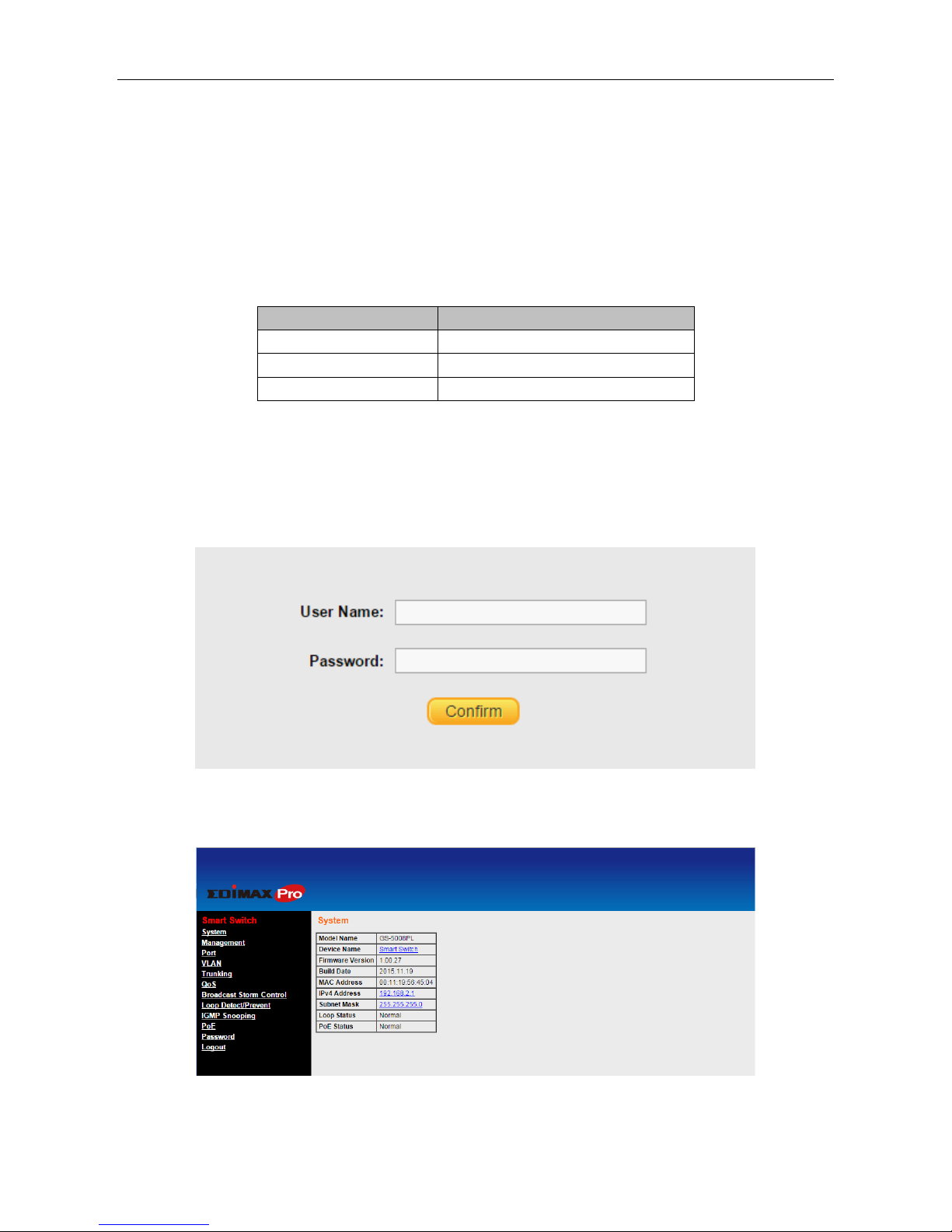

2.2 Login

Open a web browser and go to the switch’s IP address. The default IP address is 192.168.2.2. Your

computer’s IP address must be in the same subnet as the switch. For the default IP address this is any IP

address in the range 192.168.2.x (x = 3 –254). You can modify the IP address of your computer if you

need.

Parameter

Default Value

Default IP address

192.168.2.1

Default user name

admin

Default password

1234

1.Enter the switch’s IP address (192.168.2.1) in the URL bar of a web browser. IE 7 or above is

recommended.

2.At the following screen login with the default username “admin” and password “1234”.

3.You will arrive at the switch configuration window as shown below:

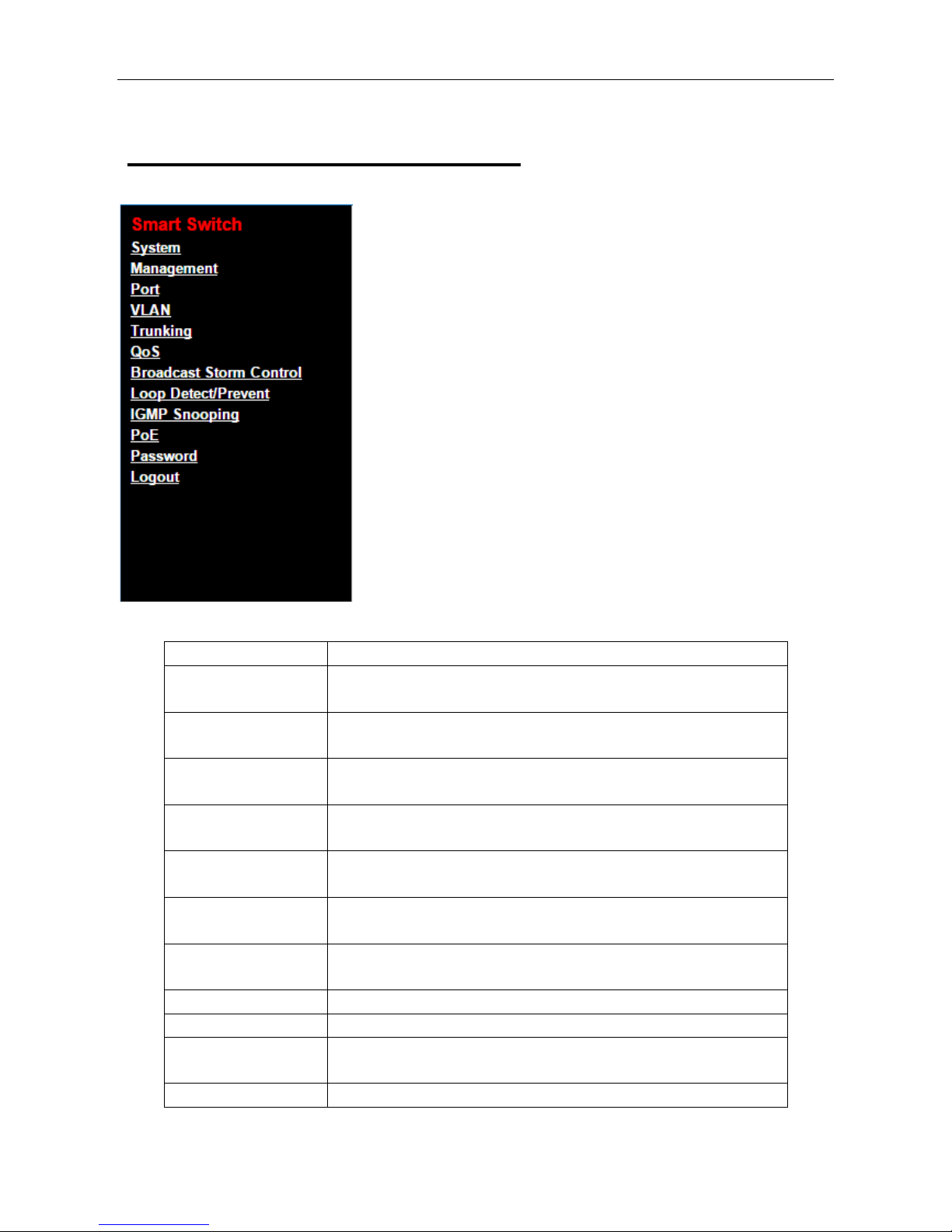

Chapter 3 Switch Configuration

The PoE smart switch software provides rich layer 2 functionality for

switches in your networks. This chapter describes how to use the

web-based management interface (Web UI) to configure the switch’s

features.

The left column shows the configuration menu. The top row shows

the switch’s current link status. Green squares indicate the port link is

up, while black squares indicate the port link is down. Below the

switch panel, you can find a common toolbar to provide useful

functions. The rest of the screen area displays the configuration

settings.

System

This link takes you to a screen where you can configure device name and ip.

Management

This link takes you to screens where you can perform firmware and

configuration file maintenance as well as reset and reboot the system.

Port

This link takes you to a screen where you can check Link Status, TX/RX

counter, Loop Status and Loop Reset.

VLAN

This link takes you to screens where you can configure port-based or

802.1Q VLAN.

Trunking

This link takes you to screen where you can logically aggregate physical

links to form one logical, higher-bandwidth link.

QoS

This link takes you to screen where you can enable Port-Based QoS or

IEEE 802.1p QoS

Broadcast Storm Control

This link takes you to screen where you can set up broadcast rate limit on

every port.

Loop Detect/Prevent

This link takes you to a screen where you can check Loop Detection and

Loop Prevention

IGMP Snooping

This link takes you to screens where you can configure IGMP Snooping.

PoE

This link takes you to screens where you can configure PoE.

Password

This link takes you to screens where you can change the system login

password.

Logout

Logout system.

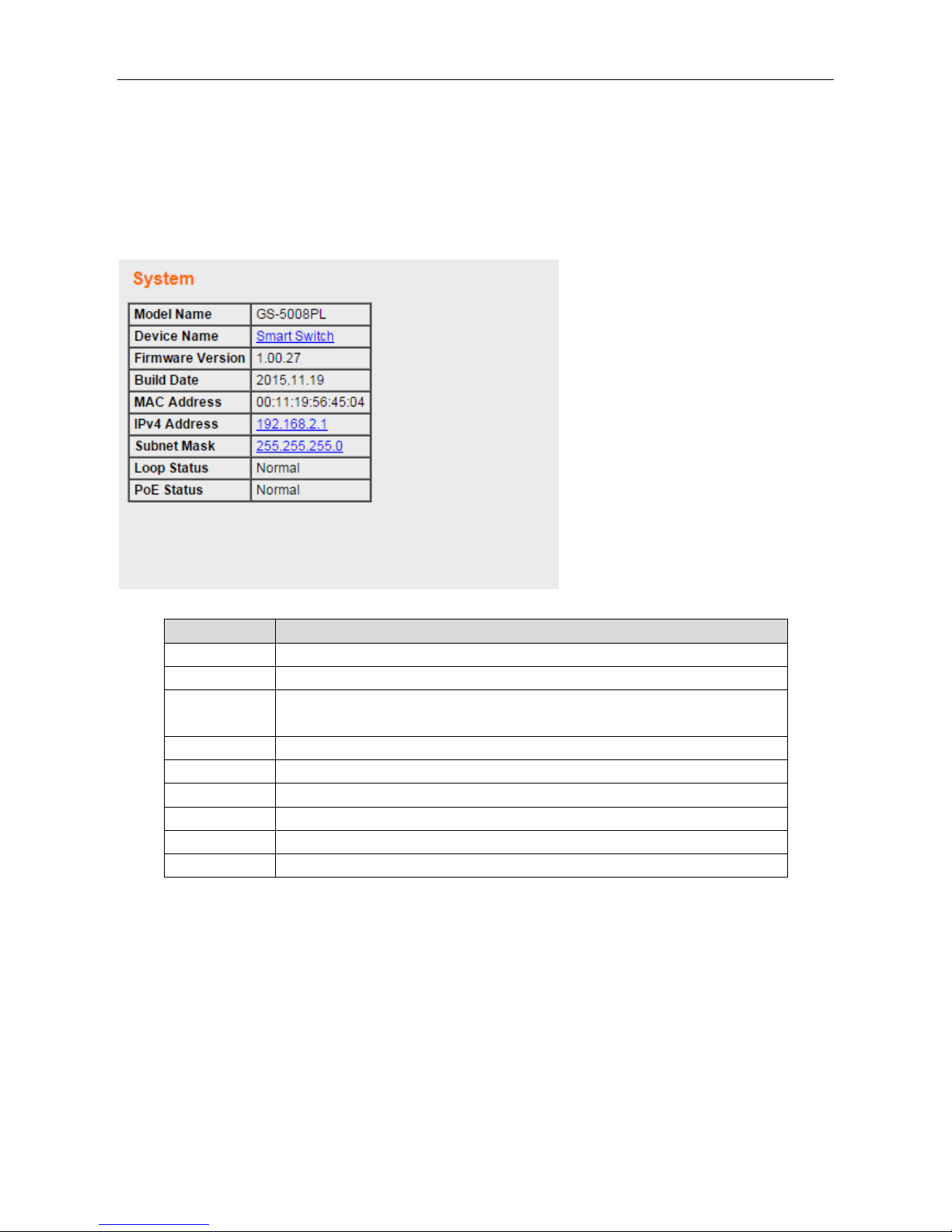

3.1 System

View device information and status such as firmware version number, Device Name, MAC address, IP

Address, Loop Status, PoE Status, etc. Use this screen to configure device name and ipv4 address.

LABEL

DESCRIPTION

Model Name

This field displays the model of the Switch.

Device Name

This field displays the descriptive name of the Switch for identification purposes.

Firmware

Version

This field displays the version number of the Switch’s current firmware.

Build Date

This field displays the current firmware the date created.

MAC Address

This field refers to the Ethernet MAC (Media Access Control) address of the Switch.

IPv4 Address

This field displays the current IP of the Switch.

Subnet Mask

This field displays the current subnet mask of the Switch.

Loop Status

Normal indicates that no loop occurs on any port; otherwise Loop is displayed.

PoE Status

Normal indicates that PoE devices are normally; otherwise Error is displayed.
