Edimax EW-7306Pg Manuel utilisateur

User Manual

Version: 1.0

(August, 2005)

publication may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language or computer language, in any form or by any means,

electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the

prior written permission of this company

This company makes no representations or warranties, either expressed or implied,

with respect to the contents hereof and specifically disclaims any warranties,

merchantability or fitness for any particular purpose. Any software described in this

manual is sold or licensed "as is". Should the programs prove defective following their

purchase, the buyer (and not this company, its distributor, or its dealer) assumes the

entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software. Further, this company reserves the

right to revise this publication and to make changes from time to time in the contents

hereof without obligation to notify any person of such revision or changes.

All brand and product names mentioned in this manual are trademarks and/or

registered trademarks of their respective holders.

Federal Communication Commission

Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the authority to operate equipment.

Federal Communications Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an

uncontrolled environment. In order to avoid the possibility of exceeding the

FCC radio frequency exposure limits, human proximity to the antenna shall not

be less than 2.5cm (1 inch) during normal operation.

Federal Communications Commission (FCC) RF Exposure Requirements

SAR compliance has been established in the laptop computer(s) configurations with

PCMCIA slot, as tested in the application for Certification, and can be used in laptop

computer(s) with substantially similar physical dimensions, construction, and electrical

and RF characteristics. Use in other devices such a PDAs or lappads is not authorized.

This transmitter is restricted for use with the specific antenna(s) tested in the

application for Certification. The antenna(s) used for this transmitter must not be

co-located or operating in conjunction with any other antenna or transmitter.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE

EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio

equipment and telecommunication terminal Equipment and the mutual recognition of

their conformity (R&TTE)

The R&TTE Directive repeals and replaces in the directive 98/13/EEC

(Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As

of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and

use it. However, special attention must be paid to the dangers of electric shock and

static electricity when working with electrical equipment. All guidelines of this and of

the computer manufacture must therefore be allowed at all times to ensure the safe

use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and office use in Austria,

Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg,

the Netherlands, Portugal, Spain, Sweden, and the United Kingdom.

The ETSI version of this device is also authorized for use in EFTA member states:

Iceland, Liechtenstein, Norway, and Switzerland.

EU Countries Not intended for use

None.

CONTENTS

1INTRODUCTION............................................................................. 1

1.1 Features ......................................................................................................................... 1

1.2 Specifications................................................................................................................ 1

1.3 Package Contents .......................................................................................................... 2

2INSTALLATION PROCEDURE ..................................................... 3

3CONFIGURATION UTILITY ......................................................... 9

3.1 Utility Overview ........................................................................................................... 9

3.2 Available Network ...................................................................................................... 10

3.3 General........................................................................................................................ 12

3.4 Profile.......................................................................................................................... 13

3.4.1 Configure the Profile ............................................................................................14

3.4.2 Enable WPA in Windows XP ................................................................................16

3.5 Advanced .................................................................................................................... 19

3.6 Status........................................................................................................................... 21

3.7 Statistics ...................................................................................................................... 21

3.8 Software AP ................................................................................................................ 22

3.8.1 AP Properties Setting ...........................................................................................23

3.8.2 AP Advanced .......................................................................................................23

3.8.3 AP Statistics ........................................................................................................25

4TROUBLESHOOTING .................................................................. 26

1 Introduction

Thank you for purchasing the 802.11g Wireless LAN PC Card. This card complies with IEEE 802.11g

standard, which supports up to 54Mbps high-speed wireless network connections. It can also work with

IEEE 802.11b devices. When the card connects to 11b devices, the link speed will be up to 11Mbps.

For WLAN security issues, this card supports 64/128-bit WEP data encryption that protects your

wireless network from eavesdropping. It also supports WPA (Wi-Fi Protected Access) feature

technology. Client users are required to authorize before accessing to APs or AP Routers, and the data

transmitted in the network is encrypted/decrypted by a dynamically changed secret key.

The power consumption of the card is also very low. Furthermore, this card provides several levels of

power saving modes allowing user customizes the way of saving the power from his/her portable or

handheld devices.

This card is cost-effective, together with the versatile features; it is the best solution for you to build your

wireless network.

1.1 Features

• Works with both IEEE 802.11b and IEEE 802.11g products.

• High-speed transfer data rate - up to 54Mbps.

• High throughput supports multi-media data bandwidth requirement.

• Support 64/128-bit WEP and WPA-PSK securities.

• Automatic fallback increases data security and reliability.

• Supports the most popular operating system: Windows 98SE/Me/2000/XP.

• Supports 32-bit Cardbus interface.

1.2 Specifications

• Standard: IEEE 802.11b/g

• Interface: 32-bit Cardbus

• Frequency Band: 2.4000 ~ 2.4835GHz (Industrial Scientific Medical Band)

• Modulation: OFDM with BPSK, QPSK, 16QAM, 64QAM (11g)

BPSK, QPSK, CCK (11b)

• Data Rate: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback

• Security: 64/128-bit WEP Data Encryption and WPA-PSK

• Antenna: Printed Antenna with Diversity System

• Drivers: Windows 98SE/Me/2000/XP

• LEDs: Link, ActivityTransmit Power: IEEE 802.11b: 16.50dBm (Peak) / IEEE 802.11g:

15.00dBm (Peak)

• Power Consumption: TX: 400mA, RX: 330mA

• Dimension: 5(H) x 116(W) x 54(D) mmTemperature: 32~131°F (0 ~55°C)

• Humidity: Max. 95% (NonCondensing)

• Certification: FCC, CE

1.3 Package Contents

Before you begin the installation, please check the items of your package. The package should include

the following items:

• One PC Card

• One CD (Driver/Utility/User’s Manual.)

• One Quick Guide

If any of the above items is missing, contact your supplier as soon as possible.

2 Installation Procedure

Before you proceed with the installation, please notice following descriptions.

Note1: The following installation was operated under Windows XP. (Procedures are similar for

Windows 98SE/Me/2000.)

Note2: If you have installed the Wireless PC Card driver & utility before, please uninstall the old

version first.

I. Install the Driver

A. Insert the Installation CD to your CD-ROM Drive.

B. Insert the PC Card to the slot of your laptop computer, the system will automatically find the device

and search for its driver.

C. Select “Install from a list or specific location (Advanced)” and click “Next”.

D. Please select the “Driver\Winxp” folder (select the folder based on your computer’s OS system) and

the system will start install the driver.

E. The “Hardware Installation” screen is popped up. Click “Continue Anyway” to continue.

F. The system is installed the driver automatically.

G. Click “Finish’ to complete the driver installation.

II. Install the Utility

A. Execute “Utility\Setup.exe” from the installation CD.

B. The “InstallShield Wizard” is displayed. Click “Next”.

Table des matières

Autres manuels Edimax Carte réseau

Edimax

Edimax Wireless LAN USB Adapter Manuel utilisateur

Edimax

Edimax EW-7104PC Manuel utilisateur

Edimax

Edimax USB VoIP Gateway Box None Manuel utilisateur

Edimax

Edimax EN-9235TX-32 Manuel utilisateur

Edimax

Edimax EW-7612PIn V2 Manuel utilisateur

Edimax

Edimax EW-7106PC Manuel utilisateur

Edimax

Edimax HP-5102 Manuel utilisateur

Edimax

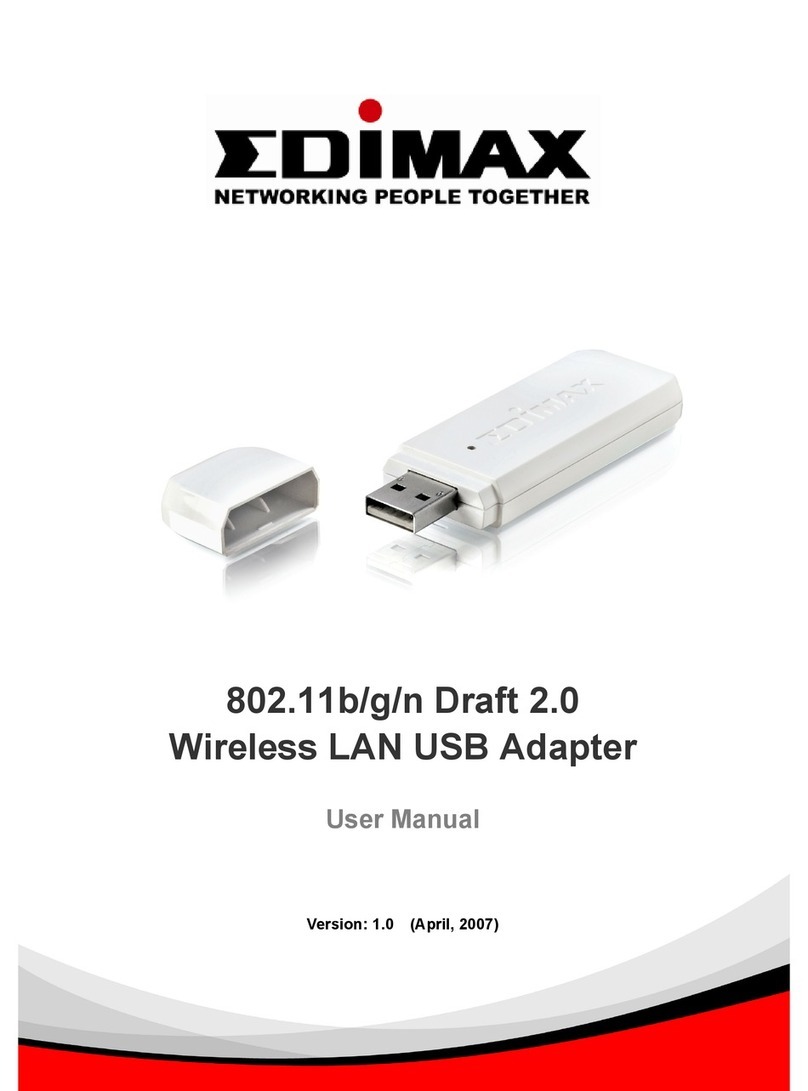

Edimax LAN USB Adapter Manuel utilisateur
