16 NOZZLES ESSENTIAL OSCILLATING SPRINKLER

Base

Spray nozzles (16)

Oscillator tube

Sliding tabs

Plastic nozzle heads :

Adjustable range control :

Coverage Max :

94113-EDAMZ

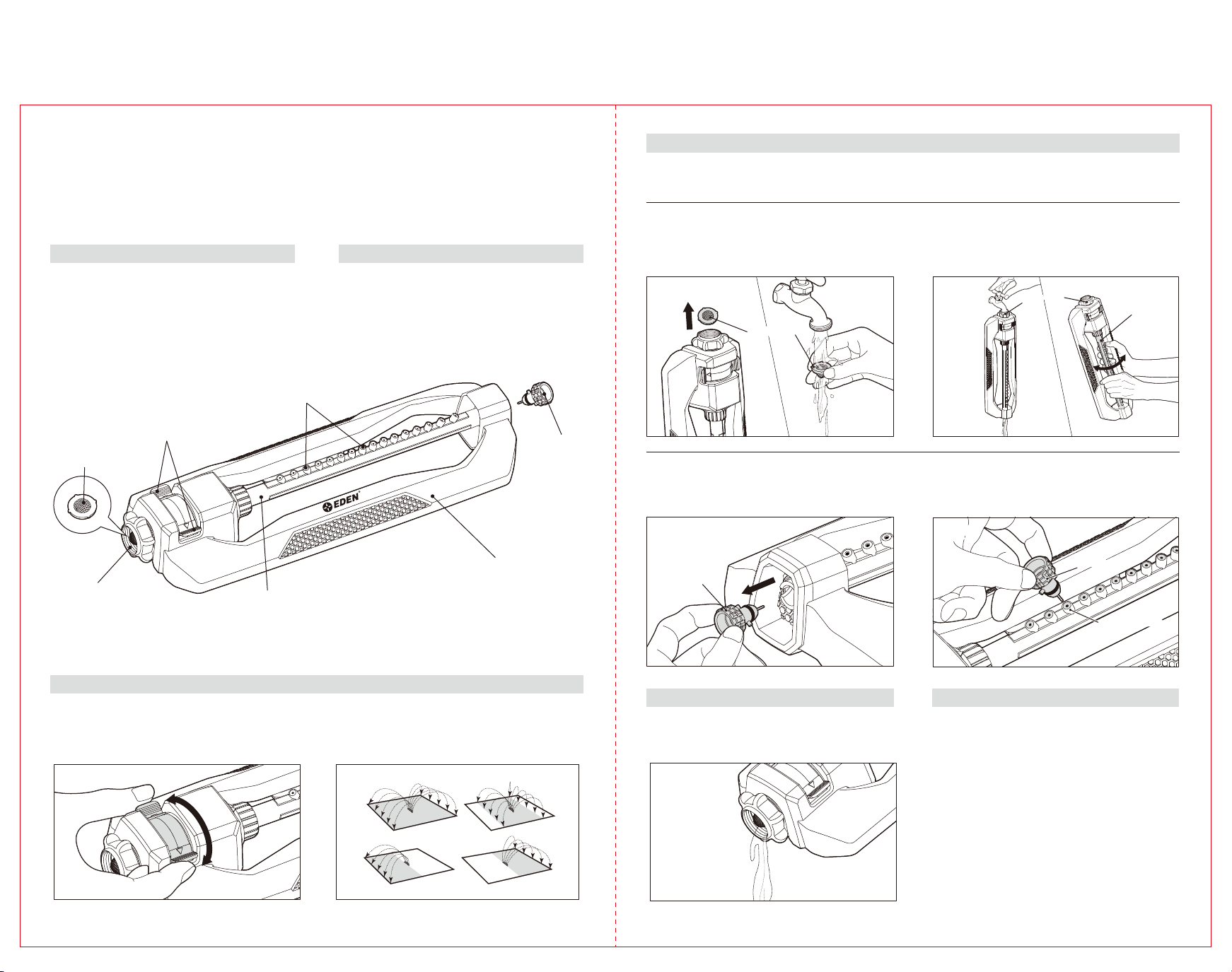

Attach your garden hose to the unit.

Use the range sliding tabs to select desired rectangular watering position distance. (Fig 1 & Fig 2)

Turn on the faucet and check to see how the process is working. Make adjustments to suit your needs.

Yes

3600 sq ft (335 m²)

(Based on 40PSI / 2.76Bar)

Hose-end

Inlet lter

Cleaning pin

Get To Know Your Sprinkler

Usage

Specications

If your sprinkler begins to display irregular water pressure or is clogged due to dirt buildup, do the following

maintenance task.

Remove your hose from your sprinkler.

Notice a small inlet lter from the hose-end of the

oscillator, remove it and run under water to remove

the dirt (Fig. 3).

Maintenance + Care

Storage Tips

To ush, connect the oscillator to a faucet.

Turn on the faucet and while the water continues

running, spin the tube gently back and forth for few

minutes (Fig 4)

Remove the cleaning pin from the opposite end of

the oscillator (Fig. 5).

3. Use the provided cleaning pin to clear any clogs

from the spray nozzles while running water in

step 2 (Fig. 6).

Drain the sprinkler after use. DO NOT allow water to

freeze in the sprinkler (Fig. 7).

Fig. 7

Fig. 6

Fig. 1 Fig. 2

Fig. 3

inlet lter

Fig. 5

cleaning pin

spray nozzles

cleaning pin

spray nozzles

Use this manual to familiarize yourself with the various parts and components, the use, handling and features of the

sprinkler. Save this manual for future reference.

Fig. 4 hose-end

tube

Think of the best coverage design for the watering

without wasting water resources before placing the

sprinkler in the location where you want to water.

Drain any water from the sprinkler after use. This

will preserve the unit for longer lasting use.

Place the sprinkler in a dry warm storage area until

it is required.

Water only when necessary, preferably in the

morning as this will minimize water loss through

evaporation. To obtain deep root growth,water

deeply but do not water often. Watering every

second day will provide for better water coverage.

Using a timer can be helpful in reducing waste.

Watch water application to avoid water run-o.

Fig. 6

94113-INS 29.7×21cm

-For outdoor use with cold water only

-Do not spray near electrical connections

-When not in use, rinse the tool with water to remove most of the dirt, dry your tool, and store indoors

A B C D

Quick and easy connections to 5/8-inch and

1/2-inch garden hoses, sprinklers, nozzles, and or

any other garden watering tools

UNLOCK

LOCK

UNLOCK LOCK

Secure twist-and-lock

mechanism prevents

accidental disconnection

m CAUTION m

16 NOZZLES

ESSENTIAL OSCILLATING SPRINKLER

94113-EDAMZ

• Coverage up to 3600 sq. ft. ( 335 m² ) (Based on 40 PSI / 2.76 Bar)

• 16 Durable nozzles

• Sliding tabs allow for simple range adjustment

• Flexible construction won't break when stepped on

• Needle plug for nozzle cleaning

A simple quick adapter (2 pcs) and hose

connector (1 pc) with a water stop feature

included will simplify your watering experience.

Simply connect the connector at the end of

your hose, and then attach your accessories

to the adapter. You can interchange various

accessories in a just a snap without any need

to turn o your water tap as the adapter will

stop the water ow once you remove the

accessories. No more kinking or hose twisting

as the adapter allow you to swivel your hose

360° degrees.

This product can expose you to chemicals including styrene, which is known to the State of California to

cause cancer. For more information go to www.P65Warnings.ca.gov
