Rev. 7/01 Catalog #73827 & #73829

Brochure No. 70-4686

Page 1of 2

Edelbrock Nitrous Systems

2-5/8” Fuel Pressure Gauge

Catalog #73827 & #73829

INSTALLATION INSTRUCTIONS

IMPORTANT: DO NOT mount these gauges in the passenger

compartment of the vehicle. These fuel pressure gauges must be

mounted outside of the vehicle’s interior. Mounting cup kit (Auto

Meter #3203 or #3204) is recommended for mounting on the

vehicle’s cowling in front of the windshield. This is required to

prevent the possibility of a dangerous explosion of gas fumes in

the vehicle’s interior, which could result from a leaky connection

between the pressure line and the gauge.

Please study these instructions carefully before installing your new Fuel Pressure Gauge. If you have any questions or problems,

please contact our Technical Hotline at:1-800-416-8628, 7:00 am to 5:00 pm, Monday through Friday, Pacific Standard Time or

e-mail us at [email protected]. Please fill out and mail your warranty card.

Mechanical Section

1. Determine the best location for mounting the fuel pressure gauge

outside of the vehicle’s interior. A mounting cup kit (Auto Meter

#3203 or #3204) is recommended for mounting on the vehicle’s

cowling in front of the windshield. Drill the necessary holes and

install the rubber grommets provided where the pressure line

passes through any sheet metal.

2. Because all fuels are flammable, it is recommended that a

premium braided stainless steel pressure line -4AN be used.

3. Route the pressure line through the grommets to the engine

compartment. Connect the line to a tee fitting plumbed in line

with the fuel line. Be sure to use liquid Teflon sealant on all

tapered pipe threads for a good seal. No sealant is required on AN

flarefittings. Alsomake sure that thepressureline is routed away

from any sources of heat or moving components.

4. If you choose to use either the green or red light bulb cover, install

this over the bulb in the light fixture for the gauge and install the

fixture into the gauge by simply pushing the light fixture into the

hole on the back of the gauge until the fixture snaps into place.

Note: Test all fittings and hoses for any leakage. If any leaks are

detected, determine the cause of the leak and repair. Do not

operate the vehicle if any leaks are detected.

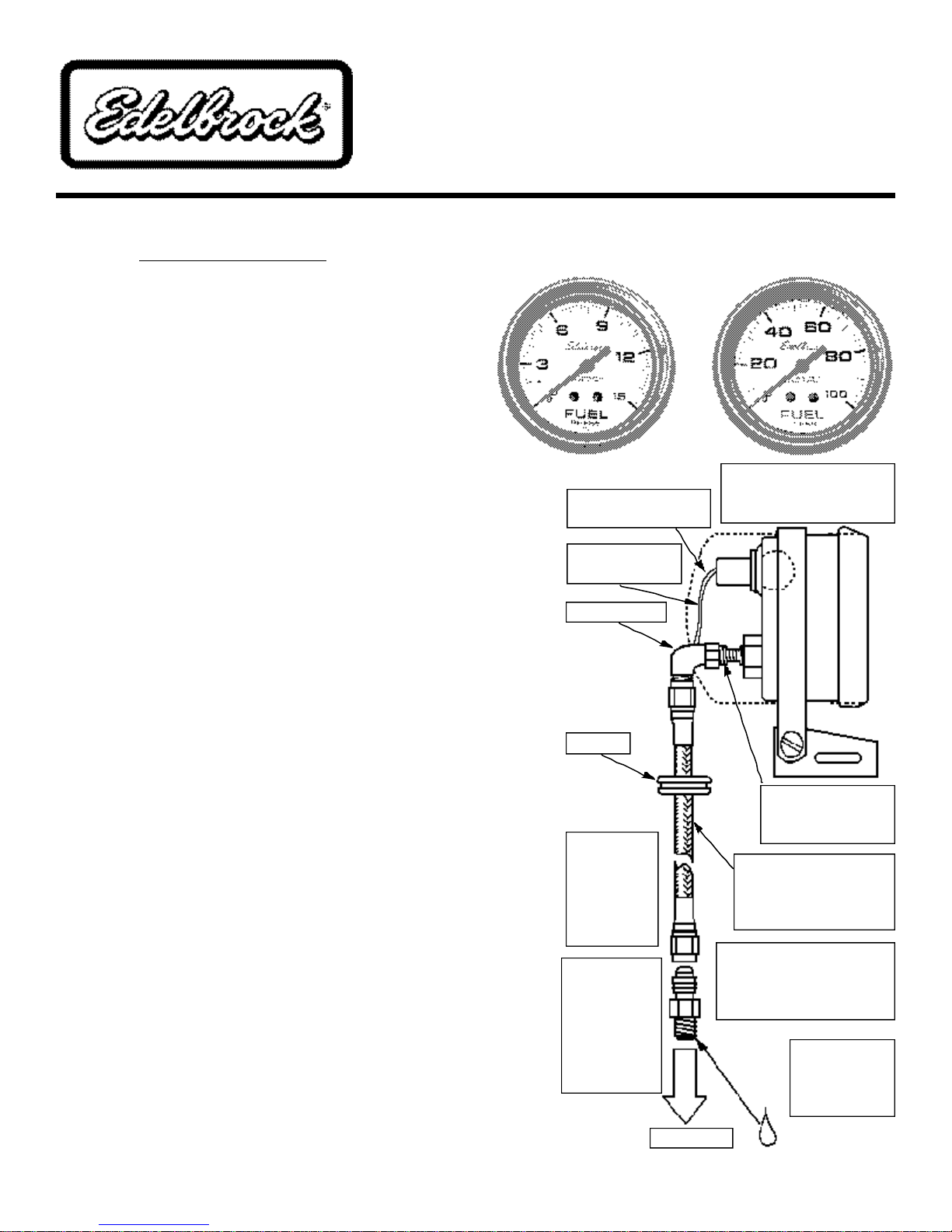

(White)

Connect to 12V lighting

Fuel Pressure Gauge is

shown in the recommended

Auto Meter Mounting Cup

(Black)

Connect to Ground

Use 90° Fitting

Grommet

DO NOT USE

NYLON OR

COPPER

TUBING WITH

COMPRESSION

FITTINGS

FOR FUEL

PRESSURE, IT IS

STRONGLY

RECOMMENDED

THAT BRAIDED

STAINLESS LINE

BE USED.

To T-Fitting

1/8”NPT x #4 Adapter

(not included)

Do not over tighten

Recommended Quality

Braided Stainless Steel

Hose Shown. See

Mechanical Section #2.

NOTE: TIE DOWN LINE TO

AVOID EXCESSIVE VIBRATION

THAT MAY CAUSE DAMAGE

TO THE GAUGE OR LINE.

Use Teflon

Sealing

compound where

symbol indicates.

Rev. 7/01 Catalog #73827 & #73829

Brochure No. 70-4686

Page 2of 2

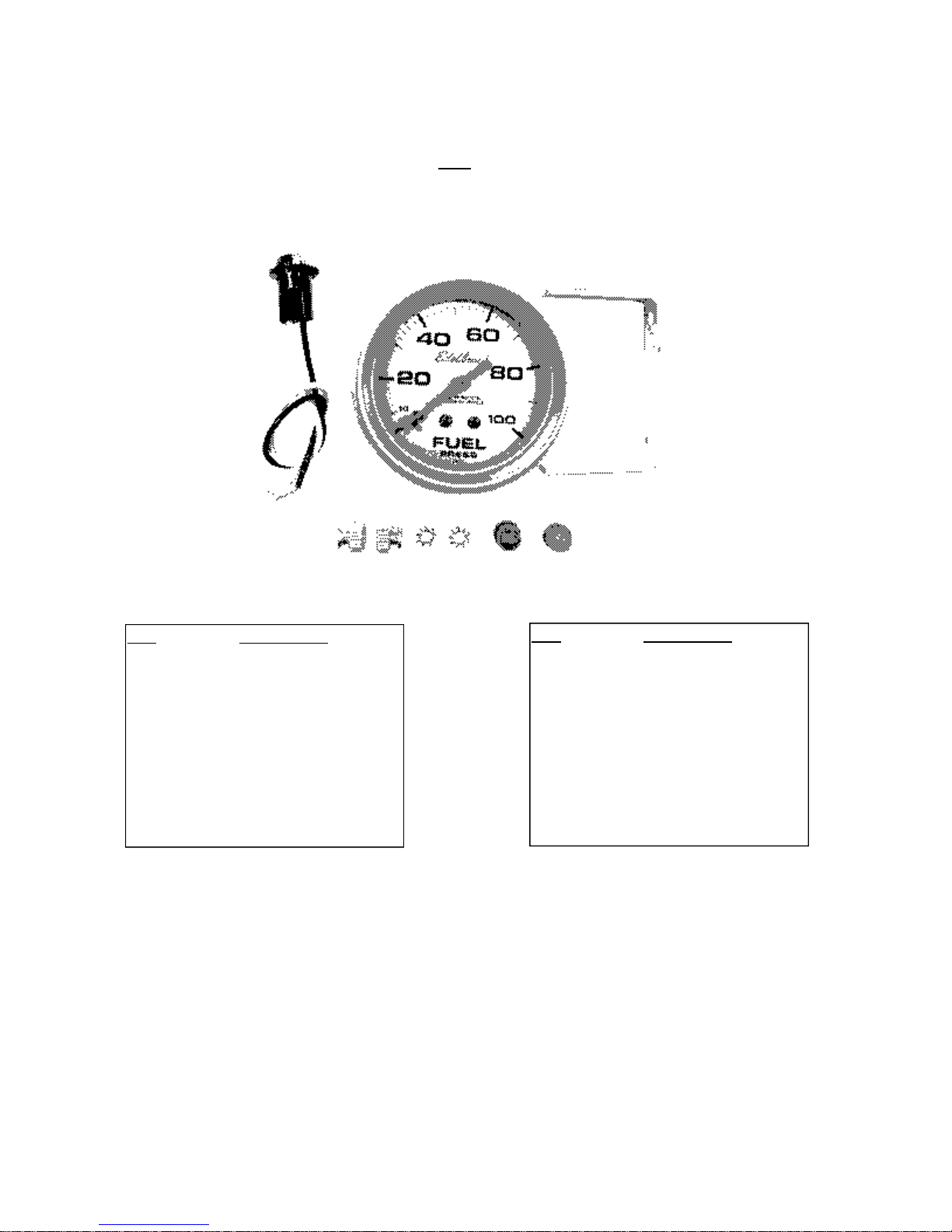

Bill of Materials

Qty. Description

10-15 psi Fuel Pressure Gauge

1Gauge Light with Harness

2Star Washers

2Attaching Screws

1Gauge Bracket

1Red Light Cover

1Green Light Cover

Qty. Description

10-100 psi Fuel Pressure Gauge

1Gauge Light with Harness

2Star Washers

2Attaching Screws

1Gauge Bracket

1Red Light Cover

1Green Light Cover

Electrical Section

For maximum electro-luminescent life, do not wire lighting to direct igntion switched 12-volt source. The lighting power source

should be routed through OEM dash controls, or a separate rheostat. Power can be achieved by tapping into the factory dash lighting

through either the fuse panel or from a 12-volt dash light wire. This will allow you to control the light intensity. Use the appropriate

connectors for your particular application. The white wire must be connected to the power source and the black wire to a good

ground. Damage to electronic circuits could occur if connected incorrectly.

Edelbrock Corporation

2700 California Street

Torrance, CA 90503

Toll-Free Tech Line: 1-800-416-8628

Office: 310-781-2222

Tech E-Mail: [email protected]
