ECOVACS A320 Manuel utilisateur

Robot Air Purifier

A320/A330

U s e r G u i d e

Mode

Welcome and congratulations on your purchase of a Robot Air

Purifier.

We trust the purchase of your new product will help you to keep

your home clean and provide you more quality time to do other

things.

Before you go any further, we ask you to record your model

number, serial number and date of purchase below. We also

suggest you attach your Receipt to this page for safe keeping.

(Model and Serial numbers are located on the label on the

bottom of the Robot.)

MODEL # ________________

SERIAL # ________________

DATE OF PURCHASE ___ / ___ / ___

Should you have any problems in programming or getting your

product to function properly, we ask you to call us first before

contacting or returning the product to the place where you

purchased it.

Call 1-8 __-______ for assistance.

(Provide 1-8 __-______ phone number also provide address of

US business Office and WEB site for Service Stations.)

To find an authorized Service Center nearest you, please turn

to page ___.

For Warranty information, please turn to page ____.

1. Safety Instructions 7. Magnetic Tape

User Guide ………………..............………………5 Various Uses for Magnetic Tape......……………20

Child Safety ………………….................………..5 Application of Magnetic Tape.……………….20,21

Precautionary Items ………….............……….6,7 8. Using Robot.................................................21

Power Supply for the Robot ……….......………...7 9. SD Card.......................................................21

Battery Charging, Replacement and Disposal....8 10. Maintenance

Recycling Packaging Material ………...…………8 Cleaning Robot..............………………………...22

When the Product has Problems …………...……8 Cleaning Filters..................……………………..22

Correct Disposal of Product …………….........…8 Cleaning Drop Sensors.......……………………..22

2. Packed Contents and Product Specifications Cleaning Charger Dock...............………………23

Packed Contents..…………........................…...9 11. LCD Icon Alarm Definitions..........................23

Product Specifications..…...................…………9 12. Common Failures........................................24

Part Name..……………............................……10 13. Common Questions with Answers...........25,26

Unpacking and Installing Filters.….......……….10

Remote Control Panel......................………….11

3. Remote Control

Installing Batteries.........................…………...11

Use....................................................……….11

4. Charger Dock

Assembling Charger Dock............……………..12

Placement of Charger Dock...........…………12,13

Charging Robot's Battery................………......13

5. Operation and Programming Robot

LCD Panel........................................….........14

Turning Robot ON.............................………...14

Pause Mode............................………………...15

Turning Robot OFF....................……………….15

Setting Air Schedule Cleaning Time..…………..15

Setting Clock Time..………..............…………...16

Setting Frequency of Scheduled Air Cleaning

Time.......................................................16

6. Mode Selection

Auto Mode........................………………………17

Search Mode..........................………………….18

Spot Mode.......................……………………….18

Back to Charge Mode.............…………………..19

Demo Mode......................……………………...19

Raise/Lower Mode............……………………...19

Music Mode..............……………………………..19

Content

Enjoy Smarter Life!

● Be careful in unpacking the product so as not to loose or break anything.

● Immediately dispose of all plastic bags before reading these to

prevent children from playing with the bags.

● Do NOT dispose of the rest of the packaging material until you check the Instruction

Book to make sure you have all the contents. Reference page 9 for list of contents.

● Read the Instruction Book carefully and use your Robot according to the detailed

instructions. Store this Instruction Book in a convenient place for easy reference by all

users.

● Do NOT use the top of the Robot as a place to rest items or a drink. If the Robot gets

WET, it may destroy the interior electrical components and require service.

● Do NOT sit or stand on the Robot NOR use as a footrest.

● Do NOT press HARD on the LCD as you may damage or break the glass. Please do NOT

touch the LCD if it is broken to avoid injury to yourself.

● Improper operation of the Robot may cause injury to a person or may require your Robot

to be serviced by a Service Technician.

● Not to be used to filter live cigarette smoke as a hot ash from the cigarette could ignite

the filter.

● Use in the Outdoors, Business or in areas with combustible material is prohibited. It

will void your Warranty.

The Magnetic Tape may NEVER be used to

confine an elevated area where the Robot

could fall down and hurt a person or cause

considerable damage to the room below when

the tape has lost its magnetism power.

● In keeping with our name ECOVACS, we strongly urge you to recycle the packaging

materials.

● Attempt to repair or alter the operation of this Robot will void the warranty and may allow

damage to be done to your property or yourself. All repair work must be done by a

qualified Service Technician.Call our 1-800 number for the nearest Service Station to

you.

Safety Instructions

Please follow these basic Safety Instructions to best assure you or the product is not harmed in the initial set-up

and use of the product. Should at anytime you have any questions, please call our 1-800 number for assistance.

User Guide

1. SAFETY INSTRUCTIONS

Guardrail

Guardrail Set up

Guardrail

● The Robot is NOT a toy and children should NOT be allowed to play with it.

● Children should NOT be allowed to be alone in the same room that the Robot

is operating.

● Adult supervision is required at all times when the child is in the same room

the Robot is operating in.

Child Safety

Get Machine

Body Wet

● People in the home should be informed when the Robot is functioning,

especially those who maybe hard of hearing or have poor eyesight.

● Charger Dock should be kept in a space where people will not easily trip over

when walking in the room.

Precautionar y Items

Ceramic tileCeramic tile

medium pile

carpet

medium pile

carpet

Wood FloorWood Floor

● We recommend the first time you use your Robot you be present to make

sure there are no obstructions which might cause a problem to either the

Robot or the objects in your home.

If Pets are part of the everyday household activity, you need to observe how

the Pet and the Robot inner act with each other.

Following precautions should be taken to prevent accidents from happening

while your Robot is working:

Objects easy to knock over should be removed from the path or

magnetic tape used.

Table cloth, curtains, and throws should be kept off of the floor so they

will NOT obstruct the Robot's freedom to move within the room.

Power cords for lamps, radios, TV, etc., must NOT lie in the path as

they might be damaged by the Robot or become entangled with the

Robot and cause damage to the Robot or pull the item from its resting

place.

●

──

── bjects such as magazines,newspapers,socks,etc.,may obstruct the

Robot during use or cause damage to the product.

Magnetic

Border

Magnetic

Border

● Keep WET hands from the plug or Robot.

●

the top step of the staircase has a reflective surface such as mirror, glass,

marble , tile, etc., it may cause the Drop Sensor not to function and cause the

Robot to fall down the stairs. We strongly recommend that you operate the

Robot at the Staircase or Step to make sure the Robot can detect the drop

off. Should you find that the Robot does not detect the Step or Staircase,

then you must place a piece of magnetic tape at the edge to the bare surface,

NOT on carpet and to make sure the tape will cause a person to trip

over and fall down the steps.

Robot cannot detect a staircase if the height is less than 1.5 inches. Also, if

NOT

Magnetic

Tape

1.5 inches

Wet

Hands

● Keep the Robot away from hot sources such as

heater, fireplace, radiator, kitchen oven, direct

sunlight, etc., as the plastic could become

distorted and discolored.

Do not Drop

Cloth

cleaning

● Do NOT drop the Robot, should this happen, run the Robot to see that

everything is okay before letting it operate by itself without you being

present.

● Do NOT grasp the upper portion of the product as doing so may cause

damage to the product.

Use a DRY soft cloth for daily and weekly cleaning of the

plug, cord, Charger Dock and Robot. A damp soft cloth

that has been rung dry of water could be used to wipe the

surfaces for better cleaning. A WET cloth may NOT be

used as water may get into the Robot or Charger Dock

and cause electrical problems resulting in a Service Call.

Enjoy Smarter Life!

Power Supply for the Robot

●

The Robot's power supply is from a NI-MH rechargeable battery and only

accompanying COVACS' Charger Dock may be used.

Do NOT use the Robot if the power supply cord to the Charger Dock becomes

damaged. Call our 1-800 number or visit our Web Site for the nearest Service

Center to send the Charger Dock for repair.

Do NOT remove the plug from the wall receptacle by pulling on the power supply

cord as it may damage the cord or internal wiring. Grasp the plug to remove from

the receptacle.

Do NOT move the Charger Dock by pulling on the power supply cord as you may

damage internal wiring.

Do NOT twist or pinch the power supply cord to avoid damage to the insulation.

Keep power supply cord away from warm/hot places or sharp edges to avoid

damage to the insulation.

Turn the Robot OFF and remove the Charger Dock plug from the receptacle when

you are not using the Robot for an extended period of time.

Correct

Draw out

the plug

Batter y Charging,Replacement and Disposal

●

Approved ECOVACS battery and Charger Dock must be used to prevent

potential danger and damage to the Robot, and to NOT VOID the Warranty.

Call our 1-800 number or visit our Web site to order replacement parts.

Model and serial number will be required when ordering.

ECOVACS, being an environmental friendly company, asks you to dispose of

used batteries in compliance with your local environmental legislation, as the

batteries hazardous substance will pollute the environment.

Recycling Packaging Material

● Please recycle the packaging material in accordance with your local

guidelines.

When the Product

Has Problems

● Should the power supply cord become damaged, do not attempt to repair by

yourself.

● Should the Robot stop functioning, reference pages 24, 25 and 26 in this

Instruction Book or call our 1-800 number to talk to an experienced

Technician.

● As with the power supply cord, should the Robot require service, please have

a certified Service Technician handle your repair. Otherwise, your Warranty

will be void and you could possibly cause yourself or your property damage

by attempting to do it yourself.

Cor rect Disposal of Product

●

● In the U.S., please dispose of product at an acredited disposal site in compliance

with your local requirements.

This marking indicates the Robot and Charger Base should NOT be disposed with

other household wastes throughout the EU. To prevent possible harm to the

environment or human health from uncontrolled waste disposal, recycle responsibly

to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the

product was purchased. They can take this product for environmental safe

recycling.

Enjoy Smarter Life!

* Our Company reserves the right to make technological and design changes as a result in pursuing Continuous Improvement. The right of interpretation

of the data belongs to ECOVACS Electrical Co., Ltd.

** The data is collected by our companies' laboratory based on noise test and in accordance with IEC 60704-1:1997. IEC 60704-2-1:2001 International

Standard. Noise is different based on environmental conditions existing at the time in your setting.

Robot Air Purifier

A32 0/ A3 30

U se r Gu id e

Mode

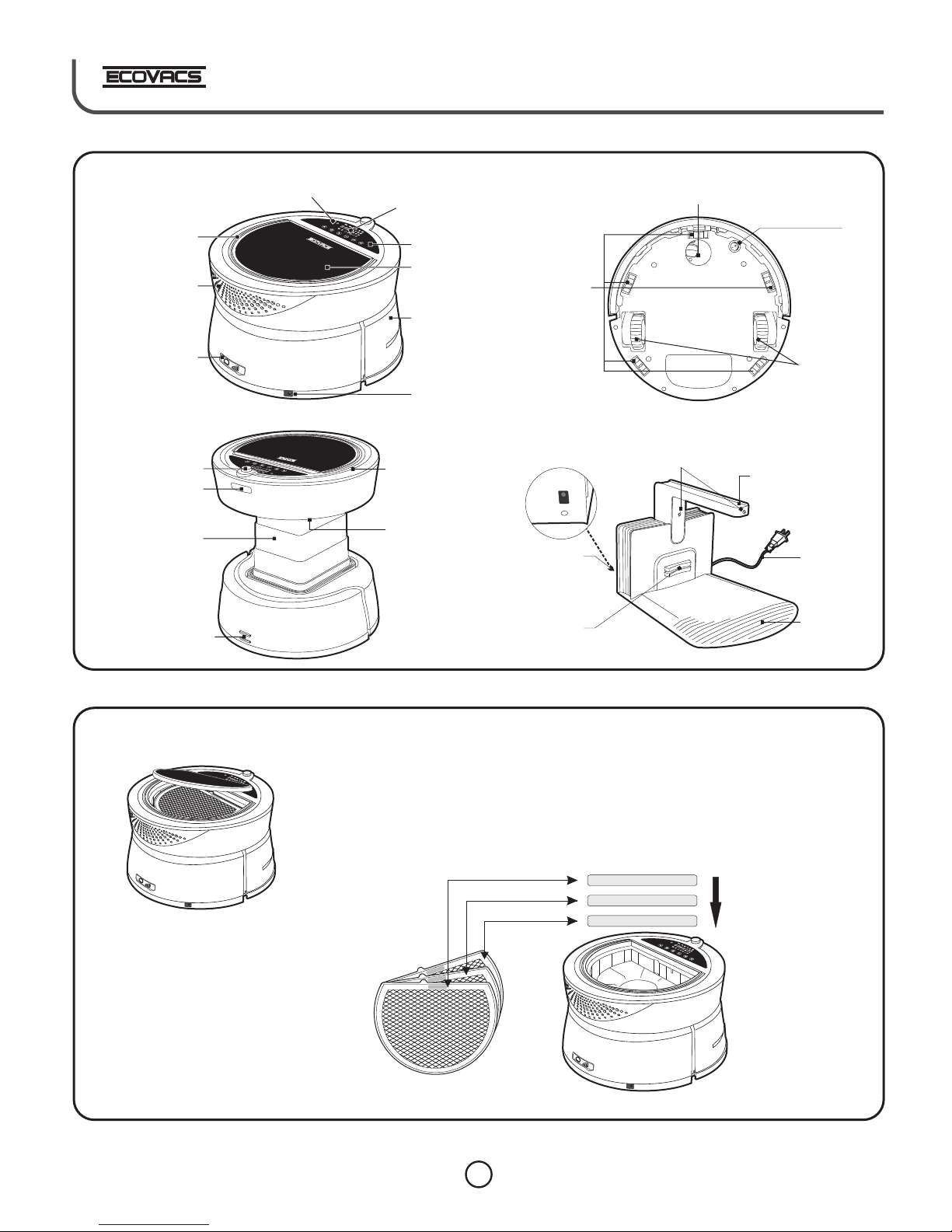

Antibacerial Filter Layer

Formaldehyde Filter Layer

Efficient Filter Layer

Charger Dock

Working Voltage

Rated Power

Charging Time

Noise**

Continuous Working on One Charge

Maximum Lifting Height (INCHES)

Functional Parameter s Model A320 Model A320

Model A320 Model A330

Model A330 Model A330

Frequency

Input Voltage

Rated Output Voltage

Input Voltage

(Remote Control)

Remote Control Distance

24W 24W

18.5

≤60dB ≤60dB

Approximately

4-5 hours

Approximately

4-5 hours

Approximately

two hours

Approximately

two hours

50Hz

220-240V~

50Hz

220-240V~

≤16 Feet ≤16 Feet

Rated Output Current 1.6A 1.6A

12VDC 12VDC

15VDC 15VDC

3VDC 3VDC

Remote Control

User Guide

Batteries for Remote Control

Magnetic Tape Magnetic Recovery Tool

Three Filters Charging Cable

Main Robot Charger Dock Remote Control

2. Package Contents and Product Specifications

Product Specifications*

Packed Contents

Par t Name

Charger Dock

Drop Sensor

Driving Wheel

Universal Wheel

Remote Receiver

Charger Base Receiver

Lifting System

Upper Housing

Lifting Collision Buffering Plate

Charging Strips

Air Outlet Grid

SD Memory Card and

Button for Volume Control

Key Panel

Air Quality Detector

LCD Display Screen

Surface Cover of Machine

Air Quality Indicator Light

Front Buffering Plate

Optional Charging Slot of Main Robot

Optional Charger Slot

of Charging Dock

Charging Strips

Charger Base Signal Indicator

Power Indicator

Power Cord

Anti-slip Base

ON / OFF Switch

● Open the top of the Robot and remove the filters. Install the filters in the

proper sequence.

Efficient Filter Layer

Formaldehyde Filter Layer

Antibacerial Filter Layer

Installation

Sequence

Efficient Filter Layer

Unpacking Filters

Filters particles down to 0.6 Microns

Filters VOC's from the air

Filters down to 0.3 Microns

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ECOVACS Purificateur d'air

ECOVACS

ECOVACS ATMOBOT ANDY KJ500G-LX11-01 Manuel utilisateur

Manuels Purificateur d'air populaires d'autres marques

IKEA

IKEA UPPÅTVIND Manuel utilisateur

Nash

Nash AP-1 PureSmart Manuel utilisateur

LG PH-U450 Series Manuel utilisateur

DeLonghi

DeLonghi DDSX 220WFA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuel utilisateur

Sharp

Sharp FU-40SE Manuel utilisateur

Philips

Philips AC2721 Manuel utilisateur

Hitachi

Hitachi EP-A3000 Manuel utilisateur

TruSens

TruSens Z-2000 Manuel utilisateur

Motorola

Motorola MBP87SN Manuel utilisateur

Beko

Beko ATP 7100I Manuel utilisateur

Carrier

Carrier INFINITY 1620 Manuel utilisateur

AtmosAir

AtmosAir P2002 Manuel utilisateur

Winix

Winix NK300 Manuel utilisateur

Friedrich

Friedrich C-90A Instructions d'utilisation et d'installation

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuel utilisateur

Base aire

Base aire 555 Pro Manuel utilisateur

Champion

Champion CP25 Manuel utilisateur
