EchoStar DVR-5000 HDD Viaccess Manuel

Service Letter

EchoNAV software version 2.2

EchoNAV User Interface

for Digital Satellite Receivers

HDD

Printed on recycled paper

Issue: echonav_hdd_sl_22a_us

We encourage you to express your thoughts on this service letter.

Please send your comments to:

EchoStar International Corporation

Technical Publications Department

Schuilenburglaan 5a

7604 BJ Almelo

The Netherlands

Preface

EchoNAV 2.2 Page I

PREFACE

1. DEAR CUSTOMER

This service letter introduces version 2.2 for the EchoNAV user interface which supersedes

the previous service letter(s). For your convenience the highlights of the previous software

are also given.

THE HIGHLIGHTS FOR VERSION 2.2

■Two menu languages added;

■Revised help lines and related translations;

■Revised subtitle behaviour;

■Russian and Greek subtitle languages added;

■Multilingual EPG language support added;

■Revised conditional access to support smartcards type PC2.4;

■Revised channel numbering for Current SAT list;

■New installation menus added for multiple LNB support;

■Revised Add SAT, TP and PID menus;

■Pre-defined LNB (LO 10,700) added to LNB list;

■User LNB settings menu are moved to the Advanced mode;

■New option to add satellite or transponder during initial installation setup added;

■OTA service added on ASTRA1, 19.2 East.

■DVR timer modified to allow for recording a relative time block.

■Updated satellite/transponder database

THE HIGHLIGHTS FOR PREVIOUS VERSION 2.0

■Six menu languages added;

■Group and Sort behaviour revised to remember the last setting;

■Extended channel information available with i-key;

■Move function extended with recall option;

■Edit functions, Move, Lock and Delete separated;

■Save changes pop-up menu added.

■Updated satellite/transponder database

DVR-7000 HDD ONLY

■Photo album added;

■New MP3Loader made available with embedded BackgroundLoader and PhotoLoader;

■Installation menu added for Set East and West Limit;

■Improved positioner behaviour.

2. INTENDED USE

This service letter is intended for anyone who uses an EchoStar satellite receiver with an

EchoNAv user interface. It can be used by both first-time and experienced users who want to

install, use and maintain their receiver.

This service letter is applicable for the Digital Satellite Receiver with Hard Disk:

■DVR-7000 HDD Viaccess;

■DVR-7000 HDD;

■DVR-5000 HDD Viaccess;

■DVR-5000 HDD.

This service letter is divided into separate sections and chapters for easy reference to the

applicable chapters of your user manual. Please keep this service letter next to your user

manual for future reference.

Preface

Page II EchoStar International Corporation

3. DISCLAIMER

SATELLITE RECEIVER

EchoStar International Corporation has done everything to the best of her abilities, to supply

you with a satellite receiver built to the most up-to-date software and hardware. EchoStar

International Corporation makes no warranties with respect to the reception of the channels

provided by the broadcast service providers and specifically disclaims any implied warranties

of merchantability or fitness for any particular purpose.

EchoStar International Corporation reserves the right, for whatever reason, to revise, change

or modify the hard- and software of the satellite receiver without the obligation to notify or

warrant any person or organization of such change. Therefore, please visit our website, on a

regular basis, for the latest information available.

SOFTWARE DOWNLOADS

EchoStar International Corporation will do everything to the best of her abilities, to supply you

with software updates to keep your receiver as up-to-date as technically possible. EchoStar

International Corporation makes no warranties with respect to the use of the supplied

software downloads and specifically disclaims any implied warranties of merchantability or

fitness for any particular purpose.

EchoStar International Corporation reserves the right, for whatever reason, to revise, change

or modify the software that can be used by your satellite receiver without the obligation to

notify or warrant any person or organization of such change. Therefore, please visit our

website, on a regular basis, for the latest software available.

SERVICE LETTER

EchoStar International Corporation has done everything to the best of her abilities, to supply

you with the most up-to-date information. EchoStar International Corporation makes no

warranties with respect to the information provided by this service letter and specifically

disclaims any implied warranties of merchantability or fitness for any particular purpose. The

information provided is meant as a guideline for the use and maintenance of the receiver.

EchoStar International Corporation reserves the right to right, for whatever reason, change or

translate this service letter without the obligation to notify any person or organization of such

change. Therefore, please visit our website, on a regular basis, for the latest information

available.

Preface

EchoNAV 2.2 Page III

TABLE OF CONTENTS

Preface

1 DEAR CUSTOMER I

2 INTENDED USE I

3DISCLAIMER II

Installation

1 TO SETUP YOUR RECEIVER FOR THE FIRST TIME 3-1

2 ADVANCED MODE (MULTIPLE LNB SUPPORT) 3-7

Familiarization

1 ECHONAV 2.2 4-1

2 THE ECHONAV INSTALLATION MENU 4-3

3 THE ECHONAV MODE AND SELECTION MENUS 4-10

4 THE INDEX MARKERS 4-13

5 THE TIMERS 4-14

Operation

1 TO NAVIGATE THROUGH THE MENUS 5-1

2 USE THE FAVORITE LISTS 5-5

3 TO SELECT ANOTHER SATELLITE 5-6

4 TO USE THE INDEX MARKERS 5-6

5 TO USE THE PHOTO ALBUM 5-8

6 TO USE THE DVR STOP TIMER 5-9

Maintenance

1 USER LNB SETTING - SUB-MENU (ADVANCED ONLY) 6-1

2 SET LIMITS - SUB-MENU 6-1

3 SEARCH CHANNELS - ANALOG IF 6-2

4 ADD DATA (SAT/TP) - SUB-MENU 6-2

Troubleshooting

1 TO SOLVE AN INSTALLATION RELATED PROBLEM 7-1

Glossary

1 LIST OF USED ABBREVIATIONS 8-1

2 EXPLANATION OF USED TERMINOLOGY 8-2

Index

Appendix 1

1 LNB CONFIGURATION MATRIX A1-1

2 LNBF CONFIGURATION MATRIX A1-1

3 USER DEFINED LNB(F) MATRIX A1-2

Preface

Page IV EchoStar International Corporation

Installation

Section 3

EchoStar International Corporation Page 3 - 1

INSTALLATION

1. TO SETUP YOUR RECEIVER FOR THE FIRST TIME

This procedure supersedes the procedure as given in the user manual from step 15 onwards.

The main differences are:

■Select Easy or Advanced installation,

Easy installation helps you to do the initial setup procedure where Advanced allows you to

program the receiver as required for non-standard installations.

■Add a new satellite,

In a satellite field you can select any known satellite in range from the database or add

your own defined satellite with the use of the S00 satellite.

■Add a new transponder,

In a transponder field you can select any known transponder from the database or add

your own defined transponder with the use of the TP00 transponder.

FOR ALL CONFIGURATIONS

FOR FIXED AND DISEQC 1..4 SWITCH CONFIGURATIONS - EASY

NOTE

From the next step onwards, the procedure is divided in different configurations. The

configurations are; Fixed, Motorized and SMATV.

■Fixed means set up a single dish or multiple dishes with DiSEqC1..4 switch;

■Motorized means set up a moveable dish (motor/actuator by positioner);

■SMATV means set up for television distribution (cable network in buildings).

1. Make the required selections.

2. Read the available help text for information.

3. Go to the Save settings field to confirm the time.

4. On the RCU, press the OK key to set the time.

Note that the local time is shown correctly.

5. Go to the Continue field.

6. On the RCU, press the OK key to advance

21. Make the required selections.

22. Set the required installation mode, recommended

setting is Easy (guided setup procedure).

23. Read the available help text for information.

Note that only the white fields are selectable, other

fields show reference information.

24. If you want to add your own defined satellite, go to

the SAT field and select S00 (Goes to the menu

where you can define your own satellite, for

detailed information, refer to section 6). If not

proceed with step 25.

25. Go to the Check signal field.

26. On the RCU, press the OK key to advance.

Section 3

Installation

Page 3 - 2 EchoNAV 2.2

FOR MOVEABLE DISH INSTALLATIONS (DISEQC 1.2)

27. Wait for the Checking configuration to complete.

28. Read the available help text for information.

29. Make the required selections.

30. If the red dot in the TP field stays:

a. select another transponder;

b. go to the Check signal field;

c. on the RCU, press the OK key.

31. If you want to add your own defined transponder,

go to the TP field and select TP00 (Goes to the

menu where you can define your own transponder,

for detailed information, refer to section 6). If not

proceed with step 32.

32. Go to the Search channels field.

33. On the RCU, press the OK key to advance.

34. Wait for the search to complete:

a. the receiver display shows a moving dot;

b. the Search completed popup menu appears.

35. On the RCU, press the OK key to end the initial

setup procedure.

21. Make the required selections.

22. Set the required installation mode, recommended

setting is Easy (guided setup procedure).

23. Read the available help text for information.

Note that only the white fields are selectable, other

fields show reference information.

24. Go to the Program Satellites field.

25. On the RCU, press the OK key to advance.

26. Select the satellite which you want to receive.

27. Read the available help text for information.

Note that only the white fields are selectable, other

fields show reference information.

28. If you want to add your own defined satellite, go to

the SAT field and select S00 (Goes to the menu

where you can define your own satellite, for detailed

information, refer to section 6. If not proceed with

step 34.

Installation

Section 3

EchoStar International Corporation Page 3 - 3

FOR MOTORIZED CONFIGURATIONS - AUTOSAT

29. When in the Position field:

a. press and hold theor key and watch the

signal indicator for an indication;

b. in the signal indicator, make sure a network

name is shown;

c. press thekey to select another transponder for

signal verification;

d. press thekey to select the Position field;

e. use thekey to fine tune for the best signal

level and quality;

f. press the OK key, note that the saved position of

the satellite is shown.

30. If you want to add your own defined transponder for

the selected satellite, go to the TP field and select

TP00 (Goes to the menu where you can define your

own transponder, for detailed information, refer to

section 6). If not proceed with step 36.

31. Go to the Search channels field.

32. On the RCU, press the OK key to advance.

33. Wait for the search to complete:

a. the receiver display shows a moving dot;

b. the search completed popup menu appears.

34. On the RCU, press the OK key. to end the initial

setup procedure.

CAUTION

On the motorized dish, set the physical East and West limit switches first. Failing to

do so might cause damage to your motorized dish installation or other properties.

21. Make the required selections.

22. Set the required installation mode, recommended

setting is Easy (guided setup procedure).

23. Read the available help text for information.

Note that only the white fields are selectable, other

fields show reference information.

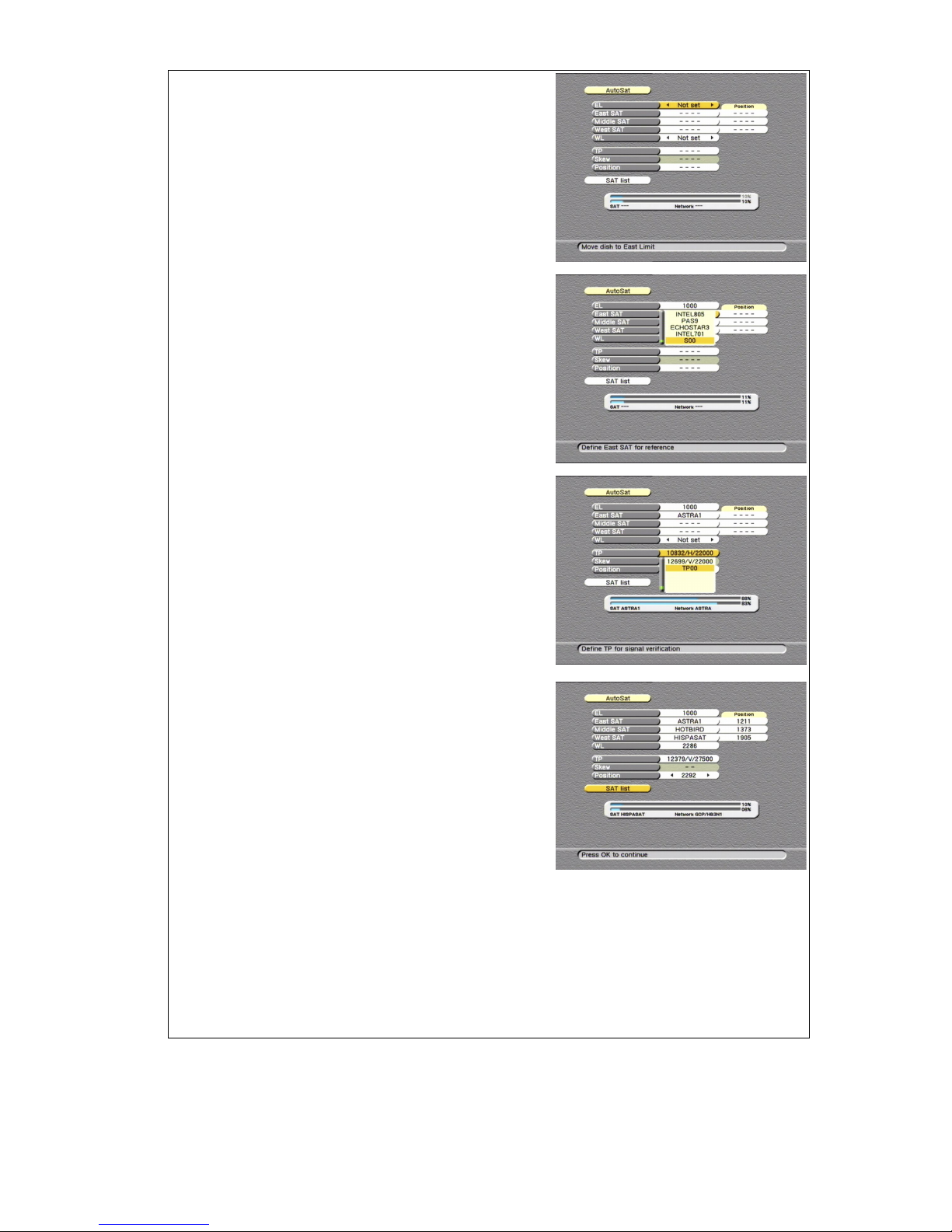

24. Go to the Autosat field.

25. On the RCU, press the OK key to advance.

Section 3

Installation

Page 3 - 4 EchoNAV 2.2

26. On the RCU:

a. press thekey to set the EL (East limit);

b. at the Motor error, press thekey once;

c. press the OK key.

27. On the RCU, press the OK key.

28. Select the most East SAT which you can receive.

29. If you want to add your own defined East SAT,

select S00 (Goes to the menu where you can

define your own satellite, for detailed information,

refer to section 6). If not proceed with step 31.

30. If you want to add your own defined transponder

for the selected satellite, go to the TP field and

select TP00 (Goes to the menu where you can

define your own transponder, for detailed

information, refer to section 6). If not proceed with

step 31.

31. When in the Position field:

a. press and hold thekey and watch the signal

indicator for an indication;

b. in the signal indicator, make sure a network

name is shown;

c. press thekey to select another transponder for

signal verification;

d. press thekey to select the Position field;

e. use thekey to fine tune for the best signal

level and quality;

f. press the OK key, note that the saved position of

the satellite is shown.

32. Repeat the procedure for the middle and most

West SAT.

33. Set the WL (key), refer to step 26.

34. Go to the SAT list field.

35. On the RCU, press the OK key to advance.

Autres manuels pour DVR-5000 HDD Viaccess

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels EchoStar Récepteur

EchoStar

EchoStar DSB-880 2Ci Manuel utilisateur

EchoStar

EchoStar T-333 MHP Manuel utilisateur

EchoStar

EchoStar DSB-709 FTA Manuel utilisateur

EchoStar

EchoStar DSB-2200 2Ci Viaccess Manuel utilisateur

EchoStar

EchoStar AD-3600 IP Viaccess Manuel utilisateur

EchoStar

EchoStar T-105 Manuel utilisateur

EchoStar

EchoStar T-222 FTA Manuel utilisateur

EchoStar

EchoStar T-101 FTA Manuel utilisateur

EchoStar

EchoStar T-232 FTA Manuel utilisateur

EchoStar

EchoStar DVR-7000 HDD Viaccess Manuel utilisateur

EchoStar

EchoStar DSB-707 Viaccess Manuel utilisateur

EchoStar

EchoStar D-2600 IP Viaccess Manuel utilisateur

EchoStar

EchoStar DSB-808 2Ci Conax Manuel utilisateur

EchoStar

EchoStar DSB-808 2Ci Viaccess Manuel utilisateur

EchoStar

EchoStar DVR-5000 HDD Viaccess Manuel utilisateur

EchoStar

EchoStar T-101 FTA Guide de dépannage

EchoStar

EchoStar DVR-7000 HDD Viaccess Guide de démarrage rapide

EchoStar

EchoStar HDS-600RS Mode d’emploi

EchoStar

EchoStar DSB-1100 Manuel utilisateur

EchoStar

EchoStar DVR-5000 HDD Viaccess Manuel utilisateur

EchoStar

EchoStar DSB-800 2Ci Manuel utilisateur

EchoStar

EchoStar DSB-2200 2Ci Viaccess Manuel utilisateur

EchoStar

EchoStar DSB-700 FTA Manuel utilisateur

EchoStar

EchoStar DSB-808 2Ci Conax Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
