Echo HC-2410 Manuel utilisateur

Hedge Clipper

Operator'sManual

MODELS:

HC-1500 Serial Number 001001 - 999999

HC-1500 - Type 2E Serial Number 001001 - 672900

HC-1600 Serial Number 001001 - 999999

HC-1600 - Type 1E Serial Number 001001 - 526700

HC-2000 Serial Number 001001 - 999999

HC-2000 - Type 1E Serial Number 001001 - 523200

HC-2400 Serial Number 001001 - 999999

HC-2410 Serial Number 001001 - 999999

WARNING DANGER

X7502248103 89861105635

12/00

WARNING

The engine exhaust from this

product contains chemicals known

to the State of California to cause

cancer, birth defects or other

reproductive harm.

Readrulesforsafeoperationandallinstructionscarefully. ECHOprovidesthis

Operator'sManualandaSafetyManual.Bothmustbereadandunderstoodfor

properandsafeoperation.

EDGE

LIPPER

PERATOR

ANUAL

Throughout this manual and on the product itself, you will find safety

alerts and helpful, information messages preceded by symbols or key

words. The following is an explanation of those symbols and key words

and what they mean to you.

This symbol accompanied by the words WARNING and

DANGER calls attention to an act or condition that can lead to

serious personal injury to operator and bystanders.

The circle with the slash symbol means whatever is shown

within the circle is prohibited.

IMPORTANT

The enclosed message provides

information necessary for the protec-

tion of the unit.

NOTE

This enclosed message provides tips

for use, care and maintenance of the

unit.

MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION

SAFETY

DECALS

Locate these safety decals on your unit. The complete unit illustration found in the "DESCRIPTION" section, will help

you locate them. Make sure the decals are legible and that you understand and follow the instructions on them. If a

decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for

specificinformation.

ALL HEDGE CLIPPER MODELS

HC-2000, HC-2400, HC-2410 ONLY

HC-1500, HC-1600 ONLY

P/NX505000270

P/NX505000290

Symbol

description/application Symbol form/shape Symbol

description/application

Symbol form/shape

Hot

Surface

Carburetor adjustment

- Idle speed

Carburetor adjustment

- High speed mixture

Symbol

description/application Symbol form/shape Symbol

description/application

Symbol form/shape

Read and understand

owners manual.

Wear eyes, ears and

head protection

Emergency stop

Fuel and oil mixture

Finger Severing

Carburetor adjustment

- Low speed mixture

Safety/Alert

Avoid all power

lines. This unit is not

insulated against

electrical current.

Do not operate clos-

er than 15 M (50 ft.)

from electrical haz-

ards.

Plan retreat path

from falling

objects.

Wear hand protec-

tion. Use two handed.

DO NOT smoke

near fuel.

DO NOT allow

flames or sparks

near fuel.

Wear slip resistant

foot wear.

Engine choke

control.

Ignition Ignition

ON/OFF

Chain lubrication Do not operate

without guards

in place.

Keep bystanders at least

4.5 meters (15 feet) away.

Primer bulb

INTERNATIONAL SYMBOLS

EQUIPMENT

Before operation a complete check of the unit must be performed;

• Check unit for loose/missing nuts, bolts and screws. Tighten and/or

replace as needed.

• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO

NOT operate unit if leaks are found.

• Never adjust blades when the engine is operating.

• Inspect hand guard for damage. Replace if damaged or missing.

• Check that the blade assembly is firmly attached and in safe operating

condition. Dull, loose or damaged blades should not be used.

• ECHO, INC. will not be responsible for the failure of cutting devices

or accessories which have not been tested and approved by ECHO

for use with this unit.

EDGE

LIPPER

PERATOR

ANUAL

FUEL

WARNING DANGER

FuelisVERYflammable.Useextremecarewhenmixing,storingor

handling or serious personal injury may result.

• Use an approved fuel container.

• DONOTsmokenearfuel.

• DONOTallowflamesorsparksnear fuel.

• Fuel tanks/cans may be under pressure. Always loosen fuel caps

slowlyallowing pressure toequalize.

• NEVERrefuelaunitwhen the engine is HOT!

• NEVERrefuelaunitwiththeengine running.

• DONOT fill fueltanks indoors. ALWAYS fillfuel tanks outdoors

over bare ground.

• Securely tighten fuel cap after refueling.

• Inspect for fuel leakage. If fuel leakage is found, do not start or

operate unit until leakage is repaired.

IMPORTANT

Spilled fuel is a leading cause of hydrocarbon emissions. Some

states may require the use of automatic fuel shut-off containers to

reduce fuel spillage. Contact your ECHO dealer for ordering

information.

After Refueling;

• Wipe any spilled fuel from the unit.

• Move at lease 3 m (10 ft.) from refueling location before starting the

engine.

After use;

• DO NOT store a unit with fuel in its tank. Leaks can occur. Return

unused fuel to an approved fuel storage container.

3 m (10 ft.)

PERSONAL CONDITION AND SAFETY EQUIPMENT

WARNING DANGER

Hedge Clipper users risk injury to themselves and others if the hedge clipper is used improperly and or safety

precautions are not followed. Proper clothing and safety gear must be worn when operating a hedge clipper.

Physical Condition --

Eye Protection --

Eye protection that meet ANSI Z87.1 or CE requirements must be worn

whenever you operate the Hedge Clipper.

Hand Protection --

Wear no-slip, heavy duty work gloves to improve your grip on the

handles. Gloves also reduce the transmission of machine vibration to

your hands.

Hearing Protection --

Wearhearing protection. ECHO recommendswearing hearing protec-

tion whenever unit is used.

Proper Clothing --

Wear snug fitting, durable clothing;

• Pants should have long legs, shirts with long sleeves.

• DONOTWEARSHORTS,

• DONOTWEARTIES,SCARFS,JEWELRY.

Wear protective hair covering to contain long hair.

Wear sturdy work shoes with nonskid soles;

• DONOTWEAROPENTOEDSHOES,

• DONOTOPERATEUNITBAREFOOTED.

Wear no-slip, heavy duty work gloves.

Hot Humid Weather --

Heavy protective clothing can increase operator fatigue which may

lead to heat stroke. Delay heavy work until temperature drops.

Your judgment and physical dexterity may not be good:

• if you are tired or sick,

• ifyou are taking medication,

• if you have taken alcohol or drugs

Operate unit only if you are physically and mentally well.

EDGE

LIPPER

PERATOR

ANUAL

SAFE OPERATION

Determine Operation Area

• Do not operate this product indoors or in inadequately ventilated

areas.

• Review the area to be trimmed. Look for hazards that could contribute

to unsafe conditions.

• Spectators and fellow workers must be warned, and children and

animalspreventedfromcomingnearerthan4.5 m(15ft.)while the

Hedge Clipper is in use.

• Provide all users of this equipment with the Operator's Manual and

instructions for Safe Operation.

Operation

UseProperClothing&Equipment

• Before starting the unit, equip yourself and any other personworking

withinthe 4.5 m(15 ft.) SafetyZone with therequired Protective

Equipment and clothing.

KeepaSolidStance

• Maintain footing and balance at all times. Do not stand on slippery,

uneven or unstable surfaces. Do not work in odd positions or on

ladders. Do not over reach.

KeepaFirmGrip

• Hold the front and rear handles with both hands, with thumbs and

fingers encircling the handles.

AvoidHotSurfaces

• During operation, the complete unit, especially the power head,

muffler area and cutting attachment may become very hot, too hot to

touch.Avoid contact during and immediately after operation.

4.5 m (15 ft.)

EXTENDED OPERATION/EXTREME CONDITIONS

Vibration and Cold

It is believed that a condition called Raynaud’s Phenomenon, which

affects the fingers of certain individuals may be brought about by

exposure to vibration and cold. Exposure to vibration and cold may

cause tingling and burning sensations followed by loss of color and

numbness in the fingers. The following precautions are strongly

recommendedbecause the minimum exposure whichmighttrigger the

ailmentisunknown.

• Keep your body warm, especially the head, neck, feet, ankles, hands

and wrists.

• Maintain good blood circulation by performing vigorous armexercises

during frequent work breaks and also by not smoking.

• Limit the hours of operation. Try to fill each day with jobs where

operating the trimmer or other hand-held power equipment is not

required.

• If you experience discomfort, redness and swelling of the fingers

followed by whitening and loss of feeling, consult your physician

before further exposing yourself to cold and vibration.

Repetitive Stress Injuries

It is believed that overusing the muscles and tendons of the fingers,

hands, arms and shoulders may cause soreness, swelling, numbness,

weakness and extreme pain in those areas. Certain repetitive hand

activities may put you at a high risk for developing a Repetitive Stress

Injury(RSI).AnextremeRSIconditionisCarpalTunnelSyndrome

(CTS), which could occur when your wrist swells and squeezes a vital

nerve that runs through the area. Some believe that prolonged expo-

sure to vibration may contribute to CTS. CTS can cause severe pain for

months or even years.

To reduce the risk of RSI/CTS, do the following:

• Avoid using your wrist in a bent, extended or twisted position.

Instead try to maintain a straight wrist position. Also, when grasping,

use your whole hand, not just the thumb and index finger.

• Take periodic breaks to minimize repetition and rest your hands.

• Reduce the speed and force with which you do the repetitivemove-

ment.

• Do exercises to strengthen the hand and arm muscles.

• Immediately stop using all power equipment and consult a doctor if

you feel tingling, numbness or pain in the fingers, hands, wrists or

arms. The sooner RSI/CTS is diagnosed, the more likely permanent

nerve and muscle damage can be prevented.

EDGE

LIPPER

PERATOR

ANUAL

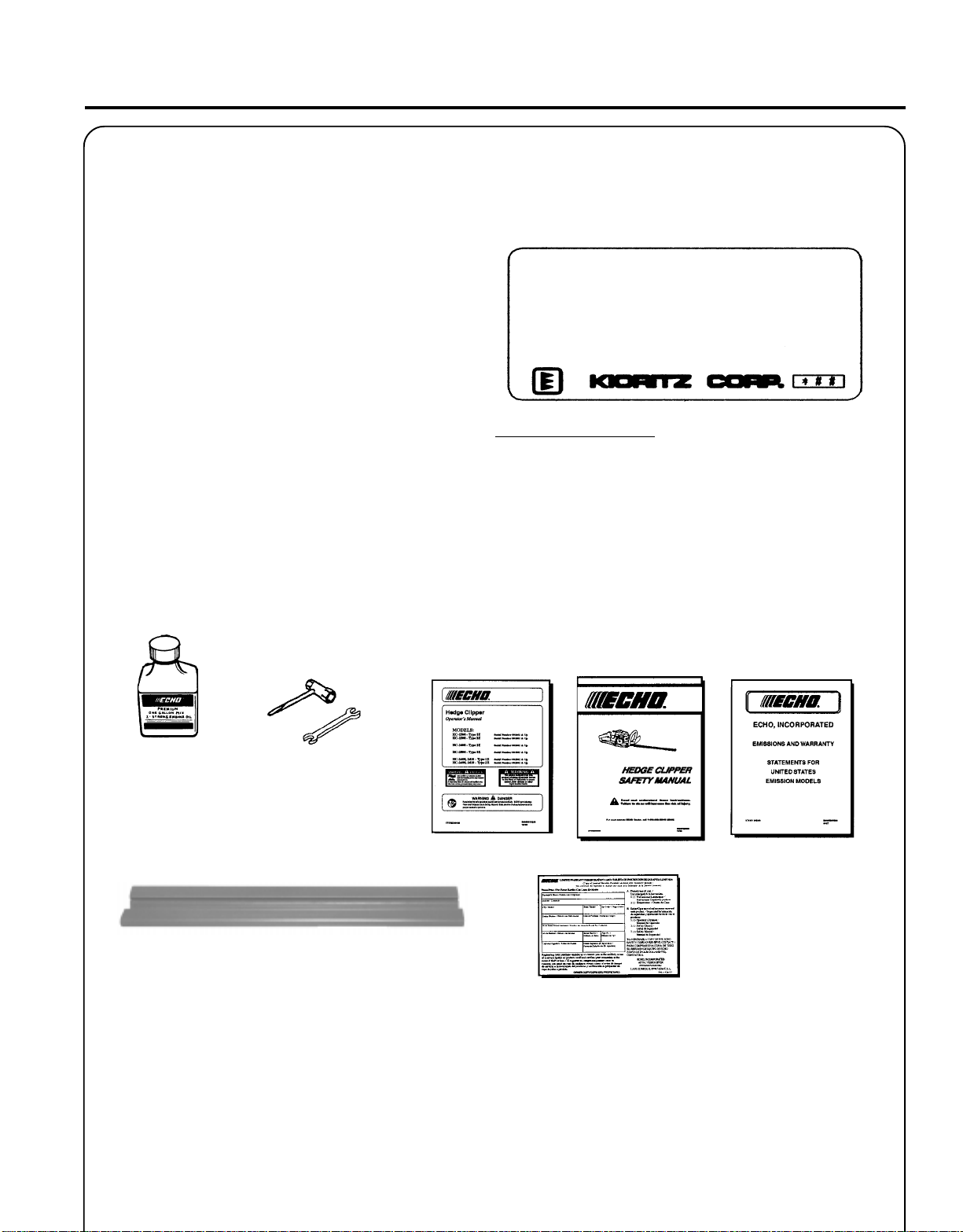

DESCRIPTION

The ECHO product you purchased has been factory

pre-assembled for your convenience.

After opening the carton, check for damage. Immedi-

atelynotifyyour retailer orECHODealerofdamaged

or missing parts. Use the contents list to check for

missing parts.

CONTENTS

__ 1 - HedgeClipper Assembly

__ 1 - Operators Manual

__ 1 - Safety Manual

__ 1 - Warranty Statement

__ 1 - Warranty Registration Card

__ 1 - PlasticBag

__ - T-Wrench

__ -8mmx10mmOpenendWrench

__ -Bottle2.6oz.2-CycleOil

__ 1 - BladeCover

EMISSION CONTROL - Emissions Models

The emission control system for this engine is EM (Engine

Modification).

EmissionControlLabel (locatedonEngine) (EXAMPLE

ONLY,informationonlabelvariesbyFAMILY).

IMPORTANT ENGINE INFORMATION

ENGINEFAMILY: TEH021UB24RA

DISPLACEMENT: 21.2cc

THISENGINE MEETS U.S.EPAPHIAND 1995 -1999

CALIFORNIAEMISSIONREGULATIONSFORULGE

ENGINES.REFERTOOWNER’SMANUALFOR

MAINTENANCESPECIFICATIONSANDADJUSTMENTS.

17 HC-2000, 2400, 2410

HC-1500, 1600

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Echo Tondeuse

Echo

Echo SRM - 410U Manuel utilisateur

Echo

Echo 99944200610, SRM-2100SB, SRM-2400SB, SRM-210SB, SRM-211SB, SRM-260SB, SRM-261SB, PAS-2100, PAS-2400, PAS2601, PAS-210,... Manuel utilisateur

Echo

Echo GT-200i Manuel utilisateur

Echo

Echo 99944200610, SRM-2100SB, SRM-2400SB, SRM-210SB, SRM-211SB, SRM-260SB, SRM-261SB, PAS-2100, PAS-2400, PAS2601, PAS-210,... Manuel utilisateur

Echo

Echo HSD 600 Profi Manuel utilisateur

Echo

Echo GT-200 Manuel utilisateur

Echo

Echo SRM - 311 Manuel utilisateur

Echo

Echo SRM-225 - 12-08 Manuel utilisateur

Echo

Echo DSRM-300 Manuel utilisateur

Echo

Echo SRM-210 - PARTS CATALOG SERIAL NUMBERS... Mode d’emploi

Echo

Echo SRM-225 - PARTS CATALOG SERIAL NUMBER... Mode d’emploi

Echo

Echo 999442 00120 Manuel utilisateur

Echo

Echo HC-150 HEDGE TRIMMER - PARTS CATALOG SERIAL NUMBER... Mode d’emploi

Echo

Echo HCA-236ES-LW Manuel utilisateur

Echo

Echo GT-225SF Manuel utilisateur

Echo

Echo ECHT-58V Manuel utilisateur

Echo

Echo SHC-2620S Manuel utilisateur

Echo

Echo 99944200610, SRM-2100SB, SRM-2400SB, SRM-210SB, SRM-211SB, SRM-260SB, SRM-261SB, PAS-2100, PAS-2400, PAS2601, PAS-210,... Manuel utilisateur

Echo

Echo WT190 Manuel utilisateur

Echo

Echo SRM-230 - 11-03 SERIAL NUMBER... Manuel utilisateur

Echo

Echo GT-200R - 11-03 Manuel utilisateur

Echo

Echo GT-200R - PARTS CATALOG SERIAL NUMBER S65111001001 -... Mode d’emploi

Echo

Echo GT-200R - 07-07 Manuel utilisateur

Echo

Echo SRM-260U Manuel utilisateur

Manuels Tondeuse populaires d'autres marques

MTD

MTD HT 51 E Manuel utilisateur

McCulloch

McCulloch T22 LS Manuel utilisateur

COCKRAFT

COCKRAFT PRO HL36-S Manuel utilisateur

Grizzly

Grizzly CT 1800 Li Manuel utilisateur

Peco

Peco Z Trimmer ZT-3000 Manuel utilisateur

Solo

Solo 116 Manuel utilisateur

Stiga

Stiga ST 1200 Manuel utilisateur

RedMax

RedMax BT17 Manuel utilisateur

GreenWorks

GreenWorks STA806 Manuel utilisateur

Parkside

Parkside PHSL 900 A3 Manuel utilisateur

Gardeo

Gardeo PRO GPTHT2560 Manuel utilisateur

Park

Park DT-810870 Manuel utilisateur

Worx

Worx WG209 Manuel utilisateur

Gardenline

Gardenline 43671/HTKS26 Manuel utilisateur

Makita

Makita 3710 Manuel utilisateur

Champion

Champion 100683 Manuel utilisateur

Stihl

Stihl FS 311 Manuel utilisateur

Efco

Efco STARK 38 Manuel
