99944200615 Curved

Shaft Trimmer

Attachment

PAS Attachment

MODEL:SERIAL NUMBERS

S55500001001 - S55500999999

ECHO, INCORPORATED

400 Oakwood Road Lake Zurich, Illinois 60047 USA

WWW.ECHO-USA.COM

99922200688

Click Any Diagram Description Below To View That Diagram.

99944200615 Curved Shaft Trimmer Attachment S/N: S55500001001 -

S55500999999

Rapid Loader Head..........................................................................................................................................................4

Plastic Shield...................................................................................................................................................................6

Gear Case.........................................................................................................................................................................8

Main Pipe, Flexible Driveshaft......................................................................................................................................10

Part Number Index.........................................................................................................................................................12

Part Description Index..................................................................................................................................................13

99922200688 - 2 - REVISED 06/22/11

Table of Contents Part Number Index

Table of Contents

- 3 -

This Page Intentionally Left Blank

99922200688 - 4 - REVISED 06/22/11

Table of Contents Part Number Index

99944200615 Curved Shaft Trimmer Attachment Rapid Loader Head

REMARKSDESCRIPTIONQTYPART NUMBERITEM

INCLUDES ITEM 2-4TWO LINE RAPID LOADER

ATTACHMENT

1X4800000201

INCLUDES 3 OF EACHREPAIR KIT1P0220010912

COVER, TOP1P0220010703

INCLUDES 3 PER PACKAGEEYELET2P0220010804

WASHER1V3070001105

WASHER - 101V3070000806

LOCKNUT1V2660000307

INCLUDES 20 PER PACKAGELINE, CUTTING - 0.80in11022121318

99922200688 - 5 - REVISED 06/22/11

Table of Contents Part Number Index

99944200615 Curved Shaft Trimmer Attachment Rapid Loader Head

99922200688 - 6 - REVISED 06/22/11

Table of Contents Part Number Index

99944200615 Curved Shaft Trimmer Attachment Plastic Shield

REMARKSDESCRIPTIONQTYPART NUMBERITEM

INCLUDES ITEMS 2-8DEBRIS SHIELD KIT1P0210160701

SHIELD, GRASS TRIMMING1699010443302

BOLT - 1/4-20 X 2"1900017080643

WASHER - 1/4"1900035000084

WINGNUT - 1/4-201900033000085

KNIFE, TRIMMER LINE1699016443306

SCREW - 5X12 -- TORX2V8350000107

NUT2900500000058

99922200688 - 7 - REVISED 06/22/11

Table of Contents Part Number Index

99944200615 Curved Shaft Trimmer Attachment Plastic Shield

99922200688 - 8 - REVISED 06/22/11

Table of Contents Part Number Index

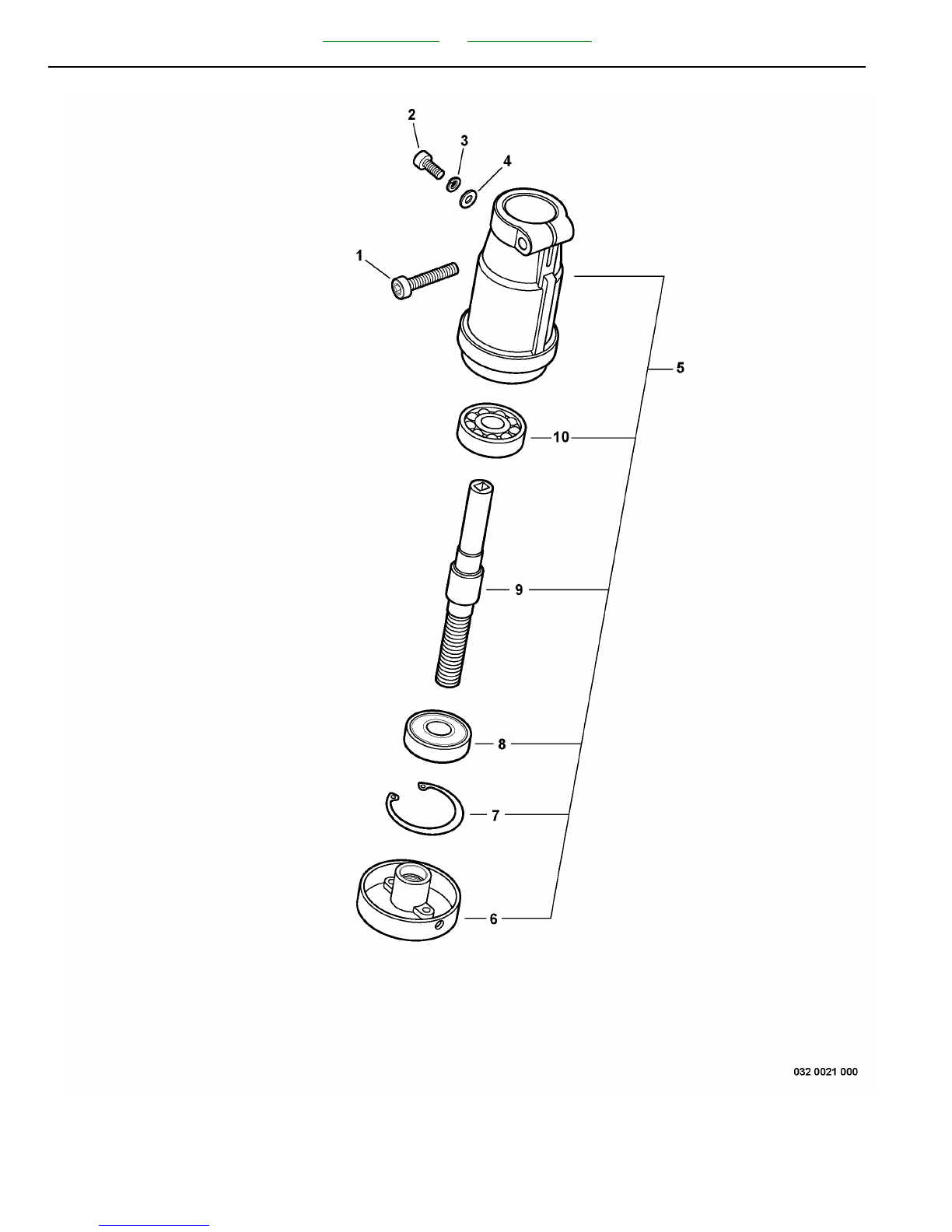

99944200615 Curved Shaft Trimmer Attachment Gear Case

REMARKSDESCRIPTIONQTYPART NUMBERITEM

SCREW - 5X251V8050001701

SCREW - 4X101V8040000402

LOCKWASHER1900605000043

WASHER1900600000044

INCLUDES ITEMS 6-10GEAR CASE ASY1C0560000015

PLATE, ADAPTER - UPPER1C5350002406

RING, RETAINING - 301900702000307

BEARING, BALL - 6200194061062008

GEAR, SHAFT1C5340003419

BEARING, BALL - 62001940600620010

99922200688 - 9 - REVISED 06/22/11

Table of Contents Part Number Index

99944200615 Curved Shaft Trimmer Attachment Gear Case

99922200688 - 10 - REVISED 06/22/11

Table of Contents Part Number Index

99944200615 Curved Shaft Trimmer Attachment Main Pipe, Flexible Driveshaft
