Ebyte E840-TTL-GPRS03 Manuel utilisateur

E840-TTL-GPRS03 User Manual

2G Wireless module

Chengdu ebyte electronic Technology Co.,Ltd. E840-TTL-GPRS03 User Manual

Contents

FEATURE............................................................................................................................................................................................ 2

1. INTRODUCTION............................................................................................................................................................................2

1.1 BRIEF INTRODUCTION.................................................................................................................................................................2

1.2 PARAMETERS.............................................................................................................................................................................. 3

1.3 INTERFACE DESCRIPTION........................................................................................................................................................... 4

1.4 PIN DEFINITION...........................................................................................................................................................................4

2. QUICK START............................................................................................................................................................................... 5

2.1 DEVICES PREPARATION..............................................................................................................................................................5

2.2 DATA TRANSMISSION TEST.........................................................................................................................................................6

2.2.1 Operating modes are as follows

：

................................................................................................................................. 7

3. NETWORK FUNCTION................................................................................................................................................................ 7

4. BASE STATION POSITIONING FUNCTION;.......................................................................................................................... 8

5. EBYTE IOT PLATFORM FUNCTION........................................................................................................................................ 8

6. AT COMMAND...............................................................................................................................................................................8

7. NOTES.......................................................................................................................................................................................... 15

8. IMPORTANT STATEMENT........................................................................................................................................................16

9. REVISION HISTORY.................................................................................................................................................................. 16

10. ABOUT US................................................................................................................................................................................. 16

Chengdu ebyte electronic Technology Co.,Ltd. E840-TTL-GPRS03 User Manual

E840-TTL-GPRS03 is designed for the communication between UART and net server via GPRS. With easy AT

setting, the dual transparent transmission can be conducted. The module supports GSM850, EGSM900, DCS1800 and

PCS1900 with GSM/GPRS standard.

This chapter focuses on the brief introduction of E840-TTL-GPRS03. It explains how to make the simplest

hardware environment and test the transparent transmission. The transparent transmission is between UART devices

（referring to PC）and net sever (replaced by TCP testing tools).

Feature

Meets almost all M2M requirement;

Support data transparent transmission, support TCP, UDP network protocol, support heartbeat package,

registration package;

Support serial port caching function, the serial port data can be cached locally before the connection is

established with the server;

Maximum GPRS data downstream rate is 85.6kbps, maximum upstream rate is 85.6kbps;

Support TCP/UDP/FTP/PPP/HTTP/NTP/MMS/SMTP/PING，code format include CS-1、CS-2、CS-3 and

CS-4；

1. Introduction

1.1 Brief Introduction

E840-TTL-GPRS03 is a new generation wireless module developed by Ebyte. The software of this product is fully

functional and covers most of the conventional application scenarios. Users can realize the transparent transmission of

bidirectional data from serial port to network server through simple setting.

On the module 2.0mm pin header is used for easy integration by user. It is powered by a wide voltage of 5.0V to 25.0V.

It supports 2G SIM card. Communication and LED use compatible communication level of 3.3v and 5v, 3.3v as

default. The module has anti-interference ability and can be used in some environments with strong

electromagnetic interference, such as some power industries.

Chengdu ebyte electronic Technology Co.,Ltd. E840-TTL-GPRS03 User Manual

1.2 Parameters

Item

Value

Description

Characteristic

Features

Support Band

Quad Band: GSM850, EGSM900, DCS1800, PCS1900

Module automatically searches for frequencies

Band selection can be set by AT command

Compliant with GSM Phase 2/2+

GPRS connection

characteristic

GPRS multi-slot class 12 (default)

GPRS multi-slot class 1~12 (configurable)

GPRS mobile station class B

GPRS data feature

GPRS data downstream transmission: up to 85.6kbps

GPRS data upstream transmission: up to 85.6kbps

Encoding format: CS-1, CS-2, CS-3 and CS-4

Support for PAP (Password Authentication Protocol) protocols

commonly used for PPP connections

Support is usually used for CHAP (Interrogation Handshake

Authentication Protocol) protocol

Embedded protocol:

TCP/UDP/FTP/PPP/HTTP/NTP/MMS/SMTP/PING, etc.

Support for unstructured supplementary data services (USSD)

Hardware

Features

Antenna

IPEX

Data interface

[email protected] compatible with 5V

Baud rate

Max of 921600bps, 115200bps as default

TX power

Class 4 (2W)：GSM850 and EGSM900

Class 1 (1W)：DCS1800 and PCS1900

Current consumption

（typical）

48mA@5V（idle）

22mA@12V（idle）

14mA@20V（idle）

Operating temperature

-30℃- +70℃；extending to -40℃~+85℃

Operating voltage

DC：5V~20V；powered by lithium battery：3.8V~4.6V

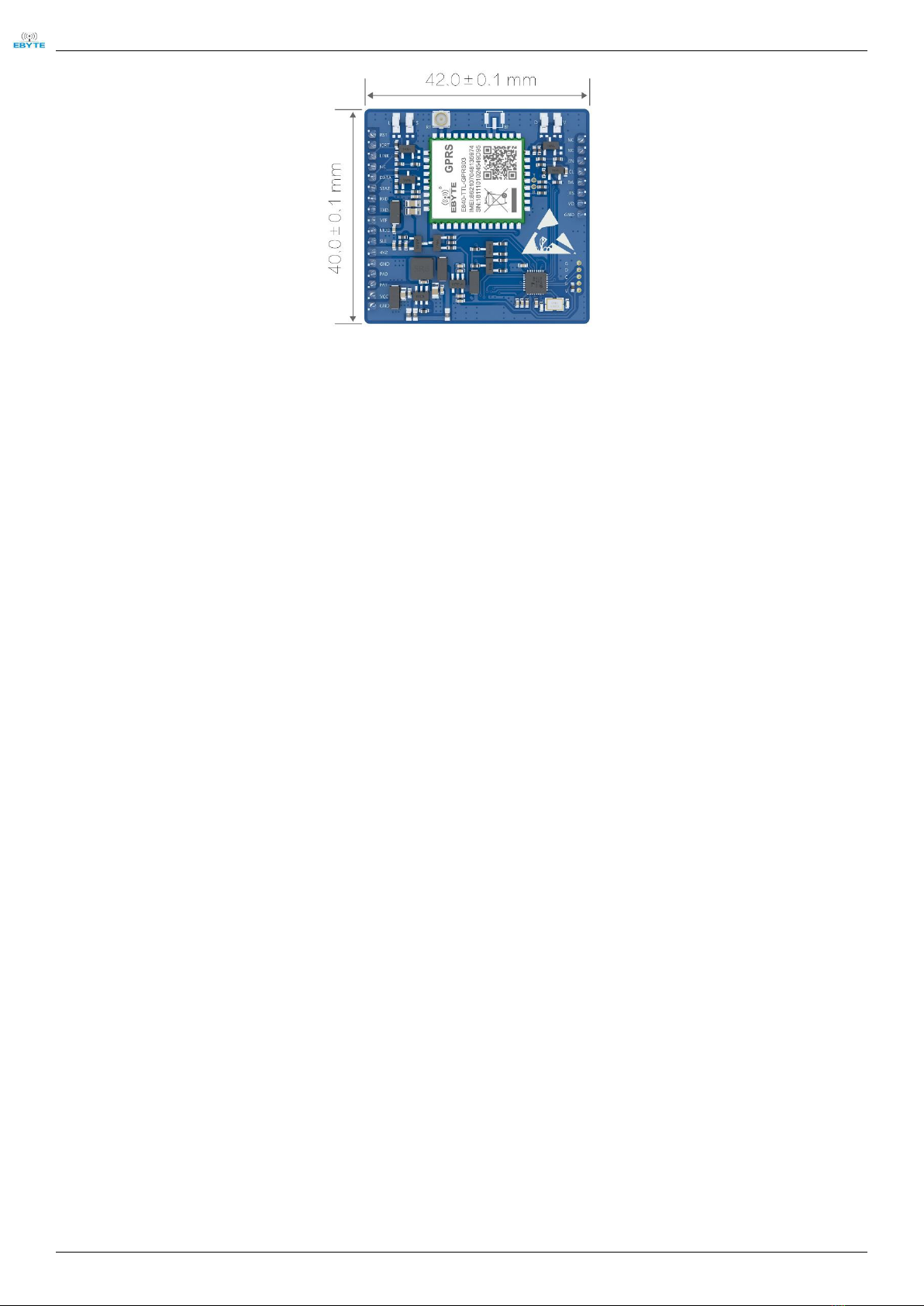

Size

42×40×9.7 mm

SIM card holder

MICRO SIM card holder

3GPP

frequency

1 Timeslot

2 Timeslot

4 Timeslot

CS-1

9.05kbps

18.1kbps

36.2kbps

CS-2

13.4kbps

26.8kbps

53.6kbps

CS-3

15.6kbps

31.2kbps

62.4kbps

CS-4

21.4kbps

42.8kbps

85.6kbps

Chengdu ebyte electronic Technology Co.,Ltd. E840-TTL-GPRS03 User Manual

1.3 Interface Description

1.4 Pin Definition

Pin NO.

Name

Description

RST

Reset

IORT

When in low level for 3~10S, module returns to factory setting and start over

immediately

LINK

The link connection status indication pin corresponds to the onboard left 1 LED.

High：successfully connect with network server；

Low：fail to connect with network server；

4、24、25

Suspended, N/A

DATA

The data transceiver indication pin, when the network receives the data or the

serial port receives the data (50ms high/10ms low), corresponding to the

onboard left 3LED light.

STAT

The device status indication pin corresponds to the onboard left 2 LED.

Low: The device is powered on to search for SIM card

1800ms for low, 200ms for high: the device checks the correct SIM card and is

attaching to the network;

High: The device is attached to the network successfully.

RXD

Data RX，default 3.3V，compatible with 5V

TXD

Data TX，default 3.3V，compatible with 5V

VEF

Drive level power supply pin, if user need to achieve serial communication and

LED indication of 5V drive level, user need to input 5V level on this pin.

10、11、14、

15、23

MOD、SLE、

PA0、PA1、EN

Suspended, N/A

Chengdu ebyte electronic Technology Co.,Ltd. E840-TTL-GPRS03 User Manual

4V2

Lithium battery power supply pin，range：3.8V~4.6V. This pin is prohibited from

being reversed and is not allowed to be supplied with VCC.

VCC

DC power supply pin，range：5V~20V. This pin is prohibited from being reversed

and is not allowed to be supplied with 4V2.

Power pin to connect SIM externally, NC for pcb SIM card holder.

Reset pin to connect SIM externally, NC for pcb SIM card holder.

Data pin to connect SIM externally, NC for pcb SIM card holder.

Clock pin to connect SIM externally, NC for pcb SIM card holder.

13、17、18

GND

Ground

2. Quick start

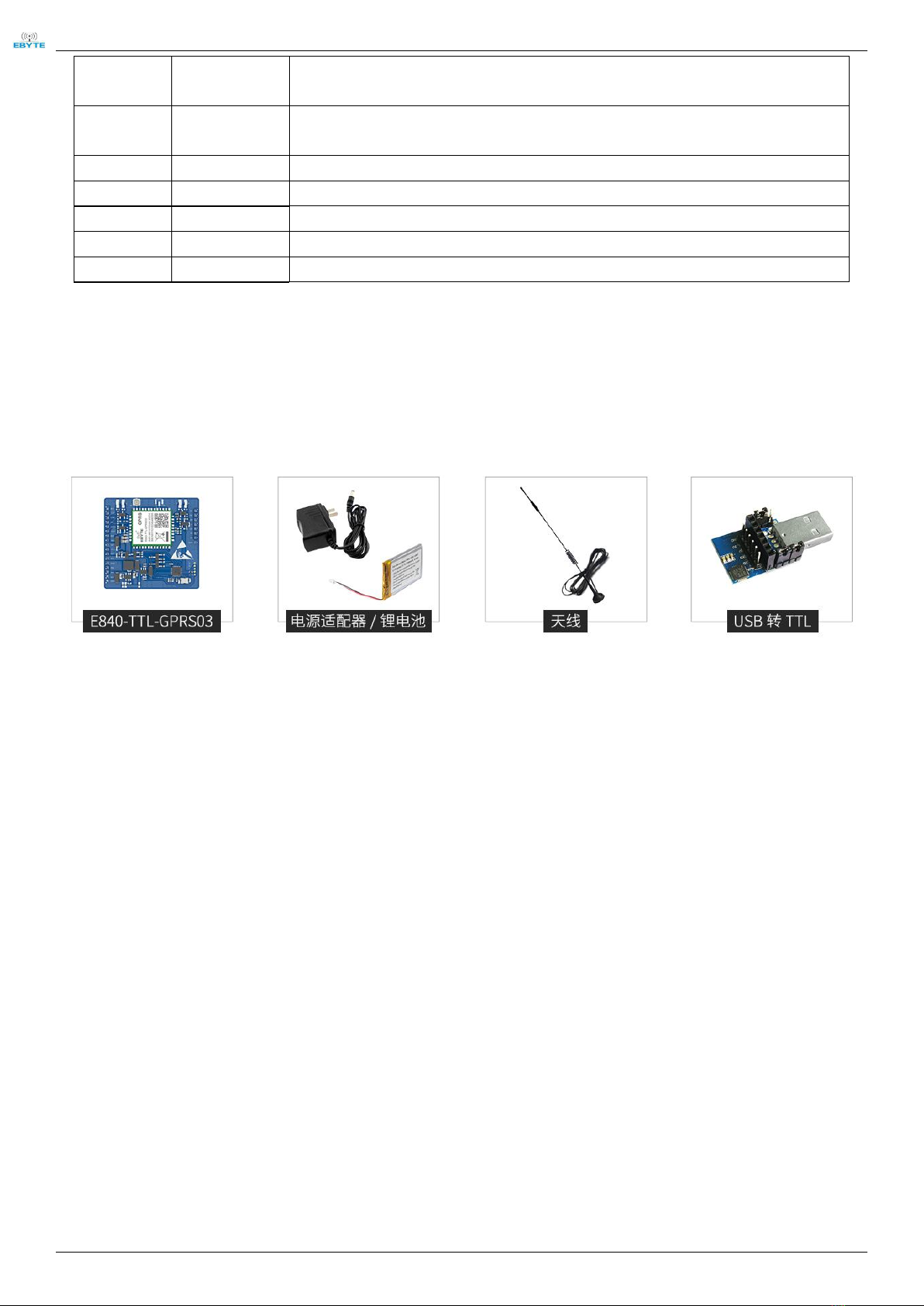

2.1 Devices preparation

Please get UART, SIM card, sucker antenna and etc. ready according to the recommended circuit before test.

1、Enter the AT command mode and send +++ in the serial port assistant (+++ does not need to check to

send a new line, other AT commands need to tick to send a new line to be valid), one must send any

other AT command within 3 seconds after sending +++ (except for AT command for restarting) to

enter the AT command mode completely.

2、After entering the AT command mode, use AT+CPIN to check the SIM card access:

For example: AT+CPIN

+OK=1

Indicates that the SIM card is connected, and use AT+CSQ to view the current signal strength：

For example：AT+CSQ

+OK=26

Indicates that the current signal strength is normal. If the response is 99, the current signal strength is

abnormal. Check whether the current antenna is connected or the surrounding base station is

abnormal.

3. Access server, AT+SOCK=TCPC, 116.62.42.192, 31687 (parameters are separated by commas in

English characters, and IP commands are separated by English characters).

SOCK settings

For example: AT+SOCK=TCPC, 116.62.42.192, 31687

+OK

Chengdu ebyte electronic Technology Co.,Ltd. E840-TTL-GPRS03 User Manual

Indicates that the setting was successful.

4. Restart (after all AT commands modify parameters, the device will take effect after restarting)

After the execution command AT+REBT returns OK, the device restarts immediately. Here, the IP only

performs the demonstration. The actual connection is based on the IP of the server to be connected.

5. After the base station is connected, the NET light is always on to indicate that the server is connected,

and transparent transmission is possible at this time.

2.2 Data Transmission Test

Software tools required for this data transfer test:

For any serial port assistant, such as XCOM we used, the software driver can be downloaded from our official

website.

Chengdu ebyte electronic Technology Co.,Ltd. E840-TTL-GPRS03 User Manual

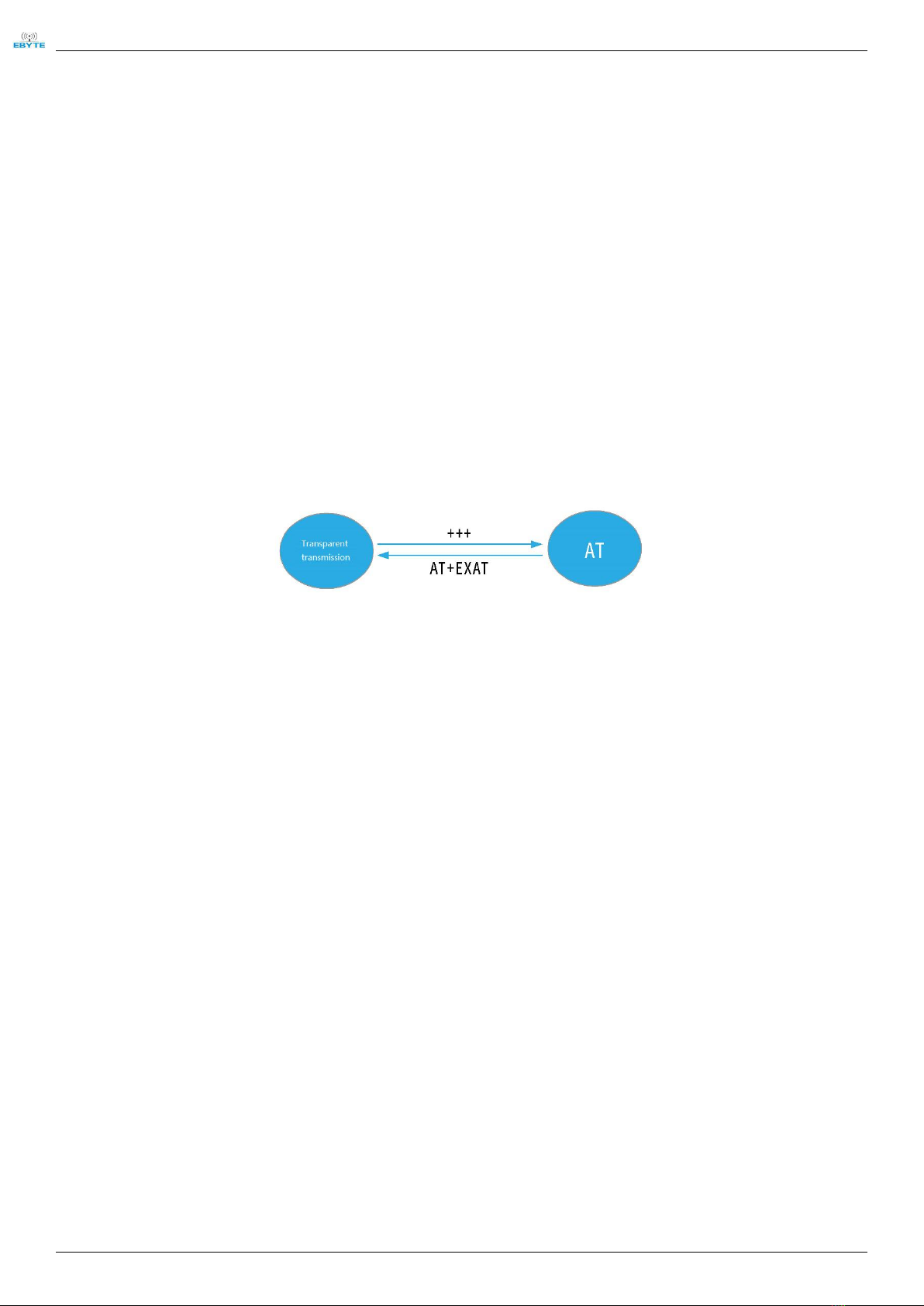

2.2.1 Operating modes are as follows：

1, The operating mode is divided into: transparent transmission mode, AT configuration mode

a) Transparent transmission mode: After power-on, the module works in the transparent transmission mode by

default, and automatically starts the network connection. When the connection is established with the server, any

data received by the serial port will be transparently transmitted to the server. At the same time, it can also

receive the data from the server. After receiving the server data, the module will output directly through the serial

port. The maximum length of data supported by this module is 512 bytes.

b) This module supports one-way Socket connection. The user can configured it as TCP Client or UDP Client. In

transparent transmission mode, the received serial port data will be directly transmitted to the network server, and

the received network server data will be directly output through the serial port.

c) AT mode: In this mode, the serial port data is regarded as an AT command.

d) Mode switching, after the serial port receives the “+++” frame data in the transparent transmission mode, the

RX pin receives any AT command within 3 seconds, and the mode switches to the AT mode. In AT mode, send

AT+EXAT<CR><LF> to switch to transparent transmission mode.

3. Network Function

a) Short connection: In TCP Client mode, the short connection function is enabled. If there is no data reception

in the serial port or network port within the set time, the network connection will be automatically disconnected.

The short connection function is turned off by default. The connection time can be set from 2 to 255 seconds.

When set to 0, the short connection function is disabled.

b) Registration package: The registration package is closed by default. 4 options include: physical address when

connecting, send custom data when connecting, add physical address before each packet of data, add

custom data before each packet of data. The maximum data length for customize registration package is 40

bytes (when set to HEX format, the maximum length is 20 bytes)

c) Heartbeat packet: In the idle state of network communication, the heartbeat packet is used for network state

maintenance. The heartbeat period can be set from 0 to 65535 seconds, and the maximum length of the

heartbeat packet is 40 bytes (when set to HEX format, the maximum length is 20 bytes). Supports two types

of heartbeats, network heartbeat, serial heartbeat. User selects network heartbeat, starts timing when in

communication idle, and sends heartbeat packets to the server according to the configured heartbeat period.

User selects the serial port heartbeat, start timing when in communication idle, and send heartbeat packets to

the serial port according to the configured heartbeat period.

Clear the cache: Before the connection to the server is established, the data received by the serial port will

be cached. When the connection with the server is established, you can choose whether to clear the cached

data. By default, the cache is cleared.

The maximum packet length of the local cache is 256 bytes.

Chengdu ebyte electronic Technology Co.,Ltd. E840-TTL-GPRS03 User Manual

4. Base station positioning

The E840-TTL-GPRS03 supports the base station positioning function. The user can send the AT+LBS command

in the AT mode to read the current LBS information of the device. The device returns the data format as follows:

+OK=LAC,xxxx;CID,xxxx, where LAC is the unique identification number of the global cell, CID is the base station

number, (xxxx is the hexadecimal value);

The LAC and CID number can be used to query the current location information of the device. For the query

method, refer to the link: http://www.gpsspg.com/bs.htm

5. Ebyte IoT platform

AT+EBTIOT command is used to set whether the module enables the transparent transmission function of

the Ebyte cloud platform, after the device is turned on, the information such as the heartbeat and registration

package configured by the user will be invalid. The user only needs to set the forwarding relationship of the

corresponding device to the platform to implement the transparent transmission. For details of the related

operations, please refer to the "Transparent Transmission Guide for Ebyte Cloud Platform ".

6. AT Command

a) Command format：

AT+<CMD>[op][ para1, para2, para3,…]<CR><LF>

AT+：Command prefix

CMD：Control command

[op]：“=”indicate parameter configuration

“NULL”indicate parameter query

[para-n]：parameter list

<CR><LF>：Enter, start new line，ASCII 0x0D 0x0A

b) Error code：

Error code

Description

-1

Invalid command format

-2

Invalid command

-3

Invalid Operator

-4

Invalid parameter

-5

Operation not allowed

c) Command set：

Command

Description

REBT

Restart Module

VER

Query version number

INFO

Query device info.

EXAT

Exit AT command mode

RESTORE

Restore factory setting

UART

Set/Query UART parameter

Chengdu ebyte electronic Technology Co.,Ltd. E840-TTL-GPRS03 User Manual

UARTCLR

Set/query whether UART cache is cleared before

module connection

MAC

Set/query MAC address

IMEI

Set/query IMEI

LINKSTA

Set/query SOCK connection

LINKSTA1

Set/query SOCK1 connection

LINKSTA2

Set/query SOCK2 connection

LINKSTA3

Set/query SOCK3 connection

SOCK

Set/query SOCK parameter

SOCK1

Set/query SOCK1 parameter

SOCK2

Set/query SOCK2 parameter

SOCK3

Set/query SOCK3 parameter

REGMOD

Set/query registration package mode

REGINFO

Set/query customized registration package information

（ASCII）

REGINFONEW

Set/query customized registration package information

（HEX）

HEARTMOD

Set/query Heartbeat Packet mode

HEARTINFO

Set/Query Customized Heartbeat Packet Information

（ASCII）

HEARTINFOEW

Set/query custom heartbeat packet information

(hexadecimal)

HEARTM

Set/query heartbeat time

SHORTM

Set/query short connection time

EBTIOT

Set/Query EBYTE IoT Cloud Platform Enable

CREG

Query whether registered to network

CSQ

Query signal strength

CPIN

Query SIM status

d) Command details：

AT+REBT

Function：Restart module

Format：Set

TX：AT+REBT<CR>

Return：<CR><LF>+OK<CR><LF>

Parameter：None

Description: After the command is executed correctly, the module restarts immediately and enters the

transparent transmission mode after restarting.

AT+VER

Function：Query firmware version

Format：Set

TX AT+VER<CR><LF>

Return <CR><LF>+OK=<ver><CR><LF>

Parameter：Ver firmware version

description：None

AT+INFO

Function：Query module type and version

Format：Set

Table des matières

Autres manuels Ebyte Module sans fil

Ebyte

Ebyte ESP32-S3-MINI-1 Manuel utilisateur

Ebyte

Ebyte E32 Series Manuel utilisateur

Ebyte

Ebyte E22-400T30S Manuel utilisateur

Ebyte

Ebyte E220-900M22S Manuel utilisateur

Ebyte

Ebyte E30-780T20S Manuel utilisateur

Ebyte

Ebyte E31-433T27D Manuel utilisateur

Ebyte

Ebyte E70-915NW14S Manuel utilisateur

Ebyte

Ebyte E01 Series Manuel utilisateur

Ebyte

Ebyte E220-230T30S Manuel utilisateur

Ebyte

Ebyte E43-433T13S3 Manuel utilisateur

Ebyte

Ebyte E72-2G4M20S1E Manuel utilisateur

Ebyte

Ebyte E22-900T30DC Manuel utilisateur

Ebyte

Ebyte JN5189 Manuel utilisateur

Ebyte

Ebyte E76-433M20S Manuel utilisateur

Ebyte

Ebyte E73-2G4M04S1FX Manuel utilisateur

Ebyte

Ebyte EO01-MLO1SP4 Manuel utilisateur

Ebyte

Ebyte E01-2G4M27D Manuel utilisateur

Ebyte

Ebyte E831-RTU Series Manuel utilisateur

Ebyte

Ebyte E103-W06-TB Manuel utilisateur

Ebyte

Ebyte E70-400M14S1B Manuel utilisateur

Ebyte

Ebyte E22-400M22S Manuel utilisateur

Ebyte

Ebyte E10-433MS1W Manuel utilisateur

Ebyte

Ebyte E70-433T Series Manuel utilisateur

Ebyte

Ebyte E31-433T17D1B Manuel utilisateur

Manuels Module sans fil populaires d'autres marques

Laird

Laird RM024 Manuel utilisateur

Laird

Laird BT830-SA Guide de configuration rapide

Fibocom

Fibocom FM101-NA-20 Instructions d'installation

Waldmann

Waldmann EnOcean TALK MODUL G2 Manuel utilisateur

Smartech

Smartech LBT-1.DO4 Manuel utilisateur

Cooper Wiring Devices

Cooper Wiring Devices ESPIRE RF RFAPM Manuel utilisateur

Yuga

Yuga CLM920 Manuel utilisateur

Waldmann

Waldmann TALK Bluetooth Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions UC864-G Manuel d'installation

Quectel

Quectel SC690A Series Supplément

Panasonic

Panasonic INDUSTRY PAN9028 Guide de configuration rapide

LongSung Technology

LongSung Technology U9507E Manuel utilisateur

Wistron NeWeb

Wistron NeWeb DNUR-S2 Manuel utilisateur

RF-Star

RF-Star SimpleLink RF-BM-2652P1 CC2652P Manuel utilisateur

CHIEF

CHIEF AVMW Manuel utilisateur

Huawei

Huawei EM701 Manuel utilisateur

SIYI

SIYI FTM30 Manuel utilisateur

RF-Star

RF-Star RF-BM-4055B1L Mode d’emploi
