Ebikes-Canada EBC-S03 Manuel utilisateur
EBike
Table of Contents
&&&&&1/$-.2.-(*.0"+
&&&&&
&&&&&12/&'(34#.5"
&&&&&,).;."7
&&&&&3(+.-&<(."*$"("-$
&&&&&,.(7"0+$&("#&=)0:9>$+600*."7
&&&&&E5,&D/$)(*."7&14+*$@
&&&&&F+$2:>&=./+
&&&&& 8G
&&&&I&
&&&&J
&&&&!!
&&&&!"
&&&&!#
&&&&!$
&&&&!%
&&&&!&
&&&&"'
&&&&"!
&&&&""
&&&&"#
&&&&"$
&&&&
#"
Table of Contents
EBC-S03
4
EBC-S04
6

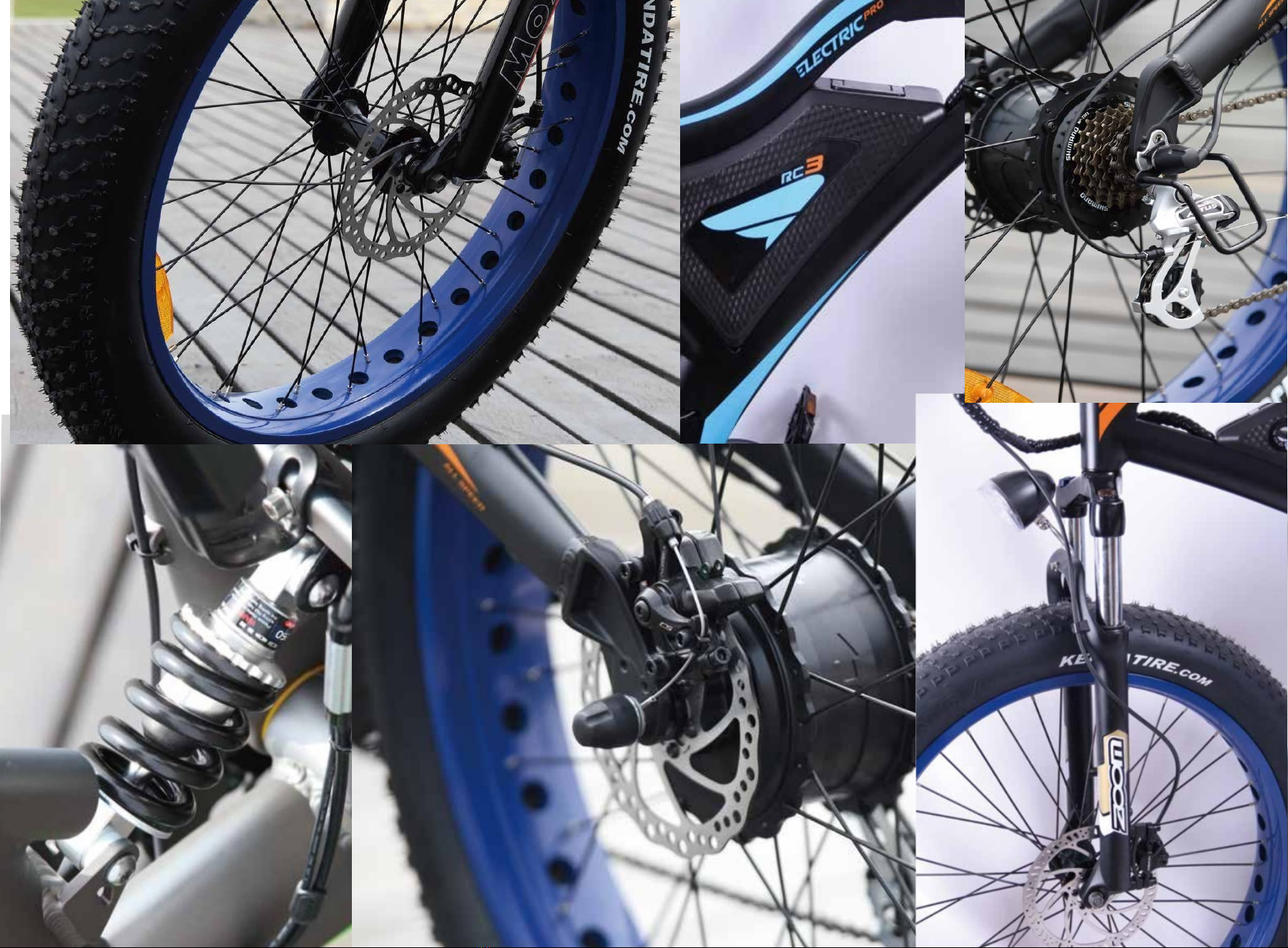

Product Photos
3
Assembly instructions
16
Routine checks
17
Battery charging
18
About charging
19
Driving
21
Basic maintenance
24
Diagnose and troubleshoot
2
Recommended torque values for threaded fasteners
26
ontroller operating system
27
EBC-S18
FAQ
28
EBC-S07B
EBC-S07D
EBC-S0
8
10
12
14
If you want to print the user manual, is designed to be printed double sided with a flip on the short side.
13.
EBC-S03
4 4
EBC-S03
Battery
Motor
Controller
Charge Time
36V 14 AH Li-Ion Battery (504 Wh
Frame 6061 Aluminum Alloy
350 Watt Bafang Rear Hub Motor
36V 15A
6-8 Hours
Max Speed 32-38 Km/h (Unlocked
Range Distance 45-90 Km
Brake Front & Rear Disc Brake
Light Front & Rear Lights
Display LCD SW900 Display
Fork Al Alloy Suspension Fork
Tires 26x1.95
Derailleur 7 Speed Shimano
147*27*86cm - 23.2 Kg (51lbs Net
Packaging 5
EBC-S04
6
EBC-S04
3 0 Battery
Motor
Controller
Charge Time
36V 14 AH Li-Ion Battery (504 Wh
Frame 6061 Aluminum Alloy
350 Watt Bafang Rear Hub Motor
36V 15A
4-6 Hours
Max Speed 32-38 Km/h (Unlocked
Range Distance 45-90 Km
Brake Front & Rear Disc Brakes
Light Front & Rear Lights
Display LCD SW900 Display
Fork Zoom Al Alloy Suspension Fork
Tires 26x1.95
Derailleur 7 Speed Shimano
138*27*63cm - 23.2 Kg (51lbs Net
Packaging
7
EBC-S05
8
EBC-S05
Battery
Motor
Controller
Charge Time
48V 15 AH Li-ion battery (720 Wh
500 Watt Bafang Rear Hub Motor
48V 22 A
4-6 Hours
Max Speed 40-45 Km/h (Unlocked
Range Distance 45-90 Km
Brake Front & Rear Disc Brakes
Light Front & Rear Lights
Display LCD SW900 Display
Fork Al Alloy Suspension Fork.
Tires 26x2.5
Derailleur 7 Speed Shimano
163*27*82cm - 28.6 Kg (63 lbs Net
Packaging
9
Battery
Frame 6061 Aluminum Alloy
EBC-S07B
10
