Phase rotation indicator 95608
PHASE ROTATION INDICATOR
2
Introduction
The phase rotation indicator is a handheld
instrument designed to detect the rotary field of
three-phase systems.
Symbols
The following symbols appear on the phase
Rotation indicator or in this manual.
Table 1. Symbols
CAT
Risk of electric shock
Earth
Risk of Danger . Important
information See manual
AC or DC
Hazardous Voltage. Conforms to E directives.
Equipment protected by
double or reinforced
Insulation
OVERVOLTAGE(Installation)
CATEGORY III,Pollution Degree 2 per IEC
1010-1 refers to the level of Impulse
Wishstand Voltage protection
provided.Equipment of OVERVOLTAGE
CATEGORY III is equipment in fixed
installations (e.g.,electricity meter and
primary over-current protection
equipment.)
3
Elements of the phase Rotation
indicator
Indicators, buttons, and jac s are shown in Figure
1.
PHASE ROTATION INDICATOR
1
2
3
4
5
1
2
3
4
5
Test lead input jack
L1,L2,L3 Indicators
Clockwise Rotation LCD Indicator
Counter-Clockwise Rotation LCD Indicator
Brief Instructions on instrument rear

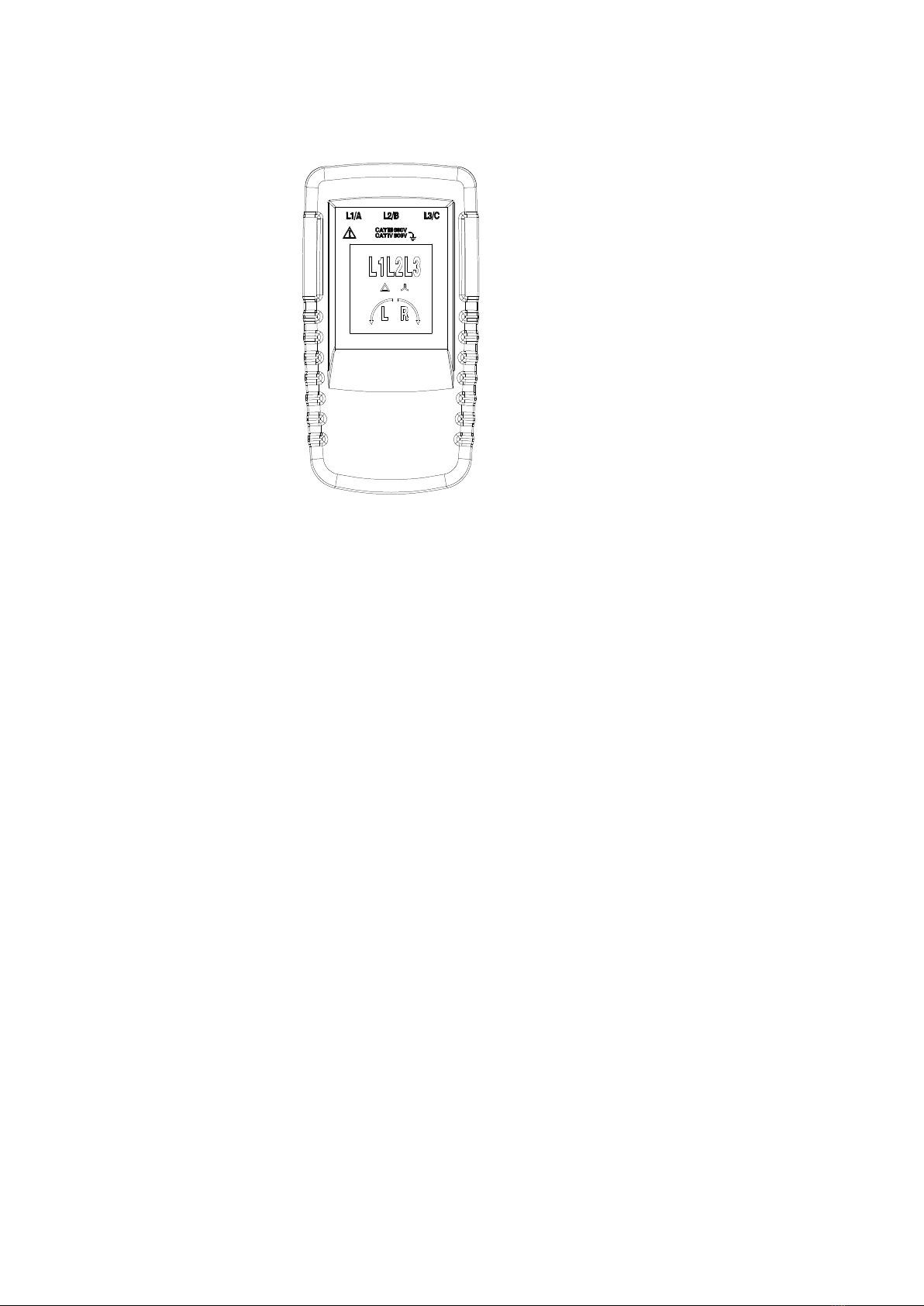

Figure 1. The phase Rotation Indicator
Determine the Rotary Field Direction
To determine the rotary field direction:
1. Connect the test probes to the end of the
test leads.
2. Connect the test probes to the three mains
phases.
4
3. The green ON indicator shows that the
instrument is ready for testing.
4. Either the cloc wise or counter-cloc wise
rotary indicator illuminates showing the type
of rotary field direction present.
5. The rotary indicator lights even if the neutral
conductor, N, is connected instead of the
Test lead input jac s.
Unpac ing the phase Rotation
indicator
The phase Rotation indicator ships with the
following items:
3 pieces self-retaining test probes
Alligator clip
Users Manual
If an item is damaged or missing, contact the place
of purchase immediately.
5
Safety Information
C a u t i o n i d e n t i f i e s c o n d it i o n s a n d
a c t i o n s t h a t m a y d a m a g e t h e D T -9 0 1
W a r n in g id e n t i f i e s c o n d it i o n s a n d
a c t i o n s t h a t p o s e h a z a r d t o t h e u s e r .
Read First: Safety Information
To avoid possible electric shoc or fire, do the
following:
Read the following safety information carefully
before using or servicing the instrument.
Adhere to local and national safety codes.
Individual protective equipment must be used
to prevent shoc and injury.
Use of instrument in a manner not specified by
the manufacturer may impair safety
features/protection provided by the equipment.
Avoid wor ing alone.
6
Inspect the test leads for damaged insulation or
exposed metal. Chec test lead continuity. Damage
leads must be replaced. Do not use the phase
Rotation indicator if it loo s damaged.
Be careful when wor ing above 30V ac rms,
42V ac pea and 60V dc. Such voltages pose a
shoc hazard.
When using the probes, eep fingers away
from probe contacts. Keep fingers behind the finger
guards on the probes.
Measurements can be adversely affected by
impedances of additional operating circuits
connected in parallel or by transient currents.
Verify operation prior to measuring hazardous
voltages (voltages above 30V ac rms, 42V ac pea
and 60V dc).
Do not use the phase Rotation indicator with
any of the parts removed.
Do not use the phase Rotation indicator around
explosive gas, vapor, or dust.
Do not use the phase
Rotation indicator in a
wet environment.
7
Specifications Environmental
Operating Temperature
0℃ to +40℃
Pollution Degree 2
Type of protection IP 40
Mechanical Specifications
Size (H x W x D): 130mm x 69mm x 32mm.
Weight: 130g
Safety Specifications
Electrical Safety
IEC 61010/EN61010,
IEC 61557-7/EN 61557-7
Maximum Operating Voltage (Ume) 690 V
Protection Levels
CAT lll, 600V to ground
Electrical Specifications
Power Supply
From unit under test
Determine Rotary Field Direction
8
Nominal Voltage
40 to 690 VAC
Frequency Range (fn)
15 to 400HZ
Current pic up
1 mA
Nominal Test current (in per phase)
1 mA
