EAW DSA230 Manuel utilisateur

Warning: Repackaging DSA loudspeakers should only be done by an experienced technician. Improper repackaging may

result in damage to the equipment or injury.

Instructions/Repackaging

DSA230 & DSA250 Loudspeakers

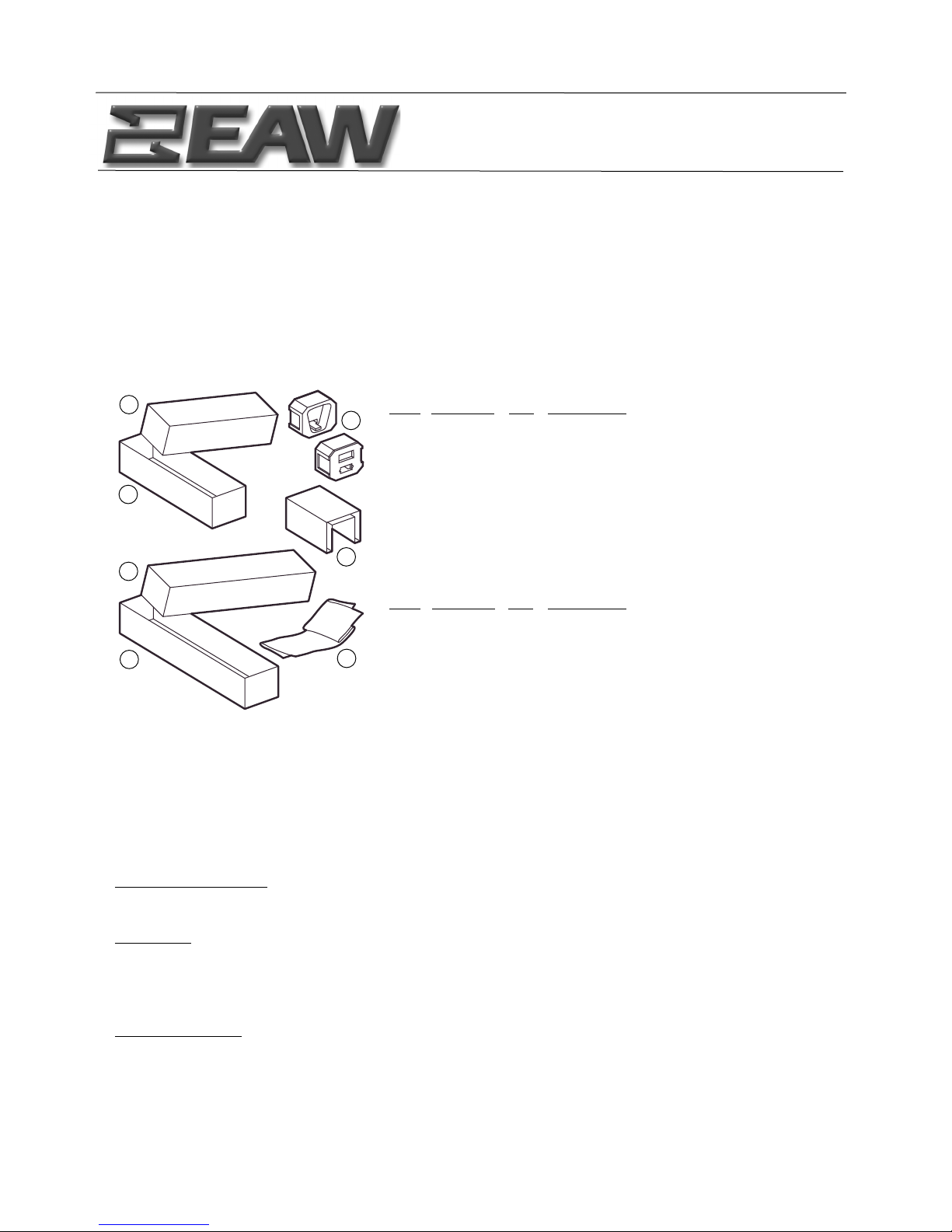

DSA230 REPACKAGING KIT PARTS LIST, EAW P/N 0013249:

Item EAW P/N Qty Description

A 0011971 1 Box, Cardboard, Top, DSA230

B 0011976 1 Box, Cardboard, Bottom, DSA230

E 0011371 2 Endcap, Foam-DSA

F 0013156 1 Cardboard Sheet, Scored, Top Pad, DSA

G 304005 1 Poly Bag, Clear, 34 x 24 x 60

H RD0172 1 Instructions, Repackaging, DSA (this sheet)

All original packaging, the DSA230 Repackaging Kit, P/N 0013249, or the DSA250 Repackaging Kit, P/N 0013250,

is required for reshipping a DSA Loudspeaker. Follow this Instruction Sheet when repackaging.

DSA250 REPACKAGING KIT PARTS LIST, EAW P/N 0013250:

Item EAW P/N Qty Description

C 0011977 1 Box, Cardboard, Top, DSA250

D 0011978 1 Box, Cardboard, Bottom, DSA250

E 0011371 2 Endcap, Foam-DSA

F 0013156 2 Cardboard Sheet, Scored, Top Pad, DSA

G 304002 1 Poly Bag, Clear, 32 x 24 x 70

H RD0172 1 Instructions, Repackaging, DSA (this sheet)

Removing Mounting Hardware

CAUTION: Remove all mounting hardware from the loudspeaker before repackaging. Do not pack any

mounting hardware with the loudspeaker. Provide separate packaging if being shipped with the loudspeaker.

Wall Mount Brackets: Remove the bracket on each end of the loudspeaker by unscrewing its hex head

attachment screw. To prevent loss, screw them back into the mounting brackets.

Fly-Bar Kit: Remove the Fly-Bar assembly by unscrewing the eight slotted standoffs from the four Support

Straps in the channels along the sides of the loudspeaker. To ease removal, loosen the bolts that attach the

Support Straps to the Fly-Bar. Slide the entire Fly-Bar assembly out of the channels. To prevent loss, screw

the standoffs back onto the Strap studs.

Connecting Straps: Remove the four Connecting Straps by unscrewing the eight slotted standoffs in the chan-

nels along the sides of the loudspeaker. Slide each Strap out of its channel. To prevent loss, screw the stand-

offs back onto the Strap studs.

NOTE: An RA (Return Authorization) number must be obtained from the EAW Service Department for

any product being shipped back to EAW.

Thank you for purchasing EAW products

If you have questions about DSA Repackaging please contact the EAW Service Department by one of the methods below, or by e-mail

at [email protected]om.

One Main Street, Whitinsville, MA 01588 tel 800 992 5013/508 234 6158 fax 508 234 8251 web www.eaw.com

EAW P/N RD0172 (A) 13SEPT04

EAW is the worldwide technological and market leader in the design and manufacture of high-performance, professional loudspeaker systems.

5. If returning the product to EAW or to an authorized EAW distributor, include

in the shipping carton:

a. If under warranty, proof of the original delivery date or a copy of the

original sales receipt.

b. A description of the suspected defect or malfunction and the conditions,

if any, which caused the problem.

c. A return address.

6. Install and secure the cover (A or C).

7. If being returned to EAW, write the RA number so it is prominently

displayed on the outside of the shipping carton. Any products received

without an assigned RA number that is clearly visible upon arrival at

EAW will be refused.

Repackaging the DSA Loudspeakers

NOTE: For clarity these instructions do not show

the poly bag (G) around the loudspeaker.

1. Place loudspeaker to be reshipped into the poly bag.

2. Insert a foam end cap (E) onto each end of the loudspeaker

FOR DSA230

FOR DSA250

DSA250

LOUDSPEAKER

REPACKAGING

DSA230

LOUDSPEAKER

REPACKAGING

3. Lay the loudspeaker/poly bag

/end caps face up into the box.

The DSA230 and the DSA250 loudspeakers differ in length. They are both

secured in the their packaging by similar parts. The longer DSA250 requires

two cardboard top pads (F) and the shorter DSA230 requires only one.

4. Insert the top pad/s (F) over the cradled loudspeaker.

1 TOP PAD REQUIRED FOR

PACKAGING THE SHORTER

DSA230 LOUDSPEAKER

2 TOP PADS REQUIRED

FOR PACKAGING THE

LONGER DSA250 LOUDSPEAKER

POLY BAG, ITEM G,

NOT SHOWN

FOR CLARITY
