Powerware Security Detector

User’s Guide

®

Powerware is a registered trademark of Eaton Electrical Inc.

ECopyright 2007 Eaton Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be

reproduced in any way without the express written approval of Eaton Corporation.

EATON Powerware®Security Detector User’s Guide S164201679 Rev 1 3

Security Detector

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important instructions that you should follow during installation and

maintenance of the security detector. Please read all instructions before operating the

equipment and save this manual for future reference.

The security detector is a device that works with the Eaton Powerware

Environmental Rack Monitor (ERM) and connects to the TH-Module.

Through the ERM, the user can monitor if a door or window is open.

Security detectors are commonly used in burglar alarm systems as

door/window open sensors; however they can be disabled if they are in

a strong, external magnetic field. If a security detector is dropped onto a

hard surface from more than 30 cm (11.8”) or subject to shock of more

than 30G, it is possible to cause the characteristics to change (Pull-in,

Drop-out, etc.).

It is recommended to place security detectors in doors or windows.

Installation

To install the security detector:

1. Loosen the screws on the TH-Module (see Figure 1).

Alarm 1 Alarm 2

Figure 1. Adjusting TH-Module Screws

SECURITY DETECTOR

EATON Powerware®Security Detector User’s Guide S164201679 Rev 1

4

2. Connect the security detector wires to the TH-Module alarm 1 or

alarm 2 connectors, and then tighten the screws on the TH-Module

(see Figure 2).

Figure 2. TH-Module with Security Detector

3. Remove the backing from the security detector sensors and stick

the sensors to the door and doorframe or the window and

windowframe.

4. If you are installing additional security detectors, repeat Steps 1

through 3.

5. Connect the RJ-45 network cable to the TH-Module port labeled

“010101“ (see Figure 3).

Figure 3. Connecting the RJ-45 Network Cable

SECURITY DETECTOR

EATON Powerware®Security Detector User’s Guide S164201679 Rev 1 5

6. Connect the other end of the RJ-45 network cable to the ERM (see

Figure 4).

TH-Module

12

TH-Module-1 TH-Module-2NETWORK RESET 12 VDC

To LAN port To Power Outlet

ERM

Figure 4. ERM and TH-Module

7. Verify that the ERM is connected to the network. Open the ERM

Web page and select Monitoring, then TH-Module-1 Setup or TH-Module-2

Setup. The setup screen displays (see Figure 5).

8. Change the status of the TH-Module from “Disable” to “Auto” on

the Device Name line. Verify that the TH-Module LED

(Power/Status) is flashing.

9. Set the status of alarm 1 and/or alarm 2 to “Normal Close” and

select “Door Contact.”

10. Select Set Value to confirm the security detector setup.

SECURITY DETECTOR

EATON Powerware®Security Detector User’s Guide S164201679 Rev 1

6

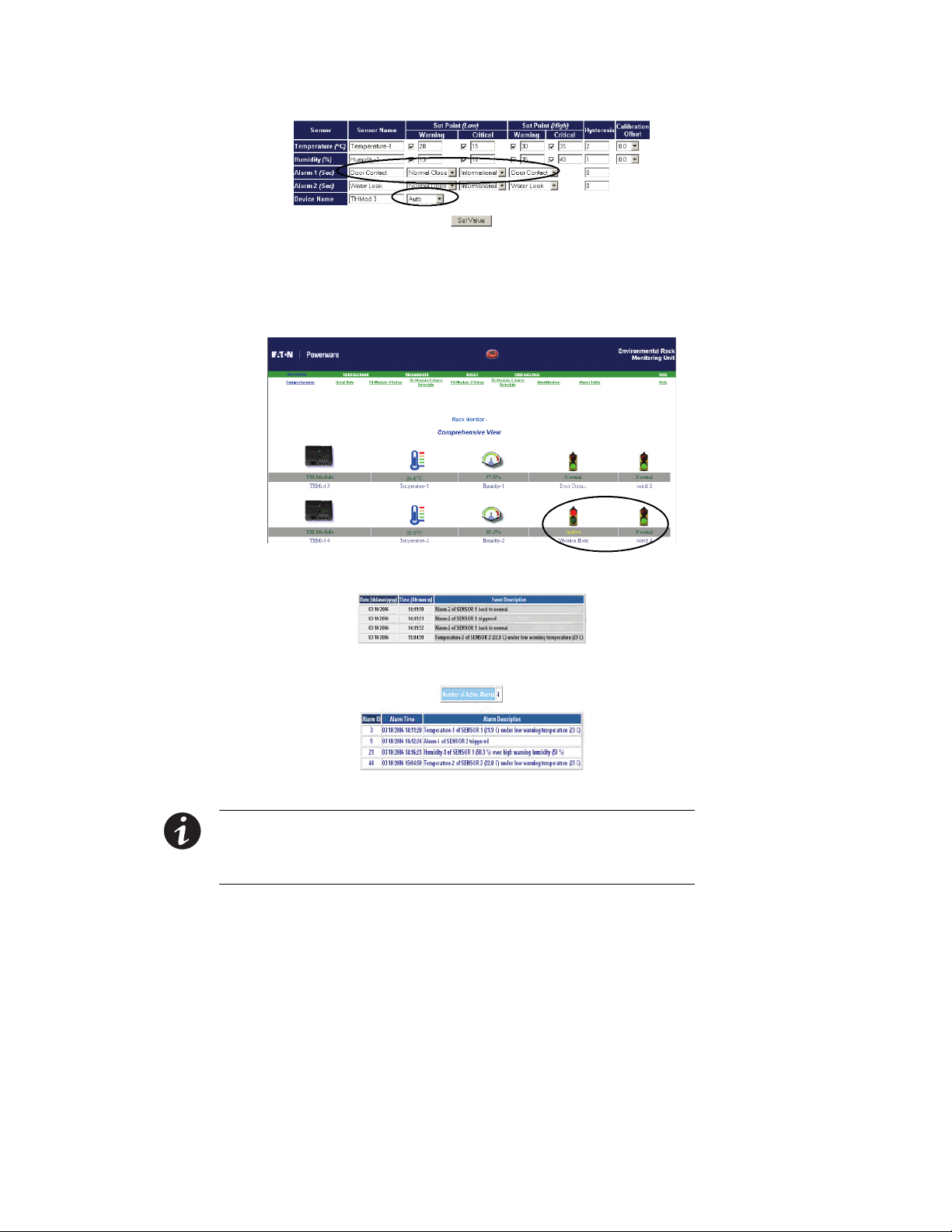

Figure 5. Security Detector Settings

11. When the sensor detects the door or window open, the ERM Web

page displays the alarm. The Web page for the alarm table and

sensor events also records the alarm.

Figure 6. Comprehensive View Screen

Figure 7. Events Log Data

Figure 8. Alarm Table

NOTE For more detailed information that is not included in this manual, first register your

product at warranty.powerware.com, then visit our Web site:

www.powerware.com/rackmonitor. You can also download firmware upgrades, the latest

manuals, and other documentation.

*1642016791*

164201679 1
