Eaton PowerXL DG1 Series VFD Manuel utilisateur

PowerXL DG1 Series VFD Effective July 2014

Power Xpert

Control Quick Start Guide

Step 1 –Installation

Download the Power Xpert inControl Software with the One Installer found on the

www.eaton.com/dg1 software tab.

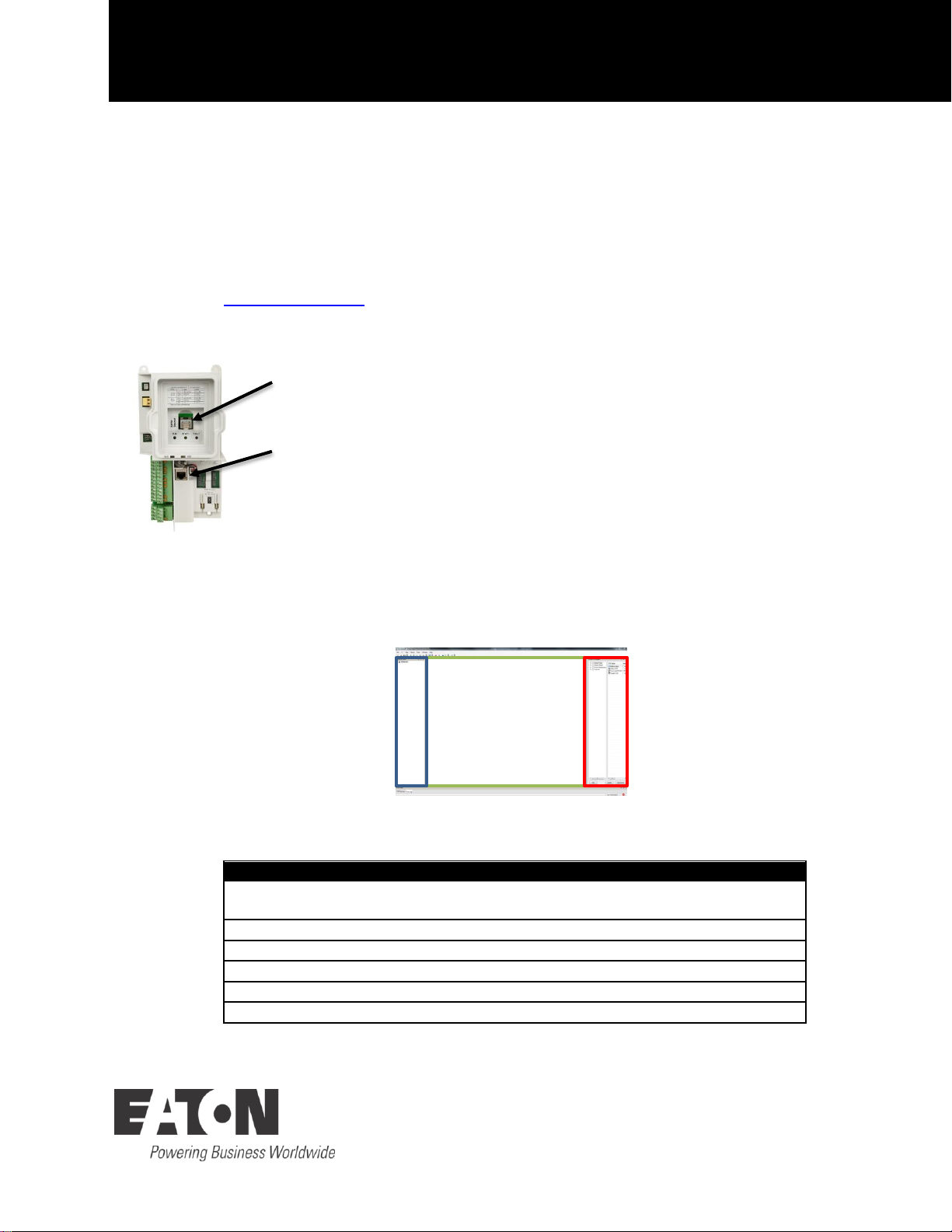

Step 2 –Connecting

Keypad Port: Using the PowerXL DG1 programming cable (Part Number DXG-

CBL-PCCABLE) connect from your computer USB port to the keypad port.

Ethernet Port: Using any standard CAT5 Ethernet cable connect from your

computer to the RJ45 Ethernet Port. Note: Your drive IP address will have to be

set up in the drive keypad parameters (Group P20.3) to match the IP address

structure in your computer before connecting.

Step 3 –Configuring Connection

Open Power Xpert inControl and double click on either the Modbus Serial (Keypad Port)

or Modbus TCP (Ethernet Port) on the right side in the Device Catalog (red). Once com-

plete, the device DTM should then show up in the Network View (blue).

If the Modbus Serial (Keypad Port) is selected the Communication Settings window will

come up which should be set to the following values.

Configuration Parameter

Setting

Port

Need to check in windows device properties for port

USB to RS485 adapter was installed at.

Parity*

Even

Data Bits*

Baud Rate*

38400

Stop Bits*

Transmission Mode*

RTU

MZ040012EN Power Xpert inControl Quick Start Guide

Effective July 2014

2 EATON CORPORATION www.eaton.com

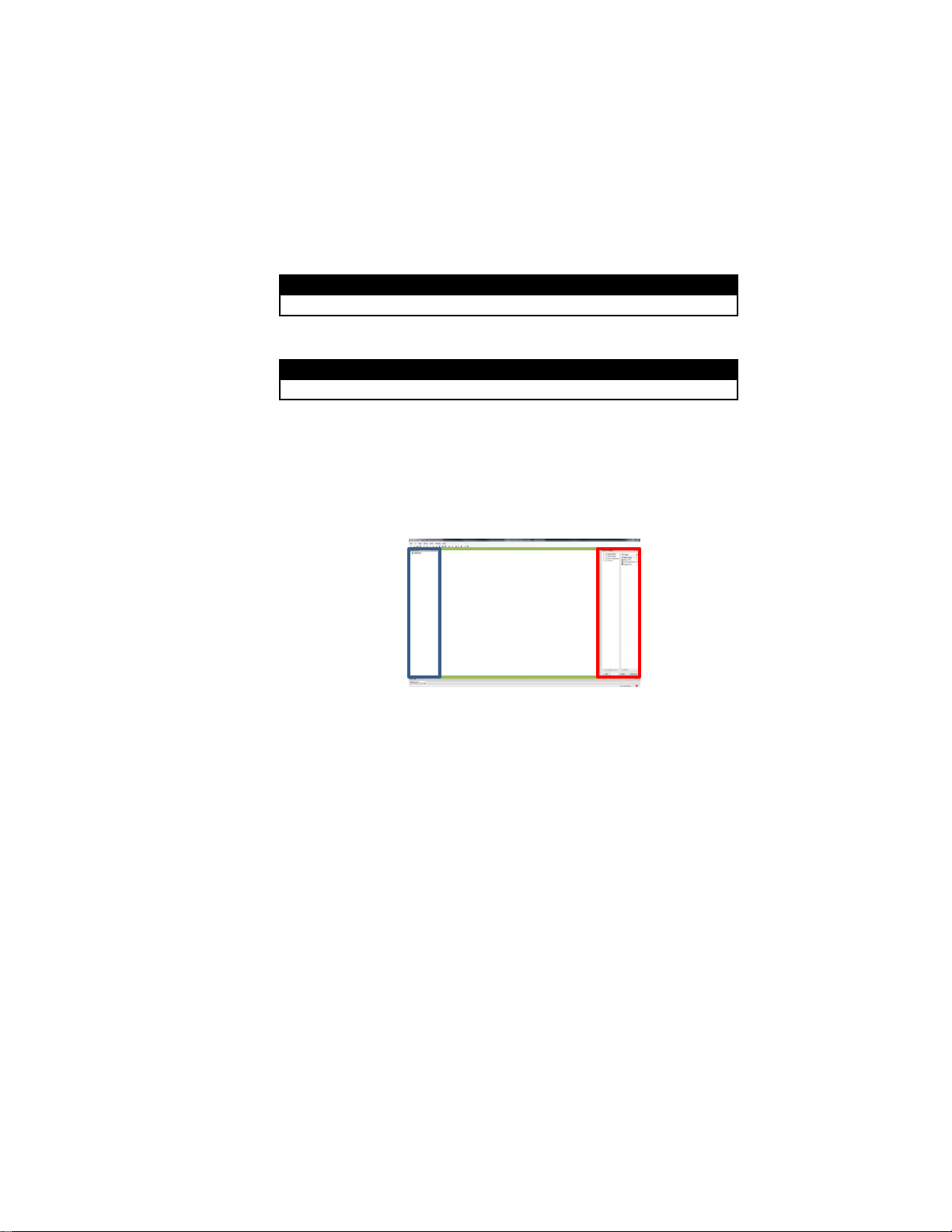

Step 4 –Loading Device

In the Device Catalog (red), double click on the PowerXL DG1 drive, it will be added to

the Network View in (blue) under the communication DTM.

Next the Set Address window will appear and the communication address needs to be

set based on the below.

oModbus Serial (Keypad Port)

Configuration Parameter

Setting

Slave Address

oModbus TCP (Ethernet Port)

Configuration Parameter

Setting

IP Address*

XXX.XXX.XXX.XXX

* The IP address should be set via the keypad on the drive.

With the PowerXL DG1 drive selected, click the Go Online button. Then double click

on the drive to load device parameters, these will be shown in the main window

(green).

The PowerXL DG1 is now ready to be configured by the Power Xpert inControl

software.

MZ040012EN Power Xpert inControl Quick Start Guide

Effective July 2014

Additional Help

In the US or Canada: please contact the Technical Resource Center at 1-877-ETN-CARE

or 1-877-326-2273 option 2, option 6.

All other supporting documentation is located on the Eaton web site at www.eaton.com/Drives

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122 USA

Eaton.com

Printed in USA

Publication No. MZ040012EN

July 2014

Eaton is a registered trademark

of Eaton Corporation.

All other trademarks are property

of their respective owners
