Eaton CGLine+ Touchscreen Controller Manuel utilisateur

CGLine+ Web Controller

Manual

Betriebsanleitung

Manuel

Target group: Skilled electricians

Zielgruppe: Elektrofachkraft

Public cible : Électriciens conﬁrmés

CGLine+ Touchscreen Controller

English ................................... 3

Deutsch ............................... 29

Français ............................... 55

2Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com

Start image – CGLine+ Controller Software

3Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com

1 Start image – CGLine+ Controller Software

The following background image is shown after the start-up process of the

CGLine+ Controller software:

IMPORTANT

If the settings of the touch panel need to be modi-

fied, tap on the lower edge to open the Windows

task bar.

All functions are presented in detail in the following sections. A summary of func-

tions is given here:

ote:N All operations are protected with a PIN number. Without typing in a PIN

number, the status can only be displayed.

Select the British flag to access the system settings, e.g. to modify the language

of operation.

The status of the CGLine+ Web Controller is shown on the left side. Tap on the

button under the status message to access the internal display levels of the

Controller.

The middle three display windows show the status (summary messages) of all

connected self-contained luminaires according to DIN VDE 0100-560 (Displays

560.6.14). These include:

•Operation = normal operation;

•battery operation, e.g. in case of power failure; and

•fault summary, e.g. a battery failure of a luminaire.

Click on the coloured area to access a detailed presentation of the messages.

PIN authentication for operation

4Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com

All connected self-contained luminaires can be blocked simultaneously on the

right side.

In the lower blue control area, it is possible to launch a function test of all lumi-

naires, to access the logbook and to make further settings.

Tap on the red Power button to close the software application if necessary.

2 PIN authentication for operation

For configuration control operations, e.g. to block luminaires, a prompt window is

shown with a virtual numeric keypad to type in a PIN number:

The Administrator PIN and User PIN are set ex

works. The Administrator has full access rights. The

User only has limited rights, e.g. to start a function

test. The rights required for performing an operation

are shown in the PIN prompt window.

Administrator

9876 followed by OK

User

0000 followed by OK

ote:N The PIN numbers of the

Administrator and User can be changed in the set-

tings. See next page.

Basic software settings

5Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com

3 Basic software settings

Tap on the British flag button to access the settings menu of the software.

Language:

Select one of the 19 languages of opera-

tion in the Language menu; the language

is modified without restarting the pro-

gramme.

General:

• Type in a project name of max.

80digits.

• Change the User and

Administrator PIN number.

IMPORTANT

Memorise the new PIN or write it

down.

• Change the background colour.

Further functions and display operations in the base window

6Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com

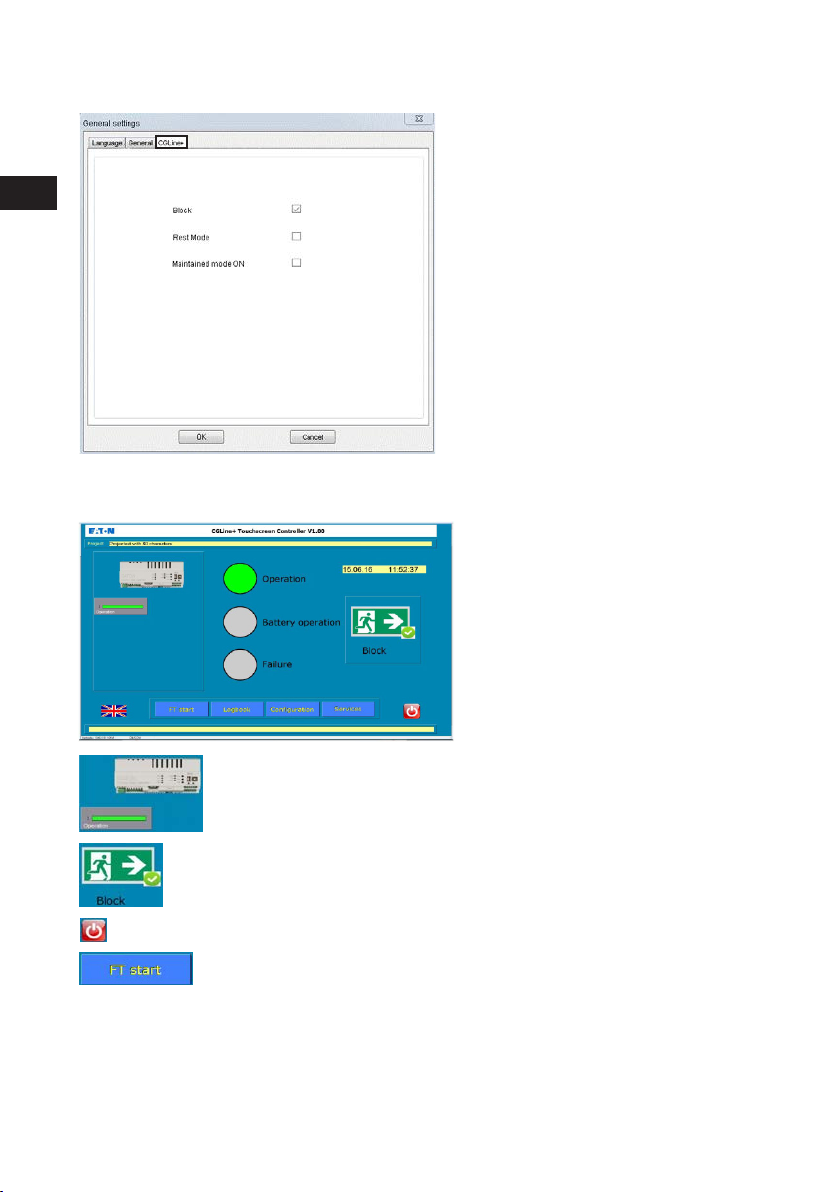

GB CGLine+:

Select whether the blocking button

on the base window performs the

“Block” or “Rest mode” (for France

only) operation.

Maintained mode ON - the

CGLine+ luminaires can be turned

on/off if the L terminal on the

luminaire is bridged with the L line.

4 Further functions and display operations in the base window

Status display of the Controller

Click on the button to open the CGLine+ Web-Controller device window. See next

page.

The Block button is used to block all connected luminaires (PIN authentication)

to prevent a complete discharge, e.g. in case of a power failure during operation

downtimes.

Close the programme (PIN authentication).

Start FT

Click on the button to start a function test of all connected self-contained lumi-

naires.

(User/Admin PIN authentication)

Further functions and display operations in the base window

7Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com

Logbook

Click on the button to display the logbook for a period of at least 4 years with all

events in detail.

Configuration

Not in use for this Controller

Services

Click on this button to store and load the files and logbooks.

Click on the coloured status display to open a detailed status view in Explorer style.

See next page.

Device window – CGLine+ Web-Controller

8Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com

5 Device window – CGLine+ Web-Controller

Structure of the device window

Direct status messages for the device

with coloured status display:

green = OK, red = malfunction

Display of the active strand with the

total status of the luminaires in the

strand.

By clicking on the relevant strand from 1

to 4, you can change the display for the

strand to the status.

Group name and installation name (up to 20

digits each)

Field for additional information (up to 100

digits)

Buttons for Commandos or

configuration settings

Status display for

the relay outputs

and digital inputs

Click left mouse

button=

Information window

Click right mouse

button=

Open web server

via web browser

By clicking on the zone for a

strand you access the zone image

with the installed luminaires

directly

Display of active zones 2, 4, 5 or 8

for 4-strand operations in strand.

By clicking on the zone you access

the zone image with the luminaires

installed.

The number of active zones in the

strand can be set in the menu item

“Configuration”.

Alarm list with acknowledgement

option identical with main group


Installed strands, max. 4 units with

max. 100 CGLine luminaires each,

with display of current status:

•Green = luminaires in strand OK

•Yellow = min. 1 luminaire being

tested

•Red = min. 1 luminaire in strand

broken

•Grey field means “Strand not

installed”.

Device window – CGLine+ Web-Controller

9Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com

Status display of the device

Operation Red = when at least one luminaire is not operationally ready, e.g. blocked

FT Yellow = when at least one luminaire is currently undergoing a function test (lumi

naire test)

OT Yellow = when at least one luminaire is currently undergoing an operating

time test (battery test)

Blocked Red = when at least one luminaire is currently blocked

Ethernet Red = when communication between the Controller and CGVision has been dis

rupted

Malfunction Red = when at least one luminaire has a malfunction, e.g. battery fault

Ext. monitor Red = malfunction with externally connected device

Admin logged in Green = signals that someone is logged in as administrator on the web server for

CGLine+ Web-Controller

Output 1/2 Red = relay outputs in accordance with active configuration

Input 1/2 Yellow = digital inputs in accordance with active configuration

Status displays for the CGLine+ Web Controller

Device window – CGLine+ Web-Controller

10 Manual CGLine+ Touchscreen Controller ZNO2038000 A www.eaton.com

Status display of the device

Selected strand: All status messages in this window apply to strand 1.

Function test Yellow = when at least one luminaire in the strand is currently undergoing a function test

Operating time test Yellow = when at least one luminaire is currently undergoing an operating time test

Delayed emergency

lighting Yellow = when at least one luminaire is still in delayed emergency lighting following a power

cut

Battery fault Red = when at least one luminaire has a battery fault

Luminaire malfunction Red = when at least one luminaire has an LED fault

Deferred operating time test Red = when at least one luminaire has a deferred operating time test, because less than 24

hours earlier there was a partial discharge

Battery operation Red = when at least one luminaire is battery operated

Communication Red = when at least one luminaire has a communication disruption with the Controller

Blocked Red = when at least one luminaire in the strand is blocked

Error in operating time test Red = when at least one luminaire has not passed the operating time test (battery test)

Function test error Red = when at least one luminaire has not passed the function test (luminaire test)

Deferred function test Red = when at least one luminaire has deferred the function test, because a partial discharge

took place earlier

Total zone status The configured zones and their total status are shown in the lower part of the window. In the

case of 4-strand operations this can be 2, 4, 5 or 8 zones and in the case of 2-strand opera-

tions 4, 8, 10 or 16 zones.

In CGLine compatibility mode only 1 zone is possible for each! By clicking on the correspond-

ing zone you access the zone image with the luminaires installed.

Status displays for the strand selected (red). Strand selection is made by clicking on

the strand number in the right strand status (blue).
