USER’S GUIDE

Congratulations on the purchase

of the GoXtreme Reef.

IMPORTANT INFORMATION

To ensure t he optimal fu ncti onin g o f you r cam era, pl ease not e th e f ollo wing impo rt ant

information:

MicroSD card:

• Please ensure your memory card is formatted in the camera before first using the card for

the first time (Settings > Format).

• The maximum capacity memory card supported is 32GB.

Use of memory cards exceeding the maximum recommended capacity may result in file

errors.

• The recording time depends on the selected resolution.

• After reaching a max. video recording time of approx. 29 minutes, the camera will stop

recording automatically. A new recording must be restarted manually.

Charging:

• Ensure the camera is charged completely before first use.

• Keep the device away from children while charging.

• Ensure the camera is switched off when charging. If the camera turns on automatically when

connected to a power source please turn it off to complete charging. A camera plugged into

power and switched on will not charge.

• The camera should only be charged via the USB port of a computer or a USB power adapter

with a maximum capacity of 550mAh.

• Unplug the USB cable connected to the camera before using the camera.

Safety instructions:

WARNING:

The camera is not suitable for children under 36 months because of choking hazard.

• The camera is waterproof to a depth of 3m. Please do not use the camera at greater depths.

WARNING:

Do not plug in the power cord with wet hands to avoid the risk of electric shock. Only open

the battery compartment with dry hands and ensure that no dirt can get inside the camera

when inserting, changing or removing the batteries or the SD card.

• After using in water, turn off the camera, make sure the battery compartment is tightly

closed, and rinse the camera with clean water. Do not use soap or detergents, as they could

negatively affect the waterproofness of the camera. Allow the camera to dry after rinsing.

WARNING:

Always protect your camera from falls, blows and bumps.

• Keep a sufficient distance from objects that generate strong magnetic fields or radio waves,

such as electrical appliances to prevent them from damaging the product or affecting the

sound and image quality.

• Store the device cool (at room temperature) in a dry and dust-free location and never

expose the product to high temperatures or permanently direct sunlight.

• In the unlikely event of overheating, smokes or unpleasant odors coming out of the unit,

disconnect it immediately from the charging cable and remove the battery to avoid a fire.

PREPARATION BEFORE USE

Please install the lithium battery provided with your camera before first use.

1. Slide the battery cover on the bottom of the camera:

2. Please install the battery in a right direction

3. Close battery cover

Installing lithium battery

Note:

Please remove the battery when you know the camera will not be used for extended periods.

Charging the lithium battery

Connect the camera to your computer via USB. The red LED illuminates to indicate charging is

in progress. The LED will switch off to indicate when the battery is fully charged.

Computer requirements

Your computer shou ld h ave th e fo ll owing minim um re quir em ents in or de r to tra ns fe r ph ot os

and videos:

Windows 7/XP3

Windows7/XP system or higher Pentium series processor

128MB memory / 150MB available disk space / USB Interface

Recommended display resolution: 1024x768 resolutions.16 bit color or higher.

Windows Vista

800 MHZ processor and 512MB system memory

20GB Hard disk with at least 16GB available space

Support for SVGA graphics

USB Interface

Mac

Power Macintosh G3 500 MHZ or higher configuration

Mac OS X version or 10.5.x or earlier version

256MB or more system memory with 150MB available disk space

800x600 or higher display resolution

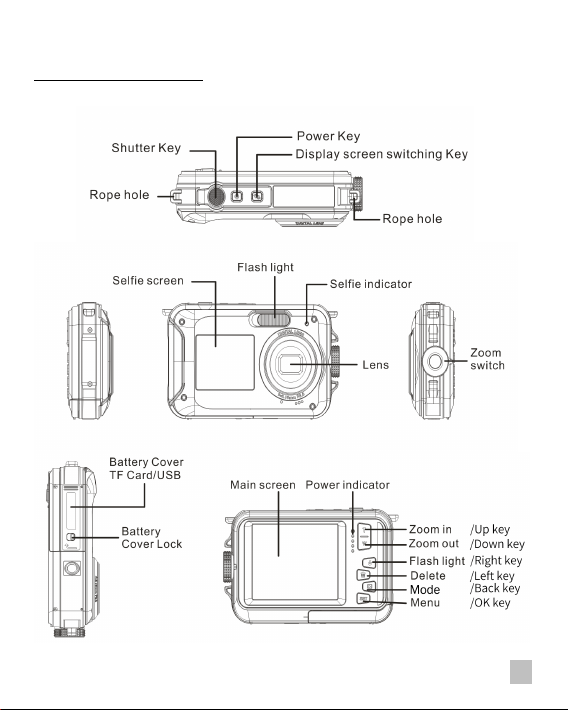

CAMERA OVERVIEW

Icons: Battery Power

Full

Half

Low

Quality

Common

Fine

Super Fine

Flashing Light

Flash On

Auto Flash

Flash Off

Anti-Red Eye Flashing Light

Mode

Photo Playback

video

Self-timer 10s

Self-timer 5s

Self-timer 2s

Self-timer off

Digital Zoom

Protect

Anti-shake

Anti-shake On

Anti-Shake Off

Scenes

Auto Scenery Portrait

Night scenery Night portrait

High Sensitivity Sport Beach

Party

INSTALLING MICRO SD CARD

The camera supports Micro SD memory card up to 32GB Max. (not included).

The camera’s internal memory only stores one photo for testing purposes.

Please insert a Micro SD card into the memory card slot before use, being careful to ensure

that the card is installed correctly.

When inserted the card correctly will slide into place smoothly and a ”Click” sound will

confirm that it is locked in place. A Micro SD card icon will display on the LCD screen to

confirm the camera has detected the card.

To rem ove th e card simply pr ess firmly and it will pop out of the memory card slot.

Note:

1. All photos will saved on the Micro SD card once the Micro SD card installed.

2. Formatting will delete all data on the memory card.

3 .Please do not remove the Micro SD card when formatting as this may damage the card.

Turning on the camera

Press the power key on the top of camera to turn on the camera.

The LCD screen will activate to confirm the camera is working.

Photo capture mode

After turning the camera on, the

icon will be displayed on the LCD screen to confirm the

camera is in photo mode

Switching between displays

To s wit ch bet wee n th e front and rear s cr eens press the ‘Display screen switching Key’.

Each press of this button will activate the front 1.8” screen and rear 2.7” screen in turn.

PHOTO MODE

To capture a photo press the shutter key.

There will be a slight delay while the photo is stored on the memory card.

After taking a photo, the number displayed on the screen indicates how many more photos

can be taken considering the current settings and the size of the memory card installed in the

camera at that time.

A message will be displayed on the screen when the SD card is full.

To cont in ue, pl ea se t rans fe r all da ta on th e SD ca rd to you r com put er or ins ert a new memory

card.

Digital zoom

Your camera features a 4X digital zoom.

Press the up button to zoom in and the down button to zoom out.

Built-in Flash

Press the ‘Flash’ key to activate the various flash modes.

The icon indicates ‘Flash Off’. The flash will not operate when this mode is selected.

The icon indicates ‘Auto Flash’ mode and the camera will activate the flash automatically

if required in low light conditions.

The icon indicates ‘Flash Mode’ and the flash will operate every time a photo is taken.

The icon indicates ‘Anti-Red Eye’ mode. The camera flash will operate a flash burst to

reduce the red eye effect in your photos.

Scenes

Several scene modes are available to facilitate photo capture in different environments.

If required, you can select a mode that matches the condition best that you are shooting in.

Press the power key to turn on camera.

The icon will be displayed on top left of the LCD display.

1. Press the menu key

2. Press the left/right keys to choose ‘Scene’ icon

3. Press up/down key to select your preferred scene.

4. Press OK to confirm.

Photo resolution

1. Press the menu key

2. Press left/right key to select photo size icon .

3. Press the up/down key to choose:

(24M) 5600x4200 , (20M) 5200x3900 , (16M) 4608x3456, (14M) 4416x3312,

(12M) 4000x3000, (10M) 3648x2736, (8M) 3264x2448, (7M HD) 3648x2048,

(5M) 2592x1944, (3M) 2048x1536, (2MHD) 1920x1080, (VGA) 640X480

4. Press the OK key to confirm your selection.

The photo size icon will be displayed on the LCD screen.

Anti-shake

Your cam era features an anti shake function to deliver better photo quality when a tripod is

not being used.

1. Press the Menu key

2. Press the left/right keys to select anti shake icon

3. Press the up/down key to select anti shake on/off

4. Press OK to confirm your selection,

5. The icon will be displayed on the LCD screen to confirm anti-shake is activated.

Face detection

To a ctivate th e face detection function.

1. Press the Menu key

2. Press the left/right keys to select the face detection icon

3. Press the up/down keys to select face detection on/off.

4. Press OK key to confirm your selection.

Continuous shooting

The continuous shooting function allows you to capture 6 individual photos in rapid

succession with just one press of the shutter button.

1. Press the Menu key

2. Press the left/right keys to select continuous shooting icon

3. Press the up/down keys to select continuous shooting on/off

4. Press OK key to confirm your selection.

Please Note:

When using the ‘Continuous Shooting’ function, the photo resolution automatically changes

to VGA.

Self timer

1. Press the Menu key.

2. Press the left/right keys to select the self-timer icon

3. Press the up/down keys to review the self-timer options.

4. Press the OK key to confirm your selection.

SETTINGS

Press the Menu key and please adjust the photo settings in photo mode

and the video settings in video mode.

Exposure

Adjusts your photos brightness.

1. Press the left/right keys to select the Exposure option.

2. Press the up/down keys to select EV(+3 to -3).

3. Press the OK key to confirm and save your selection.

The relative icon will be displayed on the LCD screen.

ISO

This is a special function for when the light source is insufficient, but the environment you are

shooting in may not allow for use of the flash.

1. Press the left/right keys to select the ISO option under the settings menu.

2. Press the up/down keys to select the ISO: Auto/100/200/400.

3. Press the menu key to save. The relative icon will be displayed on the LCD screen.

White balance

This option adjusts the photo color and can be adjusted according to light source.

1. Press the left/right keys to select White Balance option under setting menu.
