Transferring data onto a PC

Recharging

The cable provided with the EL-DataPad is used for data

transfer and recharging. The EL-DataPad will automatically

start recharging once it is connected to a PC. To use less power

decrease the backlight time setting.

Connect the EL-DataPad to the PC

with the cable provided. The PC will

detect that the EL-DataPad has been

connected.

EL-DataPad

Quick Start Guide

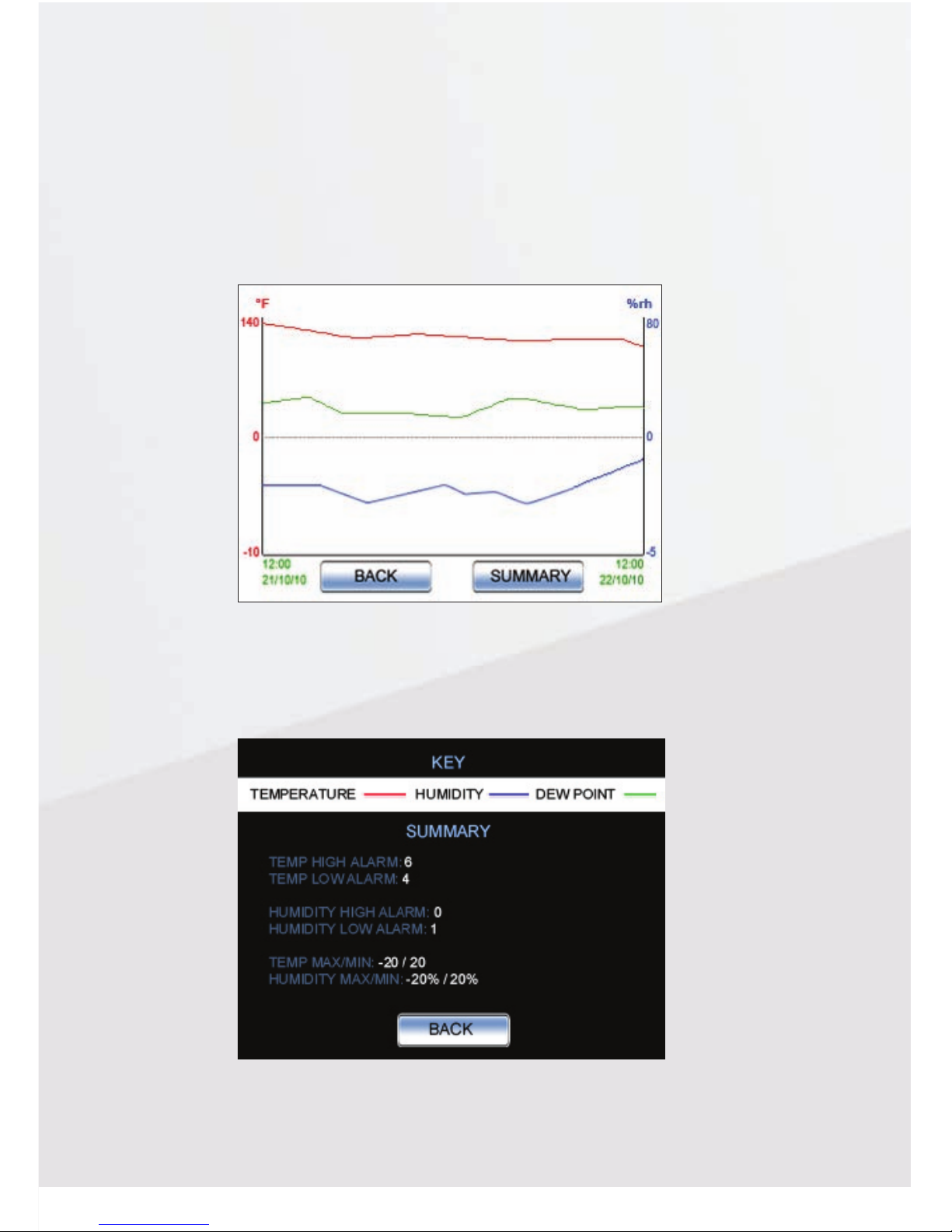

Graphical data is displayed in the following formats:

Trend

Legend & Summary

This graph is based on data from an EL-USB-2 logger.

Files downloaded will be

located in the EL-DataPad

drive in the ‘Log Files’

Directory. Select the les you

wish to download and copy

them to your PC. Use EasyLog

software on your PC to view

data in detail and to display

graphs or export them to

spreadsheet packages such

as Microsoft®Excel for further

analysis.

Module House

Whiteparish, Salisbury

Wiltshire, SP5 2SJ

UNITED KINGDOM

T +44 (0) 1794 884567

E sales@lascar.co.uk

UK 4258 West 12th Street

Erie, PA 16505

UNITED STATES

T +1 (814) 835-0621

E us-sales@lascarelectronics.com

USA 8th Floor, China Aerospace

Centre

143 Hoi Bun Road

Kwun Tong, Kowloon

HONG KONG

T +852 2389 6502

E saleshk@lascar.com.hk

www.lascarelectronics.com

electronics

Shop for Data Logging products online at: www.DataLoggerStore.com 1.888.610.7664

Connect the data logger to the EL-DataPad, press the red arrow

and follow the on-screen instructions.

Set-Up Logger

Thank you for purchasing an EL-DataPad portable viewer for use

with EasyLog USB data loggers. This quick start guide provides

basic information to help you set up your new product for the

rst time and begin using the EL-DataPad with your chosen data

logger.

2. Turn On The EL-DataPad

Connecting an EL-USB Data Logger

3. Set Time, Date and Backlight Requirement

To turn on, simply press the button on the front. To turn off,

press and hold the button for 3 seconds. To conserve battery

life, the screen will turn off after a period of inactivity. Press

the button or touch the screen to wake the unit.

Insert your EL-USB Data Logger into the USB port

on the top of the EL-DataPad. Once connected,

you can download existing data from that unit, or

set-up your logger for use.

Welcome

By pressing on the Set-Up Logger icon shown above, users can

name their data logger, select a sample rate, set high and low

alarms and choose the logging start time. Simply press the green

icon and follow the on-screen instructions.

When the unit is fully charged, detach from your PC. Press the

icon to choose screen options such as screen time out

and to set time and date.

Stop Logger & Download

View Data

The EL-DataPad enables you to view graphical data that is stored

in memory. To view data, press the blue graph icon and select

the le you wish to view by following the on-screen instructions.

If you have previously

set-up the logger and

just want to change the

start time and date,

use the Quick Set-Up.

Full Set-Up guides you

through every stage of

the logger set-up using

on-screen instructions.

Press the help icon for additional information.

Note: If you are setting up a data logger that is already logging

data follow ‘Stop Logger & Download’ instructions rst.

Using Your EL-DataPad for the First Time

1. Fully Charge Your EL-DataPad

Your EL-DataPad comes with approximately 25% battery

capacity so you have the opportunity to try the unit straight out

of the box. HOWEVER, before extended use, fully charge the

unit by connecting it to your PC using the cable provided.

Your EL-DataPad will display a when it is fully charged.

www.lascarelectronics.com

Shop for Data Logging products online at: www.DataLoggerStore.com 1.888.610.7664

Connect the data logger to the EL-DataPad, press the red arrow

and follow the on-screen instructions.

Set-Up Logger

Thank you for purchasing an EL-DataPad portable viewer for use

with EasyLog USB data loggers. This quick start guide provides

basic information to help you set up your new product for the

rst time and begin using the EL-DataPad with your chosen data

logger.

2. Turn On The EL-DataPad

Connecting an EL-USB Data Logger

3. Set Time, Date and Backlight Requirement

To turn on, simply press the button on the front. To turn off,

press and hold the button for 3 seconds. To conserve battery

life, the screen will turn off after a period of inactivity. Press

the button or touch the screen to wake the unit.

Insert your EL-USB Data Logger into the USB port

on the top of the EL-DataPad. Once connected,

you can download existing data from that unit, or

set-up your logger for use.

Welcome

By pressing on the Set-Up Logger icon shown above, users can

name their data logger, select a sample rate, set high and low

alarms and choose the logging start time. Simply press the green

icon and follow the on-screen instructions.

When the unit is fully charged, detach from your PC. Press the

icon to choose screen options such as screen time out

and to set time and date.

Stop Logger & Download

View Data

The EL-DataPad enables you to view graphical data that is stored

in memory. To view data, press the blue graph icon and select

the le you wish to view by following the on-screen instructions.

If you have previously

set-up the logger and

just want to change the

start time and date,

use the Quick Set-Up.

Full Set-Up guides you

through every stage of

the logger set-up using

on-screen instructions.

Press the help icon for additional information.

Note: If you are setting up a data logger that is already logging

data follow ‘Stop Logger & Download’ instructions rst.

Using Your EL-DataPad for the First Time

1. Fully Charge Your EL-DataPad

Your EL-DataPad comes with approximately 25% battery

capacity so you have the opportunity to try the unit straight out

of the box. HOWEVER, before extended use, fully charge the

unit by connecting it to your PC using the cable provided.

Your EL-DataPad will display a when it is fully charged.

www.lascarelectronics.com

Shop for Data Logging products online at: www.DataLoggerStore.com 1.888.610.7664

Connect the data logger to the EL-DataPad, press the red arrow

and follow the on-screen instructions.

Set-Up Logger

Thank you for purchasing an EL-DataPad portable viewer for use

with EasyLog USB data loggers. This quick start guide provides

basic information to help you set up your new product for the

rst time and begin using the EL-DataPad with your chosen data

logger.

2. Turn On The EL-DataPad

Connecting an EL-USB Data Logger

3. Set Time, Date and Backlight Requirement

To turn on, simply press the button on the front. To turn off,

press and hold the button for 3 seconds. To conserve battery

life, the screen will turn off after a period of inactivity. Press

the button or touch the screen to wake the unit.

Insert your EL-USB Data Logger into the USB port

on the top of the EL-DataPad. Once connected,

you can download existing data from that unit, or

set-up your logger for use.

Welcome

By pressing on the Set-Up Logger icon shown above, users can

name their data logger, select a sample rate, set high and low

alarms and choose the logging start time. Simply press the green

icon and follow the on-screen instructions.

When the unit is fully charged, detach from your PC. Press the

icon to choose screen options such as screen time out

and to set time and date.

Stop Logger & Download

View Data

The EL-DataPad enables you to view graphical data that is stored

in memory. To view data, press the blue graph icon and select

the le you wish to view by following the on-screen instructions.

If you have previously

set-up the logger and

just want to change the

start time and date,

use the Quick Set-Up.

Full Set-Up guides you

through every stage of

the logger set-up using

on-screen instructions.

Press the help icon for additional information.

Note: If you are setting up a data logger that is already logging

data follow ‘Stop Logger & Download’ instructions rst.

Using Your EL-DataPad for the First Time

1. Fully Charge Your EL-DataPad

Your EL-DataPad comes with approximately 25% battery

capacity so you have the opportunity to try the unit straight out

of the box. HOWEVER, before extended use, fully charge the

unit by connecting it to your PC using the cable provided.

Your EL-DataPad will display a when it is fully charged.

Shop for Data Logging products online at: www.DataLoggerStore.com 1.888.610.7664

Transferring data onto a PC

Recharging

The cable provided with the EL-DataPad is used for data

transfer and recharging. The EL-DataPad will automatically

start recharging once it is connected to a PC. To use less power

decrease the backlight time setting.

Connect the EL-DataPad to the PC

with the cable provided. The PC will

detect that the EL-DataPad has been

connected.

EL-DataPad

Quick Start Guide

Graphical data is displayed in the following formats:

Trend

Legend & Summary

This graph is based on data from an EL-USB-2 logger.

Files downloaded will be

located in the EL-DataPad

drive in the ‘Log Files’

Directory. Select the les you

wish to download and copy

them to your PC. Use EasyLog

software on your PC to view

data in detail and to display

graphs or export them to

spreadsheet packages such

as Microsoft®Excel for further

analysis.

Module House

Whiteparish, Salisbury

Wiltshire, SP5 2SJ

UNITED KINGDOM

T +44 (0) 1794 884567

E sales@lascar.co.uk

UK 4258 West 12th Street

Erie, PA 16505

UNITED STATES

T +1 (814) 835-0621

E us-sales@lascarelectronics.com

USA 8th Floor, China Aerospace

Centre

143 Hoi Bun Road

Kwun Tong, Kowloon

HONG KONG

T +852 2389 6502

E saleshk@lascar.com.hk

www.lascarelectronics.com

electronics

Shop for Data Logging products online at: www.DataLoggerStore.com 1.888.610.7664

Transferring data onto a PC

Recharging

The cable provided with the EL-DataPad is used for data

transfer and recharging. The EL-DataPad will automatically

start recharging once it is connected to a PC. To use less power

decrease the backlight time setting.

Connect the EL-DataPad to the PC

with the cable provided. The PC will

detect that the EL-DataPad has been

connected.

EL-DataPad

Quick Start Guide

Graphical data is displayed in the following formats:

Trend

Legend & Summary

This graph is based on data from an EL-USB-2 logger.

Files downloaded will be

located in the EL-DataPad

drive in the ‘Log Files’

Directory. Select the les you

wish to download and copy

them to your PC. Use EasyLog

software on your PC to view

data in detail and to display

graphs or export them to

spreadsheet packages such

as Microsoft®Excel for further

analysis.

electronics

Shop for Data Logging products online at: www.DataLoggerStore.com 1.888.610.7664

Table des matières

Autres manuels EasyLog Enregistreur de données

EasyLog

EasyLog EL-WiFi Manuel utilisateur

EasyLog

EasyLog EL-SIE Manuel utilisateur

EasyLog

EasyLog EL-USB-CO Manuel utilisateur

EasyLog

EasyLog EL-USB Manuel utilisateur

EasyLog

EasyLog EL-USB-1 PRO Manuel utilisateur

EasyLog

EasyLog EL-WiFi Manuel utilisateur

EasyLog

EasyLog EL-MOTE Manuel utilisateur

EasyLog

EasyLog EL-CC-1 Manuel utilisateur

EasyLog

EasyLog EL-SIE-1+ Manuel utilisateur

EasyLog

EasyLog PDF Series Manuel utilisateur

EasyLog

EasyLog EL-SMS Manuel utilisateur

EasyLog

EasyLog EL-USB-1 Manuel utilisateur

EasyLog

EasyLog EL-IOT-CO2 Manuel utilisateur

EasyLog

EasyLog EL-USB-1 Manuel utilisateur

EasyLog

EasyLog EL-USB-RT Manuel utilisateur

EasyLog

EasyLog EL-USB-1 PRO Manuel utilisateur

EasyLog

EasyLog EL-MOTE Manuel utilisateur

EasyLog

EasyLog EL-USB Manuel utilisateur

EasyLog

EasyLog EL-USB-ACT Manuel utilisateur

EasyLog

EasyLog 21CFR Manuel utilisateur

EasyLog

EasyLog EL-SIE Manuel utilisateur

Manuels Enregistreur de données populaires d'autres marques

TESTO

TESTO 176 Manuel utilisateur

HT Italia

HT Italia XL421 Manuel utilisateur

HBM

HBM SOMAT XR CX22B-R Manuel utilisateur

Agtrix

Agtrix 380i Manuel utilisateur

Hobo

Hobo H8 Pro Manuel utilisateur

Beijing ART Tech

Beijing ART Tech PCI2320 Manuel utilisateur

Athena

Athena GET SL1 Manuel utilisateur

Motec Systems

Motec Systems C185 Manuel utilisateur

Beijing ART Tech

Beijing ART Tech USB2832 Manuel utilisateur

Rotronic

Rotronic HygroLog HL20 Manuel utilisateur

MRC

MRC DW-6092 Manuel utilisateur

Racelogic

Racelogic VBOX LapTimer Manuel utilisateur

Edu-Logger

Edu-Logger 900-240 Manuel utilisateur

Elma

Elma DT173 Manuel utilisateur

MadgeTech

MadgeTech PRTemp140 Fiche technique

Comet

Comet U0121M Manuel utilisateur

pico Technology

pico Technology PT-104 Manuel utilisateur

Soil Instruments

Soil Instruments GTecLink Manuel utilisateur
