EarthQuake RCS-650 Manuel utilisateur

User’s Manual

Earthquake Sound Corp. | (510) 732-1000 | www.earthquakesound.com

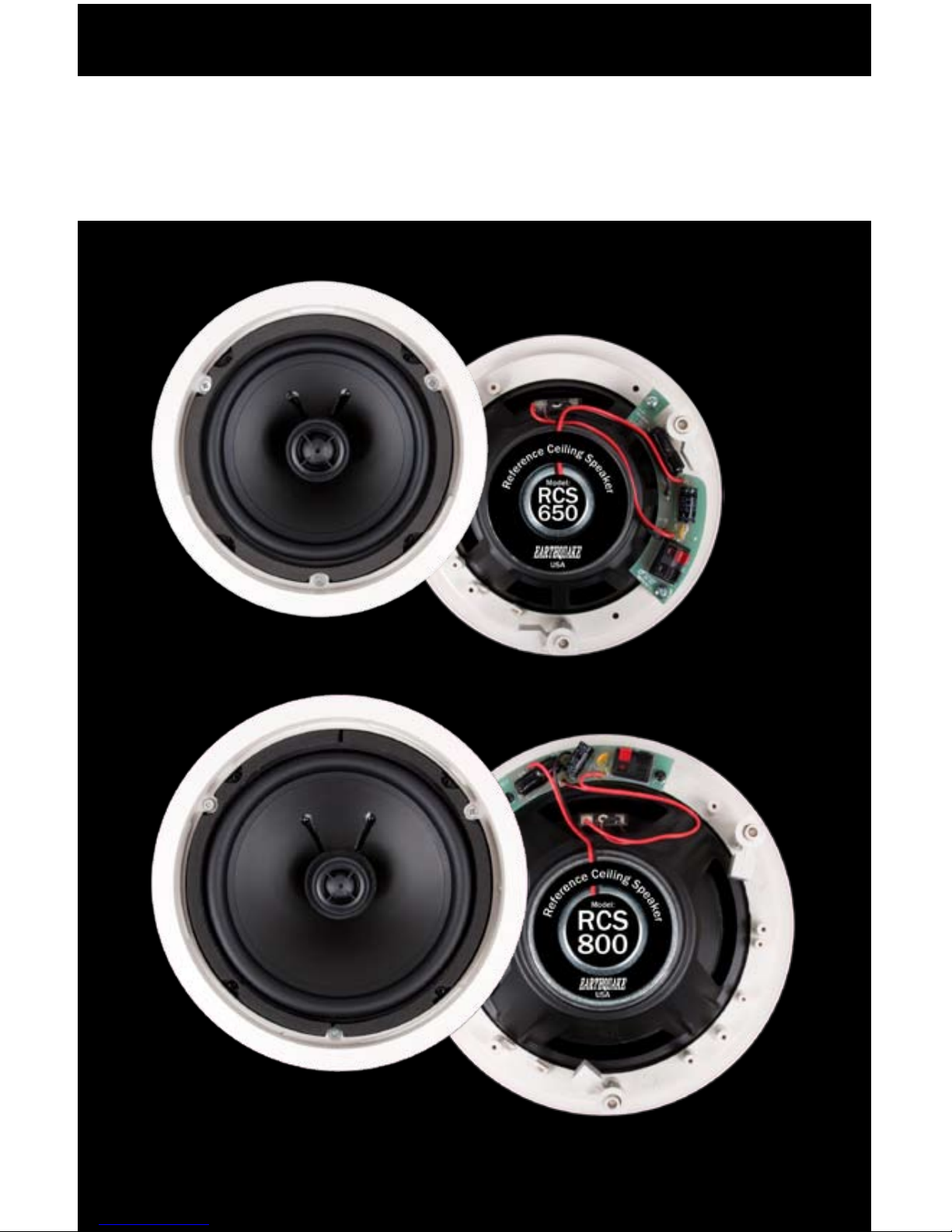

Reference Ceiling Speakers

Model: RCS-650

RCS-800

RCS-650

RCS-800

2 RCS In-Ceiling Manual Earthquake Sound Corp. | www.earthquakesound.com

The Sound That Will Move You.

Earthquake Sound Corporation

2727 McCone Avenue

Hayward, CA 94545

Tel: 510-732-1000

Fax: 510-732-1095

Customer Support

[email protected]

Tel: 800-576-7944

Fax: 510-732-1095

This document should not be construed as a commitment on the part of Earthquake

Sound Corporation. The information is subject to change without notice. Earthquake

Sound Corporation assumes no responsibility for errors that may appear within

this document.

Congratulations on your choice of RCS Series In-Ceiling Speaker systems, one

of Earthquake’s most valued in-ceiling speaker lines. With the proper installation

and operation RCS speakers will provide a life a time of durability and high-end

performance.

It is important that you follow all installation and mounting instructions and

recommendations in this manual closely and carefully to insure optimal performance

operation and longevity.

• 1 inch silk dome swivel NEO tweeter

• Bumped back basket and T-yoke for high speaker excursion

• Wider surround for deeper bass and higher speaker excursion

• 12dB/octave filter network crossover

• Thermal tweeter protection

• Custom compact spring loaded terminals

• Easy to use Turn ‘N’ Lock installation mechanism

• 20% smaller footprint than competitors

• Tight, small lip for better aesthetic

• Paintable rust-resistant grille

Features

Introduction

RCS In-Ceiling Manual 3Specifications are subject to change without notice

Safety Instructions

1) Read these instructions in their entirety.

2) Store this manual and packaging in a safe place.

3) Heed all warnings.

4) Follow instructions (do not take short cuts).

5) Do not use this apparatus near water.

6) Clean only with a dry cloth.

7) Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatuses that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plus has two blades with one wider than the other. A grounding-

type plug has two blades and a third grounding prong. The wide blade or

the third prong is provided for your safety. If the provided plug does not

fit into your outlet, consult an electrician for replacement of the obsolete

outlet.

10) Protect the power cord from being walked on or pinched, particularly at

plugs, convenience receptacles, and the pint where they exit from the

apparatus.

11) Only use attachments & accessories specified by the manufacturer.

12) Use only compatible rack or cart for final resting position.

13) Unplug this apparatus during lightening storm or when unused for a long

period of time.

14) Refer all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in anyway, such as: power-

supply cord or plug is damaged, liquid has been spilled or objects have

fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

15) To reduce the risk of fire or electric shock, do not expose this apparatus

to rain or moisture.

4 RCS In-Ceiling Manual Earthquake Sound Corp. | www.earthquakesound.com

Unpacking System Components

• Keep the original carton and packing materials for future shipment or

storage.

• Check for any visual signs of damage. If you encounter any concealed

damage, consult your Earthquake Sound dealer before proceeding with unit

installation.

• Retain the sales receipt as it establishes the duration of the limited warranty

and provides information for insurance purposes.

System Installation Considerations

There are several factors to consider before installing Earthquake Sound’s

RCS In-Ceiling Speakers.

• What are the intended listening zones?

• What system options and accessories might be required for features such

as local sources, etc.?

• From where in each zone will the listener prefer to control the system? Where

will the remote gains be located? Where will the speakers be located?

• Where will the source equipment be located?

Connection Tips

• Keep all power cords away from all signal cables to prevent humming from

induced noise.

• Choose reliable signal cable cords (Earthquake Sound also specializes in

high-performance RCA cables and patches).

• All speaker wires that are ran through the walls should be twisted to reduce

potential hum noise pick up.

• Label both ends of all wires with the corresponding room location.

• It is best to use a grounded electrical outlet to power the amplifier. Lack of

input ground reference could be unsafe. Consult your electrical contractor

about proper grounding.

RCS In-Ceiling Manual 5Specifications are subject to change without notice

RCS in-ceiling speakers are paintable and can accept virtually any type of

paint. Spray and roller paint applications typically provide the best results.

When you are ready to begin painting remember to shield the driver and

tweeter from the paint. Be sure to remove the inner grille cloth before painting.

Replace it once the paint has completely dried.

Painting Guidelines

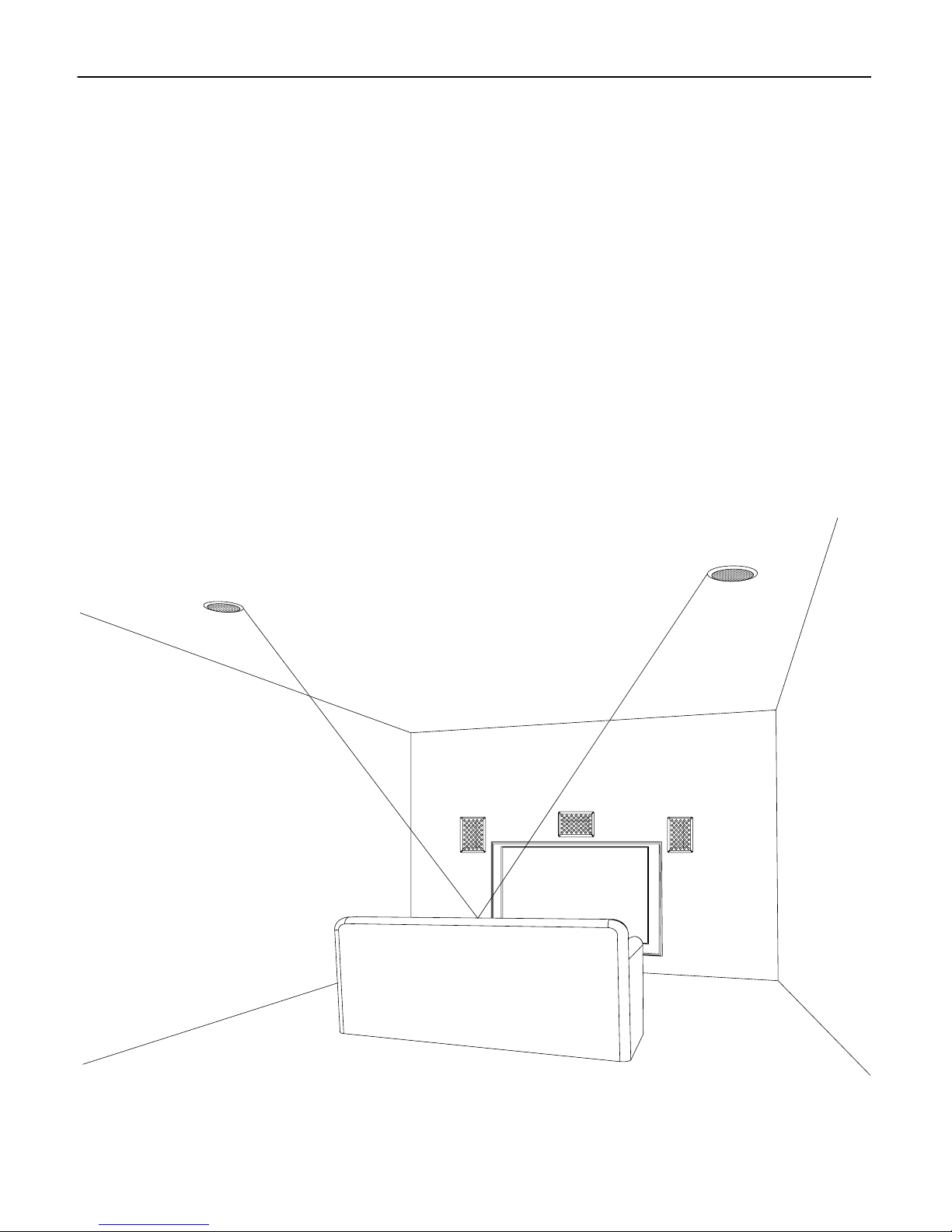

Speaker Placement

RCS in-ceiling speakers are designed to be flush mounted in walls or ceilings.

To optimize their acoustics you should follow these simple guidelines:

For best stereo reproduction the speakers should be placed an equal distance

from your listening position and separated so that the angle between them is

between 40 and sixty degrees. The units should be placed with the tweeters

angled toward the ear level of the seated listener.

6 RCS In-Ceiling Manual Earthquake Sound Corp. | www.earthquakesound.com

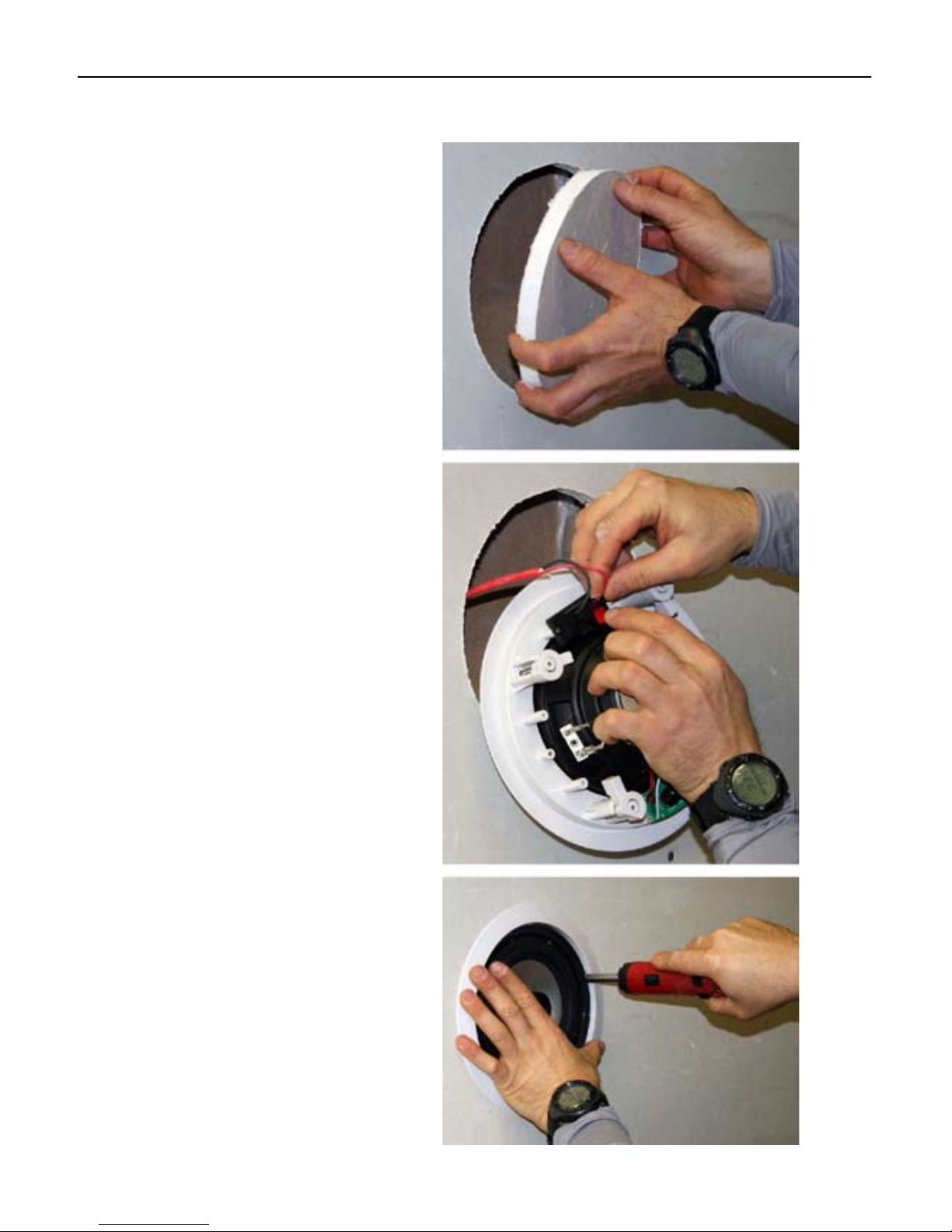

Easy Installation

Cut the hole using

the provided cut out

template

Wire the speaker

using the non-

obtrusive spring-

loaded terminals

Mount the speaker

by utilizing the Turn-

N-Lock installation

mechanisms

RCS In-Ceiling Manual 7Specifications are subject to change without notice

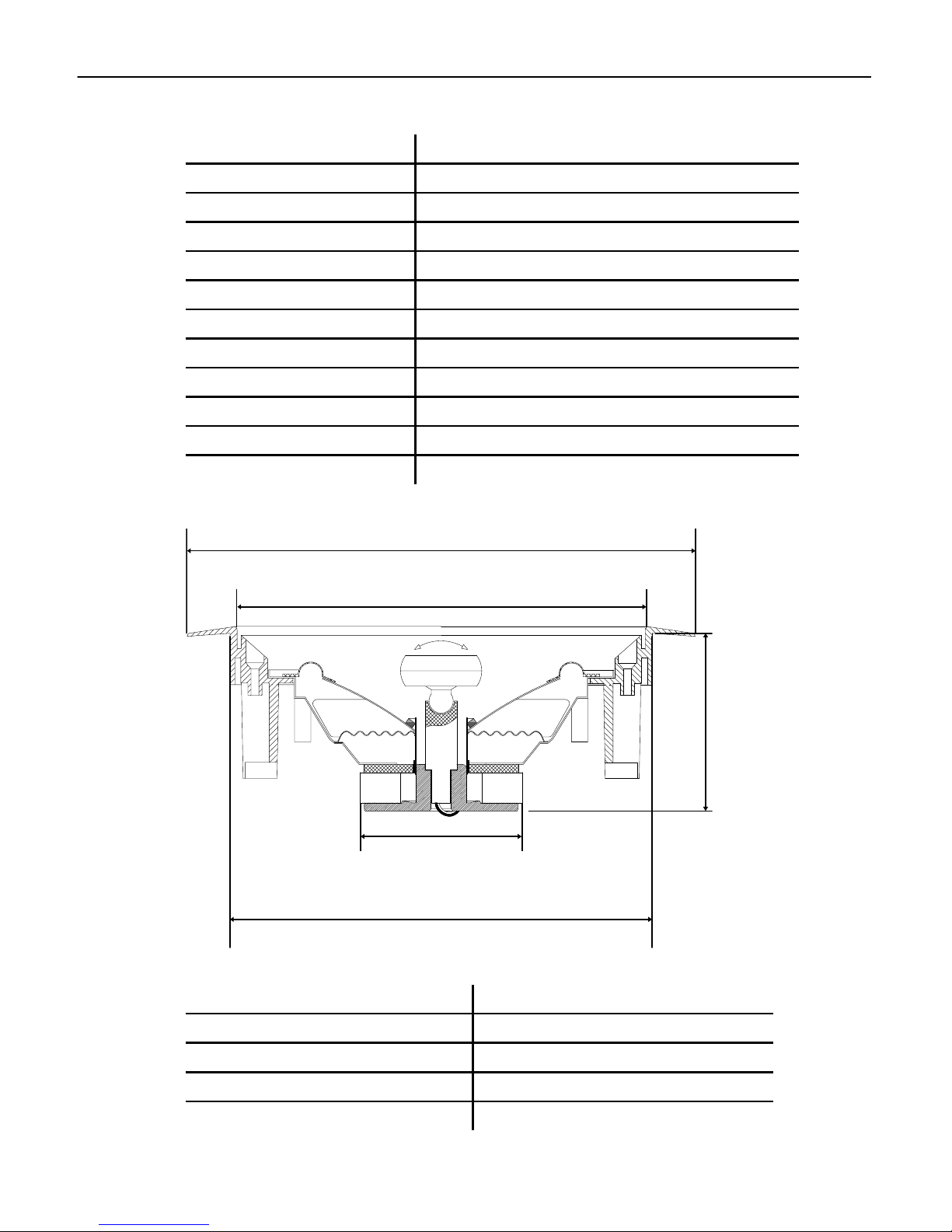

RCS-650 Specifications

Woofer Size: 6-1/2” (165mm)

Woofer Material: Polypropylene

Tweeter Size: 1” (25mm)

Tweeter Material: silk dome/NEO magnet

Power Handling RMS: 5 - 80W

Power Handling Max: 160W

Frequency Response: 45Hz - 20kHz

Sensitivity: 92dB

Impedance: 8-ohm

Crossover: 12dB/octave filter network with polyswitch

Finish: White/Paintable

Weight: 2.48 lbs (1.12kg)

8” (203.8mm)

6-3/4” (172mm)

7” (177mm)

3” (77mm)

3-1/8” (80mm)

Frame Diameter: 8” (203.8mm)

Grille Diameter: 6-3/4” (172mm)

Cut-out Hole Diameter: 7” (177mm)

Mounting Depth: 3” (77mm)

Magnet Diameter: 3-1/8” (80mm)

8 RCS In-Ceiling Manual Earthquake Sound Corp. | www.earthquakesound.com

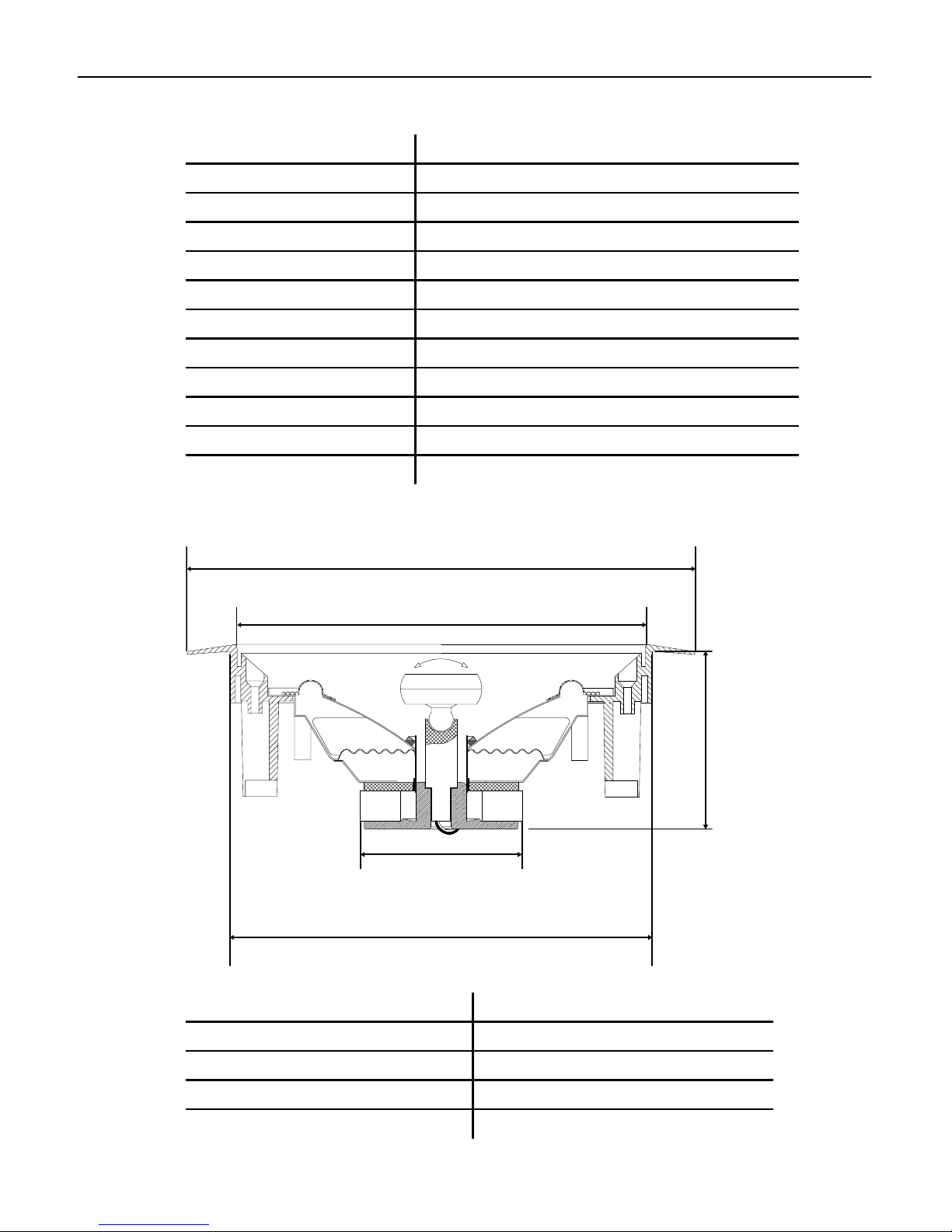

RCS-800 Specifications

9-5/8” (245mm)

8-3/8” (213mm)

8-9/16” (217mm)

3-7/8”

(98mm)

3-5/16” (85mm)

Frame Diameter: 9-5/8” (245mm)

Grille Diameter: 8-3/8” (213mm)

Cut-out Hole Diameter: 8-9/16” (217mm)

Mounting Depth: 3-7/8” (98mm)

Magnet Diameter: 3-5/16” (85mm)

Woofer Size: 8” (203mm)

Woofer Material: Polypropylene

Tweeter Size: 1” (25mm)

Tweeter Material: silk dome/NEO magnet

Power Handling RMS: 10 - 100W

Power Handling Max: 200W

Frequency Response: 45Hz - 20kHz

Sensitivity: 92dB

Impedance: 8-ohm

Crossover: 12dB/octave filter network with polyswitch

Finish: White/Paintable

Weight: 3.04 lbs (1.38kg)

RCS In-Ceiling Manual 9Specifications are subject to change without notice

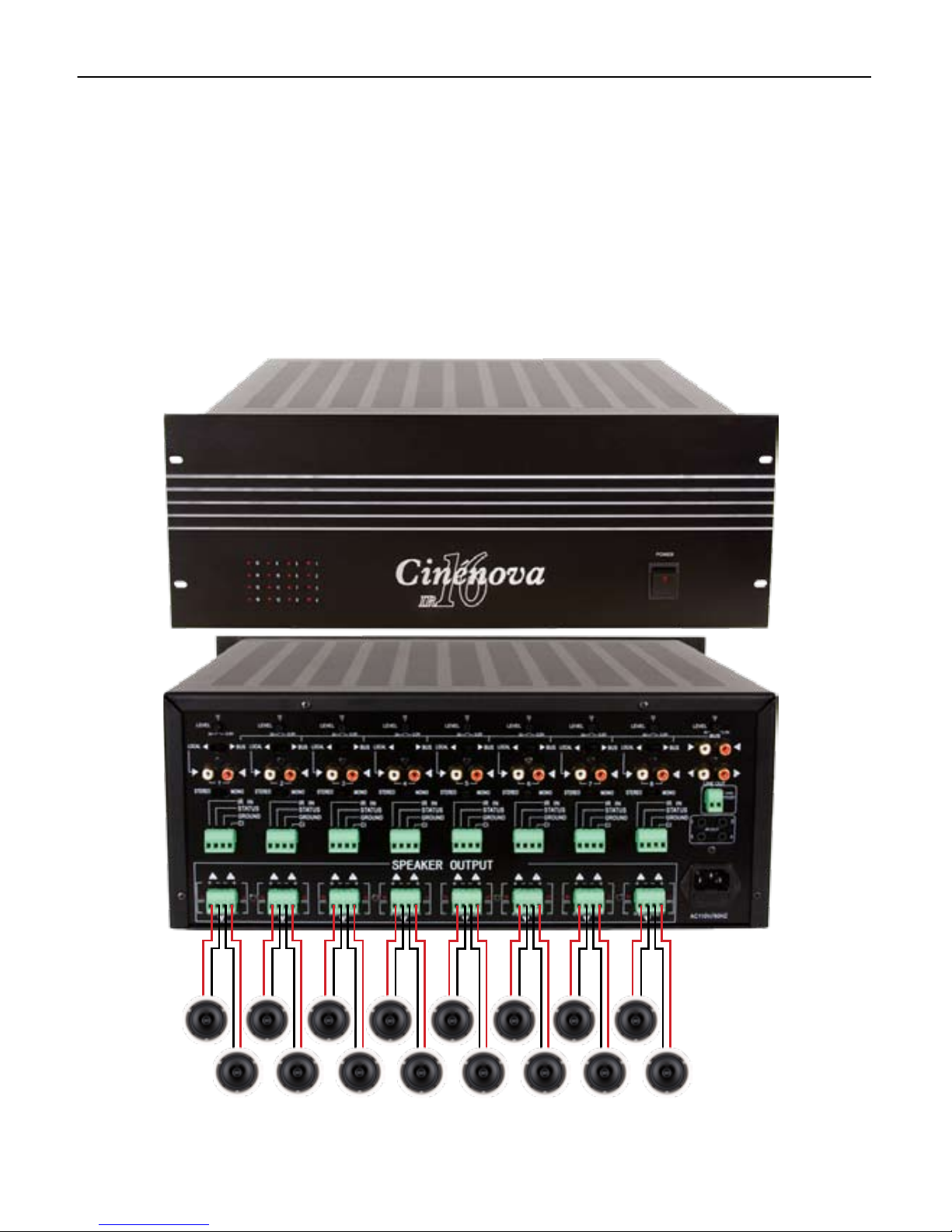

Matching Products

For more involved projects requiring multiple pairs of Earthquake In-Ceiling

Speakers, use the Cinénova IR16. This 16 channel, 8 zone amplifier is the

best multi-room amplifier on the market. It can output 100 watt RMS with a

bridged 8-ohm set up and 150 watt RMS with a 4-ohm configuration.

Cinénova IR16 also comes with 8 IR remote controls, 8 keypads, and 4 remote

eyes for ultimate multi-room control.

Recommended Configuration

50W RMS per channel (8-ohm stereo with all channels driven)

10 RCS In-Ceiling Manual Earthquake Sound Corp. | www.earthquakesound.com

10 Year Limited Warranty

RCS In-Ceiling (10) year limited warranty:

Earthquake warrants the original purchaser that the speaker or amplifier

(product) is free from defects in material and workmanship, under normal

and proper use, for a period of ten (10) years from the date of purchase (as

shown on the original bill of sale with serial number affixed/written on it). The

ten (10) year warranty period is valid only if the product is properly installed

by an Earthquake authorized party, and the warranty registration card is

properly filled out and sent to Earthquake Sound Corporation. If the product

is installed by a non-authorized dealer, a thirty (30) day warranty period

applies.

(A) Ten (10) year limited warranty guidelines: (If installed by an authorized

Earthquake dealer)

First year: Earthquake pays for labor, parts, and ground freight

(only in US mainland) back to customer.

Second to Tenth year: Earthquake pays only for labor. Customer

must pay for parts and freight both ways.

(B) Warning:

• Products (sent for repair) that are tested by Earthquake

technicians and deemed to have no problem, will not be covered

by the limited warranty. Customer will be charged a minimum of

one (1) hour of labor (ongoing rates) plus shipping charges back

to customer.

• Each product sent for repair must be packaged in its original

packaging. Otherwise, there will be repackaging charge in

addition to labor, parts and shipping charges.

products/parts subject to the following provisions:

• Defective products/parts have not been altered or repaired by

other than an Earthquake factory approved technician.

• Products/parts are not subjected to negligence, misuse, improper

use, or accident, damaged by improper line voltage, used with

incompatible products, or have its serial number or any part of it

altered, defaced or removed, or have been used in any way that is

contrary to Earthquake’s written instructions.

(D) Warranty Limitations:

Earthquake warranty does not cover products that have been modified or

abused. Including but not limited to the following:

• Damages to speaker cabinet and cabinet finish due to misuse,

abuse, or use of improper use of cleaning materials/methods.

• Bent speaker frame, broken speaker connectors, holes in speaker

cone, surround & dust cap, burnt speaker voice coil.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels EarthQuake Intervenants

EarthQuake

EarthQuake EQ108 Manuel utilisateur

EarthQuake

EarthQuake EQ10C4 Manuel utilisateur

EarthQuake

EarthQuake EQ88 Manuel utilisateur

EarthQuake

EarthQuake TNT - T693 Manuel utilisateur

EarthQuake

EarthQuake SweetSpot SS-Series Manuel utilisateur

EarthQuake

EarthQuake Edgeless R8D Manuel utilisateur

EarthQuake

EarthQuake TremorX10-4 Manuel utilisateur

EarthQuake

EarthQuake EQ8C8 Manuel utilisateur

EarthQuake

EarthQuake EQ128 Manuel utilisateur

EarthQuake

EarthQuake ECSSS82 Manuel utilisateur

EarthQuake

EarthQuake EQ6C8 Manuel utilisateur

EarthQuake

EarthQuake EQ10C8 Manuel utilisateur

EarthQuake

EarthQuake EQ6CS Manuel utilisateur

EarthQuake

EarthQuake EQ6S8 Manuel utilisateur

EarthQuake

EarthQuake EWS530C Manuel utilisateur

EarthQuake

EarthQuake ONE-HANDER OH6 Manuel utilisateur

EarthQuake

EarthQuake Granite-52 Manuel utilisateur

EarthQuake

EarthQuake F3.5R Manuel utilisateur

EarthQuake

EarthQuake Mpower8 Manuel utilisateur

EarthQuake

EarthQuake IMAGE-X Manuel utilisateur

EarthQuake

EarthQuake Focus series Supplément

EarthQuake

EarthQuake Titan Theia Manuel utilisateur

EarthQuake

EarthQuake AWS Series Supplément

EarthQuake

EarthQuake Tigris Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
