EarthQuake ECSSS82 Manuel utilisateur

ECSSS82

The Sound That Will Move You

Edgeless High Performance

8” Angled In-Ceiling Speaker

Installation Manual

www. sound.comearthquake

Thank you for purchasing the ECS-SS82, Edgeless 8” SweetSpot In-

Ceiling Speaker; one of Earthquake Sound's most valued in-ceiling

speaker lines. Designed with aesthetics and sound quality in mind, the

ECS-SS82 seamlessly blends into its surrounding as it provides a

lifetime of durability and high-end performance.

It is very important to read and follow all installation/mounting

instructions and recommendations in this manual thoroughly to ensure

optimal performance and longevity.

The ECS-SS82 Features

» Frameless design for reduced visibility/low profile/seamless blend

» Up to 20° angled Sweet Spot

» Echo control R435 sound absorbing material

» ± 3dB bass and treble controls

» 1” (25mm) silk dome NEO swiveling tweeters

» Elaborate crossover networks

» Easy Turn-N-Lock™ installation mechanism

» Gold plated, spring loaded terminals

» Magnetically attached, paintable grilles

Dear Valued Customer,

Specifications are subject to change without notice

Grille Painting Guidelines

The ECS-SS82 Edgeless 8” SweetSpot In-Ceiling Speaker grilles are

paintable and can accept virtually any type of paint. We strongly

recommend the following:

1. Remove the grilles from the speakers prior to painting them.

2. Thin the paint prior to application, if needed. Spray and roller paint

applications typically provide the best results. Note that you may

need to apply multiple thin layers of paint to achieve the desired

shade without losing sound quality due to clogging of the grilles.

3. Let the painted grilles fully dry before mounting them back on the

speakers.

www.earthquakesound.com 3

Grille Painting & Placement Considerations

Speaker Placement

The ECS-SS82 Edgeless 8” SweetSpot In-Ceiling Speakers are

designed to be flush mounted in walls or ceilings. For optimal

acoustical performance, simply follow these guidelines:

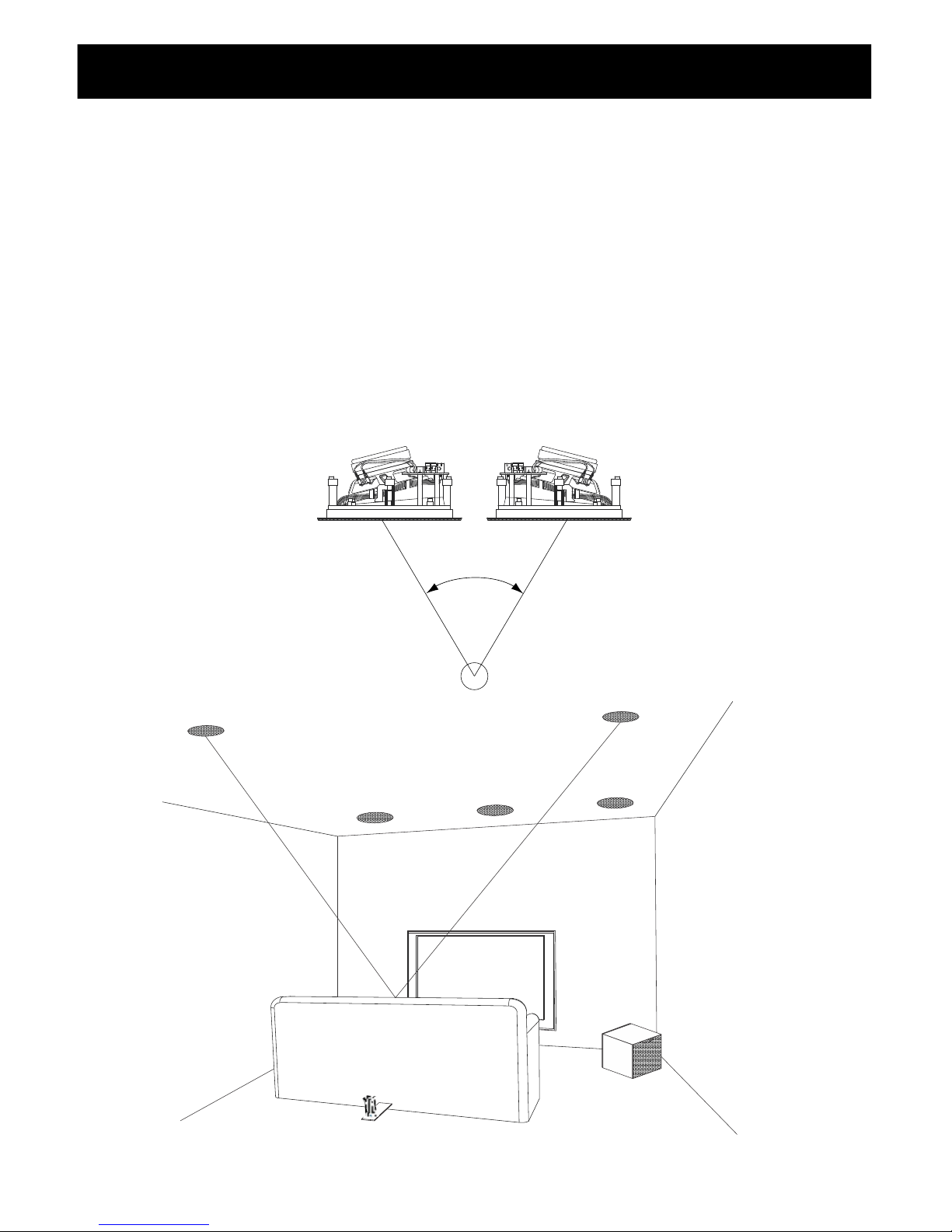

1. Place speakers at an equal distance (left/right) from listener.

2. Speakers must be spaced at a 40 - 60° angle from listener, as

illustrated in Figure 1.

3. Aim tweeter towards the listener’s ear when in listening position, as

illustrated in Figure 2.

Figure 1

Figure 2

40 - 60°

Specifications are subject to change without notice

Simply tighten the screws by hand using a screwdriver

to prevent the mounting ears from snapping. Some

resistance may occur the first few turns of the screw as it

makes its path through the plastic.

Cut the hole:

using the provided

cut out template

Wire the speaker:

using the non-obtrusive

spring-loaded speaker

terminals

Mount the speaker:

by utilizing the

Turn-N-Lock™

installation mechanisms

Easy Installation Steps

www.earthquakesound.com 5

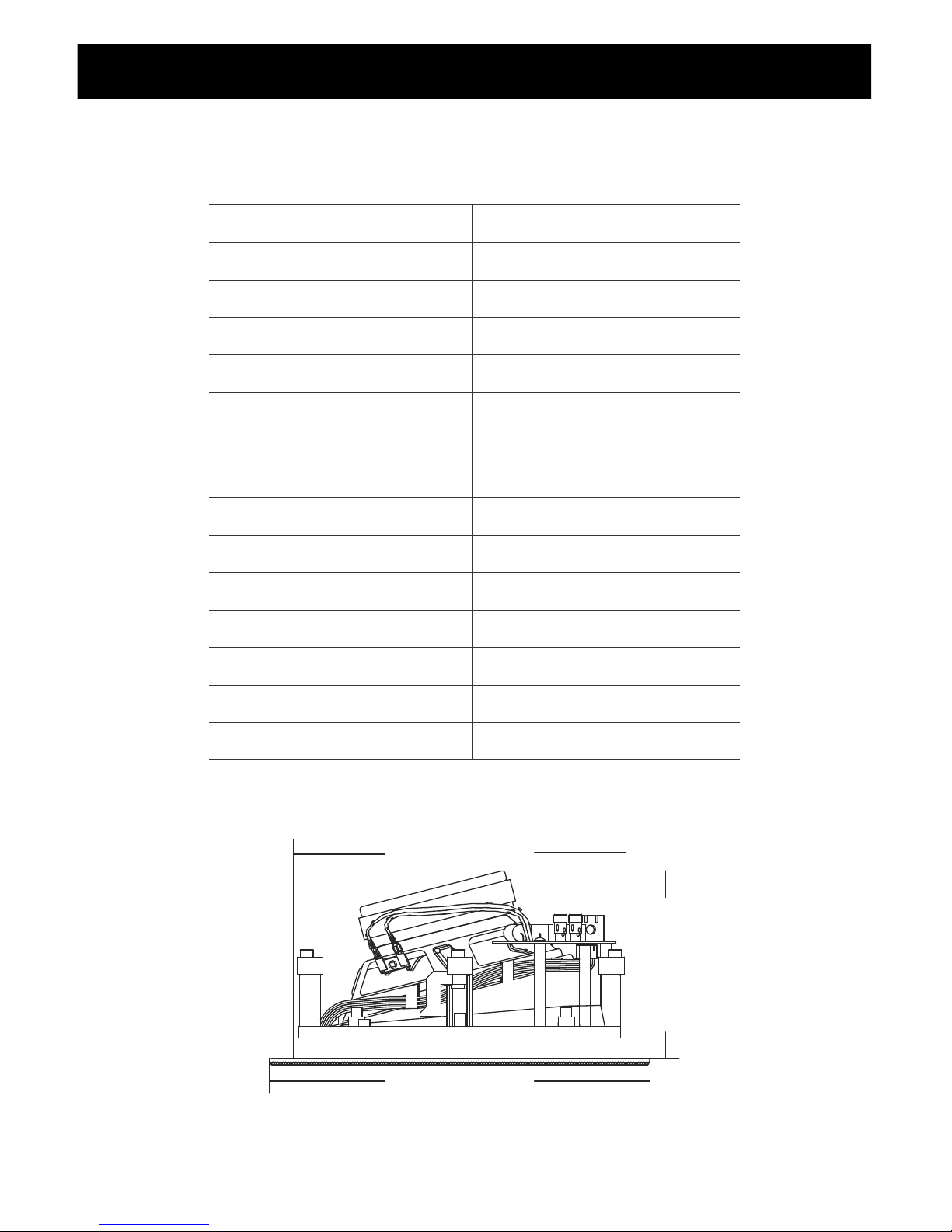

Specifications

Ø 11 1/4” (285mm)

5 13/16” (147.5mm)

Ø 9 11/16” (245mm)

E C S - S S 8 2 S P E C I F I C A T I O N S

Frequency Response:

Sensitivity:

Nominal Impedance:

Power Handling:

Enclosure Material / Type:

Driver Components:

30Hz - 30kHz

91dB @ 1W/1M

8-Ohm

30 - 300 Watts

Impact resist ABS Plastic

Mounting Depth: 5 13/16” (147.5mm)

Cut Out Diameter: 9 11/16” (245mm)

Outer Diameter (with grille): 11 1/4” (285mm)

One 8” wide surround woofer

with polypropylene cone and

one 1” (25mm) silk dome

swiveling compression tweeter

Grille Finish: White / Paintable

Grille Protrusion: 7/32” (5.5mm)

Wire Gauge Recommended: 12

Weight (grille included): 7.64 lbs (3.46 kgs)

Warranty Guidelines

Specifications are subject to change without notice

Earthquake warrants the original purchaser that all Factory Sealed New Audio Products to be free

from defects in material and workmanship under normal and proper use for a period of five (5) years

from the date of purchase (as shown on the original sales receipt with serial number affixed/written

on it).

The five (5) year limited warranty period is valid only if an authorized Earthquake dealer properly

installs the product and the warranty registration card is properly filled out and sent to Earthquake

Sound Corporation. If a non-authorized party installs the product, a ninety (90) day warranty period

will be applied.

(A) Five (5) years limited warranty plan coverage guidelines:

First year: Earthquake pays for labor, parts, and ground freight (only in US mainland, not

including Alaska and Hawaii. Shipping to us is not covered).

Second, third, fourth & fifth year: Earthquake pays labor only. Customer must pay for parts

and freight both ways.

(B) Warning:

Products (sent in for repair) that are tested by Earthquake technicians and deemed to have

no problem will not be covered by the limited warranty. Customer will be charged a minimum

of one (1) hour of labor (at ongoing rate) plus shipping charges back to customer.

Each product sent in for repair must be packaged in its original packaging. Otherwise,

repackaging charges will apply in addition to the labor, parts and shipping charges.

(C ) Earthquake will repair or replace at our option all defective products/parts subject to the

following provisions:

Defective products/parts have not been altered or repaired by anyone other than an

Earthquake factory approved technician.

Products/parts are not subjected to negligence, misuse, accident or damage by improper line

voltage.

Products/parts were used with incompatible products.

The serial number or any part of the product has been altered, defaced or removed.

Products/parts have been used in any way that is contrary to Earthquake’s written

instructions.

D) Warranty Limitations:

Warranty does not cover products that have been modified or abused, including but not limited

to the following:

Damages to speaker frame and frame finish due to misuse, abuse or improper use of

cleaning materials/methods.

Bent speaker frame, broken speaker connectors, hole(s) in speaker cone, hole(s) in surround

&/ dust cap, and burnt speaker voice coil.

Fading and/or deterioration of speaker components & finish due to improper exposure to

elements.

Burnt tracers on PCB.

Product/part damaged due to poor packaging or abusive shipping conditions.

Subsequent damage to other products.

WARNING: These products are capable of generating high sound

pressure levels. You should exercise caution when operating these

speakers. Long term exposures to high levels of sound pressure will

cause permanent damage to your hearing. Sound pressure levels

exceeding 85dB can be dangerous with constant exposure, set your

audio system to a comfortable loudness level. Earthquake Sound

Corporation does not assume liability for damages resulting from the direct use of

Earthquake speakers , and urges users to play volume at moderate levels.

Warranty Guidelines

www.earthquakesound.com 7

A warranty claim will not be valid if the warranty registration card is not properly filled & returned to

Earthquake with a copy of the sales receipt.

((E) Service Request:

To receive product service, contact Earthquake Service Department at (510) 732-1000 and

request an RMA number (Return Material Authorization). Items shipped without a valid RMA

number will be refused. Make sure you provide us with your complete/correct shipping address,

a valid phone number, and a brief description of the problem you are experiencing with the

product. In most cases, our technicians might be able to resolve the problem over the phone,

thus eliminating the need to ship the product.

(F) Shipping Instructions:

Product(s) must be packaged in its original protective box(es) to minimize transport damage

and prevent repackaging cost (at the ongoing rates). Shipper claims regarding items damaged

in transit must be presented to carrier. Earthquake Sound Corporation reserves the right to

refuse improperly packed product. A copy of the original sales receipt must accompany product

returned to service. We encourage you to include with the package a written description of the

problem. Ship product to:

Earthquake Sound Corp.

2727 McCone Avenue, Hayward, CA 94545

Tel: (510) 732-1000

You are responsible for the cost of shipping the product to Earthquake Sound Corporation.

(G) Disputes Resolution:

All disputes between clients and Earthquake Sound Corporation resulting from the five (5) year

limited warranty policy must be resolved according to the laws & registration of the county of

Alameda, California.

Technical Support

US Toll Free: 1-800-576-7944

E-mail: [email protected]

Earthquake Sound reserves the right to amend details of the specifications without notice.

Earthquake Sound Corporation • 2727 McCone Avenue Hayward CA, 94545

Phone: 510-732-1000 Fax: 510-732-1095

The Sound That Will Move You
