E-TWOW BOOSTER PLUS Manuel utilisateur

Portable Electric Scooter

Electric two wheels

A new era in urban mobility

USER MANUAL

BOOSTER PLUS

Thank you for purchasing our products

PLEASE CAREFULLY READ THE USER MANUAL AND WARRANTY BOOK

BEFORE USING

CONTENTS

WARNING................................................................................................................................3

SAFETY....................................................................................................................................4

MAIN PARTS............................................................................................................................5

FOLDING/ UNFOLDING STAGES...........................................................................................6

Folding stages.......................................................................................................................6

Folding steps.........................................................................................................................6

Unfolding steps......................................................................................................................7

OPERATION ............................................................................................................................8

Basic instructions ..................................................................................................................8

Operating Instructions...........................................................................................................8

a) ON/OFF.......................................................................................................................8

b) Speed control ..............................................................................................................8

c) Breaking Control..........................................................................................................8

d) Horn.............................................................................................................................8

e) LED Headlight .............................................................................................................9

f) Mileage Show..............................................................................................................9

g) Emergency ..................................................................................................................9

DISPAY FACTORY SETTING...............................................................................................9

MENU for SPEED LIMIT.............................................................................................10

MENU for SETTING....................................................................................................10

RIDING OPERATION...........................................................................................................111

Getting Ready! ..................................................................................................................111

Start...................................................................................................................................111

Brake.................................................................................................................................111

Cruise control....................................................................................................................111

Zero start...........................................................................................................................111

Maximum Speed Limitation...............................................................................................111

BATTERY AND CHARGER..................................................................................................122

Battery...............................................................................................................................122

Charger.............................................................................................................................122

Charge Description............................................................................................................122

MAINTENANCE ...................................................................................................................123

Lubricating.........................................................................................................................133

Battery...............................................................................................................................133

Storage and care...............................................................................................................133

GENERAL TROUBLESHOOTING .......................................................................................133

Checklist..............................................................................................................................13

a) LED display black screen..........................................................................................13

b) Values from the display do not fit the actual values...................................................13

c) No information on digital display................................................................................13

PRODUCT SPECIFICATION SHEET.....................................................................................14

WARNING

Whenever you ride the E-Twow electric two-wheel scooter you risk

serious injury from collisions, falls or loss of control. To ride

safely, YOU MUST READ AND FOLLOW ALL INSTRUCTIONS AND

WARNINGS IN THIS MANUAL.

Check local laws and regulations to see where and how you may

use your E-Twow scooter legally. Obey to all applicable laws for

vehicles and pedestrians.

This manual includes basic operational instructions for the E-

Twow scooter. It cannot cover all situations where injury or death

may occur. OPERATORS MUST USE GOOD JUDGMENT AND

COMMON SENSE TO DETECT AND AVOID HAZARDS AND

DANGERS that they may encounter when riding the E-Twow. By

using the E-Twow scooter, you accept of the inherent risks of

operating this product.

FAILURE TO USE COMMON SENSE AND GOOD JUDGMENT AND

HEED THESE WARNINGS CAN CAUSE SERIOUS INJURY. USE AT

YOUR OWN RISK AND WITH APPROPRIATE AND SERIOUS

ATTENTION FOR SAFE OPERATION. ALWAYS USE CAUTION.

SAFETY

1. The product is only for adults (above 18 years). Please do not carry two

adults at the same time. Is not suitable for minors.

2. Always inspect the scooter prior to use. Properly inspecting and maintaining

your product can reduce the risk of injury.

3. Please wear your safety helmet and other protective equipment when riding.

Use an approved bicycle or skateboard helmet that fits properly with the chin

strap in place and protects the back of your head. Local legislations may require

riders of two wheel products to wear a helmet and other protective gear. Never

ride the scooter barefoot or in open-toed shoes or high-heels.

4. Do not ride in traffic lane or unsafe roads and do not break local regulations.

5. Please exercise in wide areas, and ride only after you have a good control

of the scooter. Please do not ride in traffic lane.

6. Do not make any dangerous actions when riding or riding with one hand.

Keep your feet on the scooter.

7. Do not attempt to ride the scooter on stairs that are above 3 cm, it may

overturn causing injuries and/or damages to the rider and/or scooter.

8. Highest speed is 30 Km/h. For your safety, please limit the speed to 20

Km/h. Please try to avoid using it at night, if needed, please limit the speed within

15 Km/h or less and turn the headlights on.

9. Do not use the scooter when the outside temperature is lower than 0ºC.

10.Please slow down or get off from the scooter when riding in poor road

conditions.

11.Do not ride the scooter in oily or icy surface terrain.

12.Please adjust the handlebar according to your height to ensure a safe

riding.

13.To avoid damages of the electrical parts of the vehicle please do not

immerse the scooter in the water with the depth of more than 4 cm and do not

wash it with water under pressure.

14.For protection, please do not ride the scooter in bad weather such as heavy

rain and high winds.

15.Do not drink alcohol and drive E-Twow scooter.

MAIN PARTS

1. Handlebar 6. Folding hook

2. Display 7. Battery charging jack

3. LED headlight 8. Folding lever

4. Hooter 9. Folding axel

5. Lock lever 10. Rear brake

FOLDING/ UNFOLDING STAGES

Folding stages

A –Unfolded B –Folded handlebars

C –Fully folded

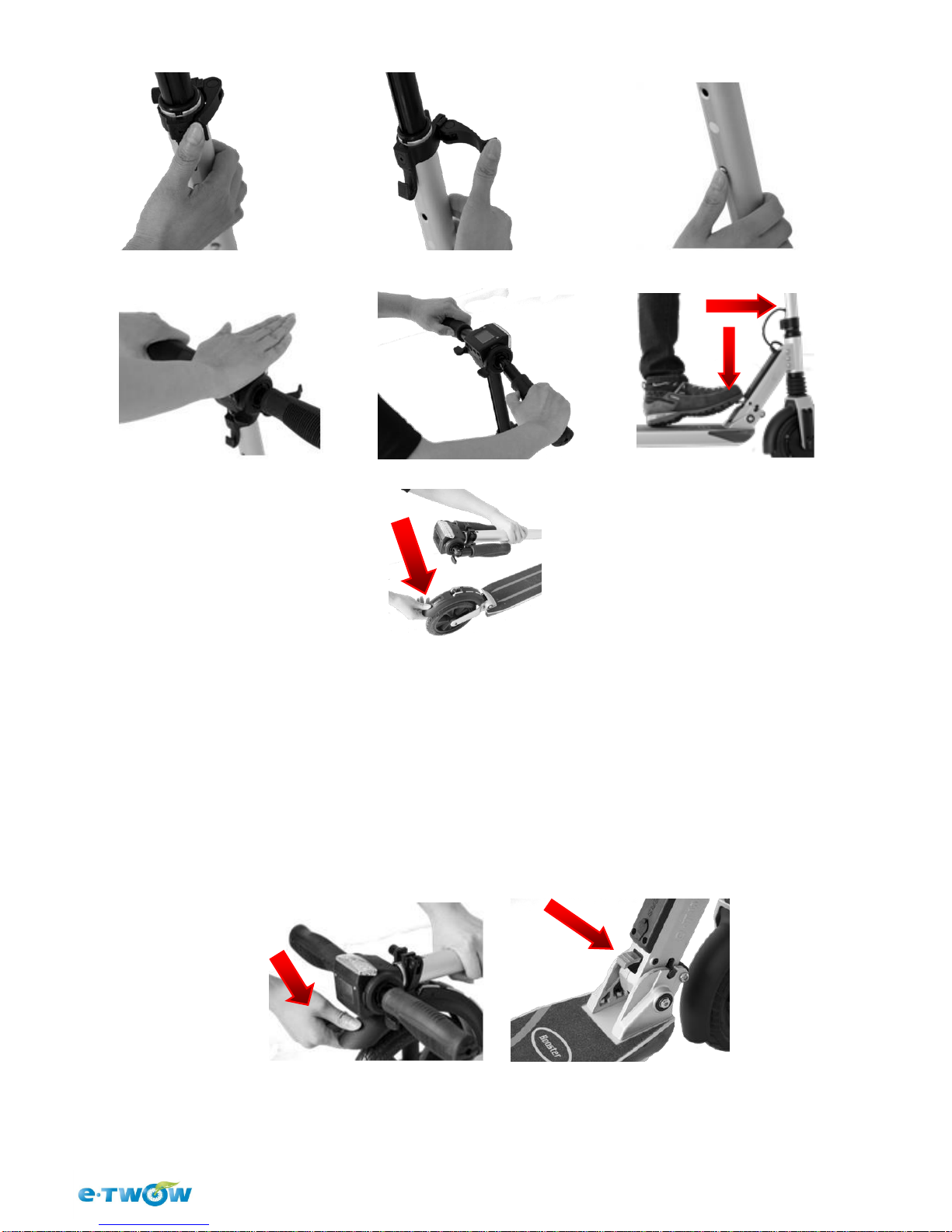

Folding steps

1. Open the lock lever, as shown in figure (a) and (b).

2. Press the red button, figure (c), at the same time press down handlebars as shown in figure

(d) and push the lock lever to the lock position.

3. Hold the handlebar with both hands, push buttons shown in figure (e).

Pull out the handlebar grips, figure (e), up to the maximum and fold downwards to maximum

like in figure B, from above.

4. Push the handlebar forward when you press the folding lever in the direction of the arrow in

the figure (f).

5. Continue folding the scooter until the folding hook reaches the opening located on the rear

brake, as detailed in figure C from above.

(a) (b) (c)

(d) (e) (f)

(g)

Unfolding steps

1. Press the rear brake fender in the direction of the arrow, as shown in figure (h), until the

folding hook is released from the opening located on the rear brake. Then, lift the handlebar

until it reaches the normal position and the locking bolt comes into place, like in figure (i).

2. Raise the two handles of the handlebar until they automatically return to the normal position,

figure A.

3. Push the lock lever like is shown in figure (a) and (b) and lift the handlebars to the desired

height. Now press the button shown in figure (c) and secure it in one of the two holes, as

desired. Then close the lock lever and make sure that you always keep the lever secured and

tightly closed.

(h) (i)

OPERATION

Basic instructions

Operating Instructions

a) ON/OFF

Press the switch for 3 sec, and the display will light up, indicating that the power is on. Press for

3 seconds if you want to turn it off. The scooter will turn off if you don't use it for more than 3

minutes.

b) Speed control

Press the right thumb lever accelerator to control the speed (1-30km/h).

c) Breaking Control

Press the left thumb lever and the electronic magnetic brake will be activated. The more you

press, the greater the braking force will be.

d) Horn

If you turn on the power, when pressing the horn button, it will honk.

1. Thumb accelerator

2. Switch button handlebar

3. Setting button

4. On/Off light button

5. Horn button

6. Handlebar

7. Square tube

8. Folding bar

9. Front fender

10. Battery front cover

11. Protection cover

12. Folding buttons

13. Thumb electronic magnetic

brake

e) LED Headlight

In manual mode: Press the On/Off Light button when needed and there will be a sign in display

indicates the light is turn on. Press the button again when you do not need the light. Keep

pressed for a few seconds.

The scooter is equipped with a sensor light that detects the need of light. The light will turn on

automatically (auto light mode) if the sensor detects poor ambient light.

For example: when is cloudy weather and the auto light mode is on, the light turns on. If the

daylight is proper, the auto light mode detects the light and the headlights will go off after 5

seconds.

On auto light mode, the display is also lighted depending on the ambient light.

If the scooter is on auto light mode, you can go to manual mode by pushing the On/Off Light

Button until the sign “Auto” disappears from the screen.

f) Mileage Show

When the display is powered, it displays 2 modes: total and trip. You can change it by pressing

the settings button. In 'trip' mode, press the setting button (S) for 3 seconds and it will clear the

trip.

g) Emergency

In an emergency, it’s recommended to use the foot brake.

DISPLAY FACTORY SETTING

10 –Headlight icon

11 –Speed

12 –Battery

13 –Temperature

14 –Displays the total or trip distance

15 -Trip total (ODO) or total mileage from the last reset (TRIP)

MENU for SPEED LIMIT

a. To set up speed limit:

- Turn off the display

- Press and hold thumb brake

- Power the display

The display will show " L1"

b. Move to menu with button [ LIGHT] L1-L2-L3-L4-L5

- To set up and save the speed limit, press button[SET]

- To finish the settings, release thumb brake.

MENU for SETTING

a. To set up one of this program:

- Turn on display

- Press and hold thumb brake

- press the button [ POWER]

The display will show: P1

b. Move to menu with button [ LIGHT] P1- P2- P3

To set up and save the setting, press key [ SET]

TO finish the settings, release thumb brake.

*P3 –Turns off the acceleration so that both handles become regenerative brake

handles

ERROR CODE

E1 - Overcurrent protection ( Motor does not move more than 4 seconds) -

this error clears after release the acceleration throttle.

E2 - Communication error ( No communication for more than 400ms) - this

error clears when starting the communication.

E3 –Overvoltage error ( Battery voltage higher) –this error clears if you put

back the original battery.

L1 = Limit the speed to 6 km/h

L2 = Limit the speed to 12 km/h

L3 = Limit the speed to 20 km/h

L4 = Limit the speed to 25 km/h

L5 = Limit the speed to 30 km/h

P1 = Zero Start [ ON/OFF]

P2 = Cruise Control [ ON/OFF]

P3* = Acceleration [ON/OFF ]

Autres manuels pour BOOSTER PLUS

Table des matières

Autres manuels e-TWOW Scooter

e-TWOW

e-TWOW BOOSTER EKFV Manuel utilisateur

e-TWOW

e-TWOW E-SCOOTER Manuel utilisateur

e-TWOW

e-TWOW S2 BOOSTER Manuel utilisateur

e-TWOW

e-TWOW BOOSTER PLUS Manuel utilisateur

e-TWOW

e-TWOW Eco Manuel utilisateur

e-TWOW

e-TWOW s2 booster plus Manuel utilisateur

e-TWOW

e-TWOW Uscooters Booster GT Manuel utilisateur

e-TWOW

e-TWOW S2 ECO Manuel utilisateur

e-TWOW

e-TWOW BOOSTER V Manuel utilisateur

e-TWOW

e-TWOW S2 GTS Manuel utilisateur

e-TWOW

e-TWOW S2 BOOSTER E Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
