Ultra Stick 25e

Assembly Manual

Introduction................................................................3

Specifications.............................................................3

Using the Manual .......................................................3

Contents of Kit/Parts Layout .........................................4

Required Radio Equipment...........................................5

Optional Quad Flaps ..................................................5

Important Information About Motor Selection .................5

Sport Outrunner Setup.................................................5

Optional Accessories ..................................................5

High Power Setup.......................................................6

Warning....................................................................6

Required Tools and Adhesives......................................6

Note Regarding Hinges...............................................7

Note on Lithium Polymer Batteries.................................7

Limited Warranty Period ..............................................7

Limited Warranty & Limits of Liability.............................8

Safety Precautions.......................................................9

Questions, Assistance, and Repairs...............................9

Questions or Assistance...............................................9

Table of Contents

Inspection or Repairs...................................................9

Warranty Inspection and Repairs................................10

Non-Warranty Repairs...............................................10

Safety, Precautions, and Warnings..............................11

Landing Gear Installation...........................................12

Motor Installation......................................................13

Tail Installation..........................................................16

Wing Preparation .....................................................17

Quad Flap Modification (Optional).............................21

Radio Installation ......................................................25

Final Assembly .........................................................29

Control Throws .........................................................31

Center of Gravity......................................................32

Range Testing the Radio ............................................32

Preflight ...................................................................33

Flying the Ultra Stick 25e.....................................34–35

2006 Official AMA

National Model Aircraft Safety Code....................36–37

Notes ................................................................38–39

Introduction

Thank you for purchasing the Ultra Stick 25e. Designed

from the beginning for electric power, the Ultra Stick 25e

is developed from the popular Hangar 9®Ultra Stick™

series of aircraft. You will find most all of the hard work

completed for you. All flight control surfaces, control

horns, wheels, and other necessary items required to

speed up the building time have been installed at the

factory. You will find two sets of mounting holes on the

firewall to mount your choice of either the Power 25

or 32 Outrunner motors. An additional aluminum float

mount is included if you wish to fly with the optional

25-size Fiberglass floats (EFLA500A). The Power 32 is

recommended if you wish to fly with the floats. This is to

help maintain the CG required for flight. If you wish to

use the Quad Flap option you will need to use a receiver

battery to power the radio as the BEC unit in most speed

controls can only power 4 servos. All necessary control

linkage hardware is included for the Quad Flap option if

you choose to install it.

Specifications

Wingspan: 50 in (127cm)

Length: 41.5 in (105cm)

Wing Area: 480 sq in (31 sq dm)

Weight w/o Battery: 2.6 lb (1.2 kg)

Weight w/ Battery: 3.4 lb (1.5 kg)

Using the Manual

This manual is divided into sections to help make assembly

easier to understand, and to provide breaks between each

major section. In addition, check boxes have been placed

next to each step to keep track of each step completed.

Steps with a single circle () are performed once, while

steps with two circles () indicate that the step will

require repeating, such as for a right or left wing panel,

two servos, etc.

Remember to take your time and follow the directions.

Large Replacement Parts:

EFL4026 Wing w/Ailerons

EFL4027 Fuselage

EFL4028 Tail Set

EFL4029 Landing Gear w/Wheels

Small Replacement Parts

EFL4030 Pushrod Set

EFLA213 E-flite/JR/Horizon Decals

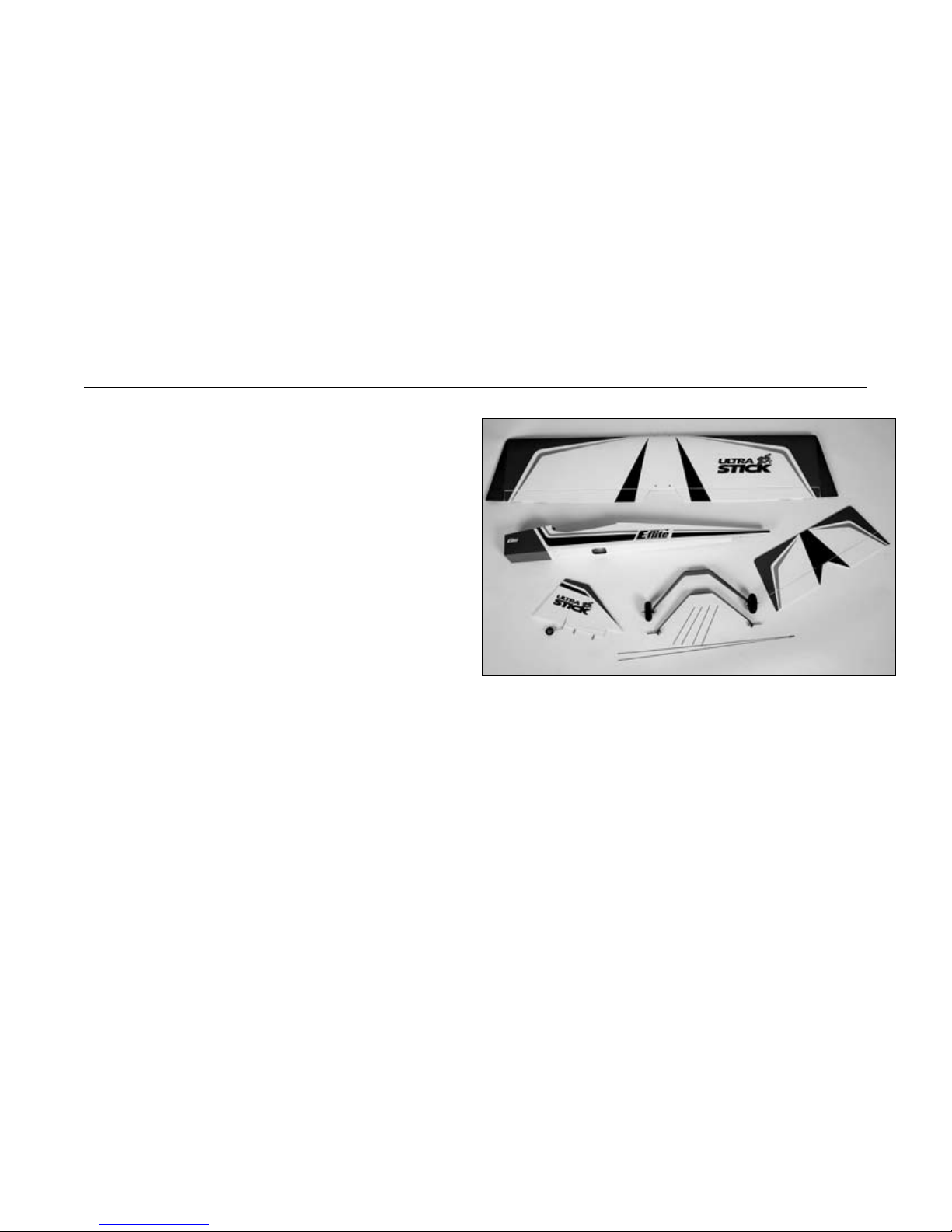

Contents of Kit/Parts Layout

Required Radio Equipment

You will need a minimum 4-channel transmitter, crystals,

micro receiver, and four mini servos. You can choose to

purchase a complete radio system that includes all of

these items or, if you are using an existing transmitter, just

purchase the other required equipment separately.

You may wish to install the optional quad flaps, in which

case you will need a 7-channel radio and receiver on

72MHz with mixing and six mini servos.

JSP30600 RS600 6-Channel Universal FM Rx

w/o Crystal

JRPXFR** FM Receiver Crystal

JSP98110 6" Servo Extension (2)

JSP20040 MN48 Mini Servo (4)

JSP98020 Y-harness, standard 6"

Optional Quad Flaps

JRPB4041 Extra Rx Pack 600mAh 4.8V Square

JSP98010 Standard Switch

JSP20040 MN48 Mini Servo (2)

JSP98120 18" Servo Extension (2)

Important Information About Motor

Selection

The Ultra Stick 25e does not include a propeller.

We are recommending the Power 25 or Power 32

outrunner motors. This will provide you with excellent

aerobatic power for sport pilots and a worry-free

outrunner motor.

Sport Outrunner Setup

EFLM4025A Power 25 BL Outrunner, 870Kv

EFLA312B 40-Amp Brushless ESC (v2)

THP42003S2PPL 4200mAh 3S2P 11.1V Li-Po, 13GA

EFLB4010 10-cell 1800mAh Ni-MH

APC12060E Electric Propeller, 12x6E

EFLC3005 Celectra 1-3 cell Li-Po Charger

EFLAEC303 EC3 Dev & Batt, Male/Female

This is a sport flyer setup for smooth and stable flights.

Optional Accessories

EFLA110 Power Meter

HAN172 Hangar 9 Digital Servo and Rx

Current Meter

High Power Setup

EFLM4032A Power 32 BL Outrunner, 770Kv

CSEPHX45 45-Amp Brushless ESC (depending

on propeller used)

CSEPHX60 60-Amp Brushless ESC (depending

on prop used)

THP42002S2PPL 4200mAh 2S2P 7.4V Li-Po, 13GA

(2 req in series for 14.4V)

APC11070E Electric Propeller, 11x7E

APC11055E Electric Propeller, 11x5.5E

EFLC3005 Celectra 1 - 3 cell Li-Po Charger

EFLAEC303 EC3 Dev & Batt, Male/Female

This is a high power setup for very strong ﬂight performance

and ﬂoat ﬂying.

Warning

An RC aircraft is not a toy! If misused, it can cause

serious bodily harm and damage to property. Fly

only in open areas, preferably at AMA (Academy of

Model Aeronautics) approved flying sites, following all

instructions included with your radio.

Keep loose items that can get entangled in the propeller

away from the prop, including loose clothing, or other

objects such as pencils and screwdrivers. Especially keep

your hands away from the propeller.

Required Tools and Adhesives

Tools & Equipment

EFLA250 Park Flyer Tool Assortment, 5-piece

Or Purchase Separately

EFLA257 Screwdriver, #0 Phillips (or included

with EFLA250)

EFLA251 Hex Wrench: 3/32", 7/64" (or

included with EFLA250)

Nut driver: 1/4"

Drill

Drill bit: 1/16" (1.5mm), 5/64" (2mm),

Hobby knife

Felt-tipped pen

Pliers

Note Regarding Hinges

For your convenience and to speed the assembly process,

the hinges have already been installed and glued. We

suggest that you take a minute before beginning assembly

of your model to check them.

Grasp the wing and aileron at each hinge location, then

gently pull on the aileron to ensure the hinges are secure

and cannot easily be pulled away from either surface.

Use caution when gripping the wing and aileron to avoid

crushing or damaging the structure. Repeat this process for

the elevator and rudder.

If however, you find that the hinges pull away, simply

wick thin CA into the hinge slots and reinstall the hinges/

surfaces.

Note on Lithium Polymer Batteries

Lithium Polymer batteries are significantly

more volatile than alkaline or Ni-Cd/

Ni-MH batteries used in RC applications.

All manufacturer’s instructions and warnings

must be followed closely. Mishandling of

Li-Po batteries can result in fire. Always

follow the manufacturer’s instructions when

disposing of Lithium Polymer batteries.

Limited Warranty Period

Horizon Hobby, Inc. guarantees this product to be free

from defects in both material and workmanship at the date

of purchase.

Pursuant to this Limited Warranty, Horizon Hobby, Inc.

will, at its option, (i) repair or (ii) replace, any product

determined by Horizon Hobby, Inc. to be defective. In the

event of a defect, these are your exclusive remedies.

This warranty does not cover cosmetic damage or damage

due to acts of God, accident, misuse, abuse, negligence,

commercial use, or modification of or to any part of

the product. This warranty does not cover damage due

to improper installation, operation, maintenance, or

attempted repair by anyone other than an authorized

Horizon Hobby, Inc. service center. This warranty is

limited to the original purchaser and is not transferable.

In no case shall Horizon Hobby’s liability exceed the

original cost of the purchased product and will not

cover consequential, incidental or collateral damage.

Horizon Hobby, Inc. reserves the right to inspect any and

all equipment involved in a warranty claim. Repair or

replacement decisions are at the sole discretion of Horizon

Hobby, Inc. Further, Horizon Hobby reserves the right to

change or modify this warranty without notice.

REPAIR OR REPLACEMENT AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE

CONSUMER. HORIZON HOBBY, INC. SHALL NOT BE

LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES.

As Horizon Hobby, Inc. has no control over use, setup,

final assembly, modification or misuse, no liability shall be

assumed nor accepted for any resulting damage or injury.

By the act of use, setup or assembly, the user accepts all

resulting liability.

If you as the purchaser or user are not prepared to accept

the liability associated with the use of this product, you

are advised to return this product immediately in new and

unused condition to the place of purchase.

Limited Warranty & Limits of Liability

Safety Precautions

This is a sophisticated hobby product and not a toy. It

must be operated with caution and common sense and

requires some basic mechanical ability. Failure to operate

this product in a safe and responsible manner could result

in injury or damage to the product or other property. This

product is not intended for use by children without direct

adult supervision.

The product manual contains instructions for safety,

operation and maintenance. It is essential to read and

follow all the instructions and warnings in the manual,

prior to assembly, setup or use, in order to operate

correctly and avoid damage or injury.

Questions,Assistance, and Repairs

Your local hobby store and/or place of purchase cannot

provide warranty support or repair. Once assembly, setup

or use of the product has been started, you must contact

Horizon Hobby, Inc. directly. This will enable Horizon to

better answer your questions and service you in the event

that you may need any assistance.

Questions or Assistance

For questions or assistance, please direct your email to

productsupport@horizonhobby.com, or call 877.504.0233

toll-free to speak to a service technician.

Inspection or Repairs

If your product needs to be inspected or repaired, please

call for a Return Merchandise Authorization (RMA). Pack

the product securely using a shipping carton. Please note

that original boxes may be included, but are not designed

to withstand the rigors of shipping without additional

protection. Ship via a carrier that provides tracking and

insurance for lost or damaged parcels, as Horizon Hobby,

Inc. is not responsible for merchandise until it arrives and

is accepted at our facility. Include your complete name,

address, phone number where you can be reached during

business days, RMA number, and a brief summary of the

problem. Be sure your name, address, and RMA number

are clearly written on the shipping carton.

Warranty Inspection and Repairs

To receive warranty service, you must include your

original sales receipt verifying the proof-of-purchase

date. Providing warranty conditions have been met, your

product will be repaired or replaced free of charge.

Repair or replacement decisions are at the sole discretion

of Horizon Hobby.

Non-Warranty Repairs

Should your repair not be covered by warranty and the

expense exceeds 50% of the retail purchase cost, you will

be provided with an estimate advising you of your options.

You will be billed for any return freight for non-warranty

repairs. Please advise us of your preferred method of

payment. Horizon Hobby accepts money orders and

cashiers checks, as well as Visa, MasterCard, American

Express, and Discover cards. If you choose to pay by

credit card, please include your credit card number and

expiration date. Any repair left unpaid or unclaimed

after 90 days will be considered abandoned and will be

disposed of accordingly.

Electronics and engines requiring inspection or repair

should be shipped to the following address (freight

prepaid):

Horizon Service Center

4105 Fieldstone Road

Champaign, Illinois 61822

All other products requiring inspection or repair should be

shipped to the following address (freight prepaid):

Horizon Product Support

4105 Fieldstone Road

Champaign, Illinois 61822

Autres manuels pour ALBATROS D.Va 25e

Table des matières

Autres manuels E-FLITE Jouet

E-FLITE

E-FLITE Extra 300 32e Manuel utilisateur

E-FLITE

E-FLITE Beast 60e Manuel utilisateur

E-FLITE

E-FLITE Blade SR Manuel utilisateur

E-FLITE

E-FLITE Viper 70mm EDF Manuel utilisateur

E-FLITE

E-FLITE Blade CP Manuel utilisateur

E-FLITE

E-FLITE Mini Ultra Stick Manuel utilisateur

E-FLITE

E-FLITE UMX Vapor Lite HP BNF Basic Manuel utilisateur

E-FLITE

E-FLITE P-38 Lightning 400 ARF Manuel utilisateur

E-FLITE

E-FLITE Carbon-Z Splendor Manuel utilisateur

E-FLITE

E-FLITE Radian XL 2.6M PNP Instructions d'installation et d'utilisation

E-FLITE

E-FLITE Taylorcraft 450 ARF Manuel utilisateur

E-FLITE

E-FLITE Mini Pulse XT PNP Manuel utilisateur

E-FLITE

E-FLITE Blade 400 3D Manuel utilisateur

E-FLITE

E-FLITE Alpha Sport 450 Manuel utilisateur

E-FLITE

E-FLITE 4-Site Manuel utilisateur

E-FLITE

E-FLITE Super Cub 25e ARF Manuel utilisateur

E-FLITE

E-FLITE Beechcraft Staggerwing 480 ARF Manuel utilisateur

E-FLITE

E-FLITE Hawker Sea Fury 480 Manuel utilisateur

E-FLITE

E-FLITE EFLA370H Manuel utilisateur

E-FLITE

E-FLITE UMX AS3Xtra Manuel utilisateur

E-FLITE

E-FLITE F-16 Falcon 80mm EDF Manuel utilisateur

E-FLITE

E-FLITE EDGE 540QQ 280 Manuel utilisateur

E-FLITE

E-FLITE Deuces Wild ARF Manuel utilisateur

E-FLITE

E-FLITE Tensor 4D Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
