Dynojet Power commander V Manuel utilisateur
19-006www.powercommander.com 2009 Victory Vision models PCV - 1
PARTS LIST
1 Power Commander
1 USB Cable
1 CD-ROM
1 Installation Guide
2 Power Commander Decals
2 Dynojet Decals
2 Velcro
1 Alcohol swab
YOU CAN ALSO DOWNLOAD THE
POWER COMMANDER SOFTWARE AND
LATEST MAPS FROM OUR WEB SITE AT:
www.powercommander.com
2009 Victory Vision
Installation Instructions
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
THE IGNITION MUST BE TURNED
OFF BEFORE INSTALLATION!
2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
19-006www.powercommander.com 2009 Victory Vision models PCV - 2

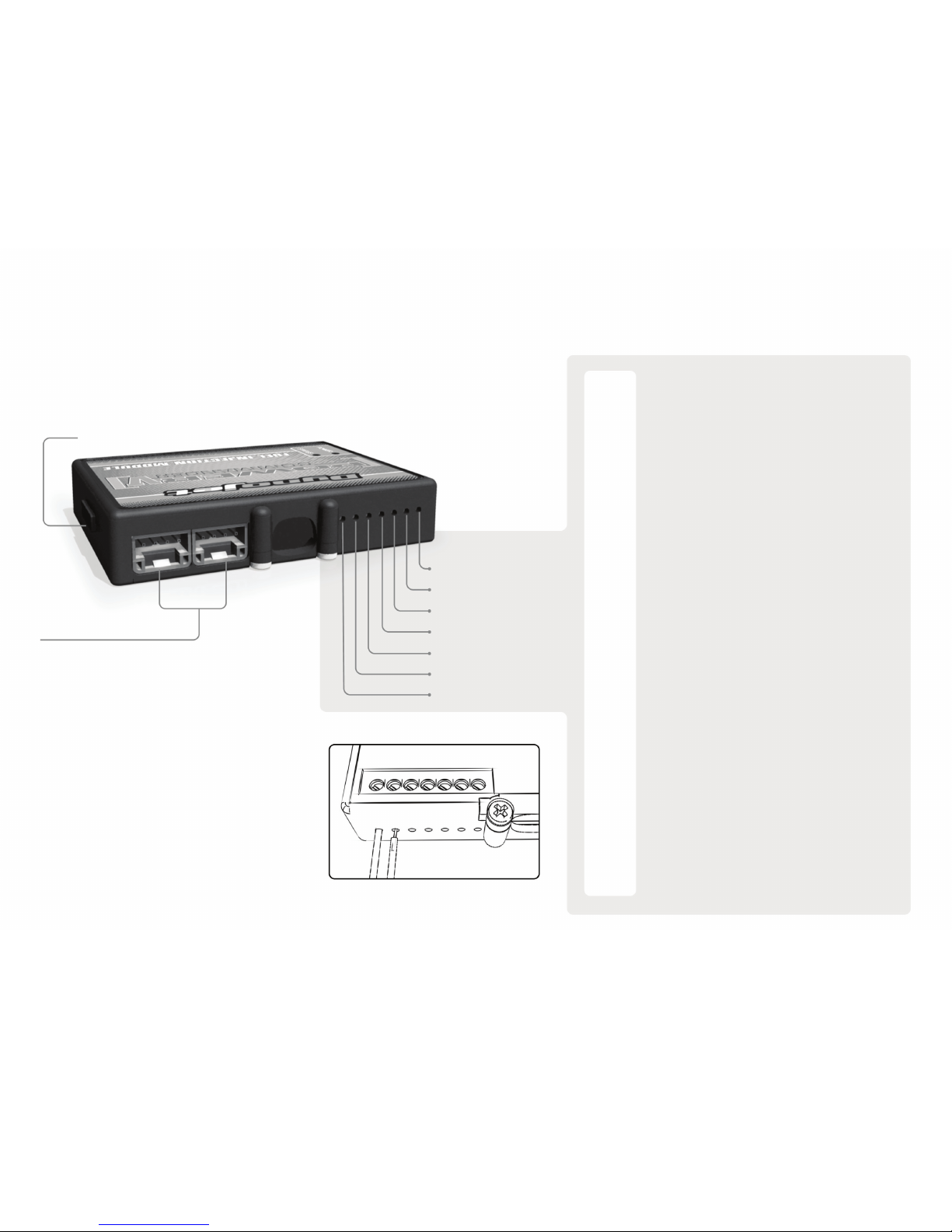

EXPANSION PORTS 1 & 2
Optional Accessories such as
Color LCD unit or Auto tune kit.
POWER COMMANDER V
INPUT ACCESSORY GUIDE
Map - The PCV has the ability to hold 2 different
base maps. You can switch on the fly
between these two base maps when you hook
up a switch to the MAP inputs. You can use
any open/close type switch. The polarity of
the wires is not important. When using the
Autotune kit one position will hold a base map
and the other position will let you activate the
learning mode. When the switch is “CLOSED”
Autotune will be activated.
Shifter- These inputs are for use with the Dynojet
quickshifter. Insert the wires from the Dynojet
quickshifter into the SHIFTER inputs. The
polarity of the wires is not important.
Speed- If your application has a speed sensor then
you can tap into the signal side of the sensor
and run a wire into this input. This will allow
you to calculate gear position in the Control
Center Software. Once gear position is setup
you can alter your map based on gear position
and setup gear dependent kill times when
using a quickshifter.
Analog- This input is for a 0-5v signal such as
engine temp, boost, etc. Once this input
is established you can alter your fuel curve
based on this input in the control center
software.
Crank- Do NOT connect anything to this port unless
instructed to do so by Dynojet. It is used to
transfer crank trigger data from one module to
another.
ACCESSORY INPUTS
Wire connections:
To input wires into the PCV first remove the rubber
plug on the backside of the unit and loosen the
screw for the corresponding input. Using a 22-24
gauge wire strip about 10mm from its end. Push the
wire into the hole of the PCV until is stops and then
tighten the screw. Make sure to reinstall the rubber
plug.
NOTE: If you tin the wires with solder it will make
inserting them easier.
CRANK
ANALOG
SPEED
MAP
MAP
SHIFTER
SHIFTER
USB CONNECTION
19-006www.powercommander.com 2009 Victory Vision models PCV - 3

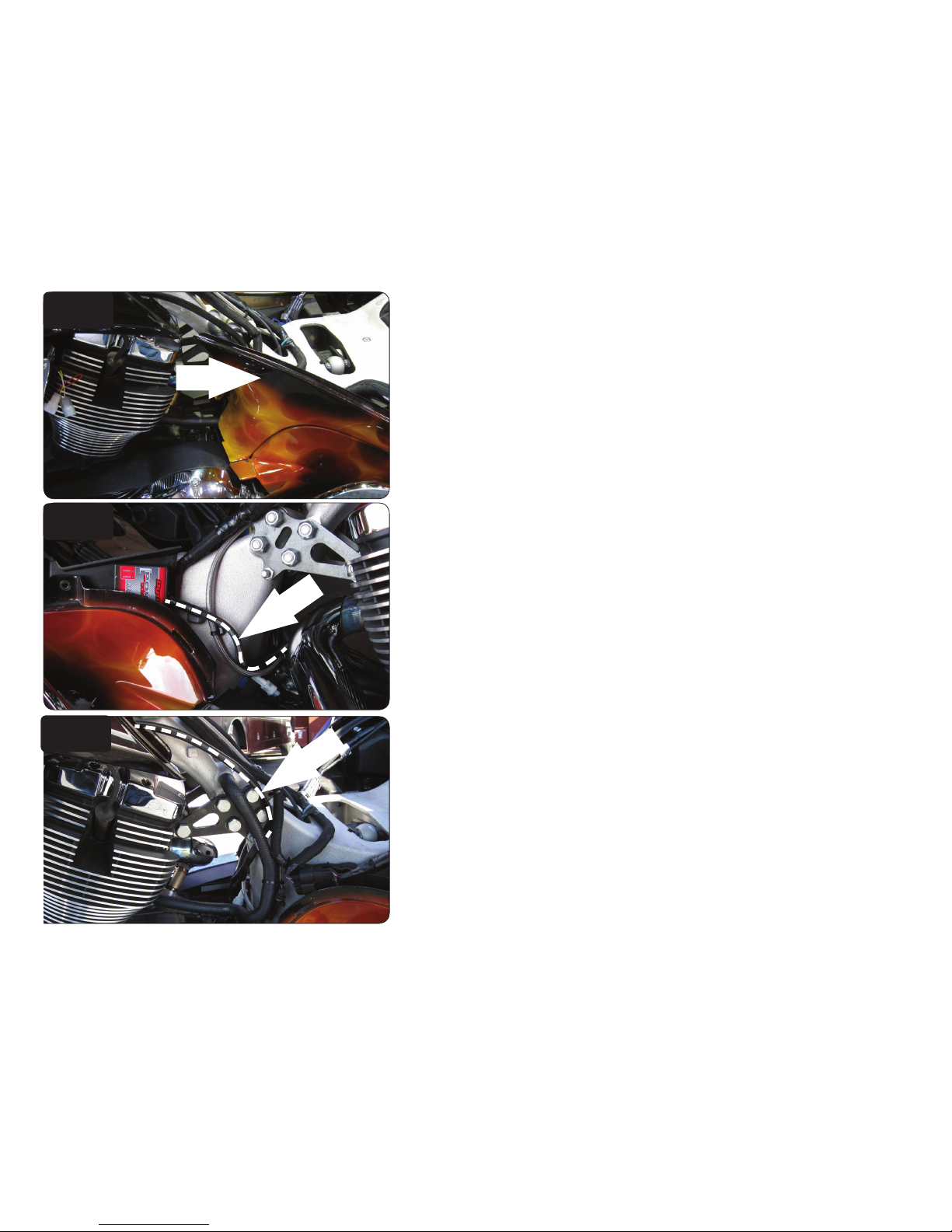

1 Remove the seat.
2 Remove both sidecovers (Fig. A).
3 Install the PCV on the right side of the motorcycle using the supplied velcro.
Make sure to clean both surfaces with the alcohol swab before attaching
(Fig. B).
4 Route the PCV harness to the left side of the bike. Keep the PCV harness as
close to the frame as possible (Fig. B).
5 Route the PCV harness along the backbone of the frame along the left side of
the bike and go towards the throttle body (Fig. C).
FIG.A
FIG.C
FIG.B
Remove
PCV harness
PCV harness
19-006www.powercommander.com 2009 Victory Vision models PCV - 4

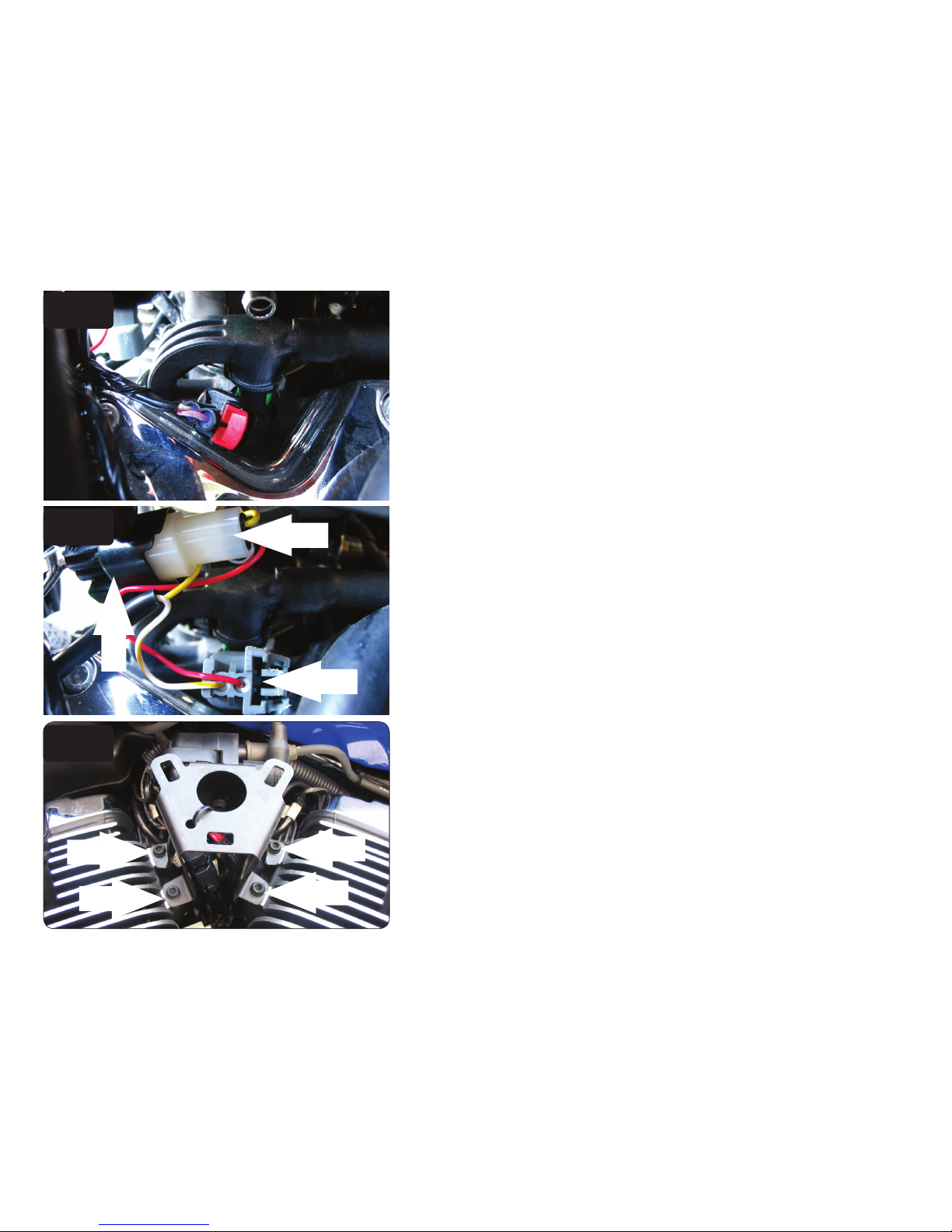

7 Plug the YELLOW colored wires from the PCV in-line of the stock wiring
harness and fuel injector (Fig. E)
8 Repeat steps 7&8 for the front injector using the ORANGE colored wires from
the PCV.
The front injector is very difficult to access but it can be done without removing
the air box. Using a set of long hemostats aids in this process.
FIG.D
9 Remove the 4 bolts that hold the Ignition coil bracket to the engine (Fig. F).
FIG.F
Remove
PCV connector
PCV connector
Stk connector
Remove
Remove
Remove
6 Locate the stock wiring harness at the rear injector (Fig. D). Remove the RED
clip and unplug the injector connector.
FIG.E
19-006www.powercommander.com 2009 Victory Vision models PCV - 5

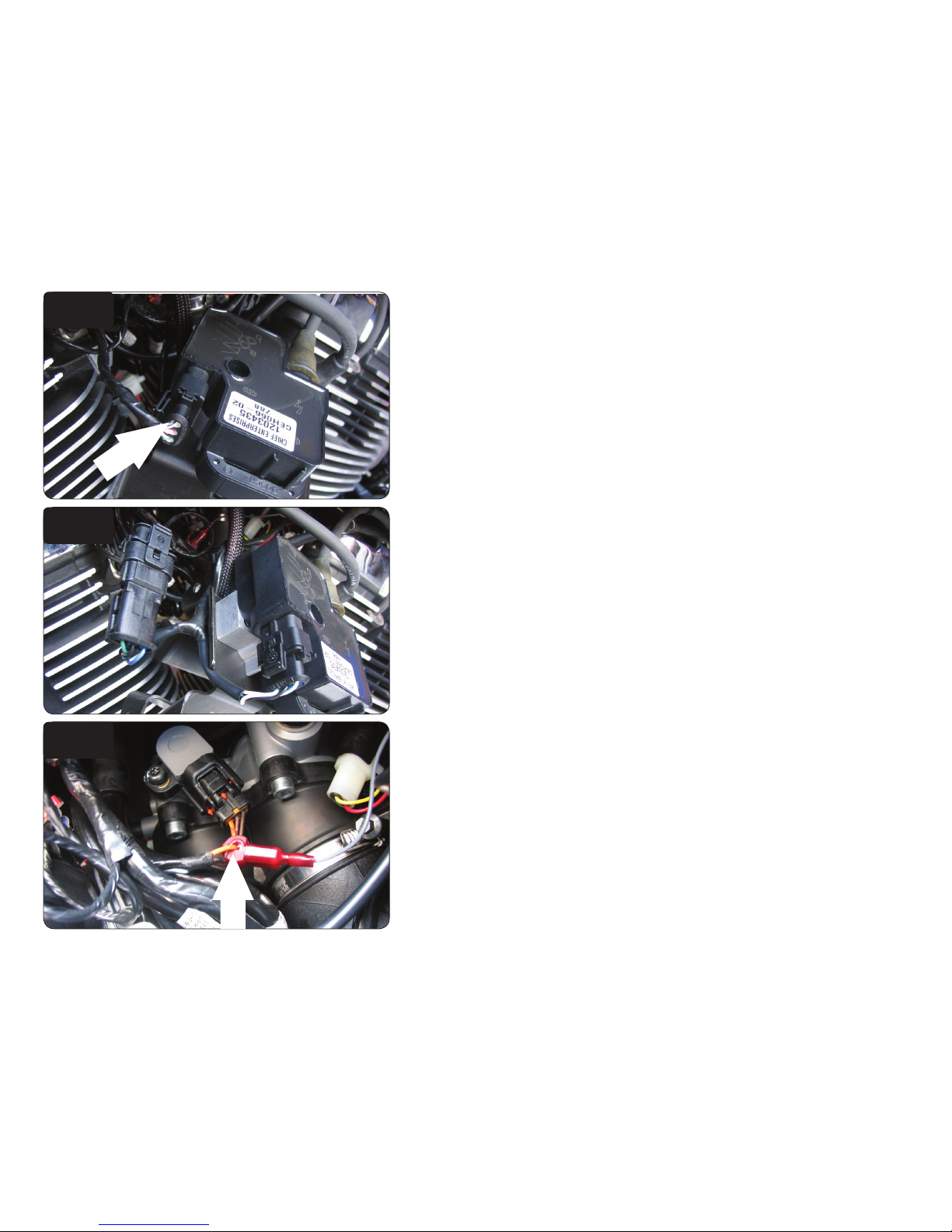

11 Plug the PCV wiring harness in-line of the stock wiring harness and Ignition
coil (Fig. H).
FIG.H
12 Locate the Throttle Position Sensor wiring harness on the left hand side of the
throttle bodies.
This is located behind the Ignition coil.
13 Crimp the supplied wire tap to the ORANGE wire. Plug the GREY wire from
the PCV to the wire tap (Fig. J)
It is recommended to use dielectric grease on these connections.
14 Reinstall the Ignition coil bracket.
FIG.J
Wire tap
10 Unplug the stock wiring harness from the Ignition coil (Fig. G).
FIG.G
Unplug
19-006www.powercommander.com 2009 Victory Vision models PCV - 6

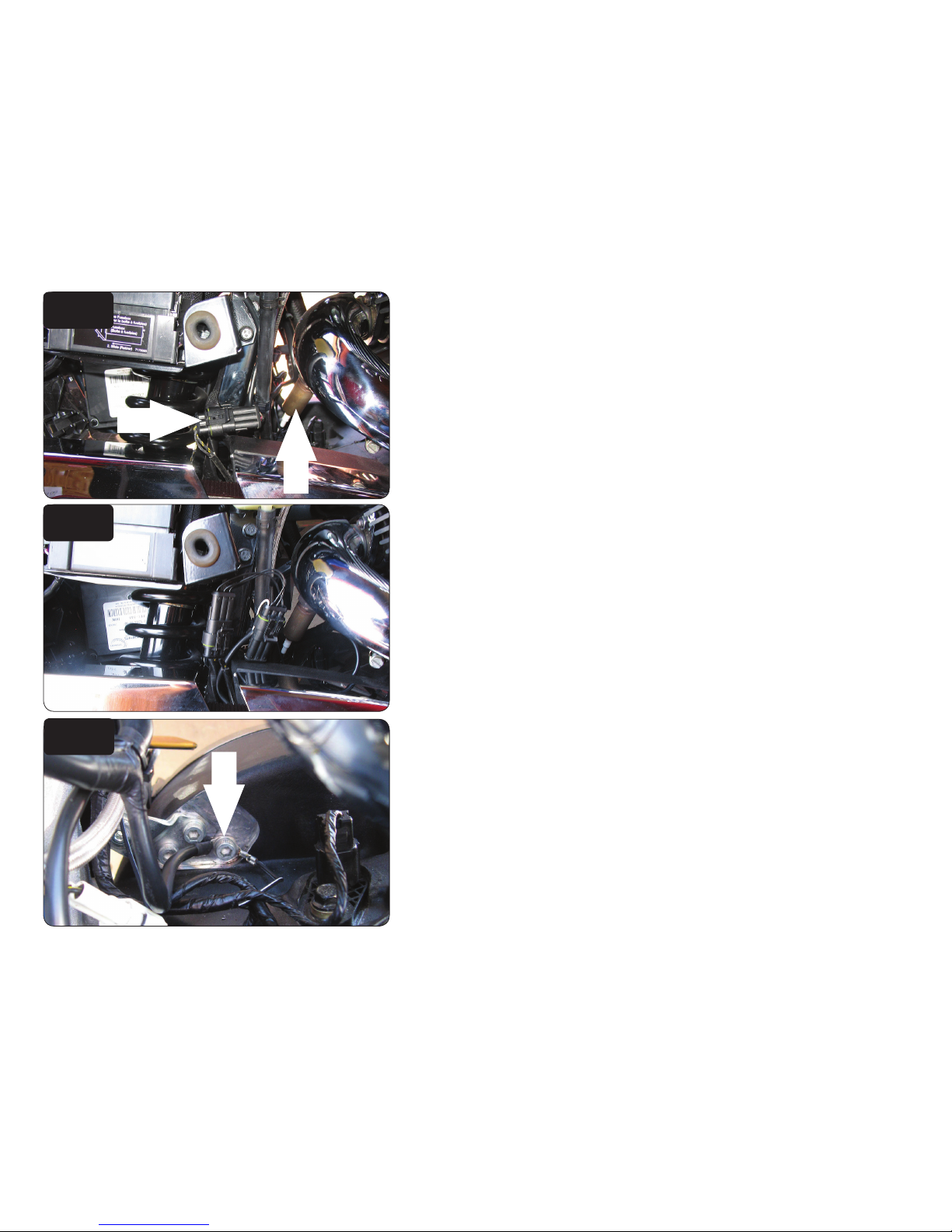

17 Plug the PCV harness in-line of the stock wiring harness and crank pickup coil
connector (Fig. L).
18 Attach the ground wire from the PCV to the stock ground location which is on
the inside of the left engine case (Fig. M).
This is near the rear exhaust and speed sensor
19 Locate the front and rear O2 sensors. The rear O2 sensor can be seen in
Figure K. Unplug both sensors from the stock wiring harness. The sensors
will no longer be connected to anything when using the PCV. They can be
removed from the exhaust is desired.
20 Reinstall the sidecovers and the seat.
FIG.L
PCV ground
FIG.M
15 Locate the crank pickup coil connector on the right hand side of the bike near
the rear shock (Fig. K).
This is a BLACK 3 pin connector
16 Unplug this connector.
FIG.K
Unplug
O2 sensor
