Dyna-Glo DGU732BDE Manuel utilisateur
1
Vertical Electric
Digital Smoker
MODEL #DGU732BDE / DGU732BDE-D
Français p. 26
Español p. 52
ATTACH YOUR RECEIPT HERE
Serial Number ________________________________ Purchase Date _________________________________
70-10-559 Rev. 12/7/16
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST,
UL 1026 - sixth edition, 2012
Electric Household
Cooking and Food
Serving Appliances
CSA C22.2 No. 64-10
(reafrmed 2014)
Household Cooking and
Liquid-Heating Appliances
FOR OUTDOOR
USE ONLY
Use only with Class A GFI
(Ground Fault Interrupter)
2
STOP!
DYNA-GLO®VERTICAL GAS SMOKER
DYNA-GLO® VERTICAL ELECTRIC DIGITAL SMOKER
3
TABLE OF CONTENTS
Safety Information ...........................................................................................................................3
Package Contents ...........................................................................................................................8
Hardware Contents .........................................................................................................................9
Preparation Before Assembly ..........................................................................................................9
Assembly Instructions ..................................................................................................................10
Operating Instructions ...................................................................................................................13
Tips On Smoking ...........................................................................................................................19
Care and Maintenance ..................................................................................................................21
Troubleshooting ...........................................................................................................................22
Replacement Parts List ................................................................................................................24
Warranty ......................................................................................................................................25
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, call our customer service department at
1-877-447-4768, 8:30 a.m.- 4:30 p.m. CST, Monday - Friday.
SAFETY INFORMATION
CAUTION
• When using electrical appliances, basic precautions should always be followed to
reduce the risk of re, electrical shock, and injury to persons.
DANGER
• Failure to follow these instructions could result in re or burn hazard which could
cause property damage, personal injury or death.
Assembler/Installer: This instruction manual contains important information necessary for the
proper assembly and safe use of this appliance. Read and follow all warnings and instructions
before assembling and using this appliance. Leave these instructions with the consumer.
Consumer/User: Follow all warnings and instructions when using this appliance.
SAVE THESE INSTRUCTIONS
4
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS, PRIOR TO USING THIS SMOKER
• DO NOT use this product for anything other than its intended purpose. It is NOT intended for
commercial use. It is NOT intended to be installed or used in or on a recreational vehicle and/or boat.
• DO NOT operate this smoker with a damaged cord or plug or after the smoker malfunctions, has
been dropped, or is damaged in any manner.
• DO NOT use smoker within 10 feet (3m) of a swimming pool, puddle, pond or other body of water.
• Keep smoker and electric controller dry and out of rain at all times.
• A minimum clearance of 36 in. (92 cm) to combustible material is required on the front, sides and
back. It is very important to always maintain
proper clearances to combustibles.
• When using avoring wood, add a sufcient
amount at the start of the cooking process, in
order to avoid re-adding wood during the cooking
process. Adding wood while operating may
splash hot water and cause serious injury.
• Check the water level at least every 2 hours. A
sizzling sound may indicate a low water level.
Follow instructions in this manual for adding
water while operating (see Page 17).
• DO NOT use the appliance during an
electrical storm.
• Connect to properly grounded outlets only.
• Use only with a Class A GFI (Ground Fault Interrupter) protected circuit.
• Arrange the power cord away from trafc areas to ensure that it is not tripped over.
• To disconnect the smoker, turn the smoker off by pressing and holding the Power button ( ) ,
and remove the plug from the outlet.
• DO NOT obstruct the ow of ventilated air for the appliance.
• DO NOT use metal foil on the cooking grates. Doing so may result in damage to the smoker.
• DO NOT use this appliance as a heater.
• DO NOT use charcoal with this appliance. This appliance is not designed for use with charcoal
and a re will result if charcoal is used during operation. The re will create an unsafe condition
and damage the smoker.
• Use caution when opening the door of the smoker while in operation. Keep hands, face and body
safe from hot steam or are-ups. DO NOT inhale smoke.
• If you must dispose of ashes in less time than it takes for the ashes to completely cool down, then
remove the ashes from the appliance using insulated oven mitts or gloves and completely soak the
ashes with water before disposing of them in a noncombustible container.
• DO NOT wear loose clothing while operating the smoker. Tie back long hair while operating the smoker.
• ALWAYS wear shoes that fully cover your feet while operating the smoker.
SAFETY INFORMATION
36 in.
36 in.
92 cm 92 cm
5
• DO NOT touch hot surfaces. Use handles or knobs.
• To protect against electrical shock do not immerse cord, plugs, or thermostat control assembly in
water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking
off parts.
•DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions or
has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may
cause injuries.
•DO NOT use indoors.
• DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance rst, then plug cord into the wall outlet. To disconnect, turn any
control to “OFF”, then remove plug from wall outlet.
• DO NOT use appliance for other than intended use.
• Use extreme caution when removing trays or disposing of hot grease.
•DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts,
creating a risk of electric shock.
• Fuel, such as charcoal briquettes, is not to be used with appliance.
• Use only on properly grounded outlet.
• Be sure that handles are assembled and fastened properly. See instructions regarding handles on
Page 10-11.
• SAVE THESE INSTRUCTIONS.
SAFETY INFORMATION
WARNING
• DO NOT use 16 or 18 gauge extension cords. Damage to household wiring and/or
re could result.
THE USE OF AN EXTENSION CORD IS NOT RECOMMENDED.
READ ALL INSTRUCTIONS PRIOR TO USING AN EXTENSION CORD WITH THIS SMOKER
• Use only OUTDOOR type with 3 prong grounding plug, rated for 15 amperes or more, approved by
UL, marked with a W-A and a tag stating “Suitable for Use with Outdoor Appliance”.
• Use the shortest length extension cord required. Do not connect 2 or more extension cords
together.
• Do not let cord hang over edge of table top or other items where it can be pulled by children or
tripped over.
6
SAFETY INFORMATION
Ground Fault Interrupter
• Since 1971. the National Electric Code (NEC) has required Ground Fault Interrupter
devices on all outdoor circuits.
• If your residence was built before 1971, check with a qualied electrician to determine if
a Ground Fault Interrupter protector exists.
• Do not use this appliance if the circuit does not have Class A GFI protection.
• Do not plug this appliance into an indoor circuit.
GENERAL SAFETY
READ ALL INSTRUCTIONS PRIOR TO USING THIS SMOKER
• This appliance is for outdoor use only in well-ventilated areas. DO NOT operate it under a roof, in a
building, garage or any other enclosed area, or under overhead construction.
• Before each use, check that no dead leaves or debris are under the appliance.
• Keep a re extinguisher near this product at all times.
• Always unplug the smoker when not in use.
• Allow the smoker and its components to cool completely before conducting any routine cleaning
or maintenance.
• DO NOT use water or other liquid spray to clean the smoker without rst unplugging the unit.
• Allow the smoker to cool to 115°F (45°C) before moving or storing. Use caution when lifting and
moving the appliance to avoid back strain or back injury.
• DO NOT move the appliance while it is in use.
• When not in use, the smoker should be kept out of the elements or protected with a cover. Allow
the smoker to completely cool before placing the cover. Store this appliance in a dry, protected
location when possible.
• Use of accessory attachments not recommended by the appliance manufacturer may lead to injury
or property damage.
7
SAFETY INFORMATION
WARNING
To avoid serious injury:
• While cooking, the smoker must be on a level, stable, noncombustible surface in an area
clear of combustible material, including long or dry grass.
• The use of alcohol, prescription or nonprescription drugs may impair the user’s ability to
properly assemble and safely operate this appliance.
• DO NOT move the appliance while it is in use.
• DO NOT store and use this appliance near gasoline or other combustible liquids or where
other combustible vapors may be present.
• The smoker should only be used in well-ventilated areas.
• DO NOT use this appliance as a heater.
• DO NOT leave the appliance unattended while in use. Keep children and pets away from
the appliance at all times.
• This appliance will be hot during and after use. Use insulated oven mitts or gloves for
protection from hot surfaces or splatter from cooking liquids.
WARNING
CALIFORNIA PROPOSITION 65
1. Combustible by-products produced when using this product contains chemicals
known to the state of California to cause cancer, birth defects, or other
reproductive harm.
2. This product contains chemicals, including lead and lead compounds, known to
the state of California to cause cancer, birth defects or other reproductive harm.
Wash your hands after handling this product.
DANGER
In case of re, unplug smoker from outlet and allow re to burn out. Do not use
water to put out a re in this or another electrical appliance.
To avoid electrical shock, disconnect electric cord before cleaning smoker. Never
immerse electric controller or heating element in any liquid.
To avoid the possibility of burns, make sure the smoker is completely cooled before
removing and/or cleaning electric controller and heating element.
DO NOT use steel wool or wire brushes to clean the inside of the appliance. Pieces
can break off and touch electrical parts creating a risk of electric shock.
8
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Smoker cabinet assembly 1
B Rear handle 1
C Door assembly 1
D Door handle 1
E Wood chip access
door handle 1
F Cooking grates 4
G Water bowl 1
H Wood chip box 1
I Wood chip box support 1
J Grease tray 1
A
A
C
E
B
D
H
G
J
I
F
9
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product. Please read and understand this entire manual before at-
tempting to assemble, operate or install the product. If you have any questions regarding the
product, call our customer service department at 1-877-447-4768, 8:30 a.m.- 4:30 p.m. CST,
Monday - Friday.
Estimated Assembly Time: 15 minutes
Tools Required for Assembly (not included): Phillips Screwdriver
PREPARATION BEFORE ASSEMBLY

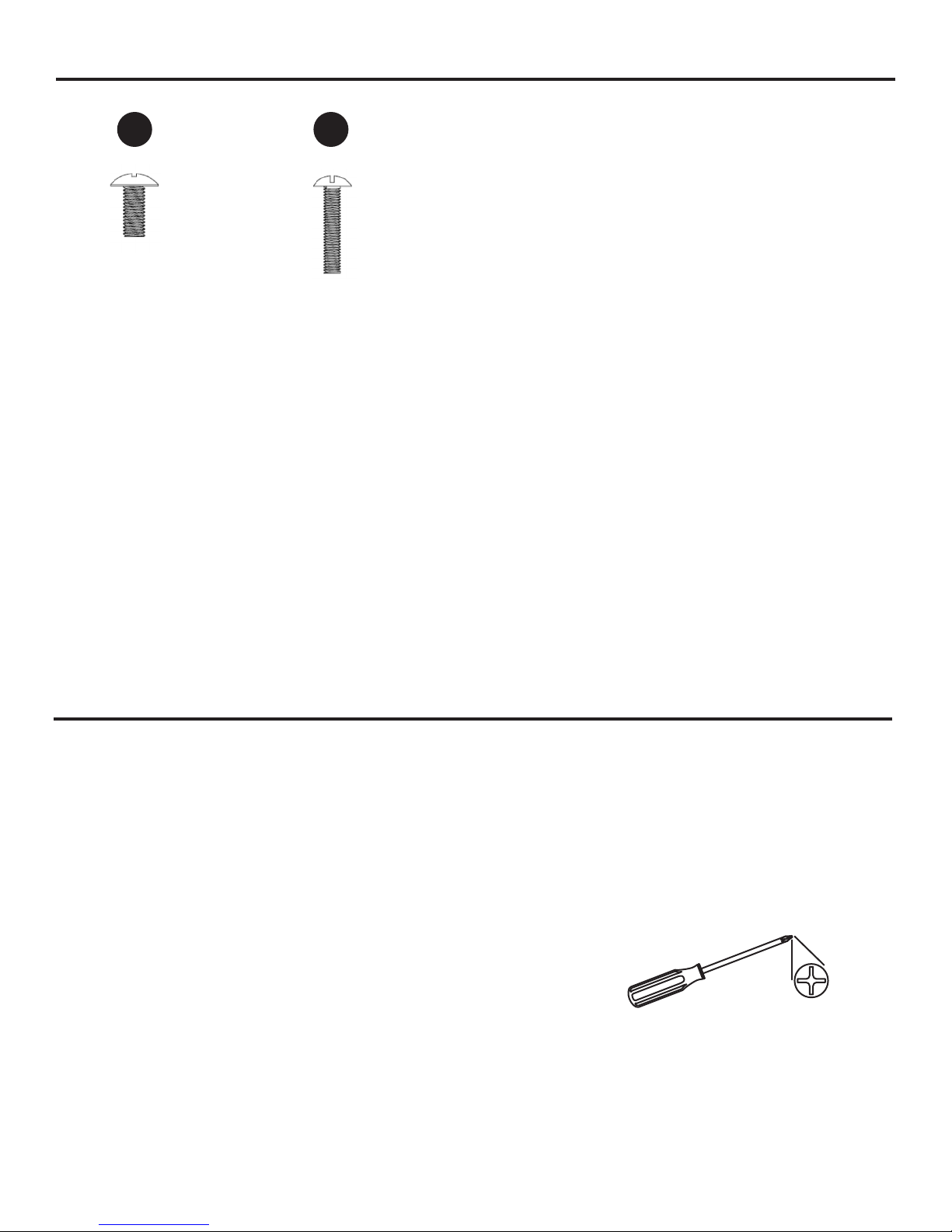

HARDWARE CONTENTS (PRE-ASSEMBLED)
AA BB
M5 x 12 mm
Screw
Qty. 3
1 M5 x 12 mm
screw (AA) is pre-
assembled in the
wood chip access
door handle (E).
2 M5 x 12 mm
screws (AA) are
pre-assembled in
the smoker cabinet
assembly (A).
M4 x 35 mm
Screw
Qty. 4
4 M4 x 35 mm
screws (BB) are
pre-assembled in
the door handle
(D).
10
ASSEMBLY INSTRUCTIONS
1. Remove the 4 pre-assembled M4 x 35 mm screws
(BB) from the door handle (D) and attach the
door handle (D) to the door assembly (C) as
shown. Tighten the screws.
2. Remove 1 pre-assembled M5 x 12 mm screw (AA)
from the wood chip access door handle (E).
Insert the screw into the smoker cabinet assembly
(A) and into the thread holes in the wood chip
access door handle (E). Tighten the screw.
1
D
2
E
AA
C
A
Hardware Used
AA M5 x 12 mm
Screw x 1
Hardware Used
BB M4 x 35 mm
Screw x 4
BB
Autres manuels pour DGU732BDE
1
Ce manuel convient aux modèles suivants
3
Table des matières
Langues :
Autres manuels Dyna-Glo Fumeur
Dyna-Glo
Dyna-Glo DGU732BDE Manuel utilisateur
Dyna-Glo
Dyna-Glo DGW1235BDP-D-1 Manuel utilisateur
Dyna-Glo
Dyna-Glo DGO1176BDC-D Manuel utilisateur
Dyna-Glo
Dyna-Glo DGU951SDE-D Manuel utilisateur
Dyna-Glo
Dyna-Glo DGU505BAE Manuel utilisateur
Dyna-Glo
Dyna-Glo DGX780BDC-D-1 Manuel utilisateur
Dyna-Glo
Dyna-Glo DGSS1382VCS-D Manuel utilisateur
Dyna-Glo
Dyna-Glo DGO1890BDC-D-1 Manuel utilisateur
Dyna-Glo
Dyna-Glo DGU732SDE-D Manuel utilisateur
Dyna-Glo
Dyna-Glo DGO1176BDC-D-1 Manuel utilisateur
Dyna-Glo
Dyna-Glo DGO1890BDC-D Manuel utilisateur
Dyna-Glo
Dyna-Glo DGU951SSE Manuel utilisateur
Dyna-Glo
Dyna-Glo DGU951SSE Manuel utilisateur
Dyna-Glo
Dyna-Glo DGO1176BDC-D Manuel utilisateur
Dyna-Glo
Dyna-Glo DGX780BDC-D Manuel utilisateur
Dyna-Glo
Dyna-Glo DGX376VCS Manuel utilisateur
Dyna-Glo
Dyna-Glo DGSS1382VCS Manuel utilisateur
Dyna-Glo
Dyna-Glo DGVS390BC Manuel utilisateur
Dyna-Glo
Dyna-Glo DG951ELA-D Manuel utilisateur
Dyna-Glo
Dyna-Glo Signature Series Manuel utilisateur
Manuels Fumeur populaires d'autres marques
Smoke hollow
Smoke hollow 30166E Manuel utilisateur
oklahoma joes
oklahoma joes 15202037 Manuel utilisateur
Trail Embers
Trail Embers SMK7030AS Manuel utilisateur
Masterbuilt
Masterbuilt 20100814 Manuel de l'opérateur
Klarstein
Klarstein 10031325 Manuel utilisateur
Kingsford
Kingsford SC2315801-KF Manuel utilisateur
Smokey Bandit
Smokey Bandit Lumberjack Manuel utilisateur
Masterbuilt
Masterbuilt 20072612 Mode d’emploi
Char-Broil
Char-Broil 12701705 Manuel utilisateur
Rosle
Rosle Silence Manuel utilisateur
Masterbuilt
Masterbuilt 20070910 DIGITAL SMOKEHOUSE Mode d’emploi
Royal Catering
Royal Catering RCRO-1300 Manuel utilisateur
