Dyna-Glo KFA50H Manuel

CONSUMER : Retain this manual for future reference.

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 877-447-4768 8:30 a.m. - 4:30 pm CST, Monday - Friday.

or email us at [email protected]

INDOOR/OUTDOOR PRODUCTS

KEROSENE PORTABLE

FORCED AIR HEATERS

“USER’S MANUAL AND

OPERATING INSTRUCTIONS”

Before the first use of this heater, please read this USER’S MANUAL very

carefully. This USER’S MANUAL has been designed to instruct you as to

the proper manner in which to assemble, maintain, store, and most

importantly, how to operate the heater in a safe and efficient manner.

Please keep this manual for future reference.

COMPLIES WITH UL733 AND

ANSI A10.10-1998

CAN/CSA/B140.0-03 AND CSA

B140.8-1967

MODEL : KFA50H, KFA75H, KFA125H, KFA210H

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

DANGER: IMPROPER USE OF THIS HEATER CAN RESULT IN SERIOUS INJURY OR DEATH

FROM BURNS, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR CARBON

MONOXIDE POISONING.

WARNINGS:

1. RISK OF INDOOR AIR POLLUTION!

Use this heater only in well ventilated areas. Provide at least a three-square foot (2,800 sq. cm.)

opening of fresh outside air for each 100,000 BTU/hr. of heater rating.

 People with breathing problems should consult a physician before using the heater.

 Carbon monoxide poisoning: Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness

and/or nausea. If you have these signs, the heater may not be working properly.

Get fresh air at once! Have the heater serviced. Some people are more affected by carbon monoxide than others.

These include pregnant women, persons with heart or lung disease or anemia, those under the influence of alcohol, or

those at high altitudes.

 Never use this heater in living or sleeping areas.

2. RISK OF BURNS/FIRE/EXPLOSION!

NEVER use any fuel other than 1-K kerosene, #1 disel/fuel oil in this heater.

NEVER use fuel such as gasoline, benzene, paint thinners or other oil compounds in this heater.

(RISK OF FIRE OR EXPLOSION)

NEVER use this heater where flammable vapors may be present.

NEVER refill the heaters fuel tank while heater is operating or is still hot.

Minimum Clearances: Outlet: 8 feet (250cm) / Sides, top and rear: 4 feet (125cm)

NEVER block air inlet (rear) or air outlet (front) of heater.

NEVER use duct work in front or behind of heater.

NEVER move, handle, service a hot, operating or plugged in heater.

NEVER transport heater with fuel in it’s tank.

 When used with an optional thermostat or if equipped with a thermostat heater may start at any time.

ALWAYS locate heater on a stable and level surface.

ALWAYS keep children and animals away from heater.

 Bulk fuel storage should be a minimum of 25 ft. from heaters, torches, portable generators or other sources of ignition.

All fuel storage should be in accordance with federal, state or local authorities having jurisdiction.

3. RISK OF ELECTRIC SHOCK!

 Use only the electrical power (voltage and frequency) specified on the model plate of the heater.

 Use only a three-prong, grounded outlet and extension cord.

ALWAYS install the heater so that it is not directly exposed to water spray, rain, dripping water or wind.

ALWAYS unplug the heater when not in use.

PROPOSITION 65 WARNING: Fuels used in gas, wood-burning or oil fired appliances, and the

products of combustion of such fuels, contain chemicals known to the State of California to cause cancer,

birth defects and other reproductive harm.

MASSACHUSETTS RESIDENTS: Massachusetts state law prohibits the use of this heater in any

building which is used in whole or in part for human habitation. Use of this heating device in

Massachusetts requires local fire dept. permit (M.E.L.C. 148, Section 10A.)

CANADIAN RESIDENTS: Use of this heater shall be in accordance with authorities having

jurisdiction and CSA Standard B139.

NEW YORK CITY RESIDENTS: For use only at construction sites in accordance with applicable NYC

codes

under NYCFD certificate of approval # 5034 and 5037.

CAUTION :Hot while in operation. Do not touch. Keep children,

clothing and combustibles away from heater.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

ITEM

EDIUGYTEFAS-SNOITUACERP

NOITCUDORTNI.1

SERUTAEF.2

YLBMESSADNAGNIKCAPNU.3

)LIOLEUF1.ONROK-1(ENES

OREK.4

NGISEDRETAEHFOWEIVREVO.5

RETAEHRUOYGNILEUF.6

NOITAREPO.7

RETAEHRUOYFOEGAROTSMRETGNOL.8

NANETNIAM.9

ESUFGNICALPER.01

EDIUGGNITOOHSELBUORT.11

MARGAIDGNIRIW.21

SNOITACIFICEPS.31

GNIWARDSTRA

PDEDOLPXE.41

TSILSTRAP.51

1. INTRODUCTION

Please read this USER’S MANUAL carefully. It will show you how to assemble, maintain, and operate the

heater safely and efficiently to obtain full benefits from its many built-in features.

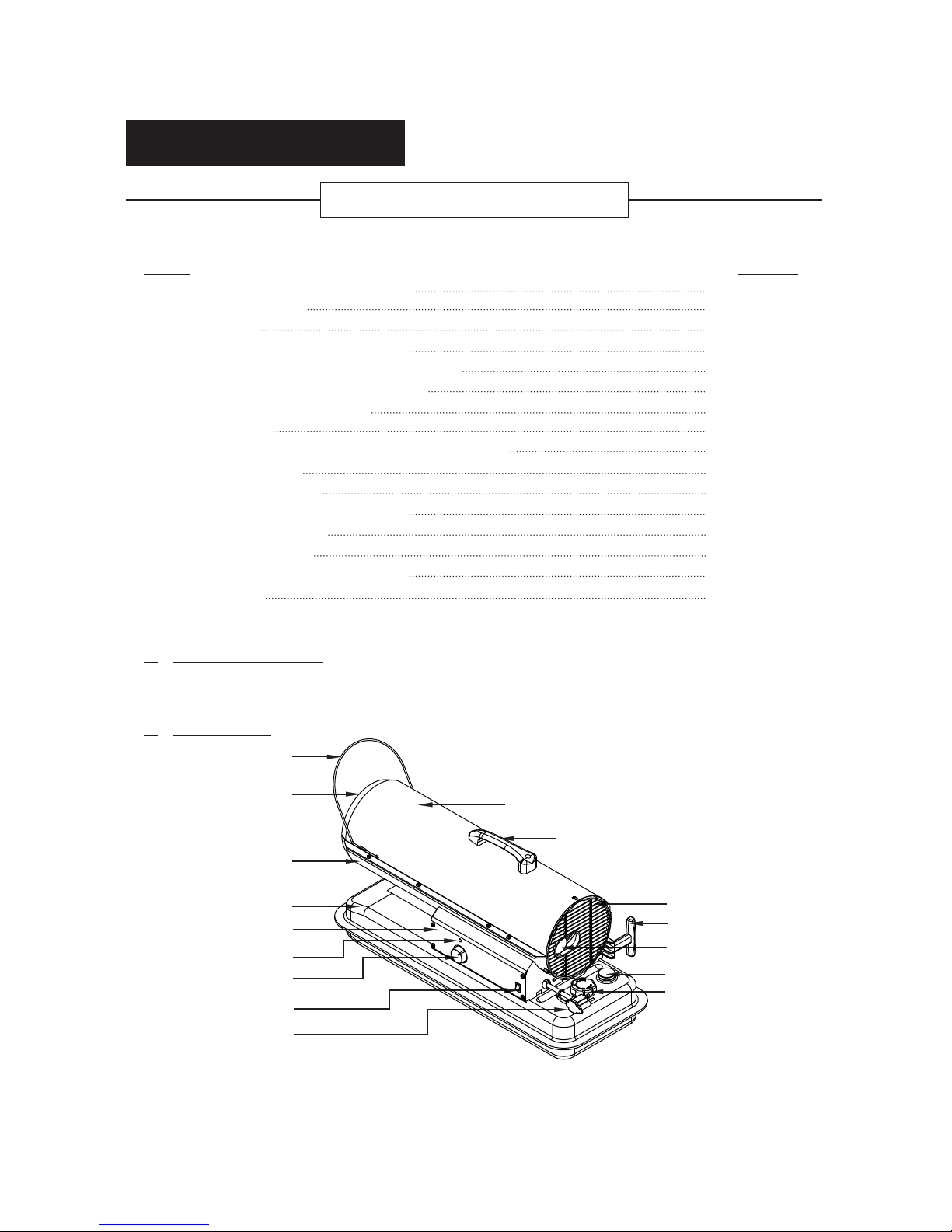

2. FEATURES

CONTENTS OF USER’S MANUAL

Figure 1. KFA50H / KFA75H MODELS

Fan Guard

Cord Wrap(75H Model Only)

(75H Model Only)

Pressure Gauge

Fuel Gauge

Fuel Cap

Front Guard

Hot Air Outlet

Lower Shell

Fuel Tank

Side Cover

Lamp

Thermostot Knob

(75H Model Only)

LED Power/Reset Switch

Power Cord

(Piggy Back,75H Model Only)

Upper Shell

Handle

PAGE #

18&21

19,20&22,23

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Figure 2. KFA125H MODEL

Figure 3. KFA210H MODEL

10” Flat Free Wheel

Electric Outlet

Front Handle

Upper Shell Rear Handle

Cord Wrap

Pressure Gauge

Fan Guard

Fuel Drain Bolt

Power Cord

(Piggy Back)

BTU Control Switch

Louver

Hot Air Outlet

Shell Lower

Fuel Gauge

Fuel Cap

Side Cover

Lamp

Thermostat Knob

Room Temp. Display

LED Power/Reset Switch

Power Cord

(Piggy Back)

Rear Handle

Cord Wrap

Pressure Gauge

Fan Guard

Fuel Drain Bolt

Front Handle

Upper Shell

Hot Air Outlet

Shell Lower

Fuel Gauge

Fuel Cap

Side Cover

Lamp

Thermostat Knob

Room Temp. Display

LED Power/Reset Switch

10” Flat Free Wheel

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Figure 5. KFA125H/KFA210H MODELS

Handle Cord Wraps

(KFA75H Model Only) Hardware Kit

HW-KFA1001

3. UNPACKING AND ASSEMBLY

1. REMOVE THE HEATER AND ALL PACKING MATERIALS FROM THE BOX. (Fig. 4 and 5)

NOTE : Save the shipping carton and packing materials for future storage.

Figure 4. KFA50H / KFA75H MODELS

Wheel Support Fram

Threaded Axle

Rear Handle

Handle

Cord Wrap

eNo

No Yes Yes

Wheel No No Yes Yes

No Yes Yes

Yes Yes Yes

Front Handle No No Yes

Yes

Hardware kit : HW-KFA1001 Yes No No

Yes No No

Hardware kit : HW-KFA1016 No No Yes Yes

Front Handle

Wheel Support Frame

Rear Handle

Louver

Threaded Axle

Wheels

(10” Flat Free) Cord Wraps

Screws Flange Screws

Nuts Cap Nuts S Cap Nuts LBushings

Hardware Kit : HW-KFA1016

(KFA210H Model Only)

KFA50H KFA75H KFA125H KFA210H

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

2. ASSEMBLY

For KFA50H/75H Models only

Tools Required





1) 





2) Ae lesne er  o

les on endle n Fe 6



4) 





KFA75H Model only)



For KFA125H/210H Models only

Tools Required













3) 

4) 















2) 





Figure 6. Assembling Handle & Cord Wrap

Handle Screw Frong Guard

Slit Hole

Cord Wrap

Screw

Side Cover

Suppotor

Wedged Portion

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

4. KEROSENE (1-K)

For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used. 1-K kerosene has

been refined to virtually eliminate contaminants, such as sulpher. Which can cause a rotten egg odor during

the operation of the heater. However, #1 diesel/fuel oil may also be used if 1-K kerosene is not available.

Be advised that these fuels do not burn as clean as 1-K kerosene, and care should be taken to provide more

fresh air ventilation to accomodate any added contaminants that may be added to the heated space.

KEROSENE SHOULD ONLY BE STORED IN A BLUE CONTAINER THAT IS CLEARLY

MARKED “KEROSENE”. NEVER STORE KEROSENE IN A RED CONTAINER.

Red containers are associated with gasoline.

NEVER store kerosene in the living space. Kerosene should be stored in a well ventilated place outside the

living area.

NEVER use any fuel other than 1-K kerosene (#1 diesel and #1 oil are acceptable substitutes)

NEVER use fuel such as gasoline, benzene, alcohol, white gas, camp stove fuel, paint thinners, or other oil

compounds in this heater. These are volatile fuels that can cause an explosion or uncontrolled flames.

NEVER store kerosene in direct sunlight or near a source of heat.

NEVER use kerosene that has been stored from one season to the next. Kerosene deteriorates over time.

“OLD KEROSENE” WILL NOT BURN PROPERLY IN THIS HEATER.

Figure 7. Assembling Handle, Wheel and Cord wrap, Louver

CAUTION : DO NOT OPERATE heater without support frame assembled to tank.

NOTE : Heater should be inspected before each use, and at least annually by a qualitied service person.

Hot Air Outlet

Fuel Tank Flange

Nut

Wheel Support Frame

Wheel

Cap Nut L

Louver

Front Handle

Screw

Cap Nut S

Rear Handle

Cord Wrap

Flange Screw

Threaded Axle

Wheel Bushing

Air Inlet

5. OVERVIEW OF HEATERS DESIGN

Fuel System : This heater is equipped with an electric

air pump that forces air through the air

line connected to the fuel intake and then

through a nozzle in the burner head.

When the air passes in front of the fuel

intake it causes fuel to rise from the tank

and into the burner nozzle. This fuel and

air mixture is then sprayed into the

combustion chamber in a fine mist.

“Sure Fire Ignition” : The electronic ignitor sends voltage to a specially designed spark plug.

The spark plug ignites the fuel and air mixture described above.

The Air System : The heavy duty motor turns a fan that forces air into and around the combustion chamber.

Here the air is heated and then forced out the front of the heater.

The Safety System :

A. Temperature Limit Control : This heater is equipped with a Temperature Limit Control designed to turn

off the heater should the internal temperature rise to an unsafe level. If this

device activates and turns your heater off it may require service.

Once the temperature falls below the reset temperature you will be able to start your heater.

B. Electrical System Protection : This heaters electrical system is protected by a fuse mounted to the PCB

assembly that protects it and other electrical components from damage.

If your heater fails to operate check this fuse first and replace as needed.

C. Flame-Out Sensor : Utilizes a photocell to monitor the flame in burn chamber during normal operation.

It will cause the heater to shut-off should the burner flame extinguish.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Internal Shut-Off Temp. Reset Temperature

MODELS Plus/Minus 10 Degrees Plus/Minus 10 Degrees

KFA50H/75H

C 

KFA125H

C 

KFA210H

C 

FUSE TYPE: All Models 

6. FUELING YOUR HEATER

NEVER FILL THE HEATER FUEL TANK IN THE LIVING SPACE : FILL THE TANK OUTDOORS.

DO NOT OVERFILL YOUR HEATER AND BE SURE HEATER IS LEVELED.

IMPORTANT NOTICE REGARDING FIRST IGNITION OF HEATER :

The first time you light the heater, it should be done outdoors. This allows the oils, etc. used in

manufacturing the heater to burn off outside.

WARNING!! : NEVER REFILL HEATER FUEL TANK WHEN HEATER IS OPERATING OR STILL HOT.

7. OPERATION

A.) VENTILATION

RISK OF INDOOR AIR POLLUTION/USE HEATER ONLY IN WELL VENTILATED AREAS.

Provide a fresh air opening of at least three square feet (2,800 sq. cm) for each 100,000 BTU/Hr.

rating. Provide extra fresh air if more heaters are being used.

Example : A KFA210H heater requires one of the following:







B.) OPERATION

TO START HEATER

1. Fill fuel tank with kerosene or No. 1 fuel oil.

2. Attach fuel cap.

 grounded extension cord. Extension cord must be at

least six feet long. Extension Cord Wire Size Requirements





 Turn “THERMOSTAT CONTROL Knob” to

(KFA

Push “BTU control Switch” to desired level “High or LOW” (KFA210H Model only, See Figure 8).

 lndicator Lamp will light and heater will start.

If heater does not start, the thermostat setting may be too low, turn “thermostat Control Knob” to

higher position to start heater. If heater still does not start, turn power switch to “OFF” and then to

“ON” position. If heater still does not start, s

NEVER LEAVE THE HEATER

UNA

Figure 8. Controls for All Models

LED Power

Switch

KFA50H/75H Models KFA125H/210H Models

Room Temp. Display

LED Power

Switch

Thermostat

Control Knob

(75H Model Only)

Thermostat

Control Knob

Lamp Lamp

BTU Control Switch BTU Control Switch

Fan Guard

Push to “HIGH”

Push to “LOW”

NOTE : Room Temperature display explanations are as follows: (KFA125H/210H Models only)



number shown on the display is the current

room temperature.

"

#$%'*+;+<<=%*>?"@J%=%*>+

+<=%*++J

NOTICE : The major electrical components of this heater are protected by a safety fuse mounted to the PCB board.

If your heater fails to start, check this fuse first and replace as necessary. You should also check your

power source to insure that proper voltage and frequency are being supplied to the heater.

TO STOP HEATER

1. Turn switch to “OFF” and unplug power cord.

TO RESTART HEATER

1.Wait 10 seconds after stopping heater.

2. Repeat steps under to start heater.

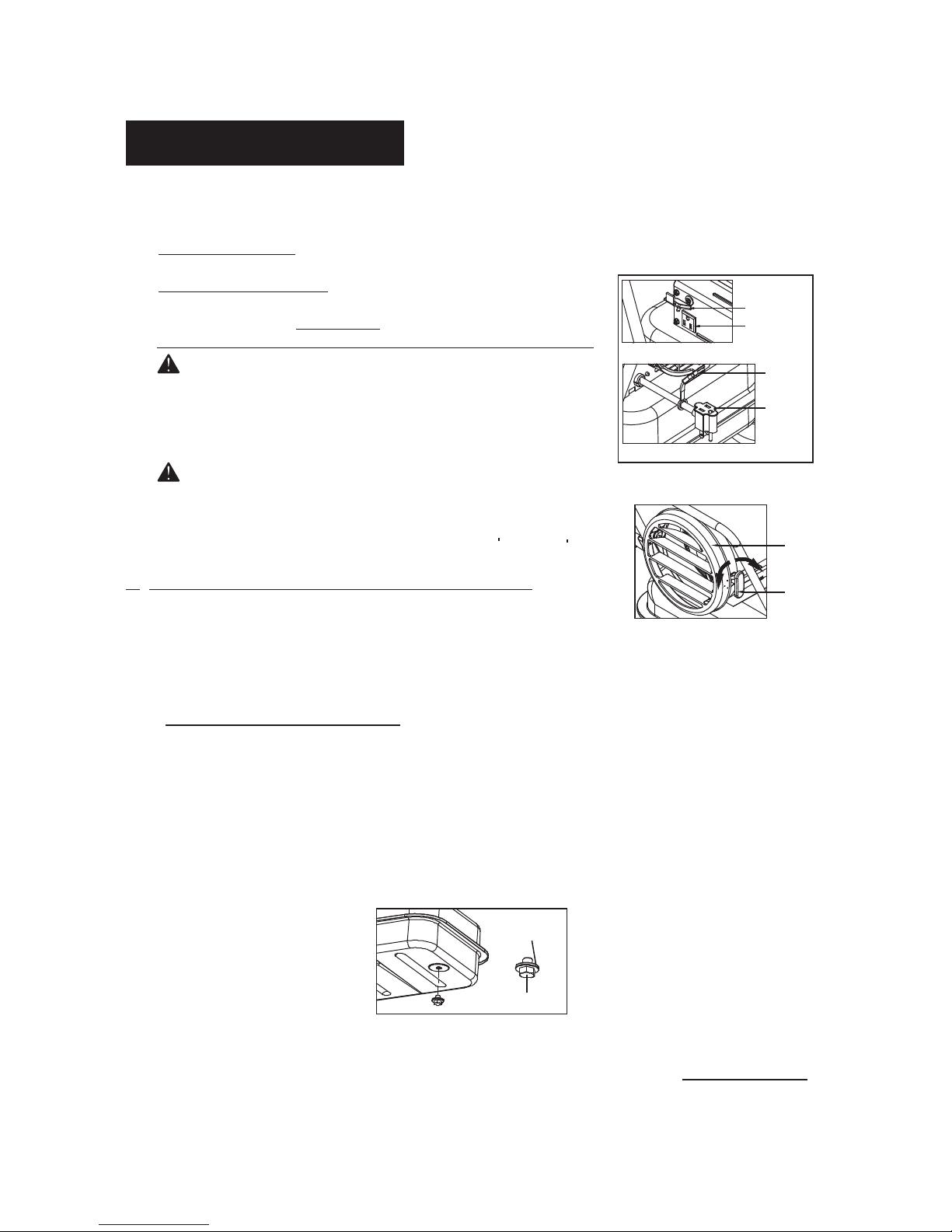

EXTRA ELECTRIC OUTLET & PIGGYBACK POWER CORD

WARNING : SHOCK HAZARD!

LOUVER(KFA210H Model Only)

CAUTION : RISK OF BURN

Louver is Extremely Hot in operation and after shut-off.

Never touch or control angle while operating or still Hot.

-Louver’s angle can be controlled by turning handle in direction

of arrow as shown in Figure 10. (Control range : Up 28 /Down 20 )

8. LONG TERM STORAGE OF YOUR HEATER

FUEL TANK DRAIN

1. Drain fuel tank through fuel cap opening.

(For KFA50H/75H Models Only)

2. Remove fuel drain bolt from rear bottom side of fuel tank using 3/4” socket or adjustable wrench and drain.

(For KFA125H/210H Models Only. See Figure 11)

3. Using a small amount of kerosene, swirl and rinse the inside of the tank.

NEVER mix water with the kerosene as it will cause rust inside the tank.

Pour the kerosene out making sure that you remove it all.

IMPORTANT : Do not store kerosene over summer months for use during next heating season.

Using old fuel could damage heater.

4. Reinstall fuel cap. Properly dispose of old and dirty fuel. (For KFA50H/75H Models Only)

6. Store heater in dry well ventilated area. Make sure storage place is free of dust and corrosive fumes.

7. Store the heater in the original box with the original packing material and keep the USER’S MANUAL

with the heater.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

 Always cover electric outlet when not in use.

 Don’t plug and use a appliance more than 120V/60Hz 5A

current in this outlet

Cover

Outlet

Cover

Outlet

KFA75H/125H/210H Models Only

Louver

Handle

Figure 9. Electric Outlet

Figure 10. Louver Angle Control

5. Reinstall Fuel Drain Bolt to Fuel tank and tighten firmly using 3/4” socket or adjustable wrench.

(For KFA125H/210H Models Only. See Figure 11)

Figure 11. Drain Bolt

Fuel Drain Bolt

Seal

IMPORTANT : Before reinstalling the fuel drain bolt, make sure the seal is on the bolt. If the seal is

not used the bolt cannot be installed correctly and the fuel tank will leak.

KFA210H Model Only

Autres manuels pour KFA50H

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dyna-Glo Chauffage

Dyna-Glo

Dyna-Glo RMC-KFA70TDGP Manuel utilisateur

Dyna-Glo

Dyna-Glo DELUX KFA50DGDR Manuel utilisateur

Dyna-Glo

Dyna-Glo BF10PTDG/PMDG Manuel utilisateur

Dyna-Glo

Dyna-Glo RMC-55R7 Manuel utilisateur

Dyna-Glo

Dyna-Glo Delux KFA50DGD Manuel

Dyna-Glo

Dyna-Glo RMC- 95C6 Manuel utilisateur

Dyna-Glo

Dyna-Glo RMC-KFA65TDLX, RMC-KFA120TDLX,... Manuel utilisateur

Dyna-Glo

Dyna-Glo RMC-11-C7 Manuel utilisateur

Dyna-Glo

Dyna-Glo Delux RMC-FA300DGD Instructions d'utilisation

Dyna-Glo

Dyna-Glo WORKHORSE Series Manuel

Dyna-Glo

Dyna-Glo BF10DTDG-2 Manuel utilisateur

Dyna-Glo

Dyna-Glo ANSI Z83.7-2000 Manuel utilisateur

Dyna-Glo

Dyna-Glo Delux RMC-FA300DGD Instructions d'utilisation

Dyna-Glo

Dyna-Glo HA1360RH Manuel

Dyna-Glo

Dyna-Glo KFA80C Manuel utilisateur

Dyna-Glo

Dyna-Glo Delux KFA400DGD Manuel

Dyna-Glo

Dyna-Glo RA18LPDG Manuel utilisateur

Dyna-Glo

Dyna-Glo EG4000DG Instructions d'installation et d'utilisation

Dyna-Glo

Dyna-Glo RMC-KFA45T, RMC-KFA65T, RMC-KF Manuel utilisateur

Dyna-Glo

Dyna-Glo EG5000DGC Instructions d'installation et d'utilisation

Dyna-Glo

Dyna-Glo WK95C6C Manuel utilisateur

Dyna-Glo

Dyna-Glo SF70DGD Manuel

Dyna-Glo

Dyna-Glo BF10PTDG-4 Manuel utilisateur

Dyna-Glo

Dyna-Glo PROFESSIONAL OHIR18LV Instructions de montage

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
