Dwyer Instruments VP3 Manuel utilisateur

The Model VP3 Wireless 100 mm Vane Thermo-Anemometer Probe

measures air velocity, air flow, humidity, and temperature with the UHH4

or newer universal handheld device, or your own mobile device. By having

a larger diameter, the rotating vane is able to measure velocities down to

50 fpm or 0.25 m/s. An arrow is molded into the vane housing to depict the

flow direction.

Wireless probes can take measurements up to 50 feet away from the base

unit. A bicolor LED flashes on the handle of the probe to indicate

communication status with the base unit. The battery is rechargeable via

the mini-USB connector on the bottom of the probe.

This device complies with Industry Canada license-exempt RSS

standard(s). Operation is subject to the following two

conditions: (1) This device may not cause harmful interference. and (2) this

device must accept any interference received, including interference that

may cause undesired operation.

Cet appareil est conforme à des règlements d’Industrie Canada exempts de

licence standard RSS (s). Son fonctionnement est soumis aux deux

conditions suivantes: (1) Ce dispositif ne doit pas causer d’interférences

nuisibles, et (2) cet appareil doit accepter toute interférence reçue, y

compris les interférences pouvant entraîner un fonctionnement

indésirable.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numériqué de la classe B est conformé à la norme NMB-003

du Canada.

CHARGING BATTERY

It is required prior to the initial usage to charge the battery for

12 hours.

When the charge of the battery is almost used up, the LED on the handle of

the wireless probe will turn solid red. There is approximately 5 minutes of

battery life left at this point. If the probe is not already paired to the UHH, it

will not pair while in low battery condition.

Step 1: Open the USB cover on the bottom of the probe handle.

Step 2: Plug the mini-USB connector end of the cable into the probe handle.

Step 3: Plug the USB connector end of the cable into the port on the charger or PC.

Step 4: Plug the charger into either an electrical outlet or car charging port (LED on

the charger and the handle should both light up).

Step 5: The LED on the handle will turn off when fully charged.

Step 6: Remove charger from electrical outlet.

Step 7: Remove USB connectors from the handle and the charger.

Step 8: Replace the USB cover on the bottom of the probe handle.

Model VP3 Wireless 100 mm Vane Thermo-Anemometer Probe

SPECIFICATIONS

Service: Clean air.

Temperature Limits: Process: -4 to 140°F (-20 to 60°C); Ambient: 5 to 125°F (-15 to

51°C).

Range: Air velocity: 50 to 5000 fpm (0.25 to 25 m/s); Temperature: -22 to 140°F

(-30 to 60°C); Relative humidity: 0 to 100% RH; Air volume: 999,999 in selected

units.

Accuracy: Air velocity: 0.25 to 10 m/s: ±1.5% of reading ±20 fpm (±0.1 m/s); 10 to 20

m/s: 1.5% of reading ±40 fpm (±0.2 m/s); 20 to 25 m/s: ±1.5% of reading ±60 fpm (±0.3

m/s); Temperature: ±0.54°F @ 77°F (±0.3°C @ 25°C); Relative humidity: ±2% @ 77°F

(25°C) (10 to 90% RH); ±4% (0 to 10% and 90 to 100%).

Response Time: Air velocity: 1 s; Temperature: 1.5 s; Relative humidity: 1.5 s; Air

volume: 1 s.

Probe Length: 8˝ (203 mm) insertion.

Power Requirements: 3.7 V YT562447 lithium ion battery, installed functional, user

replaceable.

Battery Charging Limits: 32 to 113°F (0 to 45°C).

Maximum Wireless Distance: 50´(15 m).

Vane Material: Anodized aluminum.

Handle Enclosure: Thermoplastic elastomer over polycarbonate.

Supplied With: Wrist strap.

Weight: 13.6 oz (402.20 g).

Supported Devices: UHH4 or newer universal handheld, and smart devices that

support Bluetooth® LE (Bluetooth® Low Energy).

Supported Operating Systems: Android® firmware version 3.X or later, iOS® firmware

version 5.X or later.

Bulletin TE-VP3

Lithium ion polymer batteries are very volatile and can cause

a fire if punctured or severely damaged. Only use a Dwyer

Instruments, Inc. approved charging device in a well ventilated area away

from any flammable materials or gases. Do not incinerate the battery. Only

charge between 32 to 113°F (0 to 45°C).

If desired, can be operated with USB cables less than 3 m in

length when connected to the charger or PC.

USING MOBILE METER® APP

To use the wireless probe with a personal device not supplied by Dwyer

Instruments, Inc. you must first download the Mobile Meter® app. Once

installed, the wireless probes can be connected by following the directions

below.

CONNECTING TO WIRELESS PROBES

For the latest instructions, please refer to the “Help” button in the Options

menu in the Mobile Meter® app.

1. Verify that the universal handheld, UHH4 or newer, or device has

Bluetooth® technology turned on and is within range. Open the Mobile

Meter® app by clicking on the icon.

2. Press “Without Bridge”.

3. Power on wireless probe.

4. Once discovered, the probe name will appear on the device screen.

6. Select the check box next to the desired probe names and press

the back arrow to return to the probe list.

It is recommended that only four probes be selected due to the

bandwidth limitations.

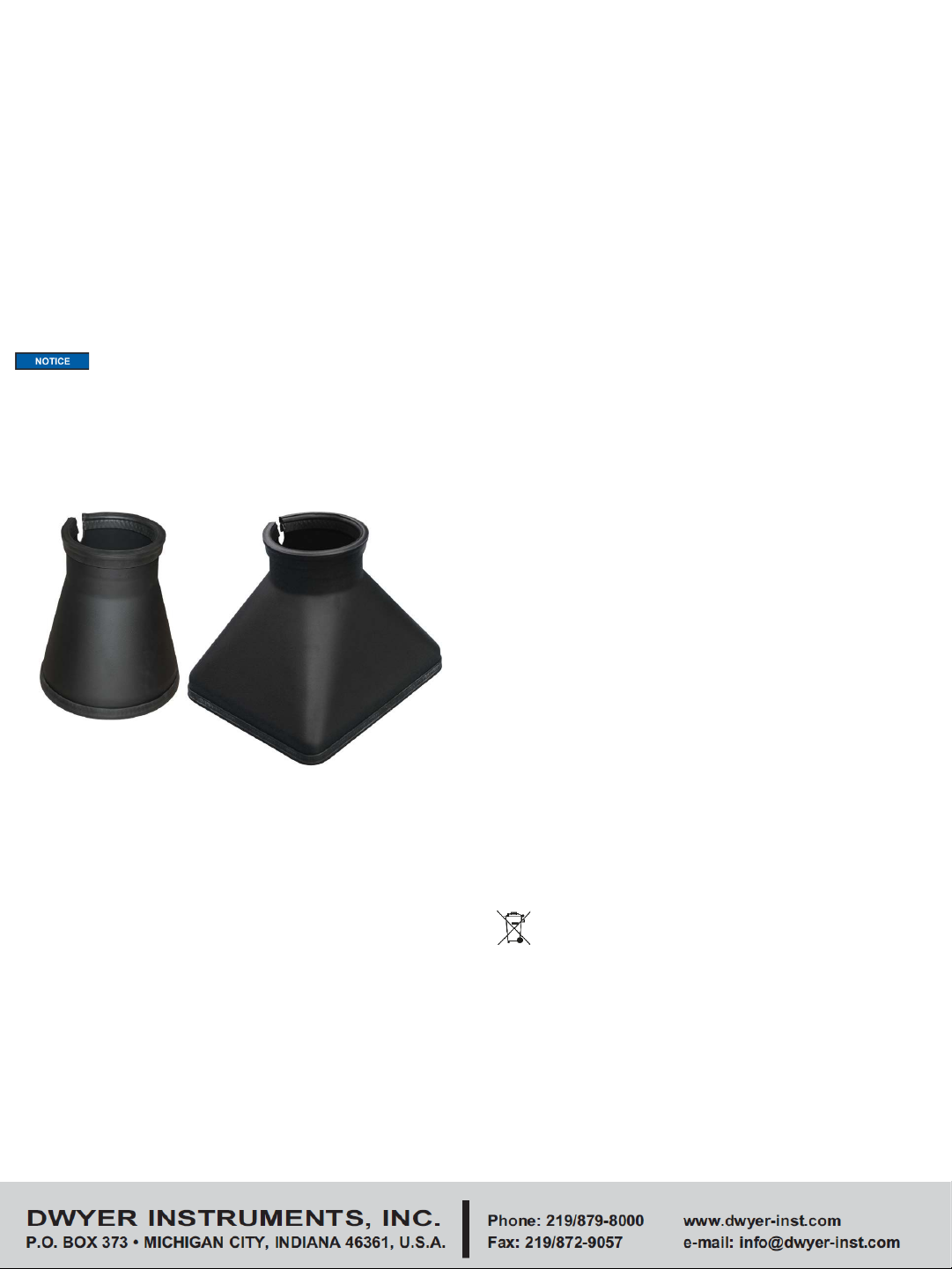

ACCESSORIES

To maximize the usefulness of the VP3, an optional cone kit (A-VPX-CKIT) is

available. A round 7.2 in (183 mm) diameter hood and a rectangular 10.9 x

8.9 in (277 x 226 mm) hood are included in the kit. The cones are able to

convert the VP3 into an air volume flow balancing tool for use with small

grilles and diffusers.

WIRELESS GUIDELINES IN ACCORDANCE WITH FCC

Changes not expressly approved by Dwyer Instruments, Inc. could void the

user’s authority to operate the equipment.

This product complies with FCC OET Bulletin 65 radiation exposure limits

set forth for an uncontrolled environment.

Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by

Dwyer Instruments, Inc. might cause harmful interference and void the

FCC authorization to operate this product.

CANADIAN GOVERNMENT GUIDELINES

Operation is subject to the following two conditions: (1) This device may

not cause harmful interference and (2) this device must accept any

interference received, including interference that may cause undesired

operation.

INFORMATION TO THE USER

Power Output: 6 mW

Operating Frequency: 2.4 GHz

Operating Mode: IEEE 802.15.4, BLE, Direct Sequence Spread Spectrum

Data Rate: Up to 250 kbps

Intended Use: Industrial/commercial HVAC

Antenna Connection: Internal only, non-tunable

BATTERY REMOVAL

If, for some reason, the wireless probe needs to be returned to Dwyer

Instruments, Inc. for maintenance or repair, the rechargeable lithium ion

battery needs to be removed prior to shipping the unit. Before attempting

to remove the battery ensure the probe has been powered down. To

remove the battery, set the wireless probe face down on a non-abrasive

surface. There are four Phillips head screws that secure the two halves of

the handle together. Two are located under the serial number label at the

top of the probe and two are located at the bottom of the unit. When

lifting the ends of the serial label to access the screws be careful to not

damage the label such that the serial number cannot be read. Remove the

four screws with a suitable Phillips screw driver and set aside the back half

of the housing. Remove the battery by grasping the black plastic connector

on the battery wire harness and pull straight out while securing the black

plastic connector on the circuit board with the other hand. Be careful to

not puncture the battery as this may cause a fire. Remove the battery and

set aside. Securely replace the four screws to hold the handle of the probe

together. The unit may now be packaged for shipping back to Dwyer

Instruments, Inc.

MAINTENANCE/REPAIR

Upon final installation of the Model VP3, no routine maintenance is

required. The Model VP3 is not field serviceable and should be returned if

repair is needed. Field repair should not be attempted and may void

warranty.

This symbol indicates waste electrical products should not be disposed of

with household waste. Please recycle where facilities exist. Check with your

Local Authority or retailer for recycling advice.

WARRANTY/RETURN

Refer to “Terms and Conditions of Sales” in our catalog and on our

website. Contact customer service to receive a Return Goods

Authorization number before shipping the product back for repair. Be sure

to include a brief description of the problem, plus any additional

application notes.

Bluetooth® is a registered trademark of Bluetooth SIG, Inc.

FR# 444116-05
