DV8 OFFROAD CCT2-01 Manuel utilisateur

6400 SYCAMORE CANYON BLVD.

RIVERSIDE, CALIFORNIA 92507

855-680-9595

WWW.DV8OFFROAD.COM

PRODUCT

INSTALLATION MANUAL

TUNDRA CENTER CONSOLE

AND BRIDGE

3RD GEN (2022+) TOYOTA TUNDRA

CCT2-01

TOOLS REQUIRED SKILL LEVEL TIME REQUIRED

-Nutsert Tool (Optional)

-Drill

-11/32” Drill Bit

-Ratchet

-4mm Allen Bit

Before you install this kit — Read and understand all

instructions, warnings, cautions, and notes contained in

this installation instruction guide. Consult your vehicle

owner’s manual for proper disconnection of electrical and

lifting of vehicle if required for installation of this product.

This install may require some technical skills and

knowledge of basic mechanical work. If you do not feel that

you are capable of performing this install please take this

product to a trained professional.

After reading this guide please contact us with any

questions or concerns before installing product.

Customer Service: 855-680-9595

DV8 Offroad is not responsible for any bodily injury or harm to you

or your vehicle as a result of an improper install.

Proper installation of this kit required knowledge of the factory

recommended procedures for removal and installation of original

equipment components. We recommend that the factory shop manual

and any special tools needed to service your vehicle be on hand during

the installation. Installation of this kit without proper knowledge of the

factory recommended procedures may affect the performance of these

components and the safety of the vehicle

• Always wear eye protection when operating power tools

Inspect all contents of this package to make sure product is not damaged

and all installation hardware has been included. If parts are missing from

kit, please be prepared to provide the following information

1. Name of purchase location

2. Bar Code on side of box

3. Date above bar code

4. Date inside box cover

- Novice/Intermediate

- 1 (you) to 2 persons

Little skill level required, you can

easily install it by yourself however,

additional help will be useful

-1.5 Hours

Time to install this should only

take about an half an hour.

WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION

855-680-9595

NEED HELP?

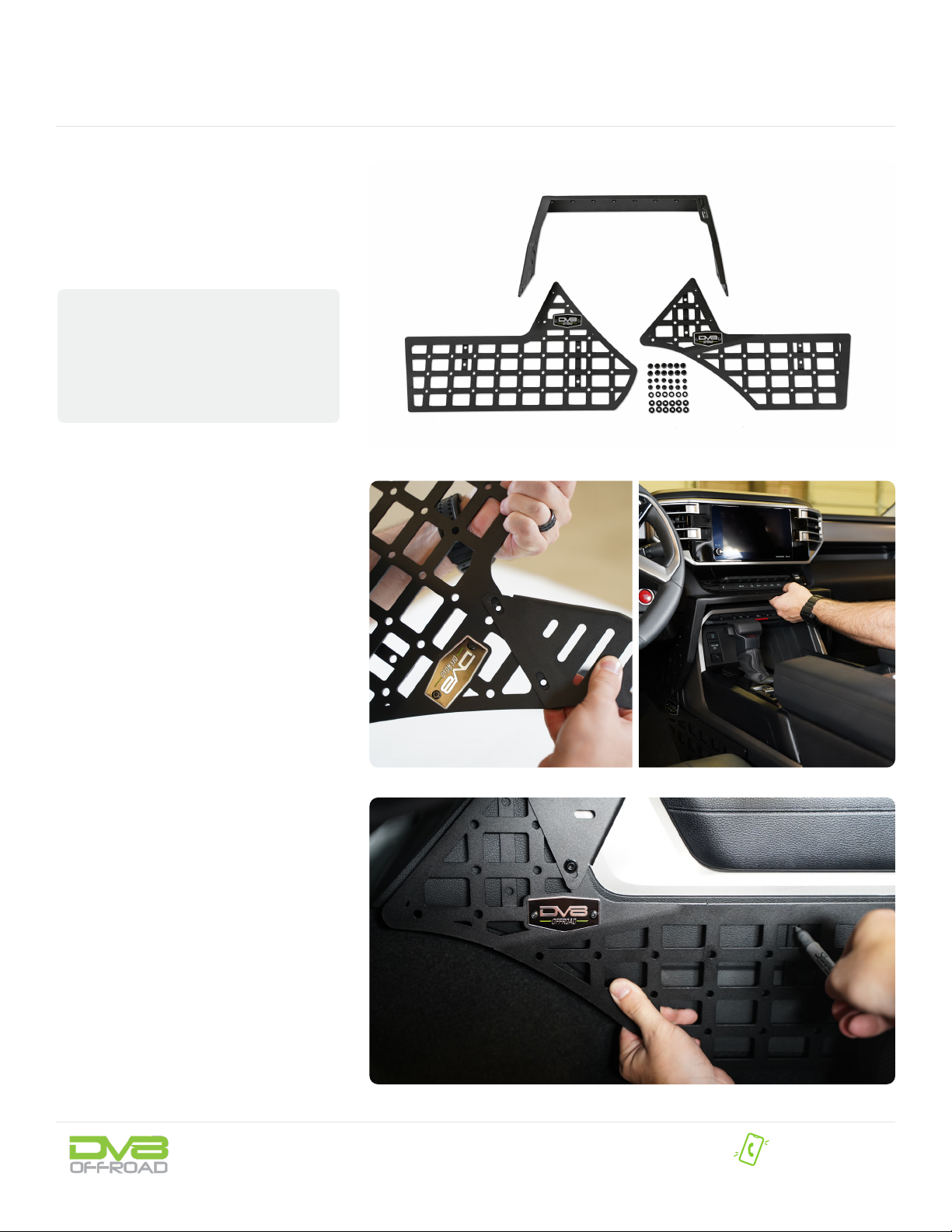

Assemble the bridge and side mounts using

a 4mm allen bit and provided M6 hardware..

Fit the center console into place.

When you are satised with the tment,

mark the mounting holes with a sharpie and

remove/disassemble the center console and

bridge.

Note: An extra pair of hands to hold everything in

place will make this process easier.

INSTALLATION MANUAL

NEED HELP? 855-680-9595

- (12) M6x14 Allen Head

- (12) M6 Flat Washer

- (12) M6 Serrated Nuts

- (12) M6x14 Nutserts

HARDWARE INCLUDED

Begin by unpacking all items and inspect-

ing for missing pieces or damage. If you

have any concerns, please contact the com-

pany the product was purchased from.

STEP 1

STEP 2

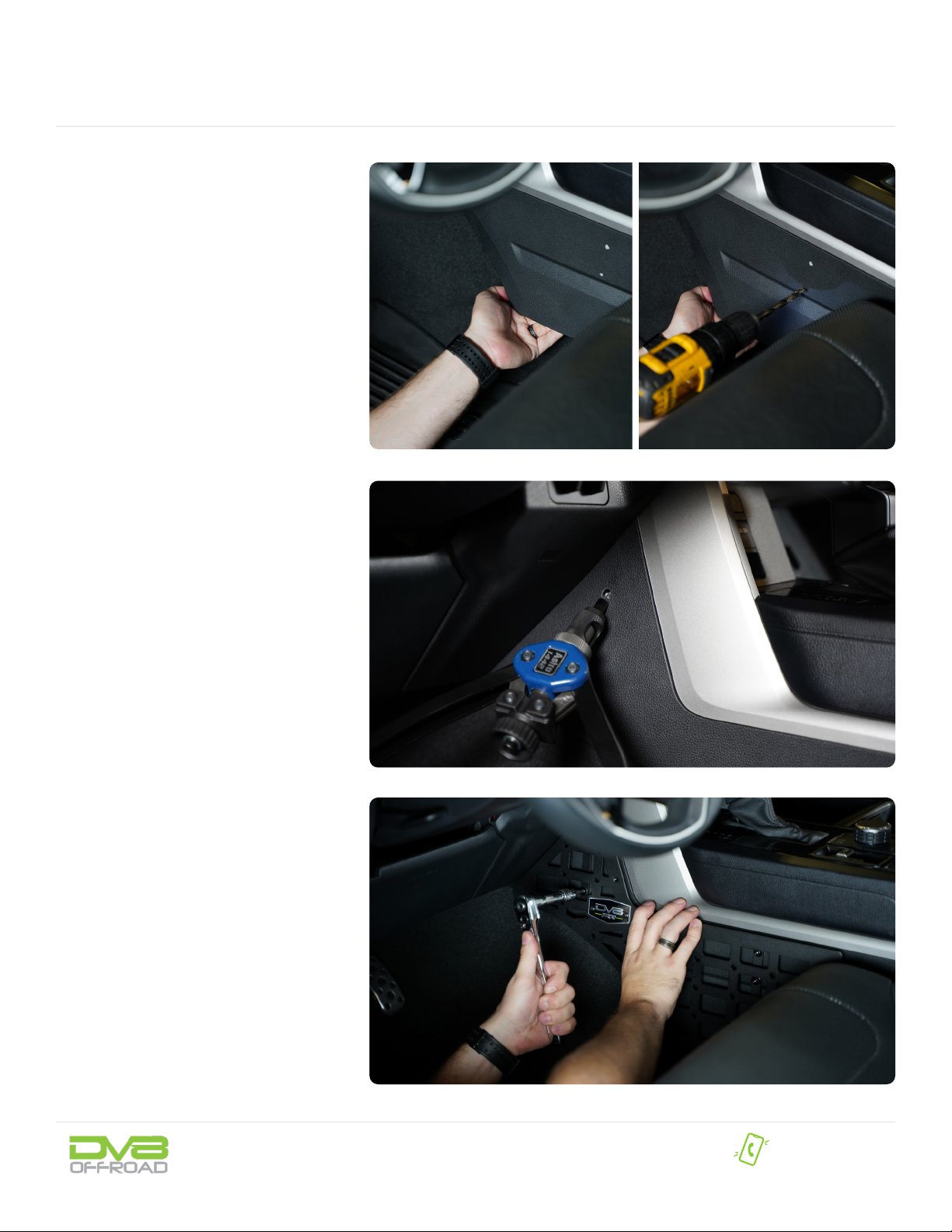

If you installed nutserts, drop the center

console and bridge into place and secure

using provided M6 hardware and a 4mm

allen bit.

If you did not use nutserts, press the M6

hardware through the mounting holes to

hold it in place.

Pull back on the center console trim to

install the serrated nuts. Use a 4mm allen

bit while applying pressure with your hand

on the serrated nut until “catches” and is

secured.

(Optional) You may choose to install the

provided M6 nutserts with a nutsert tool for

an easier installation.

We do highly recommend using a nutsert

on the driver side front upper mounting

hole due to how to difcult it is to reach

back with a nut.

Use an 11/32” drill bit to drill out the marked

mounting positions.

Note: Drill accurately and carefully to avoid scuff-

ing the trim unnecessarily. Do not drill any further

than the center console trim. It may be helpful to

pull the center console trim back slightly to en-

sure you are drilling only through center console

trim.

INSTALLATION MANUAL

NEED HELP? 855-680-9595

STEP 3

STEP 4

Double check tment and all hardware is

secure. Congratulations, you are nished

with the install of the 22+ Toyota Tundra

Center Console and Bridge.

INSTALLATION MANUAL

NEED HELP? 855-680-9595

STEP 4
