Dura-Max Woodbridge Manuel utilisateur
• All Weather Durable PVC
• Won’t Dent, Rust, Rot or Mildew
• Tall Walk In Shed
• Never Needs Painting
• 61 Inch Wide Double Doors
• Easy Assembly
• High Wind Tested
• Snow Load Tested 20lbs/sq. foot
• Pad Lock Ready (Lock not included)
• Foundation included,wooden or Cement floor Needed.
Call us for any missing or damaged parts.
Do not return to the store.
Customer
Service Hotline
(800) 483-4674
Your Total Solution To Maintenance Free Storage Sheds.
Ver: 3.0
OWNER’S MANUAL /
Instructions for Assembly ‘10 Ft WoodBridge’
Patent #416.091
Vinyl Garden Shed
Vinyl Garden Shed
A Product of
TM
ALL PURPOSE VINYL GARDEN SHEDS
Building Dimensions :
Approximate
Size
Storage Exterior Dimension Interior Dimension
10 Ft x 3 Ft 25.8 Sq. Ft 158.9 Cu.Ft
Roof Edge to Edge
Base Dimension Door Opening
3.2 m x 0.8 m 2.4 Sq.m 4.5 Cu.m
Width
Depth
Height
inch cm
125 3/8 318.4
inch cm
127 7/8 324.8
82.9
85 1/2 217.1
inch cm
123 3/8 313.3
inch cm
76.3
60 5/8 154
71 1/2 181.6
73 185.5
Wall to Wall
Area Volume
32 1/4 81.7 32 5/8 30.0
Size 10 Ft x 3 Ft /3.2 m x 0.8 m (Approx.)
www.duramaxbp.com
Duramax Garden Shed
Limited Fifteen Year Warranty
U.S. Polymer Inc. will send a replacement part free of charge, in the event of material defects and or
workmanship for a period of fifteen years from the date of purchase.
This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of
original purchase will be required before warranty service is rendered. In no event shall we pay the
cost of flooring, labor, installation or any other costs related thereto.
This warranty only covers failures due to defects in material or workmanship which occurs during normal
use and does not extend to color change arising due to normal weathering or to damage resulting from
misuse or neglect, commercial use, failure to follow assembly instructions and the owner’s manual
(including proper anchoring of the shed), painting, forces of nature and other causes which is beyond
our control.
Claims under this warranty must be made within the warranty period by calling 1-800-483-4674 or mail
in a dated sales slip and clear photograph of the part to:
U.S. Polymers, Inc.
1057 S. Vail Ave,
Montebello, CA 90640.
We reserve the right to discontinue or change components. If a component has been discontinued
or is not available,
U.S. Polymers, Inc. reserves the right to substitute a component of equal quality as may be compatible.
Limits and Exclusions
There are no express warranties except as listed above. The warrantor shall not be liable for incidental
or consequential damages resulting from the use of this product, or arising out of any breach of this
warranty. All express warranties are limited to the warranty period set forth above . Some states do
not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitations may
not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state or country to country.
1
2
SAFETY & PRECAUTIONS
Before You Begin...
1. Check your local building codes regarding footings, location, etc.
2. Select a site that allows enough working space around the shed.
3. Determine building foundation and anchor system.
4. Read and understand the Owner’s manual enclosed in the package.
5. Follow all directions and dimensions thoroughly.
6. Follow the steps given in the manual carefully for correct assembly.
7. Make sure all parts are present before you start assembling.
8. BE SAFE : Follow safety instructions and avoid injury.
(See inside page).
9. GROUND MUST BE EVEN : Make sure the foundation frame lies flat on
the ground. If the earth bed is uneven, remove sod and other debris and
level it with a flat shoval.
10. Separate contents of the carton by the part number and review the list.
Be sure you have all the necessary parts for your shed.
Refer Owner’s manual for part list.
CAUTION
Sharp
Edges
3
SAFETY & PRECAUTIONS
For your own safety, please read and follow these instructions during the shed assembly.
1. Always wear work gloves, long sleeves and eye protection
during assembly of the shed. Some pieces of the shed
contain sharp edges and can cause injury.
2. Be cautious with the tools used for the assembly of the
shed. Familiarize yourself with the operation of all the
power tools.
3. Children and pets should be kept away from the assembly
site to avoid any distractions and accidents.
4. When using a step ladder, make sure it is on even
ground and fully open with the safety latch in place. Never
concentrate your full weight on the roof or any part of the
shed.
5. Do not attempt to assemble the shed on a windy day.
Shed panels can be whipped across by the wind making
the worksite difficult and dangerous.
4
IMPORTANT
Wear eye protection when using any form of power tools. Do not use voltage power tools in a wet or damp
enviornment to avoid electric shock.
Do not use any part of the shed as a means of personal support while attaching components during assembly.
The shed must be constructed on a solid base foundation. A concrete pad or a large size concrete patio
stone squares is recommended for suitable floor base. Make sure it is firm and level and will allow drainage
away from the site. The base foundation should be at least 4 inches (100mm) larger than the shed dimensions.
Please refer to the front page of your owner’s manual for the exterior dimensions of the shed. Manufacturer is
not responsible for the choice and construction of the foundation.
For a concrete pad base, prepare a level bed for a firm footing layer of crushed stone. The concrete pad
should then be poured to a thickness of 4 inches (100mm) to 5 inches (125mm). Allow to dry thoroughly
for at least 48 hours
Your shed must be firmly anchored to the concrete pad or large concrete patio stone squares, to help protect
against damage in high winds.
Care & Maintenance
Although this unit does not require any maintenance, care should be taken to prolong the life
of your shed.
ROOF : Keep roof clean of leaves and snow with long handled, soft bristled broom. Heavy amounts
of snow on the roof can damage the shed making it unsafe. Do not step on the roof.
WALLS : Do not rest any object against the wall panels of the shed.
DOORS : Keep doors closed to prevent wind damage.
FASTENERS : Regularly check your shed for loose screws, bolts, nuts, etc. And retighten them as
necessary.
MOISTURE : With changing temperatures, condensation will accumulate inside the shed. Good
ventilation will help in regulating and avoid moisture.
TIP : A noncorrosive caulking is helpful to seal the shed.
DO NOT store swimming pool chemicals in your building.
Combustibles and corrosive must be stored in
air tight containers
Parts List
Cordless Drill - Philips Head
Hammer or Rubber mallet
Carpenters Square
8’ Step Ladder
Adjustable pliers
Level - 3ft.
T
ape Measure
Caulk Gun
Waterproof Clear Silicon
Sealant
Hand Gloves
Tools You Will Need
Note Before starting installation, please refer
Safety & Precautions.
5
B1LA, B1RA,
B2, B3LA, B3RA
CB1A, CB2A,
CB3XA, CB4A, MJ
RS1A,
RS3E, RS8A, RS9A
RS5E
RS2A, RS10A,
DSH
RS14A
CDLA
CDRA
CCA
CMA
FDCL
FDCR
FCB
FMC
FCC
RJ
EPS
CBC
PIN PPG & PWS S1, S2
CODE QTY
F01A 2
F02A 2
F03 4
F08 6
B1LA 1
B1RA 1
B2 2
B3LA 1
B3RA 1
CMA 3
CCA 4
CDLA 1
CDRA 1
CB1A 2
CB2E 2
CB3XA 2
CB4A 2
CODE QTY
FDCL 1
FDCR 1
FCC 4
FMC 3
FCB 4
RJ 4
EPS 4
CBC 1
PPG 48
PIN 48
S1 193
S2 8
CODE QTY
RS1A 4
RS2A 4
RS3E 2
RS5E 4
RS8A 4
RS9A 4
MJ 3
RS10A 2
RS14A 4
DSH 1
SP 8
FPL 2
FPR 2
RP 2
RRS 1
DL 1
DR 1
PARTS ACCESSORIES
F01A,F02A,F08 F03
Exploded View
6
B2
SP
CB4A
CB1A
B1LA
B1RA
MJ
CB3XA
CB3XA
CB2E
SP
SP
DL
DR
CDLA
CB1A
CB4A
CB2E
CCA
FPL
FPR
RS1A
DSH
RS1A
RS8A
RS9A
RS2A
RS9A
RS2A
FPR
RS3E
RS3E
RRS
CDRA
FPL
RS2A
RS2A
CCA
SP
CCA
CMA
CMA
CMA
SP
SP
SP
SP
CCA
SP
RP
RP
RS5E
RS5E
RS10A
CCA
B2
B3LA
B3RA
F01A
F01A
F02A
F02A
7
Parts Needed:
Code Qty
F01A 2
F02A 2
F03 4
F08 6
B1LA 1
B1LA 1
B3LA 1
B3LA 1
B2 2
S1 62
1
2
Note 1. It is important that these instructions
are followed step by step.
2. All parts are clearly marked and care should
be taken to use the correct one.
3. Don’t install under windy conditions.
4. If you are building the shed against a wall,
build it 2.5 ft. away then slide it in.
A. Foundation & Base frame
S1
F01A
F02A
F08
F08
F02A
F02A
F01A
F01A
S1
Make Two Sets
Note
8

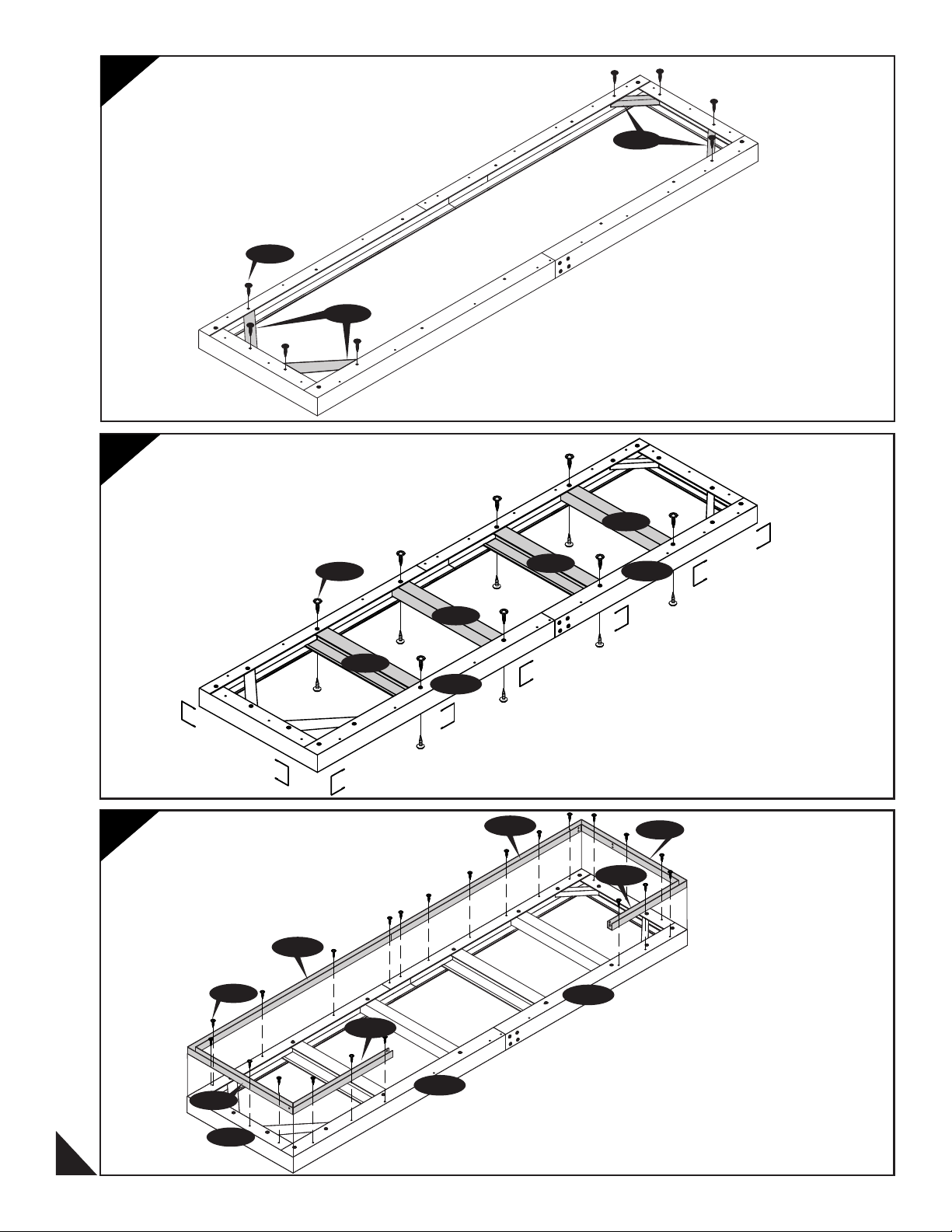

3
F03
F03
S1
F08
F08
F08
F08
S1
4
Front
F01A
F02A
B1LA
B1RA
B3RA
B3LA
S1
B2
B2
F08
5
F01A
F02A
9
B. Wall & Columns
1
Fig.3
B1RA
CDRA
S1
Parts Needed:
Code Qty
CMA 3
CCA 4
CDLA 1
CDRA 1
CB1A 2
CB2E 2
CB3XA 2
MJ 1
CB4A 2
FCB 4
CBC 1
SP 8
S1 41
S2 4
1
2&3
All parts are clearly marked and care
should be taken to use the correct
one.
Note
Fig.1
CDRA
B1RA
CDRA
Fig.2
B1RA
CDRA
Front
