Liquid Crystal Projector

Models 8935/8942

USER'S MANUAL

Please read this user's manual thoroughly

to ensure correct usage through understanding.

Projector

8935/8942

User's Manual - Operating Guide

Thank you for purchasing this projector.

TRADEMARK ACKNOWLEDGMENT :

• VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple and Mac are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• Internet Explorer is a trademark of Microsoft Corporation.

All other trademarks are the property of their respective owners.

WARNING Before using, read the "User's Manual - Safety Guide" and

these manuals to ensure correct usage through understanding. After reading,

store them in a safe place for future reference.

INTER

INPUT

M1-D

RGB

BNG

S-VIDEO

STANDBY/ON

TEMP

VIDEO

COMPONENT

LAMP

KEYSTONE

RESET

FOCUS

LENSSHIFTZOOM

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transmission or use of this document or contents is not permitted without

express written authority.

NOTE

01CP-X1200-ENG-OG-三校03.12.51:10PMページ1

Projector Features

Preparation

●

Ultra High Brightness

Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly

efficient optical system.

●

Whisper Mode Equipped

Special mode is available for reducing projector noise to achieve quieter operation.

●

User Memory Function

This projector can memorize 4 settings by MY MEMORY function.

●

Partial Magnification Function

Interesting parts of images can be magnified for closer viewing.

●

Keystone Distortion Correction

Quick correction of distorted images electrically.

●

Optical Lens Shift

The lens of this projector can be shifted vertically. When you want to finely adjust the picture position,

use the LENS SHIFT buttons.

This multimedia projector is used to project various computer signals as well as

NTSC/PAL/SECAM video signals onto a screen. Little space is required for

installation and large images can easily be realized.

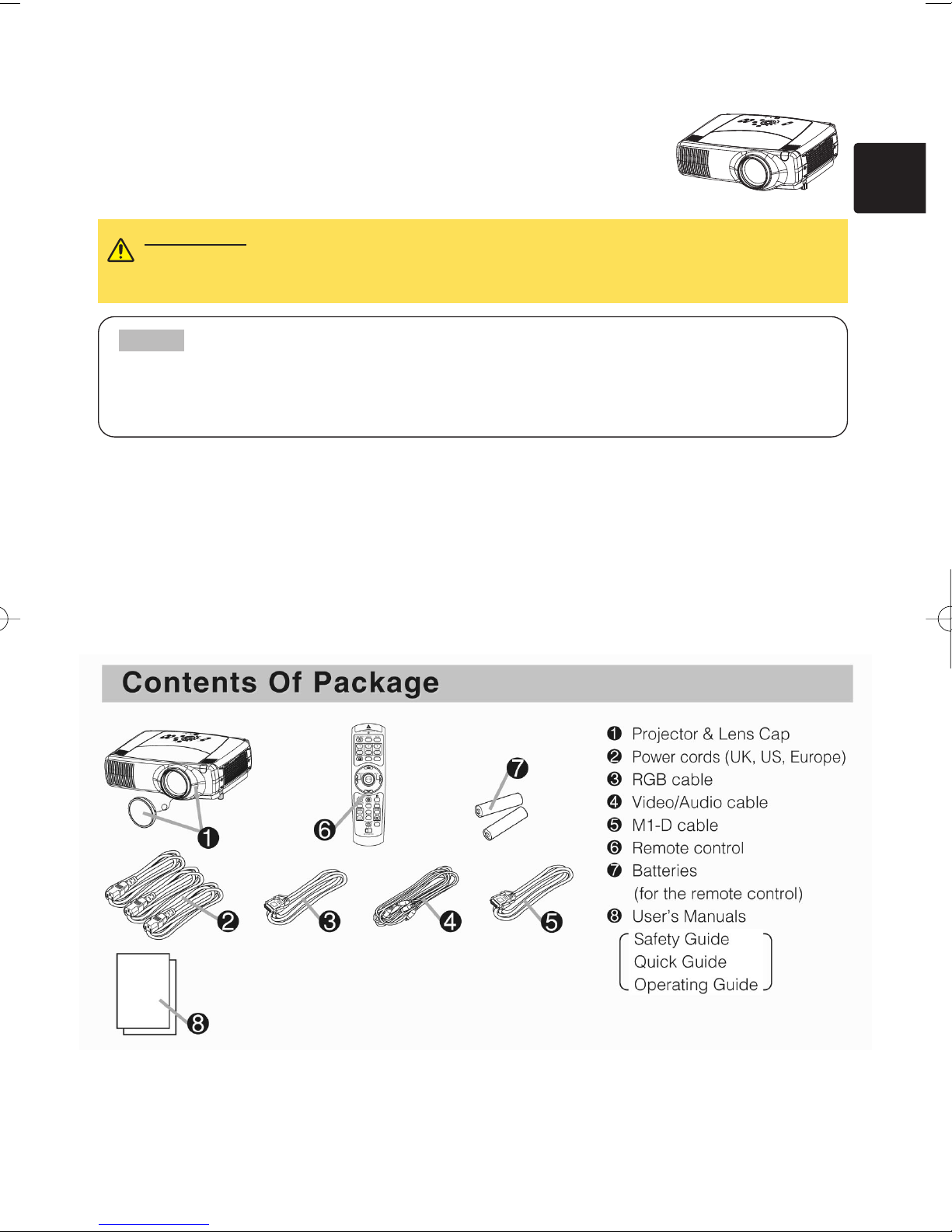

Please see the “Contents Of Package” on page 1.

Your projector should come with the items shown there. Contact your dealer

anything is missing.

• Keep the original packing material for future reshipment. For moving the projector, be

sure to use the original packing material. Use special caution for the lens part.

NOTE

01CP-X1200-ENG-OG-三校03.12.51:10PMページ2

Contents

Projector Features ……………………………………2

Preparation ……………………………………………………2

Part Names ……………………………………………………4

Projector ……………………………4

Control Buttons ……………………5

Remote control ……………………5

Setting Up …………………………………………………………6

Arrangement ………………………6

Adjusting The Projector’s

Elevator ……………………………7

Using The Lens shift Buttons ……7

Connecting Your Devices…………8

Connecting The Power Supply …11

Remote Control …………………………………………12

About The Laser Pointer ………12

Putting Batteries …………………12

Operating The

Remote Control …………………13

Using The Remote

ID Feature…………………………13

Using The Mouse/Keyboard

Control Function …………………14

Power ON/OFF …………………………………………15

Turning On The Power …………15

Turning Off The Power …………15

Operating ……………………………………………………16

Selecting An Input Signal ………16

Selecting The Aspect Ratio ……17

Using The Automatic

Adjustment Feature………………17

Adjusting The Picture Position …18

Correcting The Keystone

Distortion …………………………18

Adjusting The Volume …………19

Muting The Sound ………………19

Temporarily Blanking

The Screen ………………………19

Freezing The Screen ……………20

Using The Magnify Feature ……20

Displaying The Child Window …21

Selecting An Audio Input ………21

Multifunctional Settings ……………………22

Using The Menu Functions ……22

MAIN Menu ………………………23

PICTURE-1 Menu ………………24

PICTURE-2 Menu ………………26

INPUT Menu ……………………27

AUTO Menu ………………………29

SCREEN Menu …………………31

OPTION Menu ……………………33

NETWORK Menu ………………35

Network Setting Up ………………………………36

Lamp ………………………………………………………………37

Replacing The Lamp ……………38

Air Filter …………………………………………………………39

Caring For The Air Filter…………39

Other Care ……………………………………………………40

Caring For The Inside Of

The Projector ……………………40

Caring For The Lens ……………40

Caring For The Cabinet And

Remote Control …………………40

Troubleshooting ……………………………………41

Related Messages ………………41

Regarding The Indicator

Lamps ……………………………43

Phenomena That May Easily Be

Mistaken For Machine Defects …45

Warranty And After-Service …………47

Specifications …………………………………………47

TECHNICAL

01CP-X1200-ENG-OG-三校03.12.51:10PMページ3

Part Names

Projector

1Elevator button

2Elevator foot

3Remote sensor

4Lens cap

5Lens

The picture is projected from

here.

6Filter cover

An air filter is inside.

ARGB port

BM1-D port

CBNC port

DAUDIO IN 1 port

EAUDIO IN 2 port

FCONTROL port

GNETWORK port

HAUDIO IN R/L port

IVIDEO IN port

JS-VIDEO port

KCOMPONENT port

LRGB OUT port

MAUDIO OUT port

7REMOTE CONTROL port

8DC OUT port

9AC Inlet

0Power switch

-Control buttons

See the following page.

Projector (Front/Right)

Projector (Rear/Left)

INTER

INPUT

M1-D

RGB

BNG

S-VIDEO

STANDBY/ON

TEMP

VIDEO

COMPONENT

LAMP

KEYSTONE

RESET

FOCUS

LENSSHIFTZOOM

INTER

INPUT

M1-D

RGB

BNG

S-VIDEO

STANDBY/ON

TEMP

VIDEO

COMPONENT

LAMP

KEYSTONE

RESET

FOCUS

LENS SHIFTZOOM

VIDEO

R-AUDIO IN-L S-VIDEO

BNC

RGB

AUDI O IN1

AUDI O IN2 RGB OUT

AUDI O OUT

REMOTE CONTROL

R/C

G/Y B/C

CONTROL NETWORK

CR/PR Ca/Pa

HIJ

01CP-X1200-ENG-OG-三校03.12.51:10PMページ4

INTER

INPUT

M1-D

RGB

BNG

S-VIDEO

STANDBY/ON

TEMP

VIDEO

COMPONENT

LAMP

KEYSTONE

RESET

FOCUS

LENSSHIFTZOOM

STANDBY/ON

VIDEO

LASER INDICATOR

ESC MENU

POSITION

RESET AUTO

KEYSTONE

1 2 3

ID CHANGE

OFF

FREEZE MUTE

MAGNFY

PinP

VOLUME

RGB

BLANK

ASPECT

ENTER

LASER

LENS SHIFT

–––

FOCUS ZOOM

[

]

;

Part Names (continued)

Remote Control

Control Buttons

ENTER

INPUT

M1-D

RGB

BNC

S-VIDEO

STANDBY/ON

TEMP

VIDEO

COMPONENT

LAMP

KEYSTONE

RESET

FOCUS

LENS SHIFT ZOOM

w q

1STANDBY/ON button

and STANDBY/ON indicator

2TEMP indicator

3LAMP indicator

4LENS SHIFT buttons

5INPUT dial

6SEARCH button

7M1-D indicator

8RGB indicator

9BNC indicator

0COMPONENT indicator

-S-VIDEO indicator

=VIDEO indicator

qZOOM buttons

wFOCUS buttons

eKEYSTONE button

rMENU button

tRESET button

yENTER button

uCursor buttons / / /

Control Panel

on the Projector

Remote Control

iLASER INDICATOR

oVIDEO button

pRGB button

[BLANK button

]ASPECT button

\LASER button

aCursor buttons / / /

(Mouse move pointer)

sESC button

(Keyboard ESC key)

d(Mouse right button)

fPOSITION button

gAUTO button

hPinP button

jMAGNIFY buttons

kFREEZE button

lVOLUME button

;MUTE button

'ID CHANGE switch

1STANDBY/ON button

4LENS SHIFT buttons

6SEARCH button

qZOOM buttons

wFOCUS buttons

eKEYSTONE button

rMENU button

tRESET button

yENTER button

(Mouse left button)

uCursor buttons

///

(Keyboard

Arrow keys / / / )

(Rear)

01CP-X1200-ENG-OG-三校03.12.51:10PMページ5

Setting Up

Arrangement

WARNING • Before installation, make sure that the projector is turned off and the

power code is disconnected.

• Do not set up and move the projector, while it is hot.

• Install the projector in a suitable environment according to instructions of the “User’s

Manual – Safety Guide” and this manual.

• The power outlet should be close to the projector and easily accessible.

Refer to the illustrations and tables below to determine the screen size and projection

distance. The values shown in the table are calculated for a full size screen. (±10%)

Reference for

the 4:3 aspect ratio

Reference for

the 16:9 aspect ratio

Screen Size

[inch (m)] a[inch (m)] b[inch (cm)]

Min. Max.

m:n=1:1 m:n=10:0

40 (1.0) 46(1.2) 71(1.8) 12(30) 24(61)

60 (1.5) 71(1.8) 107(2.7) 18(46) 36(91)

70 (1.8) 83(2.1) 126(3.2) 21(53) 42(107)

80 (2.0) 95(2.4) 144(3.7) 24(61) 48(122)

100 (2.5) 120(3.0) 181(4.6) 30(76) 60(152)

120 (3.0) 144(3.7) 217(5.5) 36(91) 72(183)

150 (3.8) 181(4.6) 272(6.9) 45(114) 90(229)

200 (5.1) 243(6.2) 364(9.2) 60(152) 120(305)

250 (6.4) 304(7.7)

455(11.6)

75(191) 150(381)

300 (7.6) 366(9.3)

547(13.9)

90(229) 180(457)

350 (8.9)

427(10.9) 638(16.2)

105(267)210(533)

400 (10.2)

489(12.4) 730(18.5)

120(305)240(610)

500 (12.7)

612(15.5) 913(23.2)

150(381)300(762)

Screen Size

[inch (m)] a[inch (m)] b[inch (cm)]

Min. Max.

m:n=1:1 m:n=10:0

40 (1.0) 50(1.3) 77(2.0) 10(25) 23(58)

60 (1.5) 77(2.0) 117(3.0) 15(37) 34(87)

70 (1.8) 91(2.3) 137(3.5) 17(44) 40(102)

80 (2.0) 104(2.6) 157(4.0) 20(50) 46(116)

100 (2.5) 131(3.3) 197(5.0) 25(62) 57(145)

120 (3.0) 158(4.0) 237(6.0) 29(75) 69(174)

150 (3.8) 198(5.0) 297(7.5) 37(93) 86(218)

200 (5.1) 265(6.7)

396(10.1)

49(125) 114(291)

250 (6.4) 332(8.4)

496(12.6)

61(156) 143(363)

300 (7.6)

399(10.1) 596(15.1)

74(187) 172(436)

350 (8.9)

466(11.8) 696(17.7)

86(218) 200(508)

400 (10.2)

533(13.5) 795(20.2)

98(249) 229(581)

450 (11.4)

600(15.2) 895(22.7)

110(280)257(654)

Lens center

Screen

Side View

Lens center

Screen

Side View

01CP-X1200-ENG-OG-三校03.12.51:10PMページ6

INTER

INPUT

M1-D

RGB

BNG

S-VIDEO

STANDBY/ON

TEMP

VIDEO

COMPONENT

LAMP

KEYSTONE

RESET

FOCUS

LENSSHIFT ZOOM

Setting Up (continued)

Adjusting The Projector's Elevator

Using The Lens Shift Buttons

• Generally, better quality of a picture is available when the lens shift is set

to the center.

NOTE

You can use the elevator feet to make adjustments if the surface on which you need to set

the projector is uneven or if you otherwise need to adjust the angle of projection. The

adjustment range of the elevator feet is 0 to 9 degrees.

WARNING • Do not touch about the lens and ventilation openings during use or

immediately after use to prevent a burn.

CAUTION • To prevent damaging the projector and injuring yourself, always

hold the projector whenever using the elevator buttons to adjust the elevator feet.

Press and hold in the elevator buttons.

Raise or lower the projector to the desired height and

then release the elevator buttons.

When you release the elevator buttons, the elevator

feet will lock into position.

As necessary, you can also finely adjust the height of

the projector by twisting the elevator feet by hand.

Elevator buttons

Elevator feet

The lens of this projector can be shifted

vertically. When you want to finely adjust the

picture position, use the LENS SHIFT buttons

of the projector.

10:0

1:1

STANDBY/ON

VIDEO

LASER INDICATOR

RGB

BLANK ASPECT LASER

LENS SHIFT

–––

FOCUS ZOOM

Projector

LENS SHIFT buttons

Remote control

LENS SHIFT

01CP-X1200-ENG-OG-三校03.12.51:10PMページ7

Setting Up (continued)

Connecting Your Devices

WARNING • Whenever attempting to connect other devices to the projector, read

thoroughly the "User's Manual - Safety Guide", this manual and the manual of each

device to be connected. Incorrect connecting could result in fire or electrical shock.

CAUTION • TURN OFF ALL DEVICES prior to connecting them to the projector.

Attempting to connect a live device to the projector may generate extremely loud

noises or other abnormalities that may result in malfunction and/or damage to the

device and/or projector.

ATTENTION • Make sure that you connect devices to the correct port. Incorrect

connection may result in malfunction and/or damage to the device and/or projector.

Refer to the section “Technical” of this manual for the pin assignment of connectors and

RS-232C communication data.

• Some cables have to be used with core set. Use the accessory cable or a

designated-type cable for the connection. For cables that have a core only at one

end, connect the core to the projector.

• Secure the screws on the connectors and tighten.

• Whenever attempting to connect a laptop computer to the projector, be sure to

activate the laptop’s RGB external image output (set the laptop to CRT display or to

simultaneous LCD and CRT display). For details on how this is done, please refer to

the instruction manual of the corresponding laptop computer.

• Some computers may have multiple display screen modes. Use of some of

these modes may not be compatible with this projector.

• For some RGB input modes, the optional Mac adapter is necessary.

• When the image resolution is changed on a computer, depending on an input,

automatic adjust function may take some time and may not be completed. In this

case, you may not be able to see a check box to select “Yes/No” for the new

resolution on Windows. Then the resolution will go back to the original. It might be

recommended to use other CRT or TFT monitors to change the resolution.

NOTE

Plug-and-Play Capability

• Plug-and-Play is a system incorporated in the computer, its operating system and

peripheral equipment (i.e. display devices).

• This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by

connecting this projector to computers that are VESA DDC (display data channel)

compatible.

• Please take advantage of this function by connecting the accessory RGB cable to the

RGB port (DDC 1/2B compatible). Plug-and-Play may not work properly if any other

type of connection is attempted.

• Please use the standard drivers in your computer as this projector is a Plug-and-Play

monitor.

NOTE

01CP-X1200-ENG-OG-三校03.12.51:10PMページ8

Autres manuels pour ImagePro 8935

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dukane Projecteur

Dukane

Dukane 8142WISS Manuel utilisateur

Dukane

Dukane ImagePro 8100 Manuel utilisateur

Dukane

Dukane ImagePro 8753A Manuel utilisateur

Dukane

Dukane CP-X2015WN/8755N Manuel utilisateur

Dukane

Dukane ImagePro 28A7200A Manuel utilisateur

Dukane

Dukane 8980WU Manuel utilisateur

Dukane

Dukane 8391W Manuel utilisateur

Dukane

Dukane 28A7250 ImagePro Manuel utilisateur

Dukane

Dukane 8952P Manuel utilisateur

Dukane

Dukane ImagePro 8915 8915 8915 Manuel utilisateur

Dukane

Dukane ImagePro 8053 Manuel utilisateur

Dukane

Dukane ImagePro 28A8800A Manuel utilisateur

Dukane

Dukane 8527 Manuel utilisateur

Dukane

Dukane ImagePro 8925H-RJ Manuel utilisateur

Dukane

Dukane ImagePro 8746 Manuel utilisateur

Dukane

Dukane 8970 Manuel utilisateur

Dukane

Dukane 28A33 Instructions de construction

Dukane

Dukane ImagePro 8948 Manuel utilisateur

Dukane

Dukane ImagePro 8755D-RJ Manuel utilisateur

Dukane

Dukane ImagePro 8795H-RJ Manuel utilisateur

Dukane

Dukane ImagePro 8947 Manuel utilisateur

Dukane

Dukane 8950W Manuel utilisateur

Dukane

Dukane DPS1 Manuel utilisateur

Dukane

Dukane 6660WUSSB Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
