Dukane 8964WSS Manuel utilisateur

DLP

®Projector

8964WUSS/8964WSS

User's Manual (detailed)

Operating Guide

Thank you for purchasing this projector.

►Before using this product, please read all manuals for this

product. Be sure to read Safety Guide rst. After reading them, store them in a

safe place for future reference.

WARNING

NOTE

Trademark acknowledgment

Various symbols are used in this manual. The meanings of these symbols are

described below.

About this manual

WARNING

CAUTION

This symbol indicates information that, if ignored, could possibly

result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly

result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.



• VESA and DDC are trademarks of the Video Electronics Standard Association.

•

HDMI

, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

• Blu-ray DiscTM and Blu-rayTM are trademarks of Blu-ray Disc Association.

• DICOM® is the registered trademark of the National Electrical Manufacturers Association

for its standards publications relating to digital communications of medical information.

• HDBaseTTM and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

•

MHL®, the MHL logo, and Mobile High-Denition Link are trademarks or registered

trademarks of MHL, LLC in the United States and other countries.

• DLP® and the DLP logo are registered trademarks of Texas Instruments.

All other trademarks are the properties of their respective owners.

NOTICE This entry notices of fear of causing trouble.

• The information in this manual is subject to change without notice.

• The illustrations in this manual are for illustrative purposes. They may differ

slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in

this manual.

• The reproduction, transfer or copy of all or any part of this document is not

permitted without express written consent.

USSSSUseanua

Contents

Introduction . .............. 3

Features ......................3

Checking the contents of package

....3

Part names ....................4

Projector, Control panel, Ports,

Remote control

Setting up . ................ 8

Arrangement ...................9

Connecting with your devices .....1 2

Fastening the cables ............1 9

Fastening the adapter cover ......2 1

Using the security bar and slot ....2 2

Connecting power supply ........2 3

Attaching the terminal cover ......2 4

Remote control ............ 25

Installing the batteries ...........2 5

Changing the frequency of remote control signal

. . 2 6

About the remote control signal ...2 6

Using as a simple PC mouse & keyboard

. . 2 7

Power on/off . ............. 28

Turning on the power ...........2 8

Turning off the power ...........2 9

Operating . ............... 30

Adjusting the volume ............3 0

Temporarily muting the sound .....3 0

Selecting an input signal .........3 1

Selecting an aspect ratio .........3 2

Adjusting the projector's elevator

....3 3

Adjusting the zoom and focus .....3 3

Adjusting the lens shift ..........3 4

Using the automatic adjustment feature

. . 3 5

Correcting the distortion .........3 6

Using the EDGE BLENDING features

. . 3 9

Using the magnify feature ........4 3

Temporarily freezing the screen ...4 4

Temporarily blanking the screen ...4 4

PbyP (Picture by Picture) /

PinP (Picture in Picture) ...4 5

Using the menu function .........4 9

Indication in OSD,

Containing items of each menu

EASY MENU. . . . . . . . . . . . . . . 52

PICTURE menu . ........... 54

IMAGE menu . ............. 58

INPUT menu . ............. 61



SETUP menu . ............. 66

AUDIO menu . ............. 73

SCREEN menu. ............ 74

OPTION menu . ............ 80

NETWORK menu . .......... 95

SECURITY menu . .......... 96

Maintenance ............. 103

Cleaning the intake vents ........103

Replacing the internal clock battery

.104

Other care ...................105

Troubleshooting . ......... 107

Related messages ..............107

Regarding the indicator ........109

Resetting all settings ........... 1 1 2

Phenomena that may be easy to

be mistaken for machine defects

. . 1 1 3

Specications . ........... 120



Introduction

The projector provides you with the broad use by the following features.

Equipped with long-life LED light source, eco-friendly projector without a mercury

lamp. Dustproof optical engine allowing highly reliable maintenance-free operation

over a long period.

ü Dukane's original image stabilizer for a clearer image (HDCR/

ACCENTUALIZER) enables more visible pictures in bright rooms.

ü Equipped with high-magnification 1.7x zoom lens and lens shift, provides no

restriction of installation angle and 360°-range projection. The edge blending

and the geometry correction functions allowing projection of a seamless image

even on a curved wall or a horizontally/vertically long screen.

ü Supports a variety of digital inputs such as HDBaseTTM, HDMITM, MHL, and so

on. Ability to connect multiple projectors in a daisy chain by HDMI OUT port

and project the image simultaneously.

ü With the terminal cover that can hide a power cord, input/output cables,

and HDMITM/HDBaseTTM cables, you can install the projector on the ceiling

seamlessly.

Features

• Keep the original packing materials for future reshipment. Be sure

to use the original packing materials when moving the projector. Use special

caution for the lens.

NOTE

Checking the contents of package

Please see the Contents of package section in the User’s Manual (concise)

which is a book. Your projector should come with the items shown there. Require

of your dealer immediately if any items are missing.

►Keep small parts away from children and pets. Take care not

to put in the mouth. If swallowed, consult a physician immediately for emergency

treatment.

WARNING

Note: The Dukane model described in this document is manufactured by Hitachi and use the same

ﬁrmware, software programs, control code, and accessory parts. The equivalent Dukane to Hitachi

models are; 8964WUSS (LP-WU3500) and 8964WSS (LP-WX3500).

Introduction

Part names

Projector

(1) Speaker (30, 73)

(2) Elevator feet (x2) (33)

(3) Remote sensor (27, 89)

(4) Lens cover

(5) Intake vents

(6) Control panel (5)

(7) AC (AC inlet) (23)

(8) Exhaust vents

(9) Ports (6)

(10) Security bar (22)

(11) Security slot (22)

(12) Battery cover (104)

(continued on next page)

(1)

(2)

(3)

(4)

(5)

(6)

(10)

(7)

(8)

(9)

(10) (11)(12)

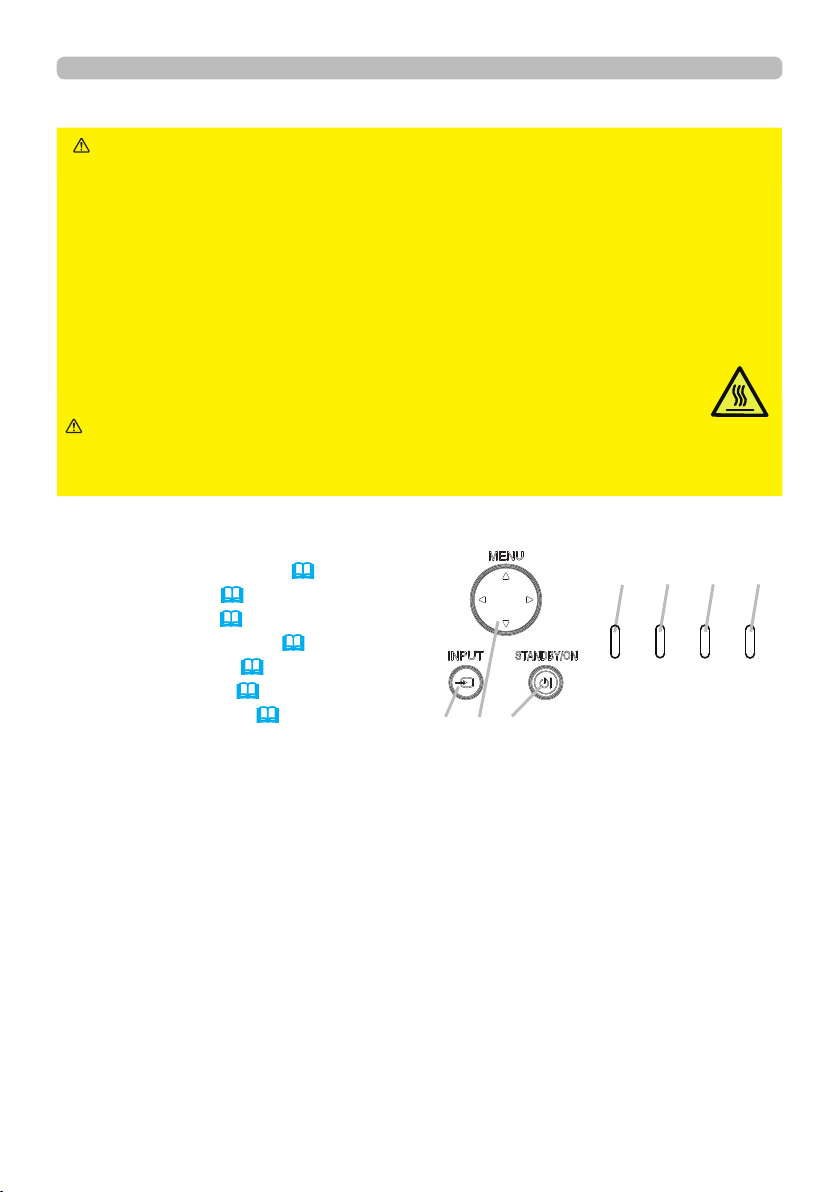

Control panel

(1) STANDBY/ON button (28)

(2) INPUT button (31, 49)

(3) MENU button (49)

(4) SECURITY indicator (102)

(5) LIGHT indicator (109 ~ 112)

(6) TEMP indicator (109 ~ 112)

(7) POWER indicator (28, 109 ~ 112)

Introduction

►Do not open or remove any portion of the product, unless

the manuals direct it.

►Do not subject the projector to unstable conditions.

►Do not apply a shock or pressure to this product. Remove all the attachments

including the power cord and cables, from the projector when carrying the

projector.

►Do not look into the lens and the openings on the projector while the light

source is on since the projection ray may cause a trouble on your eyes.

►Keep any object away from concentrated projection light beam. Blocking the

beam by something causes high temperature and could result in re or smoke.

►Do not touch around the exhaust vents during use or just after use,

since it is too hot.

WARNING

►Do not attach anything onto the lens except the lens

cover of this projector because it could damage the lens, such as melting the

lens.

CAUTION

Part names (continued)

(continued on next page)

(2) (3) (1)

(4) (5) (6) (7)

SECURITY LIGH T TEMP POWER

Ports (12~18)

(1) COMPUTER IN port

(2) HDBaseT port

(3) LAN port

(4) WIRELESS port

(5) HDMI 1 / MHL port

(6) HDMI 2 port

(7) HDMI OUT port

(8) VIDEO port

(9) AUDIO IN1 port

(10) AUDIO IN2 (L, R) ports

(11) AUDIO OUT port

(12) MONITOR OUT port

(13) REMOTE CONTROL IN port

(14) REMOTE CONTROL OUT port

(15) CONTROL port

(16) USB-B port

Introduction

Part names (continued)

(6) (16)

(12) (11)

(7) (5) (2)(3) (4)

(10) (8) (13) (14) (15)

(9) (1)

Introduction

Part names (continued)

• Any button marked with “*” is not supported on this projector (108).

• Some keys are unavailable when OSD MESSAGE is set to INHIBIT(71).

NOTE

Back of

the remote control

Remote control

(1) INPUT button (31)

(2) MY BUTTON-1 button (82)

(3) MY BUTTON-2 button (82)

(4) STANDBY/ON button (28)

(5) ASPECT button (32)

(6) PbyP button (45)

(7) AUTO button (35)

(8) FREEZE button (44)

(9) MAGNIFY ON button (43)

(10) FOCUS + button *

(11) ZOOM + button *

(12) VOLUME + button (30)

(13) MAGNIFY OFF

button

(43)

(14) FOCUS - button *

(15) ZOOM - button *

(16) VOLUME - button (30)

(17) PAGE UP button

(18) GEOMETRY button (36)

(19) PICTURE button

(20) MUTE button (30)

(21) PAGE DOWN button

(22) INTERACTIVE button *

(23) NETWORK button

(24) BLANK button (44)

(25) ESC button (26)

(26) MENU button (49)

(27) ENTER button (49)

(28) OSD MSG button (71)

(29) RESET button (49)

(30) ▲/▼/◄/►cursor buttons (49)

(31) Battery cover (25)

(3)

(4)

(7)

(8)

(11)

(12)

(15)

(16)

(20)

(19)

(24)

(23)

(26)

(27)

(29)

(31)

ASPECT

BLANK

ESC MENU

RESET

AUTO

PAGE

DOWN

OFF

FREEZE

ENTER

FOCUS

ZOOM

INPUT

INTERACTIVE

MYBUTTON

PbyP

MAGNIFY

VOLUME

GEOMETRY PICTURE MUTE

NETWORK

OSD MSG

(2)

(1)

(6)

(5)

(10)

(9)

(14)

(13)

(17)

(18)

(21)

(22)

(25)

(30)

(28)

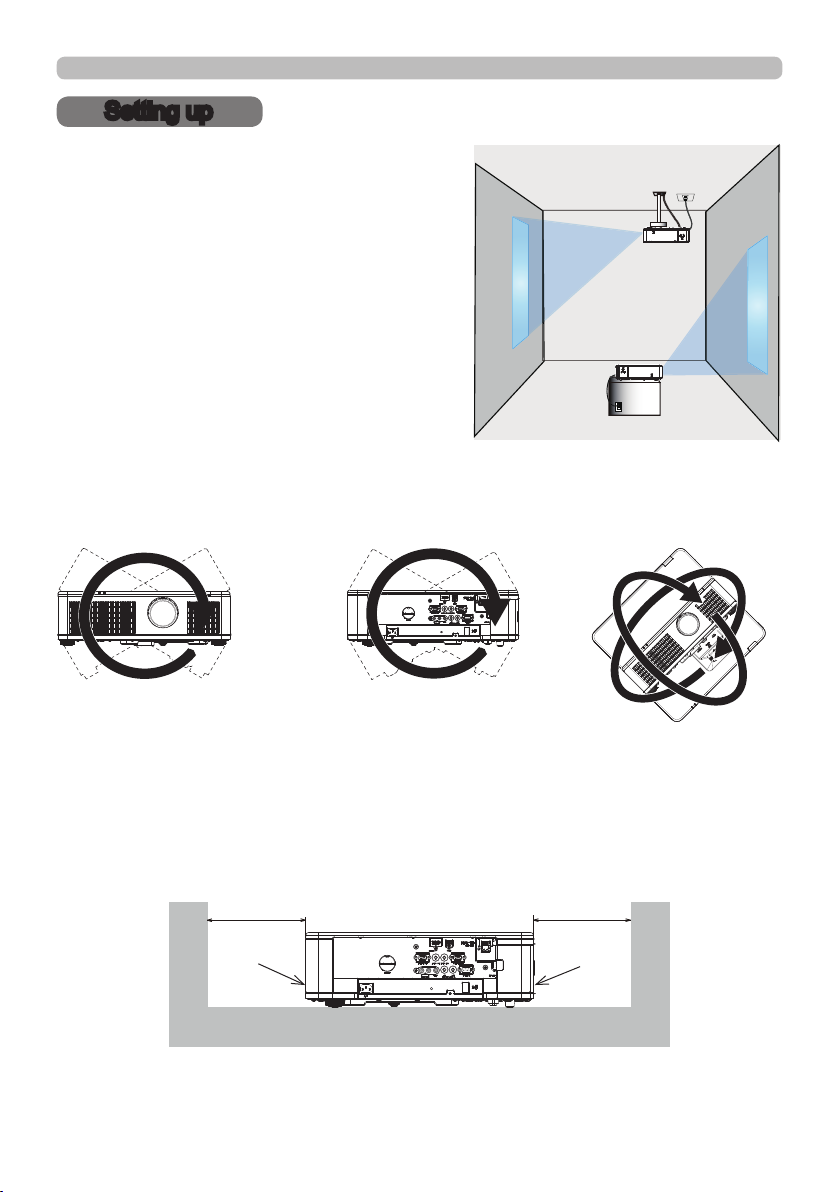

Setting up

Install the projector according to the

environment and manner the projector will be

used in.

This projector will perform in a free tilt angle,

as shown in the  gures below.

For the case of installation in a special state

such as ceiling mount, the speci ed mounting

accessories and service may be required.

Before installing the projector, consult your

dealer about your installation.

Secure a clearance of 50cm or greater between the exhaust vents and walls, and

a clearance of 50cm or greater between the intake vents and walls. Assume that

there is enough clearance in the both sides, and top of the projector in the  gure

below.

50cm or greater

Intake

vents

Exhaust

vents

50cm or greater

Tilt 360°

Horizontal 360° Vertical 360° (combination of

horizontal and vertical)

Setting up

Arrangement

Refer to tables T-1 to T-2 at the back of User’s Manual (concise) as well as the

following to determine the screen size and projection distance. The values shown

in the table are calculated for a full size screen.

Ⓗ × Ⓥ : Screen size

ⓐ:

Projection distance (from the front of the projector unit)

(continued on next page)

Projector top

Projector bottom

NOTE • The installation position and the operating environment such as

temperature, altitude may affect the brightness of the display.

1 0

Setting up

Arrangement (continued)

WARNING

(continued on next page)

►Install the projector where you can access the power

outlet easily. If an abnormality should occur, unplug the projector urgently.

Otherwise it could cause a re or electric shock.

►Do not subject the projector to unstable conditions. If the projector falls

or topples over, it could result in injury or damage to the projector and the

surrounding things. Using a damaged projector could result in a re and an

electric shock.

• Do not place the projector in unstable places, such as an inclined surface,

places subject to vibration, on top of a wobbly table or cart, or a surface that is

smaller than the projector.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise specied in

the manual.

• Do not use any mounting accessories except the accessories specied by the

manufacturer. Read and keep the manuals of the accessories used.

• For special installation such as ceiling mounting, be sure to consult your dealer

beforehand.

• It is possible to install the projector for any direction with specied mounting

accessories. Consult with your dealer about such a special installation.

• DLP chip(s) is/are precision-made parts. In rare cases, pixels may be missing

or lit, but this is not a malfunction.

• Direct high-power laser beam onto the lens surface can damage the DLP

chip(s).

• Remove all the attachments including the power cord and cables, from the

projector when carrying the projector.

►Do not install the pro

jector near thermally conductive or ammable

things. Such things when heated by the projector could result in a re and burns.

• Do not place the projector on a metal stand.

►Do not place the projector where any oils, such as cooking or machine

oil, are used. Oil may harm the product, resulting in malfunction, or falling from

the mounted position.

►Do not place the projector in a place where it may get wet. Getting the

projector wet or inserting liquid into the projector could cause a re and an

electric shock, and damage the projector.

• Do not place the projector near water, such as in a bathroom, kitchen, or

poolside.

• Do not place the projector outdoors or by the window.

• Do not place anything containing liquid near the projector.

►Do not block the intake vents and exhaust vents of the projector. If the

intake vents and exhaust vents of the projector are blocked, the accumulated

inside heat may cause re.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dukane Projecteur

Dukane

Dukane Projector Manuel utilisateur

Dukane

Dukane 7707 Series Manuel utilisateur

Dukane

Dukane ImagePro 8776 Manuel du propriétaire

Dukane

Dukane 8113 Manuel utilisateur

Dukane

Dukane ImagePro 8776-RJ Manuel utilisateur

Dukane

Dukane 8787 Manuel utilisateur

Dukane

Dukane ImagePro 8755G Manuel utilisateur

Dukane

Dukane ImagePro 6860WUSS Manuel utilisateur

Dukane

Dukane ImagePro 8918 Manuel utilisateur

Dukane

Dukane 8965WUSS Manuel utilisateur

Dukane

Dukane 28A8750 Manuel utilisateur

Dukane

Dukane ImagePro 8913-W Manuel utilisateur

Dukane

Dukane 28A9017 Manuel utilisateur

Dukane

Dukane 8113 Manuel utilisateur

Dukane

Dukane ImagePro 8940 Manuel utilisateur

Dukane

Dukane ImagePro 8956H-RJ Manuel d'installation et d'exploitation

Dukane

Dukane ImagePro 8771 Manuel utilisateur

Dukane

Dukane ImagePro 8039B Manuel utilisateur

Dukane

Dukane ImagePro 8065 Manuel utilisateur

Dukane

Dukane ImagePro 8767A Manuel utilisateur

Dukane

Dukane 8917H Manuel utilisateur

Dukane

Dukane ImagePro 8783 Manuel utilisateur

Dukane

Dukane ImagePro 8066 Guide de démarrage rapide

Dukane

Dukane ImagePro 8105H Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
