NEC Display Solutions of America, Inc.

P502WL/P502HL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com P502WL/P502HL Page 1 of 9

Contents

Product Description, Lens Specs, Screen/Aspect Ratio

Notes Pg 1

Distance Charts and Formulas, Ceiling Mount/Desktop Installation Pg 2-3

Lens Shift Adjustable Range Pg 4

Cabinet Dimensions Pg 5

Cabinet Dimensions Pg 6

Ventilation Requirements/Regulatory Stickers Pg 7

Input Panel and Button Panel Pg 8

Control Codes Pg 9

Product Description

Type: 1 chip DMD Reflection Type Dimensions: 18.5”(W) x 5.4”(H) x 14.4”(D)

0.65 in. 2x LVDS DMD Weight: 19.2lbs. / 8.7kg

Resolution: 6650WSS: 1280 x 900 (16:10) Brightness: 5000 Lumens

6650HDSS: 1920 x 0800 (16:9)

Fan Noise: 39 dB / 33dB @ 1 meter

Power Consumption: 464W (max) BTU’s: 1583 BTU/hour

Network Ready, integrated wired networking

Power: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

Throw Ratio: 6650WSS: 1.3 –2.2:1 (for 100” diagonal) Focal Length: 18.2mm –31.1mm

6650WSS: 1.24 –2.1:1 (for 100” diagonal)

Offset Angle: 4.8° - 8.0° (for 100” diagonal) F/#: 2.0

Screen Sizes: 30” - 300” diagonal

Manual Focus/Manual Zoom

Screen/Aspect Ratio

4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed scaling

technology. Menu selections have settings for each screen type and aspect ratio control for each source type.

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table..

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.

www.dukaneav.com 6650WSS/6650HDSS Installation Guide-00 Page 1 of 9

6650WSS/6650HDSS Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

P502WL/P502HL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com P502WL/P502HL Page 2 of 9

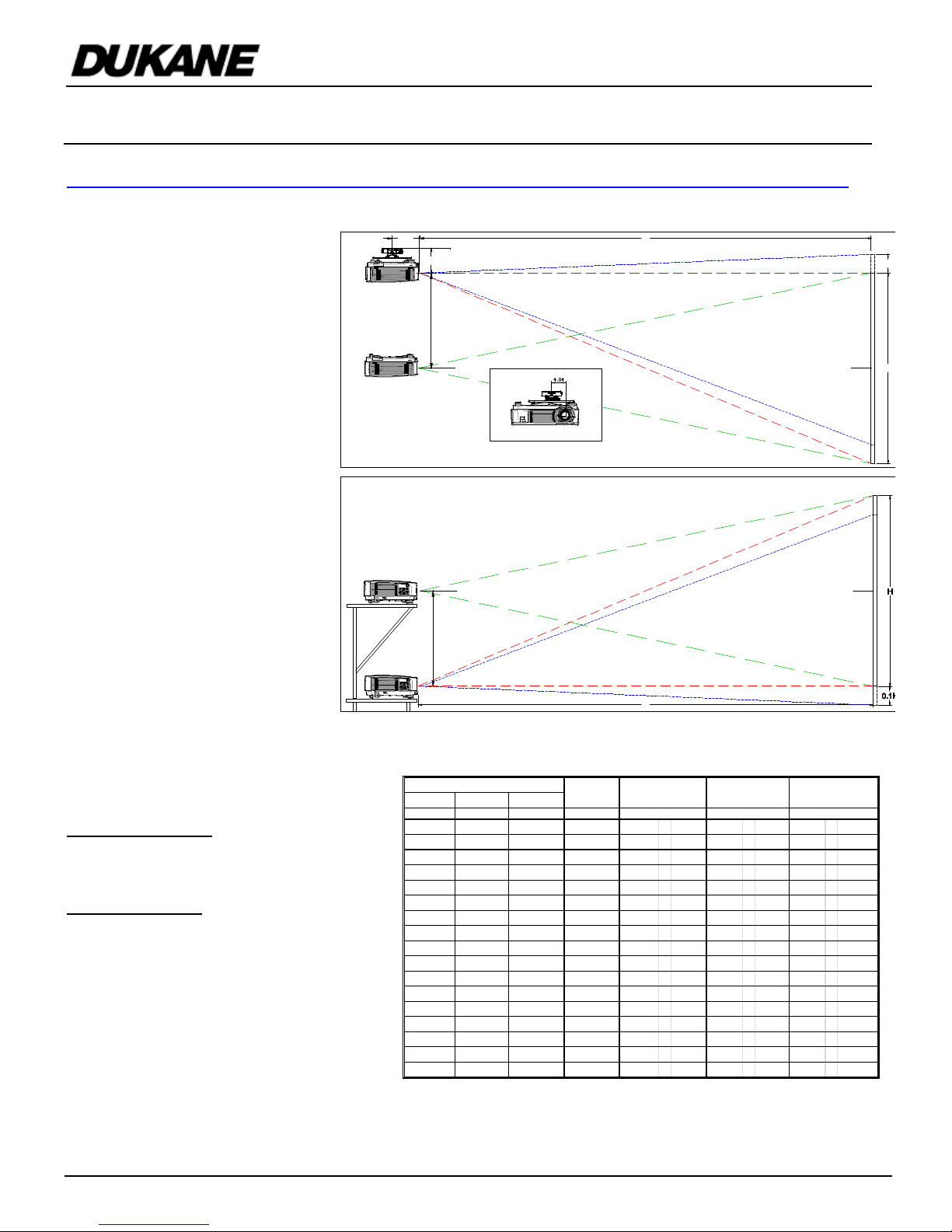

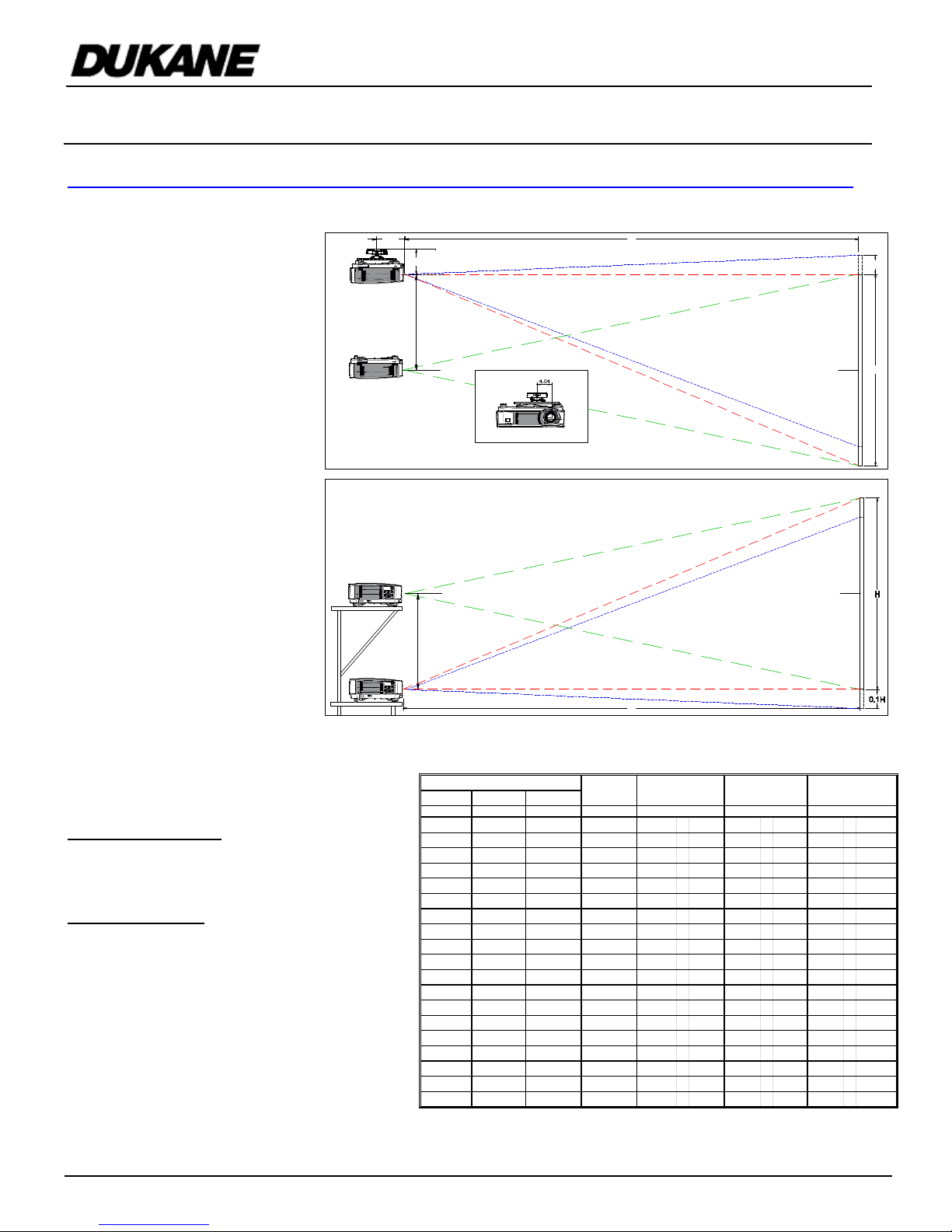

Diagrams and Distance Charts

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.

Distances are in inches. For millimeters multiply by 25.4.

Ceiling Mounted

Desktop

Distance Chart for popular 16:10 screens

16:10 Screen Formulas:

W = H x 16/10

H = W x 10/16

Screen Diagonal = W x 18.868/16

Projection Formulas:

B= 0.369W

C(wide) = 1.309W –1.457

C (tele) = 2.248W –1.404

D (max) = -0.056W

D (min) = 0.313W

α(wide) = tanˉ¹ (B/C(wide))

α(tele) = tanˉ¹ (B/C(tele))

Note: For screen sizes not indicated on the projection

tables, use the formulas on page 1.

Diagonal Width(W) Height (H)

inches inches inches inches

57 48 30 18 61 -107 -3 -15 16.1 - 9.4

66 56 35 21 72 -124 -3 -18 16.0 - 9.4

68 58 36 21 74 -128 -3 -18 16.0 - 9.4

75 64 40 24 82 -142 -4 -20 16.0 - 9.4

79 67 42 25 87 -150 -4 -21 16.0 - 9.4

85 72 45 27 93 -160 -4 -23 16.0 - 9.4

92 78 49 29 101 -175 -4 -25 16.0 - 9.4

98 83 52 31 107 -186 -5 -26 15.9 - 9.4

102 86 54 32 112 -193 -5 -27 15.9 - 9.4

111 94 59 35 122 -211 -5 -30 15.9 - 9.4

113 96 60 35 124 -214 -5 -30 15.9 - 9.4

123 104 65 38 135 -232 -6 -33 15.9 - 9.4

125 106 66 39 137 -236 -6 -33 15.9 - 9.4

147 125 78 46 162 -279 -7 -39 15.9 - 9.4

149 126 79 47 164 -283 -7 -40 15.9 - 9.4

213 181 113 67 235 -405 -10 - 57 15.8 - 9.4

255 216 135 80 281 -484 -12 - 68 15.8 - 9.3

270 229 143 84 298 -513 -13 - 72 16 -9

300 254 159 94 332 -570 -14 - 80 16 -9

degrees

max - min

w ide - tele

Screen Size (16:10)

inches

w ide - tele

inches

Shif t Range

Scr een Cent er H

0.1H

Shif t Range

Scr een Cent er

6.92

Lens Offset F rom Mount Pipe

7.48

www.dukaneav.com 6650WSS/6650HDSS Installation Guide-00 Page 2 of 9

Dukane AV Division

6650WSS/6650HDSS Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

P502WL/P502HL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com P502WL/P502HL Page 3 of 9

Diagrams and Distance Charts

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.

Distances are in inches. For millimeters multiply by 25.4.

Ceiling Mounted

Desktop

Distance Chart for popular 16:9 screens

16:9 Screen Formulas:

W = H x 16/9

H = W x 9/16

Screen Diagonal = W x 18.358/16

Projection Formulas:

B= 0.369W

C(wide) = 1.247W –1.426

C (tele) = 2.142W –1.374

D (max) = -0.068W

D (min) = 0.281W

α (wide) = tanˉ¹ (B/C(wide))

α(tele) = tanˉ¹ (B/C(tele))

Note: For screen sizes not indicated on the projection

tables, use the formulas on page 1.

Diagonal Width(W) Height (H)

inches inches inches inches

61 53 30 20 63 -110 4-15 17.5 - 10.2

71 62 35 23 74 -129 4-17 17.4 - 10.1

73 64 36 24 76 -133 4-18 17.4 - 10.1

82 71 40 26 85 -148 5-20 17.3 - 10.1

86 75 42 28 89 -156 5-21 17.3 - 10.1

92 80 45 30 96 -167 5-22 17.2 - 10.1

100 87 49 32 104 -182 6-24 17.2 - 10.1

106 92 52 34 111 -194 6-26 17.2 - 10.0

110 96 54 36 115 -201 7-27 17.2 - 10.0

120 105 59 39 126 -220 7-29 17.1 - 10.0

122 107 60 40 128 -224 7-30 17.1 - 10.0

133 116 65 43 139 -243 8-32 17.1 - 10.0

135 117 66 44 142 -247 8-33 17.1 - 10.0

159 139 78 51 168 -292 9-39 17.0 - 10.0

161 140 79 52 170 -296 10 -39 17.0 - 10.0

230 201 113 75 244 -425 14 -56 17.0 - 9.9

275 240 135 89 293 -508 16 -67 16.9 - 9.9

Screen Size (16:9)

inches

w ide - tele

inches

degrees

max - min

w ide - tele

Shif t Range

Scr een Cent er

0.1H

Shif t Range

Scr een Cent er

6.92

Lens Offset F rom Mount Pipe

7.48

www.dukaneav.com 6650WSS/6650HDSS Installation Guide-00 Page 3 of 9

6650WSS/6650HDSS Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

P502WL/P502HL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com P502WL/P502HL Page 4 of 9

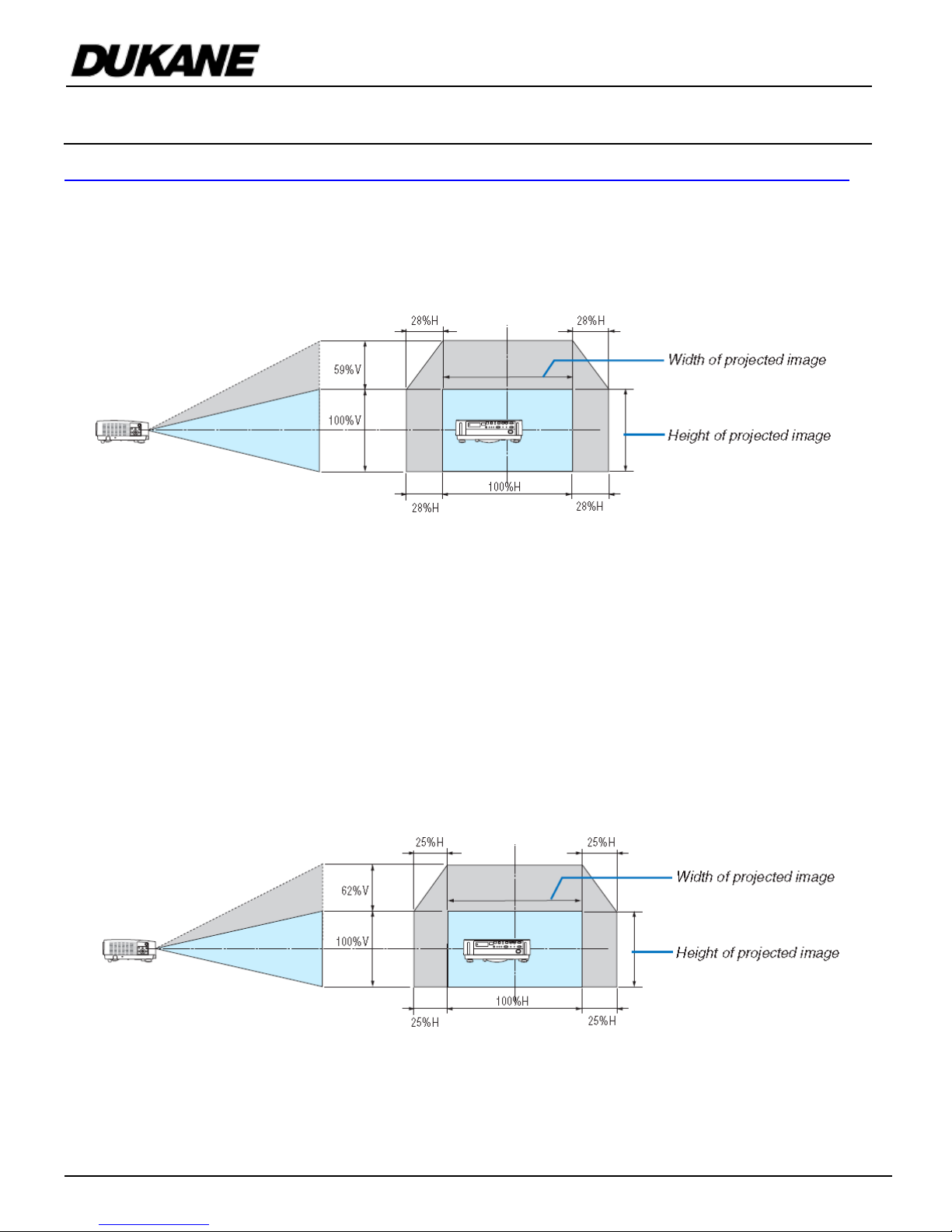

Lens Shift Adjustable Range

Lens Shift Range for Desktop and Ceiling Mount Application

The diagram below shows the location of the image position in the lens for the 6650WSS.The 6650WSS has a maximum horizontal

lens shift range of +/- 28% and a maximum vertical lens shift of + 59%. The lens can be shifted within the shaded area as shown

using the normal projection position as a starting point.

Lens Shift Range for Desktop and Ceiling Mount Application

The diagram below shows the location of the image position in the lens for the 6650HDSS. The 6650HDSS has a maximum horizontal

lens shift range of +/- 25% and a maximum vertical lens shift of + 62%. The lens can be shifted within the shaded area as shown

using the normal projection position as a starting point.

Note: Projector is set out of the box at center position, which is how it is depicted above.

(H: width of projected image, V: height of projected image)

www.dukaneav.com 6650WSS/6650HDSS Installation Guide-00 Page 4 of 9

6650WSS/6650HDSS Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

P502WL/P502HL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com P502WL/P502HL Page 5 of 9

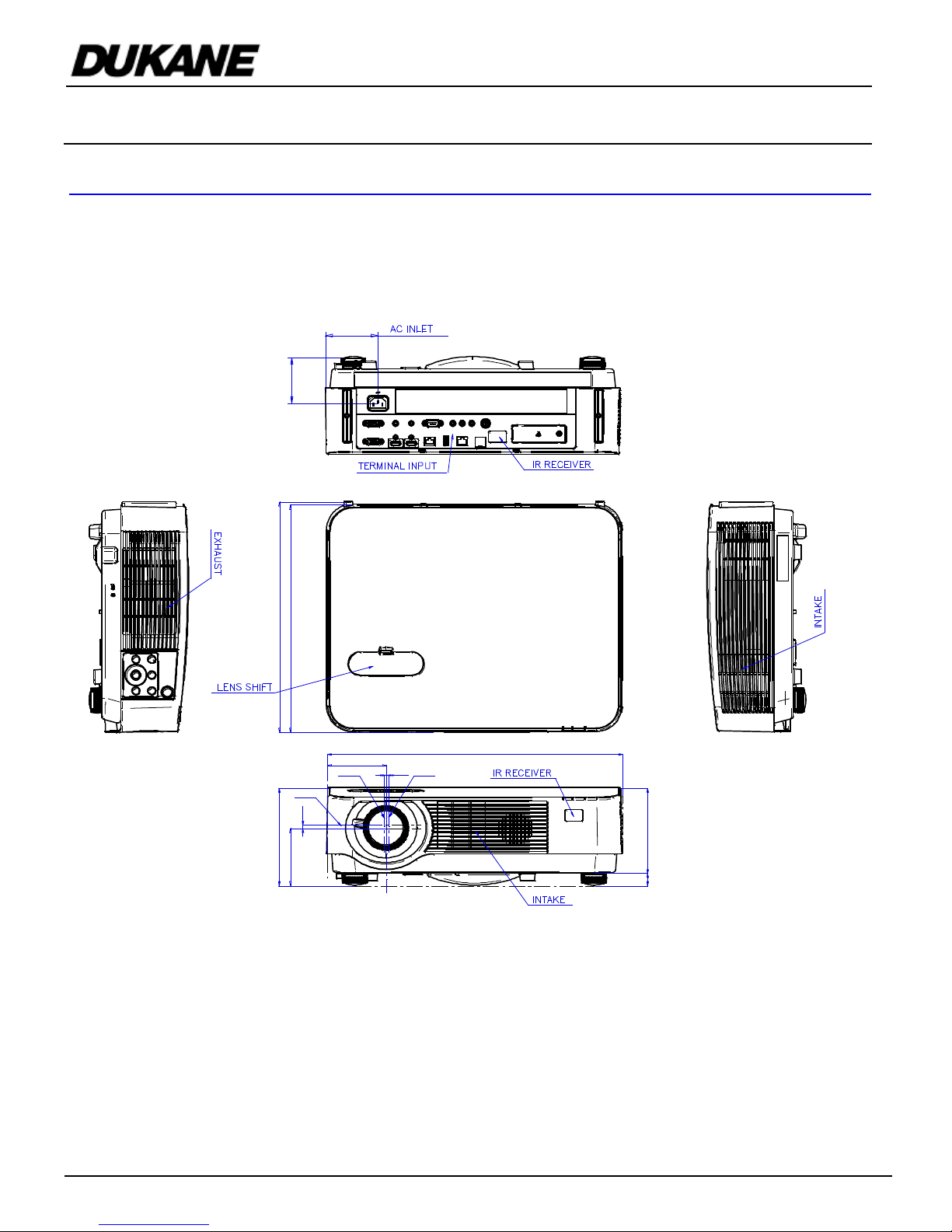

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the 6650WSS_6650HDSS.

Dimensions are in inches. For millimeters multiply by 25.4.

3.6

6.2

0.8

3.7

0.20.2

0.2

18.5

5.4

Lens shi f tLens shi f t

Lens shi f t

14.4

14.6

1.63

1.44

www.dukaneav.com 6650WSS/6650HDSS Installation Guide-00 Page 5 of 9

6650WSS/6650HDSS Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

P502WL/P502HL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com P502WL/P502HL Page 6 of 9

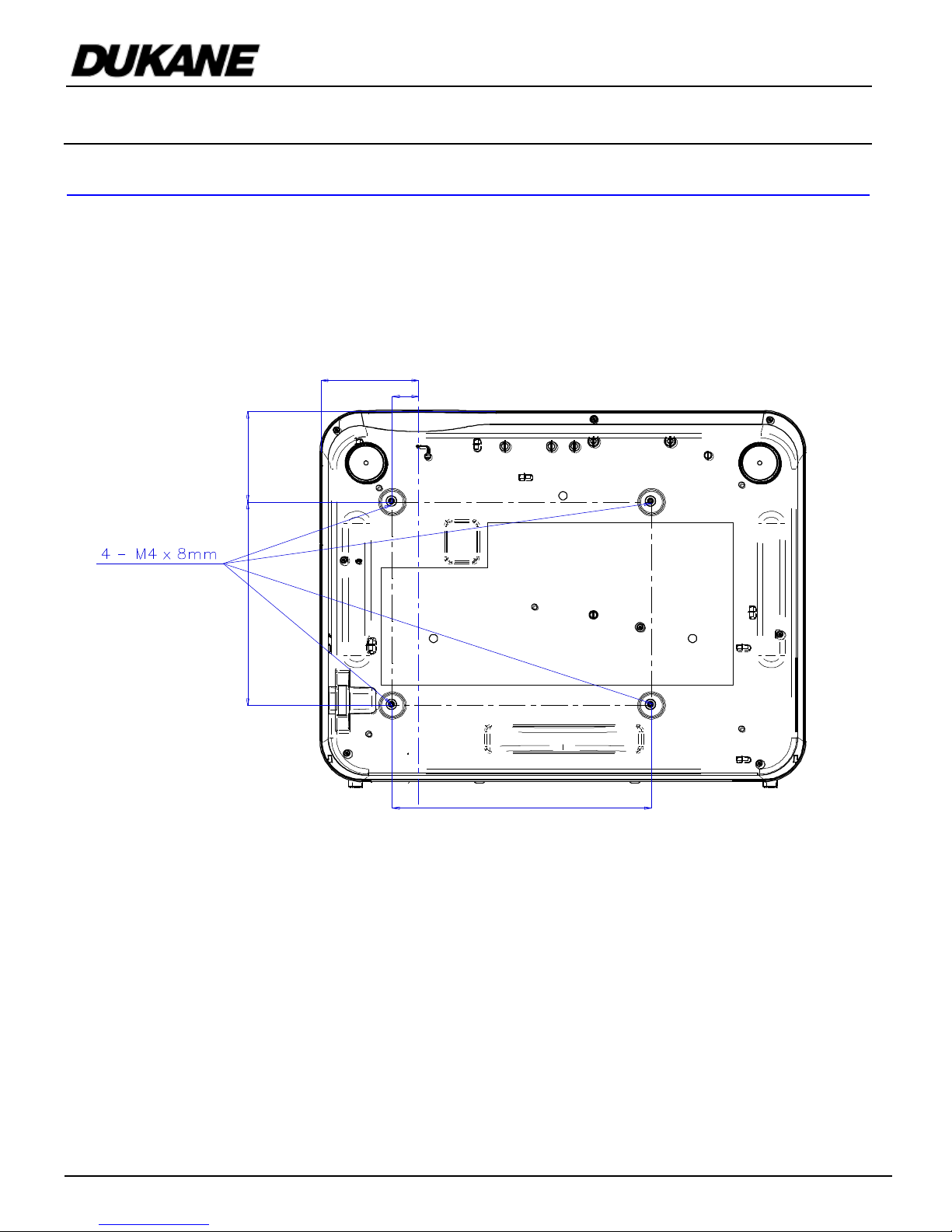

Cabinet Dimensions

3.7

3.57.9

0.984

9.8

www.dukaneav.com 6650WSS/6650HDSS Installation Guide-00 Page 6 of 9

6650WSS/6650HDSS Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

P502WL/P502HL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com P502WL/P502HL Page 7 of 9

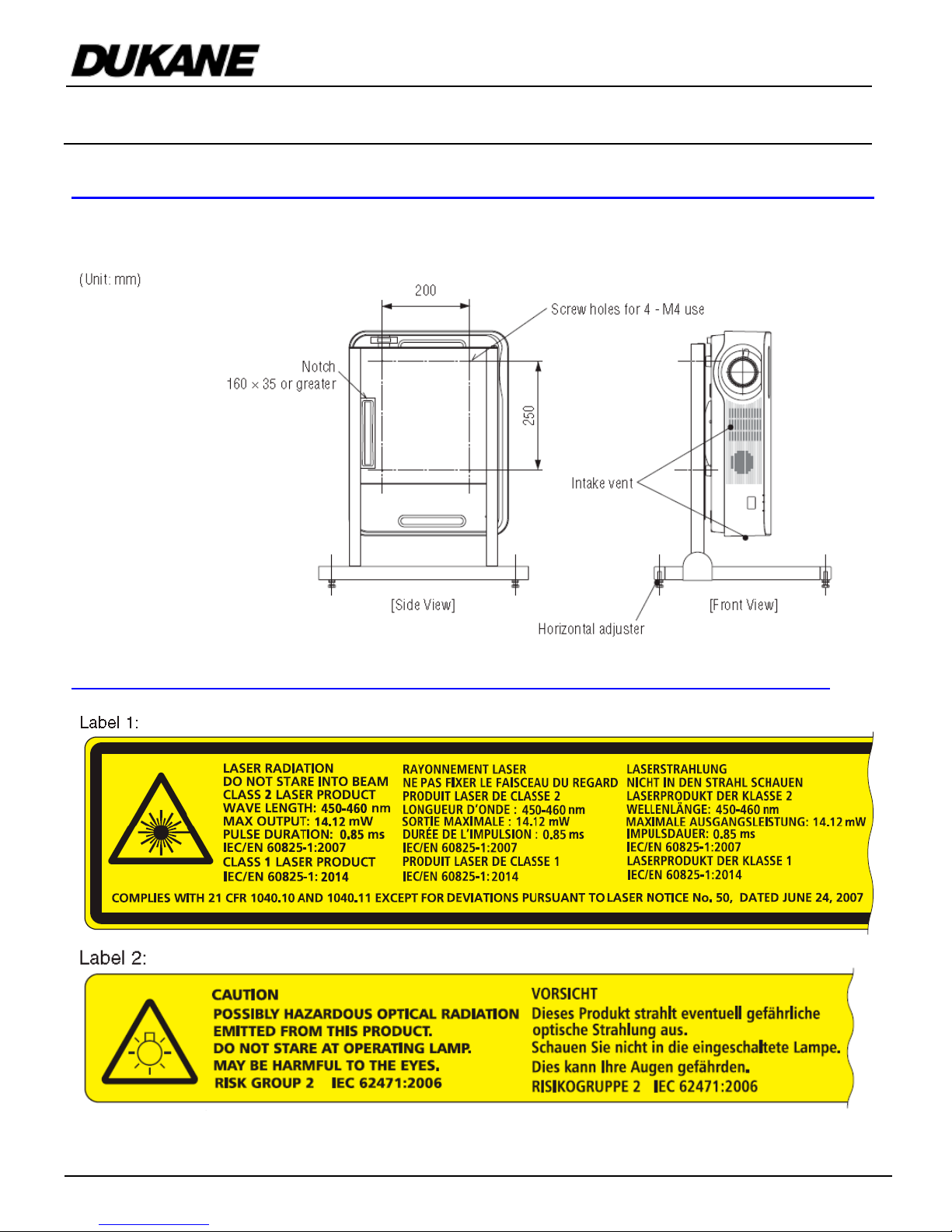

Ventilation Requirements

If installed on a portrait stand :

Regulatory Stickers

www.dukaneav.com 6650WSS/6650HDSS Installation Guide-00 Page 7 of 9

6650WSS/6650HDSS Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

Dukane

NEC Display Solutions of America, Inc.

P502WL/P502HL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com P502WL/P502HL Page 8 of 9

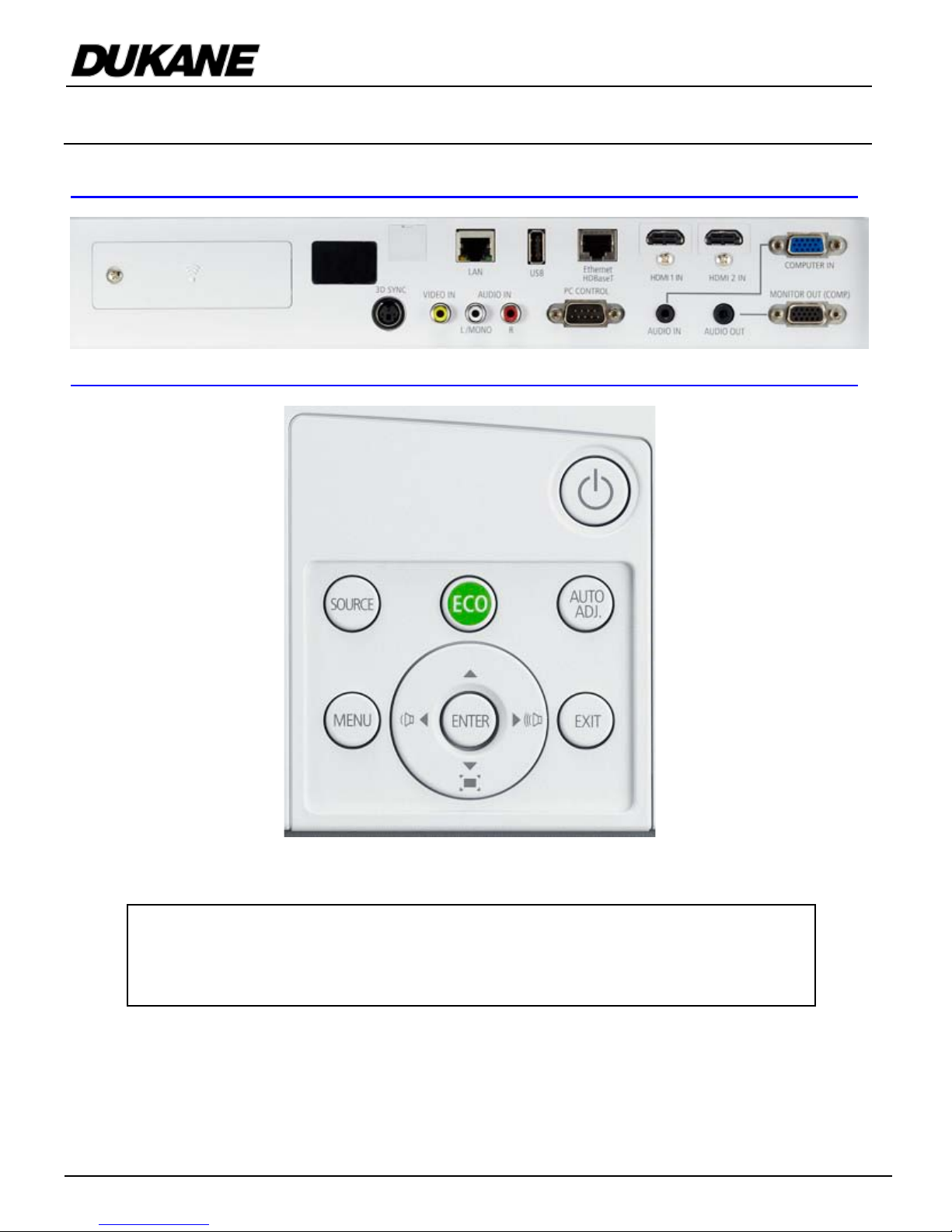

Input Panel

Control Panel

Note: The Dukane models described in this document are manufactured by NEC

and use the same rmware, software programs, control code, and accessory

parts. The equivalent Dukane to NEC models are 6650WSS (NP-502WL) AND

6650HDSS ( NP-502HL).

www.dukaneav.com 6650WSS/6650HDSS Installation Guide-00 Page 8 of 9

6650WSS/6650HDSS Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

P502WL/P502HL Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com P502WL/P502HL Page 9 of 9

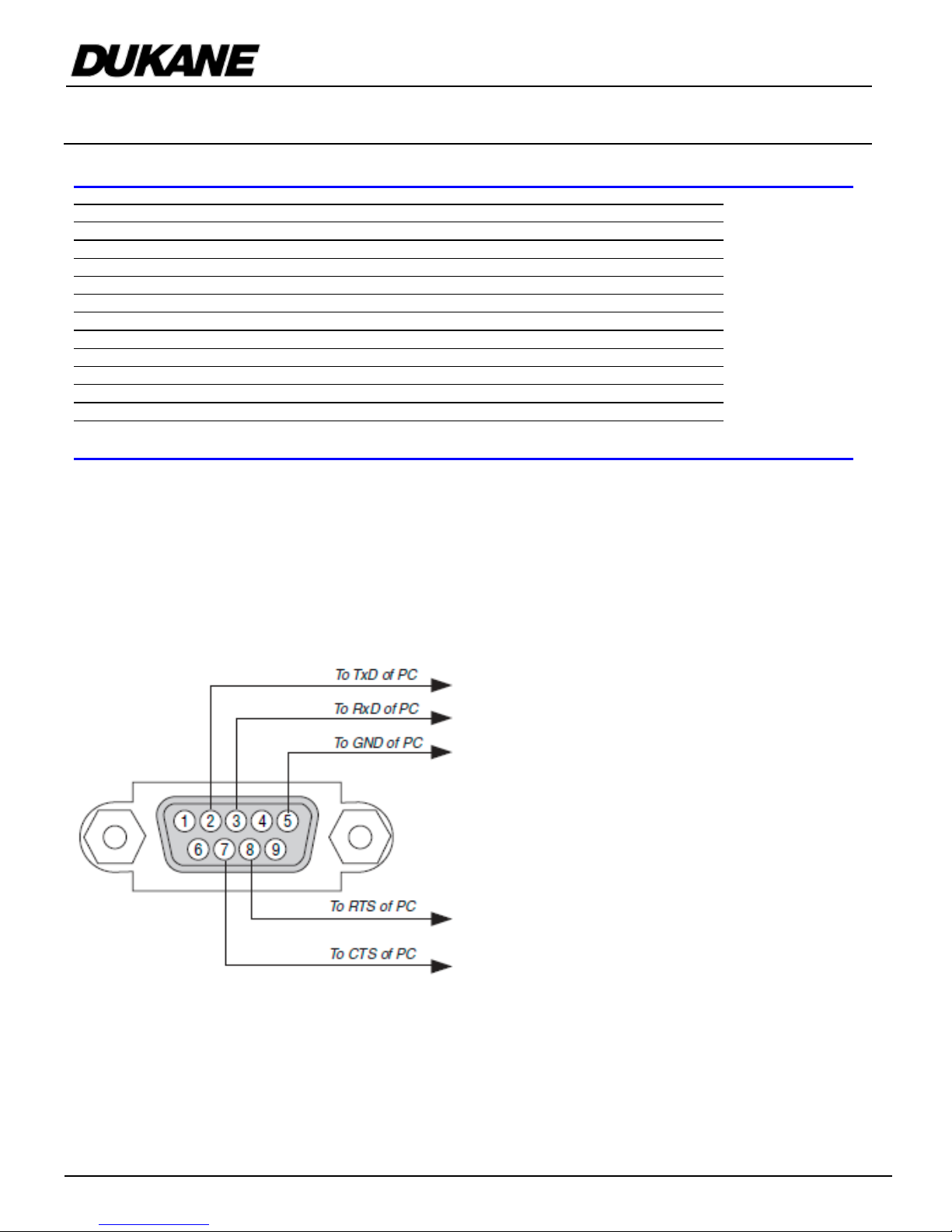

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT HDMI 1 02H 03H 00H 00H 02H 01H 1AH 22H

INPUT SELECT HDMI 2 02H 03H 00H 00H 02H 01H 1BH 23H

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT APPS 02H 03H 00H 00H 02H 01H 20H 28H

INPUT SELECT HDBaseT 02H 03H 00H 00H 02H 01H 22H 2AH

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)

Data Length: 8 bits

Parity: No Parity

Stop Bit: One bit

X on/off: None

Communications: Full duplex

PC Control Connector (D-Sub 9P)

Note 1 : Pins 1, 4, 6, and 9 are used inside the projector.

Note 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.

Note 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

www.dukaneav.com 6650WSS/6650HDSS Installation Guide-00 Page 9 of 9

6650WSS/6650HDSS Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

Dukane

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dukane Projecteur

Dukane

Dukane 8104WB Manuel utilisateur

Dukane

Dukane 28A7250 ImagePro Manuel utilisateur

Dukane

Dukane ImagePro 8053 Manuel utilisateur

Dukane

Dukane 8755L-RJ Manuel utilisateur

Dukane

Dukane 8787 Manuel utilisateur

Dukane

Dukane 8789H Manuel utilisateur

Dukane

Dukane 8137W Manuel utilisateur

Dukane

Dukane ImagePro 8782 Manuel utilisateur

Dukane

Dukane ImagePro 8049B Manuel utilisateur

Dukane

Dukane ImagePro 8784 Manuel utilisateur

Dukane

Dukane ImagePro 8808 Manuel utilisateur

Dukane

Dukane ImagePro 8918 Manuel utilisateur

Dukane

Dukane 8958H-RJ Manuel utilisateur

Dukane

Dukane ImagePro 8769 Manuel utilisateur

Dukane

Dukane 8786 Manuel utilisateur

Dukane

Dukane 8793H Manuel utilisateur

Dukane

Dukane 8960WUSS Manuel utilisateur

Dukane

Dukane 8755N Manuel utilisateur

Dukane

Dukane ImagePro 8942 Manuel utilisateur

Dukane

Dukane ImagePro 8951P Manuel utilisateur

Dukane

Dukane ImagePro 8753 Manuel utilisateur

Dukane

Dukane 28A8052 Manuel utilisateur

Dukane

Dukane 6640W Manuel utilisateur

Dukane

Dukane ImagePro 8751 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
