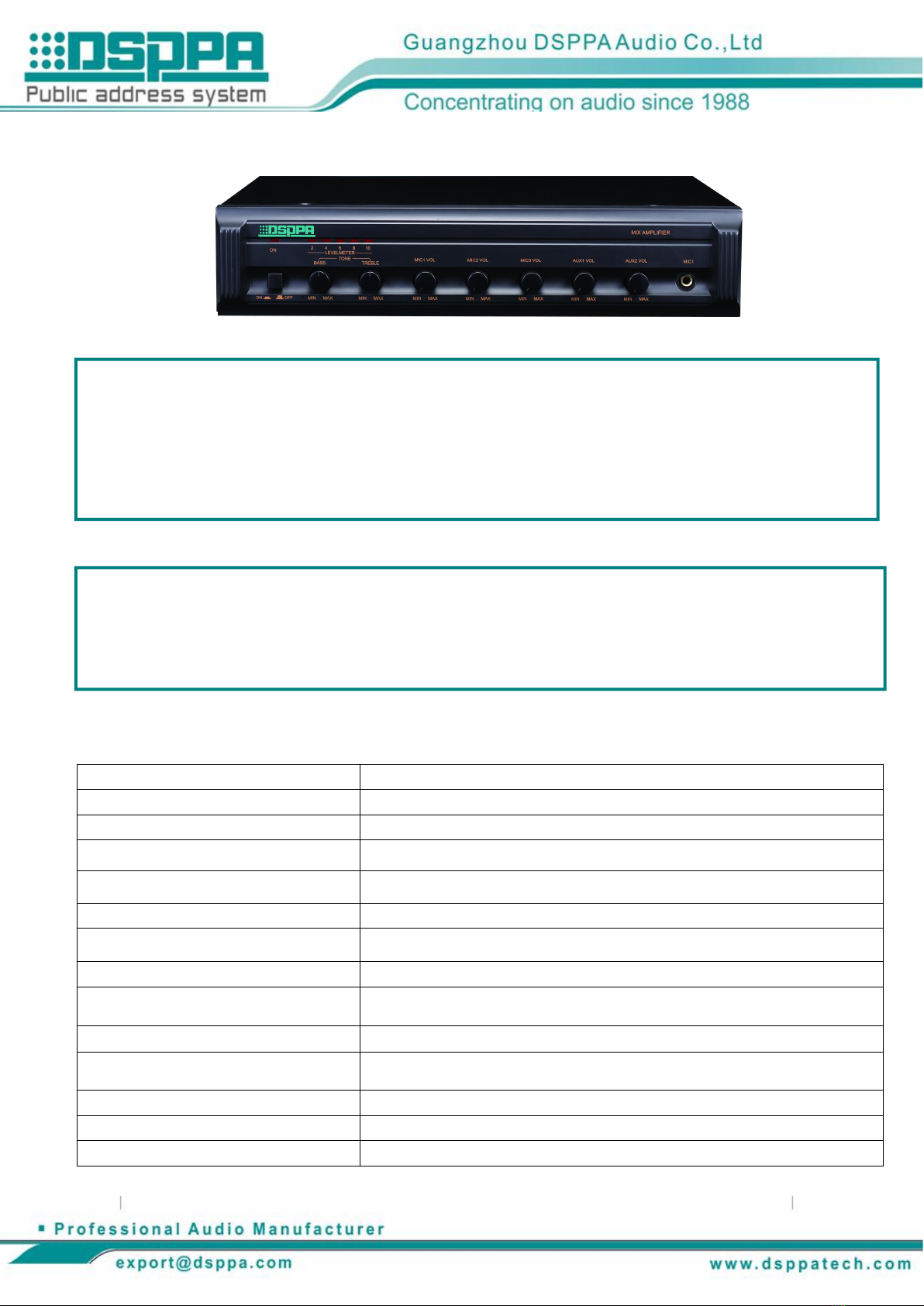

DSPPA MP600PIII Manuel utilisateur

Model

MP600PIII

Rated output

250W

Speaker output

70V, 100V & 4-16 Ω,

Input sensitivity

Mic2,3 : 600Ω, ≤3mV, unbalanced ;AUX1,2,MIC1 : 10kΩ, ≤300mV

Frequency response

50Hz -16kHz (±3dB)

Distortion

< 1% at 1kHz , 1/3rated output voltage

The ratio of signal to noise

Mic1,2 and 3 : >75dB ;AUX1 and 2 : > 80dB

Protection

AC fuse; DC voltage; overload; short-circuit.

Power requirements

AC 220V-240V/50Hz-60Hz

Power consumption

500W

Outer Packing Size (mm)

(L×W×H)520×430×195

Unit Size (mm)

(L×W×H)420×338×88

Gross weight

10.3kg

Net weight

8.5kg

Description

MP600PIII 250W 3 Mic & 2 AUX Mixing Amplifier

Specification

70V, 100V & 4-16 Ω, rated power 250W

3 microphone inputs, Mic 1 with priority and muting function

2 aux line input &1 line output for additional mixer or amplifier link

Individual volume control for each microphone and line input

Bass and treble control.

Features

MP600PIII mixer amplifier is rated at 250W. It has 3 microphone inputs and 2 aux inputs, and Mic 1 is

provided with priority and muting function. Bass and treble controls and master volume control are

provided. Complete protection includes short circuit and thermal protection, current limiter and

overloading.

This amplifier can be applied to different cases, such as supermarket, classroom, etc.

FRONT PANEL2

POW ER

ON OFF

2 4 6 8 10

OUTPUT

MIX AMPLIFIER

MIC1

MIN

MAX

MIN

MAX

TONE

BASS

TREBLE

AUX1

AUX2

MIC2

MIC3

MIC1

MP-1000PⅡ

1 LED power indicator 6 Mic volume control

For main power. Adjust microphone volume.10

2 LED level meter 7 AUX volume control

Indicate output level. Adjust AUX input volume.12

3 Power switch 8 Mic 1 input jack13

For main power. Connect to microphone of unbalanced14

4 Bass control 30～600Ωwith 1/4″phone plug.

Adjust bass response. The muting function is activated

5 Treble control while the signal is sent to Mic 1.17

Adjust treble response.

Note:19

When all the five elements of the LED level meter remain lit, it indicates that the sound is20

distorted. In such a case, adjust each volume controlling button, until LED element 4 (+8dB)

and LED element 5 (+10dB) shall flash.22

REAR PANEL

COM

4-16Ω

70V

100V

CAITION !

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AC 220V

50Hz

MIC2

MIC3

AUX1

AUX2

OUT

-54dB

10KΩ

-54dB

10KΩ

INPUT

MUTE

1 AC fuse 4 AUX 1 input & AUX 2 input31

Prevent the excessive AC current flow. Connect to auxiliary source equipment.32

2 AC power connector 5 AUX output

Connect to AC power source. Connect to amplifier.34

3 Mic 2 input & Mic 3 input 6 Output terminals

Connect to the microphones at unbalanced Connect to speakers.36

30～600 Ωwith 1/4″phone plug. 7 Mute control37

The signals from Mic 2 and Mic 3 will Adjust muting function.38

be muted by the signal from Mic1.39

Note:

When connecting to speakers, use one pair of speaker output terminals only.42

Connections

POW ER

ON OFF

2 4 6 8 10

OUTPUT

MIX AMPLIFIER

MIC1

MIN

MAX

MIN

MAX

TONE

BASS

TREBLE

AUX1

AUX2

MIC2

MIC3

MIC1

MP-1000PⅡ

PRECAUTION OF INSTALLATIOM

1. Do not block ventilation holes.

2. The amplifier should not be placed in any of the areas:

1) with poor ventilation;

2) exposed to direct sunlight;

3) with high ambient temperature or adjacent to

heat-generating

PRIORITY MIC

or Chairman’s MIC

100V COM AUX OUT AUX2 AUX1 MIC3 MIC2

DECK

TUNER

equipment;

4) with high humidity or heavy dust;

5) susceptible to vibration.

3. Make sure the power outlet conforms to the plug of the unit.

4. Do not use this unit if the electrical power cord is frayed or

broken.

Always operate the unit with the AC ground wire connected to

the

electrical system’s ground.

5. If an alarm rings after the power has been on and the signal

has been

fed, there must be an of output short-circuit trouble. In a such

case,

please turn the power off. Do not turn on the power again, until

the

trouble shall be resolved.
