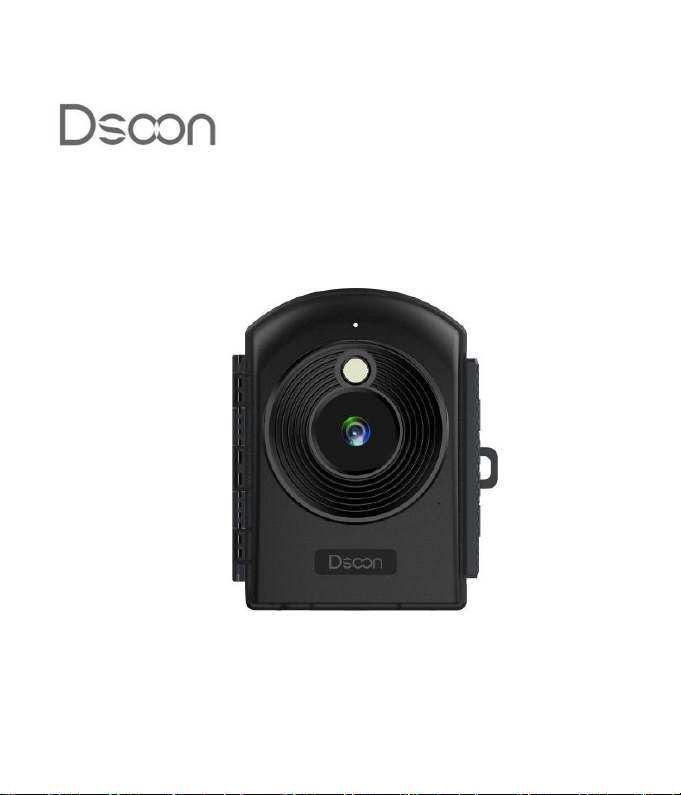

Time-lapse Camera User Manual
TL2100
1
IMPORTANT NOTE
Congratulations on your purchase of one of the best trail cameras on the
market! We appreciate your business and want to earn your trust. Please refer
to the instructions in this manual to ensure that you are completely satisfied
with this product.
Dsoon Customer Service:
Email: Dsoonservice@hotmail.com
Facebook Messenger WhatsApp
Web：www.dsoonhunt.com
2
Contents
Product Overview.................................................................. 3
Button Function Description..................................................4
Specification.......................................................................... 4
Power Supply.........................................................................5
Inserting Storage Media.........................................................6
Basic Operation......................................................................7
About the Install.................................................................. 13
Download Files to the Computer.........................................15
Notes for Using....................................................................15
3
Product Overview
1. 1.Display Screen
2. 2.Up Button / Manual Time-lapse
Button
3. 3.Mode/Right Button
4. 4.Speaker
5. 5.OK Button
6. 6.Battery Compartment
7. 7.DC Jack
8. 8.Down Button / Selfie Button
9. 9.Menu Button
10. 10.Power Button/ Time-lapse Button
11. 11.USB Jack
12. 12.Micro SD Card Slot
13. 13.Fill Light
14. 14.Lens
15. 15.Verschlussklammern
16. 16.Brand
17. 17.Green Status Indicator
4
Button Function Description
Button
Function
Power Button /
Time-lapse Button
Long press to turn on/off;
After power on, press the button to enter the
shooting state
MENU Button
Enter/Exit menu
MODE Button / Right
Button
Switch between camera mode/video mode/playback
mode; Move the cursor to the right when setting the
time
OK Button
Shooting/OK confirmation
Up Button / MTL
Button
Upward to scan all menu and options/Manual
time-lapse photography shortcut
Down Button / Selfie
Button
Downward to scan all menu and options/Time-lapse
selfie, press the OK button to start shooting
Specification
LCD Screen
2.4" TFT LCD
Lens
Starlight lens angle of view: 110°
5
Photosensitive Chip
Starlight 2 megapixels, 1/2.7"
Resolution
1920*1080 / 1280*720
Shooting Distance
60CM~infinity
Supplementary Light
A single 120°2W white LED will enable the
supplementary light only when the user needs
completely dark
Customize the
Shooting Cycle
Set the shooting time flexibly according to the week
and time
Loop Shooting
ON/OFF; (When ON, the oldest document will be
deleted when the card is full)
Exposure
Compensation
+3.0 EV ~-3.0 EV in increments of 0.5EV
File Format
photos: JPG, video: AVI
Power Source
12 AA batteries
Storage Media
TF card,(up to 512GB，Class 10 or above)
PC Interface
Micro USB 2.0
Installation Method
Brackets, straps, ropes
Power Supply
Please install batteries before using the camera.
♦ Open the time-lapse camera case and remove the battery cover. Install 12
6
pieces of 1.5V AA batteries. Please make sure the electrode is correct.
♦ If the camera is in low power, please connect the camera to a power adapter
(not provide) for power supply. Voltage specifications (6V, 1.0A)
Inserting Storage Media
Before recording, please insert a TF card into the camera and format the
memory card first.
1.Do not insert the memory card forcibly.
2.If the capacity of the memory card is full, the camera will stop recording
automatically and the LED lights off. If you choose to turn on Endless
Capture in the camera's menu, when the memory card is full, it will
automatically overwrite the camera's previous captures.
7
3.Press the edge of the TF card gently to pop up the TF card.
Basic Operation
1.Adjustment Mode
2.Press the Mode Button can change the 3 modes
Photo Mode
For taking still photos.
Video Mode
For recording video.
Playback Mode
For playing the recorded files.
Take Photos
Press OK Button to take a picture.
Record Video
Press OK Button to record a video clip or to stop
recording.
Playback Files
1.Press Up/Down Button to scan photos or video.
2.Press OK Button to play the video or stop.
3.Press Menu Button:
Delete Current File：Options：[Cancel]/[Delete].
Delete all Files：Options：[Cancel]/[Delete].
Activate Slide Show ：Playback the photos in
slideway. Each photo display 3 seconds. Press OK
Button to stop playing.
Write Protect ：It can avoid accident deletion.
