DSC PC5964 Manuel utilisateur

This instruction sheet shall be used in conjunction with the associated Audio Module Installation Manual.

Mounting Instructions

1. If required, remove the front cover from the backplate as follows:

a. Insert a small slotted screw driver in one of the slots indicated in Fig 1.

b. Gently pry the cover from the backplate.

c. Repeat this operation on the remaining slot. Lift cover free of backplate.

2. Determine the desired location and mounting method (A, B, C or D surface-mount)

3. (a) For A, B or C (Fig. 2) mounting methods, position the backplate over the electrical box

ensuring free access to wiring. Then mark the screw locations indicated for the chosen

mounting method.

(b) For D mounting (surface mount) remove the wiring access flange on the side of the back-

plate. Position the backplate in the desired location then mark the screw locations at the 4

corners of the backplate.

CAUTION!: DSC recommends the use of wall anchors when mounting directly onto a wall.

4. Route wiring as required.

5. Secure backplate to wall using the appropriate hardware.

6. Wire unit in accordance with the associated Audio Module instructions.

7. Place front cover over backplate. Gently press until cover locks in place with an audible click.

8. Power up system then verify operation.

PC5964 Audio Station Mounting Instructions

2. Push down to open

3. Repeat steps 1

and 2 for this side.

1. Insert

screwdriver

Figure 1

A- Single/Double

Gang Box

B- Octagonal Box

C- European Wall/

Ceiling Box

Wiring Flange

Figure 2

www.dsc.com • 1-800-387-3630 (Canada, US), 905-760-3036

Printed in Canada

29007411R002

This instruction sheet shall be used in conjunction with the associated Audio Module Installation Manual.

Mounting Instructions

1. If required, remove the front cover from the backplate as follows:

a. Insert a small slotted screw driver in one of the slots indicated in Fig 1.

b. Gently pry the cover from the backplate.

c. Repeat this operation on the remaining slot. Lift cover free of backplate.

2. Determine the desired location and mounting method (A, B, C or D surface-mount)

3. (a) For A, B or C (Fig. 2) mounting methods, position the backplate over the electrical box

ensuring free access to wiring. Then mark the screw locations indicated for the chosen

mounting method.

(b) For D mounting (surface mount) remove the wiring access flange on the side of the back-

plate. Position the backplate in the desired location then mark the screw locations at the 4

corners of the backplate.

CAUTION!: DSC recommends the use of wall anchors when mounting directly onto a wall.

4. Route wiring as required.

5. Secure backplate to wall using the appropriate hardware.

6. Wire unit in accordance with the associated Audio Module instructions.

7. Place front cover over backplate. Gently press until cover locks in place with an audible click.

8. Power up system then verify operation.

PC5964 Audio Station Mounting Instructions

2. Push down to open

3. Repeat steps 1

and 2 for this side.

1. Insert

screwdriver

Figure 1

A- Single/Double

Gang Box

B- Octagonal Box

C- European Wall/

Ceiling Box

Wiring Flange

Figure 2

www.dsc.com • 1-800-387-3630 (Canada, US), 905-760-3036

Printed in Canada

29007411R002

Table des matières

Autres manuels DSC Système de sécurité

DSC

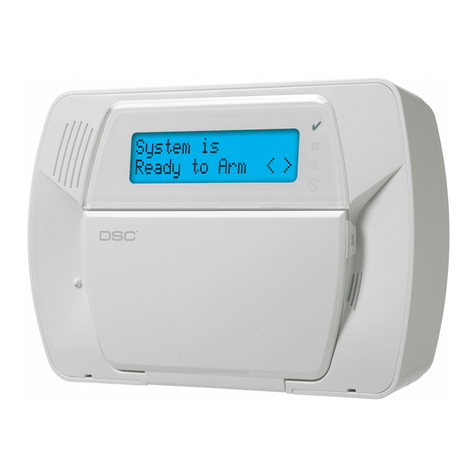

DSC IMPASSA Manuel utilisateur

DSC

DSC iotega WS910 Manuel utilisateur

DSC

DSC neo HS128 E Manuel utilisateur

DSC

DSC WS900 Manuel utilisateur

DSC

DSC Envoy NT9005 V1.0 Mode d'emploi

DSC

DSC PowerSeries RFK5500 Manuel utilisateur

DSC

DSC Envoy NT9005 Manuel utilisateur

DSC

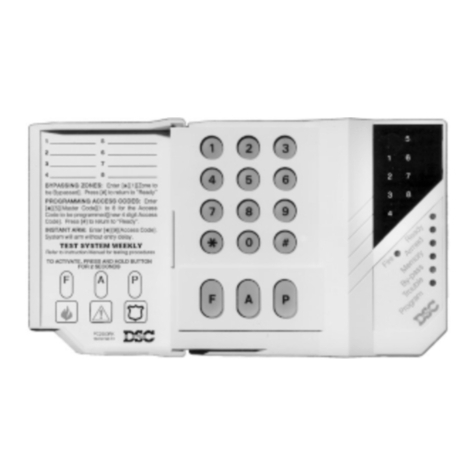

DSC PC2550 Manuel utilisateur
