DS18 NXL-X8TPNEO Manuel utilisateur

NXL-X8TPNEO

OWNER’S MANUAL

8” WAKEBOARD POD TOWER SPEAKERS

NXL-X8TPNEO

General Specifications

Nominal Diameter..............

Nominal Impedance..........

RMS Power Handling.........

MAX Power Handling.........

Sensitivity (1w/1m).............

Frequency Response.........

Body / Features

Enclosure Material.............

Marine Grade Type.............

RGB LED..............................

Grill Type..............................

Pair.......................................

Clamps.................................

Front Logo...........................

Finish...................................

Woofer Specifications

Voice Coil Diameter.............

Cone Material.......................

Surround Material...............

Basket Material...................

Magnet Material..................

Magnet Grade......................

Passive Radiator..................

Tweeter Specifications

Voice Coil Diameter.............

Type.......................................

Diaphragm Material............

Magnet Material...................

Crossover..............................

8”

4ohm

180W

550W

95dB

60Hz-21Khz

Injection PC+ABS

IP65 + UV Stable

Integrated LED-RGB Speaker Lighting

Integrated LED-RGB Acrylic Ring Lighting

6 Core Wires for Lighting and Speaker

ABS+316 Stainless Metal Mesh

Yes

Die-Cast adjustable (1" ~ 2")

360 Degree Rotation Mounting

Buried Wire or Open Wire Mounting Optional,

Included NBR Pad And Stainless Hardware

(Screws,Stop Washers,Hexagon wrench,

Safety Rope, Screw fastening Glue)

Yes, Can be Rotated For Correct Angle Display

Matte Black

Waterproof Compress Paper + Carbon Fiber

Soft PC Damping Glued

PC Injection Molded Composite

Neodymium

N40H

4" With LED RGB Light

Compression Driver with CNC Solid Aluminum Horn

PEN

Neodymium

12dB with Over Power Protection

SPECIFICATIONS

NXL-X8TPNEO

Thiele & Small Parameters

Equivilant Volume

Excursion (one way)

Free Air Resonance

Total Factor

Speaker Measurements

Overall Diameter................................

Overall Depth......................................

Overall Height.....................................

Vas.........

Xmax.....

Fs...........

Qts..........

17.5L

3mm

62Hz

0.756

8.59" / 218.1mm

13.89" / 352.9mm

12.37" / 314.3mm

SPECIFICATIONS

1 Pair 8” Wakeboard Pod Tower Speaker

1 Piece 6 mm Hex wrench Chromed

1 Piece 4 mm Hex wrench Chromed

1 Pair NBR P ad For 1” to 3” tube adjust

1 Pair Stainless Safety Rope

1 Pcs Screw Fastening Glue

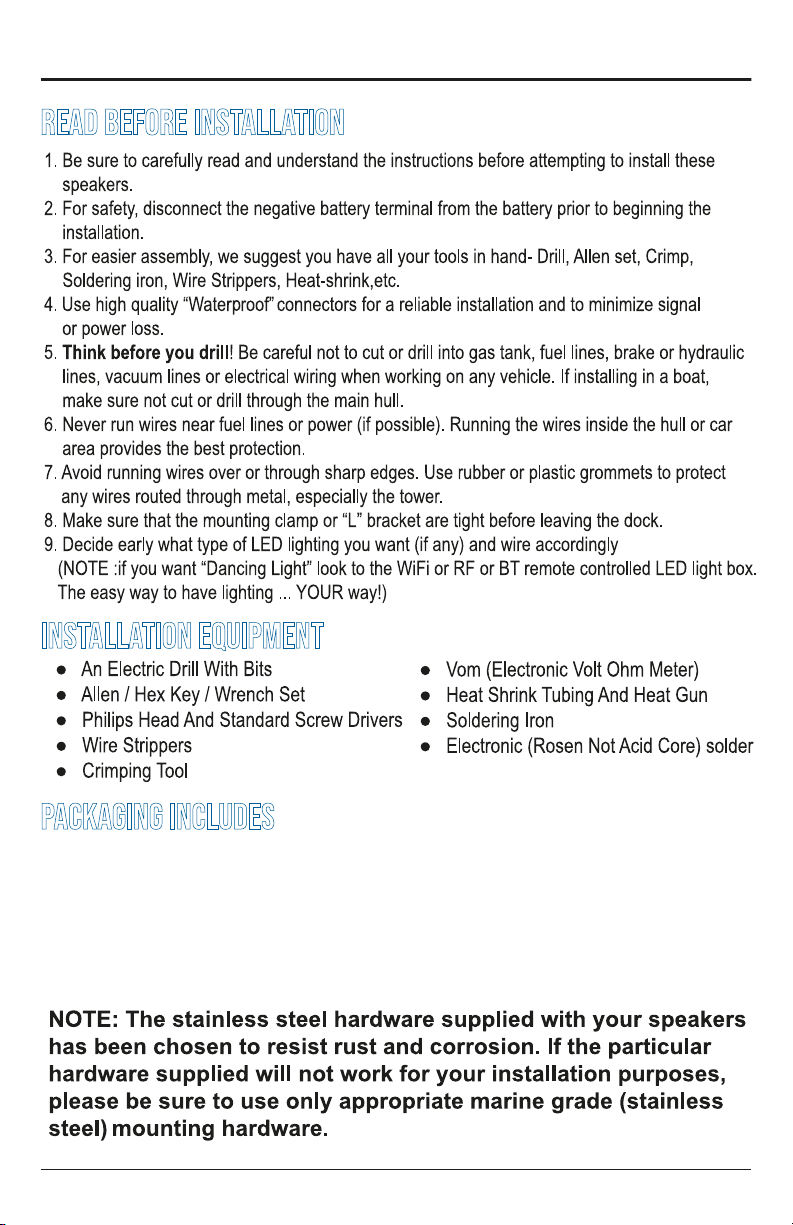

READ BEFORE INSTALLATION

INSTALLATION EQUIPMENT

PACKAGING INCLUDES

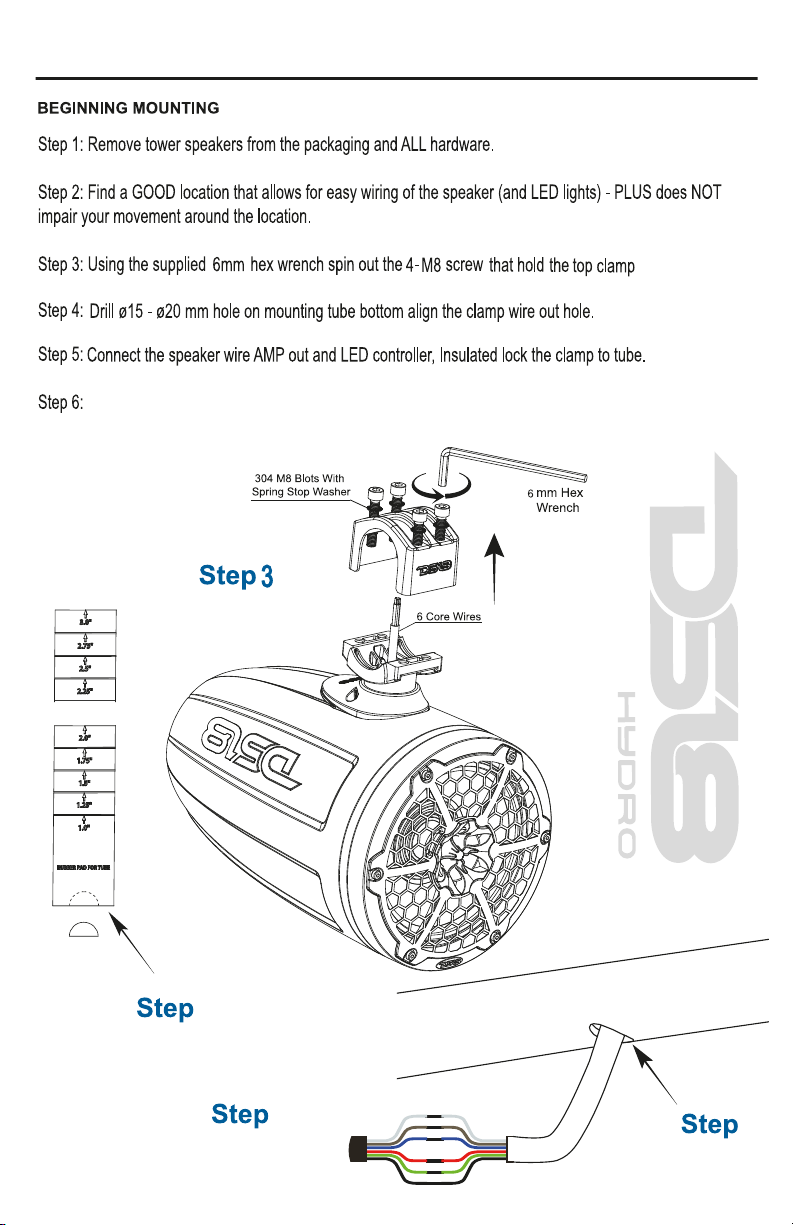

SETUP

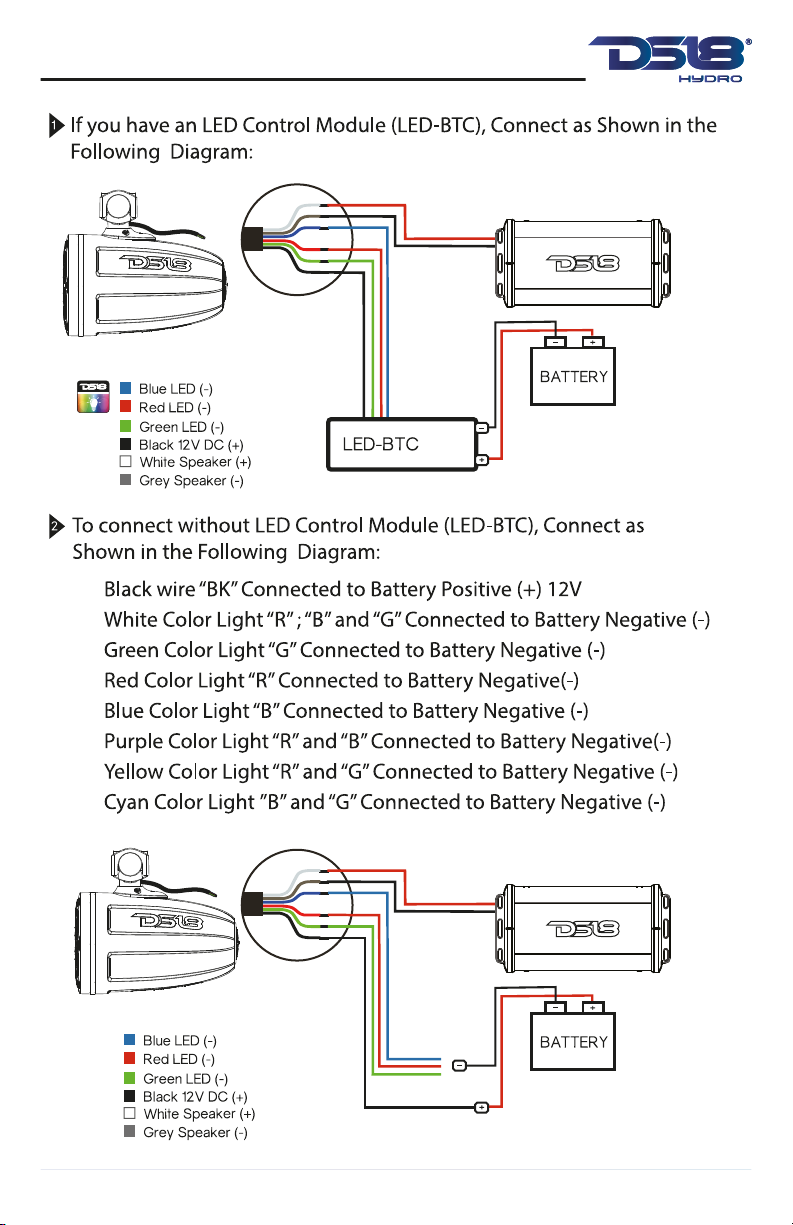

INSTALLATION & CONNECTION OPTIONS

Cut the length of rubber pad and wires outlet according to the diameter of installation pipe.

speaker wires

Soldering,Heat shrink

INSTALLATION

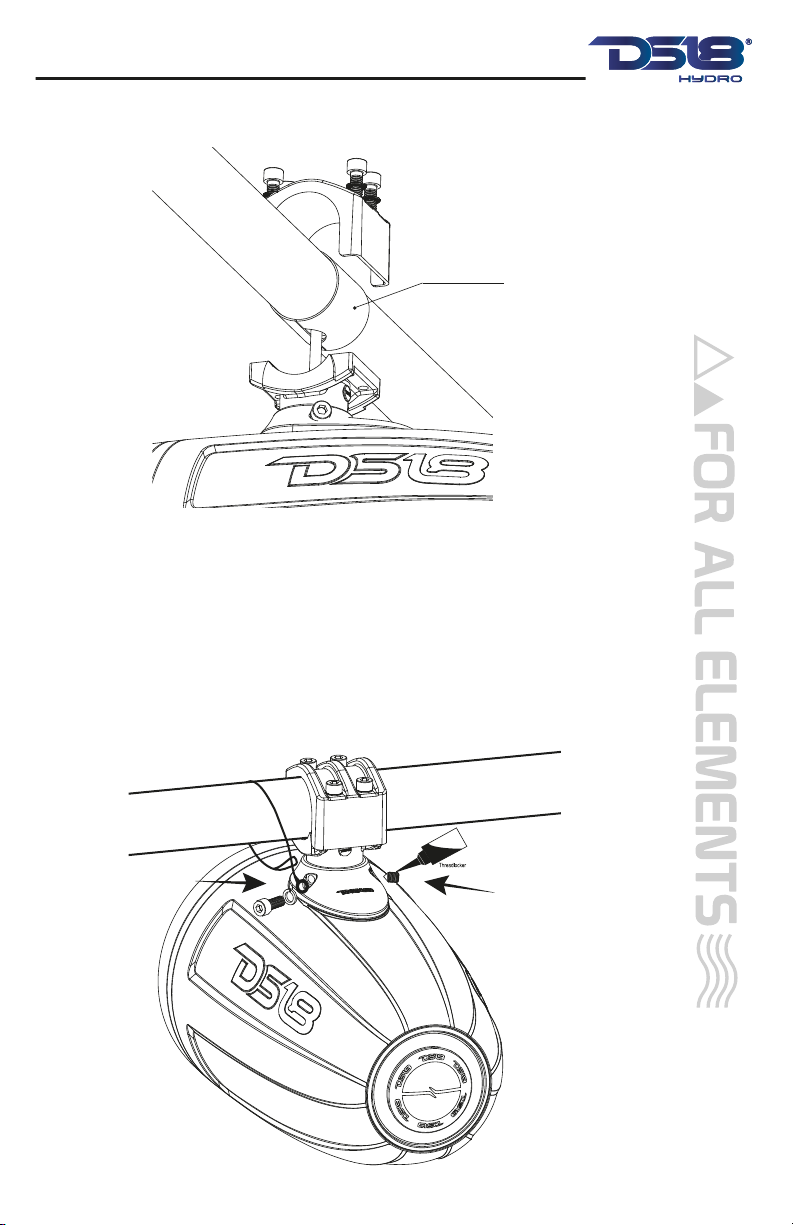

Step 7:Wrap the rubber pad around the pipe and align wire out hole According to the diagram.

Step 8: Push the wire into the tube, press on the rubber pad,and lock the the top clamp .

Step 9: Take down the safety rope and hang it on the pipe, lock the screw gasket safety rope lifting ring

on the clamp base, and apply screw fastening glue on the screw before locking.

Step 10: If need be ,rotate the speakers for best dispersion,this easily done by locating the 6mm&4mm

hex wrench set screw on the side of the clamp base,rotate the speaker / enclosure to the desired angel,

once there ... locking the screws tight , Avoid vibration ,clamp loose!!!

Step 7

Step 9

Rubber pad

INSTALLATION

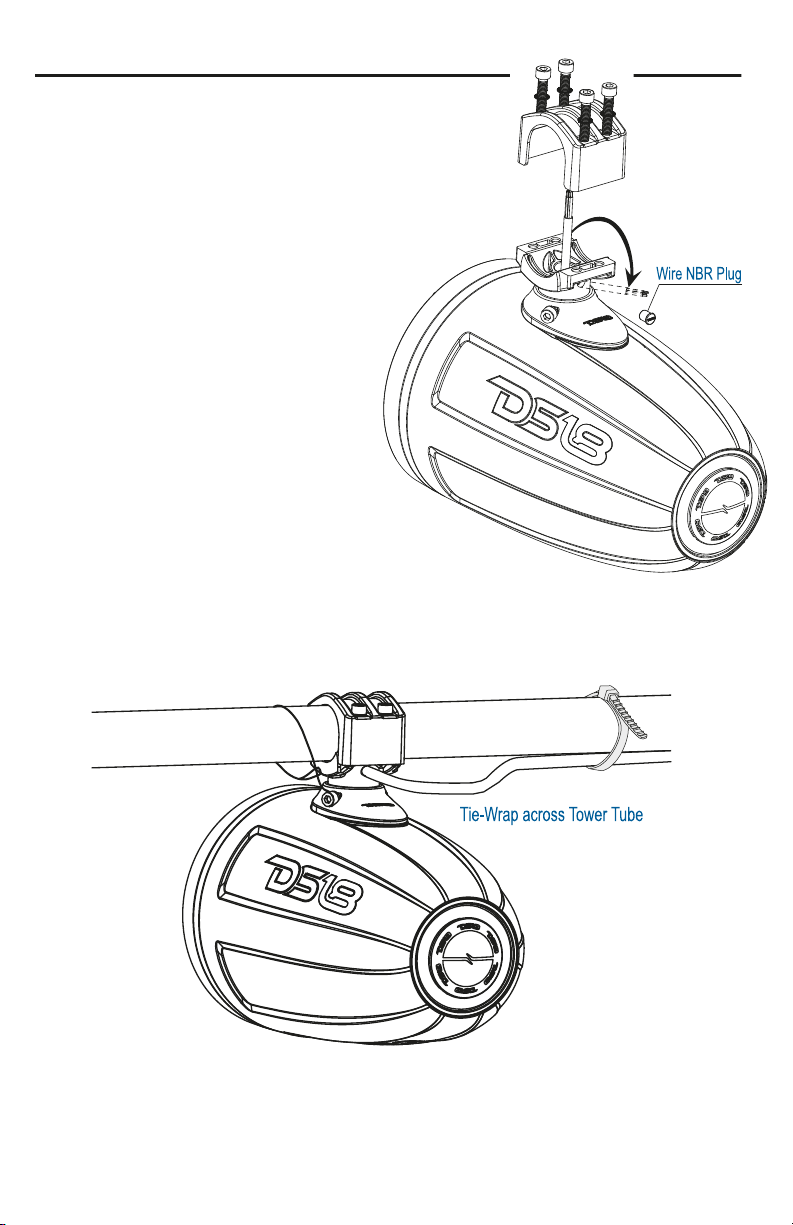

Step 11: During the mounting process

you should have located the spot to

drill your tower bar for the 6

conductor wire (Speaker and RGB

lightning wiring) insertion. Or NOT

(see Tie-wrap solution below)

Step 12: Remove Wire NBR Plug and

Slide the wire threw the hole Snake

the wire down to the bottom of the

tower tube in a location that the

wires can be attached to the audio

(And lighting) system. Solder or butt

connect the speaker wire coming

from the tower to the speaker wire to

the system. Then heat-shrink it for

added protection from water /

moisture.

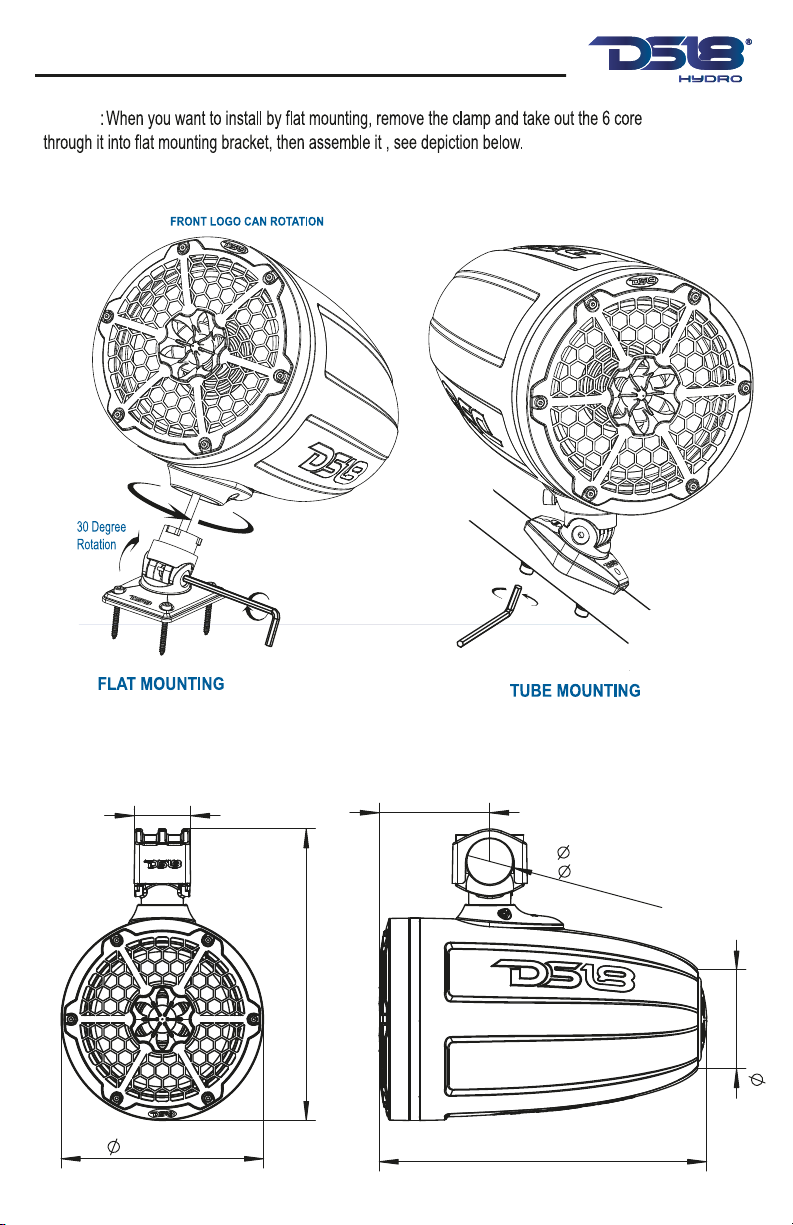

INSTALLATION

Step 13

2.40” / 60.9mm 4.69” / 119.1mm

2” / 50.8mm TO

1” / 25.4mm

13.89” / 352.9mm

8.59” / 218.1mm

12.37” / 314.3mm

4.19” / 106.4mm

DIMENSIONS

INSTALLATION

FOR MORE INFORMATION

PLEASE VISIT

DS18.COM
