DriveTest FM300BT Manuel utilisateur
FM300BT
MANUAL
Pinch Force Meter FM300BT
Version 1.5 Seite 3/23
English version
Contents
1General .......................................................................................................... 5
1.1 Scope of Application.............................................................................................. 5
1.2 Product Description................................................................................................ 5
1.3 Construction.............................................................................................................. 7
1.4 Optional Modules ................................................................................................... 8
1.4.1 Spacers ................................................................................................................... 8
1.4.2 Software ................................................................................................................. 9
1.5 Technical Specifications......................................................................................10
2Safety Instructions..................................................................................... 11
2.1 Target Group...........................................................................................................11
2.2 Transportation ........................................................................................................11
2.3 Operation .................................................................................................................12
2.3.1 Battery...................................................................................................................12
2.3.2 Risks.......................................................................................................................12
2.4 Storing .......................................................................................................................13
3Preliminary.................................................................................................. 13
3.1 Battery........................................................................................................................13
3.2 Assembly of Spacers ............................................................................................13
4Operation .................................................................................................... 13
4.1 Function Overview Android App.....................................................................14
4.2 Turning On...............................................................................................................15
4.3 Connecting...............................................................................................................15
4.3.1 Bluetooth connection .....................................................................................15
4.3.2 USB connection.................................................................................................16
4.4 Measuring ................................................................................................................16
4.4.1 Device positioning ...........................................................................................17
4.4.2 Mounting spacers ............................................................................................18
4.4.3 Start measuring.................................................................................................18
4.5 Turning Off...............................................................................................................19
4.6 Charging ...................................................................................................................19
4.7 Errors ..........................................................................................................................20
Pinch Force Meter FM300BT
Version 1.5 Seite 4/23
5Service ......................................................................................................... 21
5.1 Calibration................................................................................................................21
5.2 Maintenance............................................................................................................21
5.3 Warranty ...................................................................................................................21
5.4 Contact ......................................................................................................................22
6Shutdown.................................................................................................... 22
6.1 Disposal.....................................................................................................................22
7Appendix..................................................................................................... 23
7.1 EC certificate of conformity...............................................................................23
7.2 Glossary.....................................................................................................................24
7.3 List of figures...........................................................................................................25
Pinch Force Meter FM300BT
Version 1.5 Seite 5/23
1General
1.1 Scope of Application
The force meter FM300BT is used to measure the pinch force of power operated
elevator doors and machinery protection systems.
The device evaluates the measured results with respect to the requirements of
the following applicable standards and guidelines:
EN 81-1
EN 81-2
EN 81-20:2014
EN 81-50:2015
EN 14120
Please find detailed information to the given standards on our website (refer
chapter 5.4 “Contact”).
1.2 Product Description
The pinch force measurement system consists of the following parts:
1 Sensor FM300 BT (1)
4 optional Spacers (2)
1 USB cable for data transmission and charging (3)
1 Quick guide (4)
1 Calibration certificate (5) (in the transportation case cover)
1 Transportation case
1 USB stick with software (6)
Pinch Force Meter FM300BT
Version 1.5 Seite 6/23

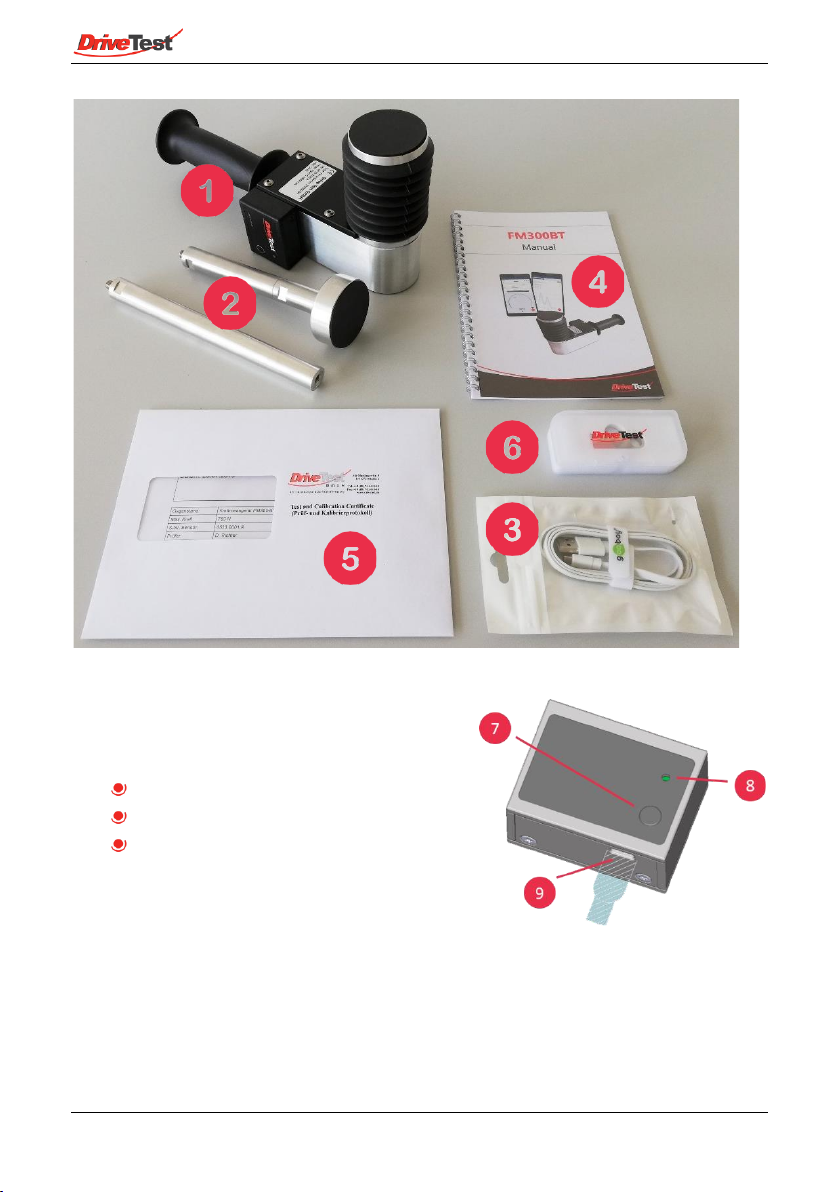

Figure 1: FM300BT Set
Functions:
Button (7)
LED (8)
USB socket (9)
Figure 2: Device functions
Pinch Force Meter FM300BT
Version 1.5 Seite 7/23
1.3 Construction
The device consists of a static and a moveable part. Both parts are linked by a
strain gauge sensor and a spring with a defined stiffness of 25 N/mm.
The housing of the device is made of aluminium. The force initiation area with
a diameter of 58 mm is on the upper side. The distance between the force
initiation area and the counterplot is 140 mm.

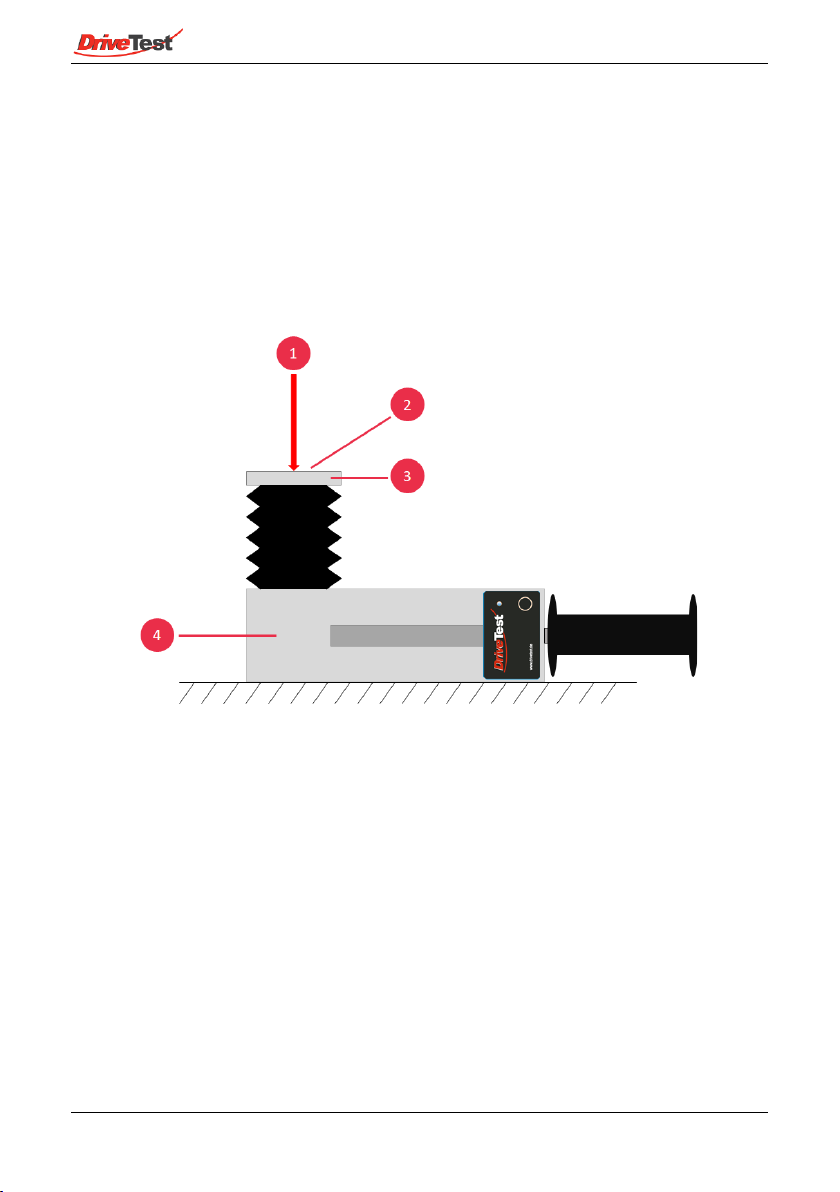

Figure 3: Device construction
The applied force (1) at the initiation area (2) on the moveable (3) part will be
determined during measurement. The static part (4) has to be guided by the
moveable part of the unit under test during measurement.
Pinch Force Meter FM300BT
Version 1.5 Seite 8/23
1.4 Optional Modules
1.4.1 Spacers
A set of spacers is optionally available. The spacers are mounted on the static
part the device at the bottom side. There are no tools required to mount the
spacers.

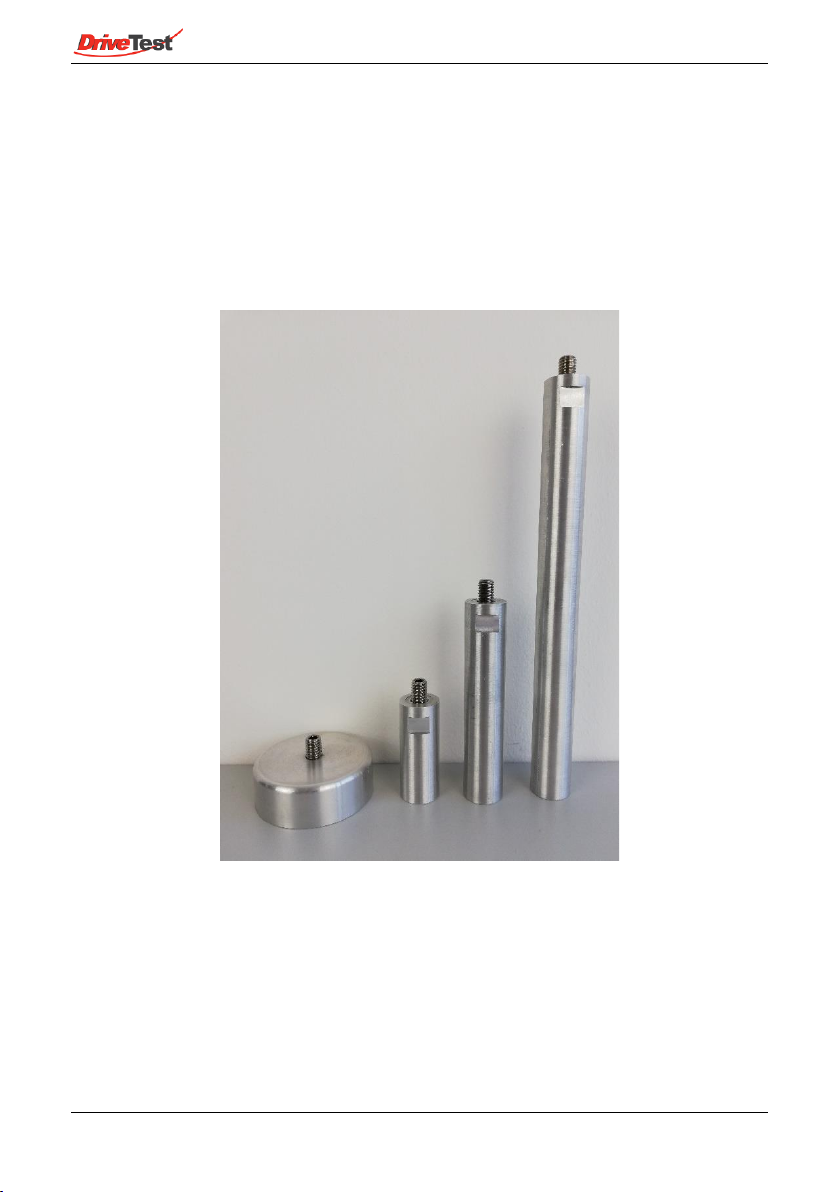

Figure 4: Spacers 1, 2, 3 and 4 for the FM300BT
Pinch Force Meter FM300BT
Version 1.5 Seite 9/23
The spacer set includes the following parts:
Spacer 1: 20 mm
Spacer 2: 50 mm
Spacer 3: 100 mm
Spacer 4: 200 mm
With these spacers the following apertures can be measured:
Total aperture
S1
S2
S3
S4
140 mm
O
O
O
O
210 mm
X
X
O
O
310 mm
X
X
X
O
410 mm
X
X
O
X
510 mm
X
X
X
X
1.4.2 Software
The following Add-on modules for the given device are available:
Software interface for .net
Software interface for LabView
Please find currently available add-ons, optional modules and product
descriptions on our website (refer chapter 5.4 “Contact”).
Pinch Force Meter FM300BT
Version 1.5 Seite 10/23
1.5 Technical Specifications
Description
Value
Mechanics:
Spring stiffness
25 N/mm
Accuracy of spring stiffness
(lined force initiation)
- 10 % to +10 %
Gap width
140 mm
Force initiation area
58 mm diameter
Overload protection
yes
Weight
approx. 1200 g
Dimensions
280 x 140 x 82 mm
Force Measuring:
Range
0 - 750 N
Resolution
1 N
Accuracy
(greater value applies)
3 N or
3 % of measured value
Sampling frequency/ rate
500 Hz/ 2 ms
Power supply:
USB (5 V DC)
max. 500 mA
Lithium Polymer Battery
350 mAh
Operating time at full load
(continuous measurement)
more than 10 hours
Environment:
Operation temperature range
-10 to +40 °C
Storage temperature range
-40 to +50 °C
Humidity
max. 90% relative Humidity,
non-condensing
