Drive Trekker TK 1000 Manuel utilisateur

Trekker Gait Trainer

Item #s TK 1000, TK 2000 & TK 3000

www.drivemedical.com

EU Authorized Representative

Drive Medical LTD

Ainley’s Industrial Estate

Elland, West Yorkshire,

United Kingdom HX5 9JP

Lifetime Limited

Warranty

Your Drive brand product is warranted to be free

of defects in materials and workmanship for the

lifetime of the original consumer purchaser.

This device was built to exacting standards

and carefully inspected prior to shipment. This

Lifetime Limited Warranty is an expression of our

confidence in the materials and workmanship of

our products and our assurance to the consumer

of years of dependable service.

This warranty does not cover device failure

due to owner misuse or negligence, or normal

wear and tear. The warranty does not extend to

non-durable components, such as rubber

accessories, casters, and grips, which are subject

to normal wear and need periodic replacement.

If you have a question about your Drive device or

this warranty, please contact an authorized Drive

dealer.

Drive is a trademark of Medical Depot, Inc.

Port Washington N.Y. 11050 USA Made in China

assembly

The TK 1000 comes completely assembled and does

not fold

TK 2000 & TK 3000.

1. Remove the Trekker from the box.

2. Unfold gait trainer by lifting top frame until both

latches click into notches (A) in the bottom frame.

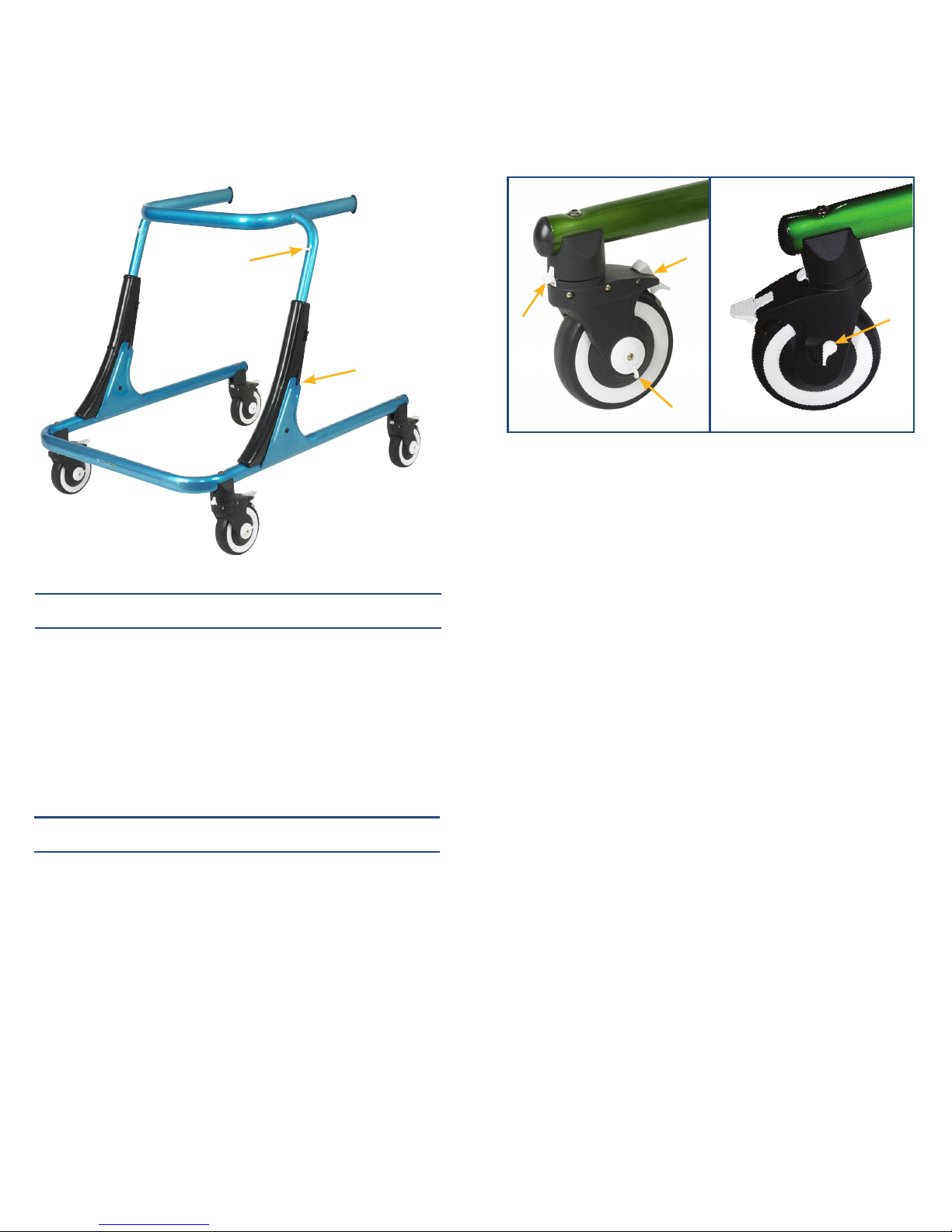

adjustments

Height

Pull triggers (B) upwards and slide handlebar to desired

height. Release trigger and move handlebar until triggers

click into place.

Swivel Lock

Casters can be locked to prevent swivel. Align lever (C)

with one of the two notches in the caster and push lever

into notch.

Wheel Brake

Pressing on bottom part of brake pedal (D) will lock rota-

tion of wheels. Pressing on top part of pedal will release

brake.

Wheel Resistance

Lever (E) provides resistance to wheels. Rotating the

lever towards the thinner markings lowers the resistance

and towards the thicker markings adds resistance.

Directional Lever

One-direction use can be achieved by pushing lever (F)

upwards. When one-direction is engaged, there will be a

clicking sound when moving forward and the wheel will

lock when rolled backward.

accessories

Most accessories are mounted with the universal mount-

ing bracket. To install the mounting bracket, loosen knob

(G) on clamp and lower it. Lift clamp and place over

handlebar. Bring knob up and tighten. The mounting

bracket can be placed anywhere on the handlebar and it

will depend on the user’s abilities. It can also be mounted

towards the outside or the inside of the handlebar.

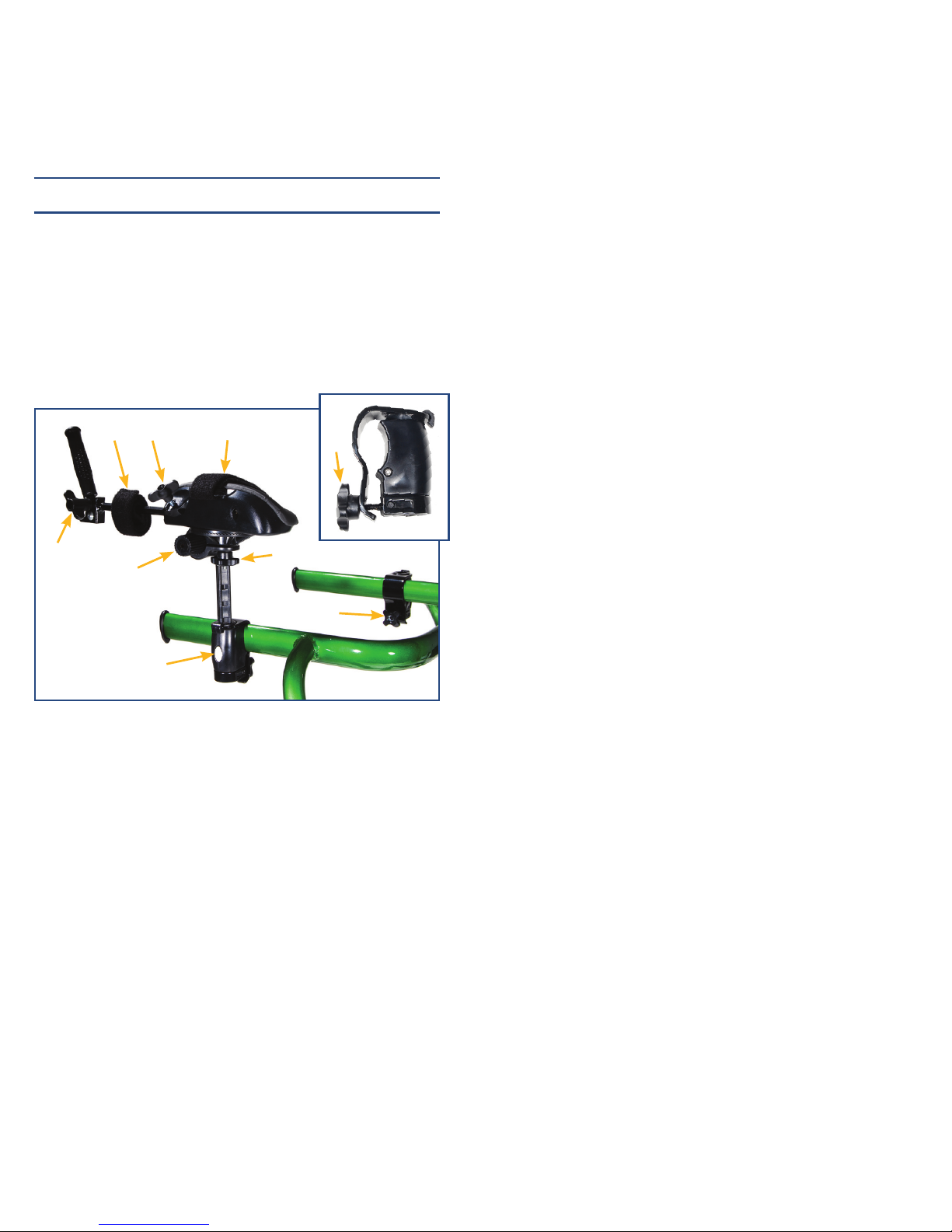

Forearm Platforms

Item #s TK 1035 S & TK 1035 L

Install mounting bracket and post at appropriate location.

Place forearm platform on mounting bracket post by loos-

ening knob (H) and placing forearm platform at desired

position.

Forearm platform adjustments

Height – Push in button (I) and slide post to desired posi-

tion. Release button and move forearm platform until it

clicks into place.

Width – Forearm platforms can be placed closer or far-

ther from the user by

• Looseningknob(H)andslidingtheforearmplatform

outward or inward.

• Placemountingbracketwiththeclampfacingtowards

the outside or inside of the handlebar.

• Positionforearmplatformposts(J)facingtowardsthe

outside or inside of the handlebar.

Rotation – Loosen knob (H) to rotate up or down and in

or out. It can rotate 360°.

Depth – Loosen knob (H) and slide arm pad forward or

backward or reposition mounting bracket.

• Looseningknob(K)allowsthehandgripstoextend

forward and backward, supinate and pronate.

• Looseningknob(L)allowswristangleadjustability.

• Armstrap(M)andwriststrap(N)securesarm.

Handgrips

Item # TK 1045

Install mounting brackets at appropriate location on the

handlebar. They can be mounted with the clamp facing

towardstheoutsideorinsideofthehandlebar.Toadjust

the height, push in button (I) and slide post to desired

position. Release button and move handgrip until it clicks

into place. Handgrips can rotate in four directions.

JHL

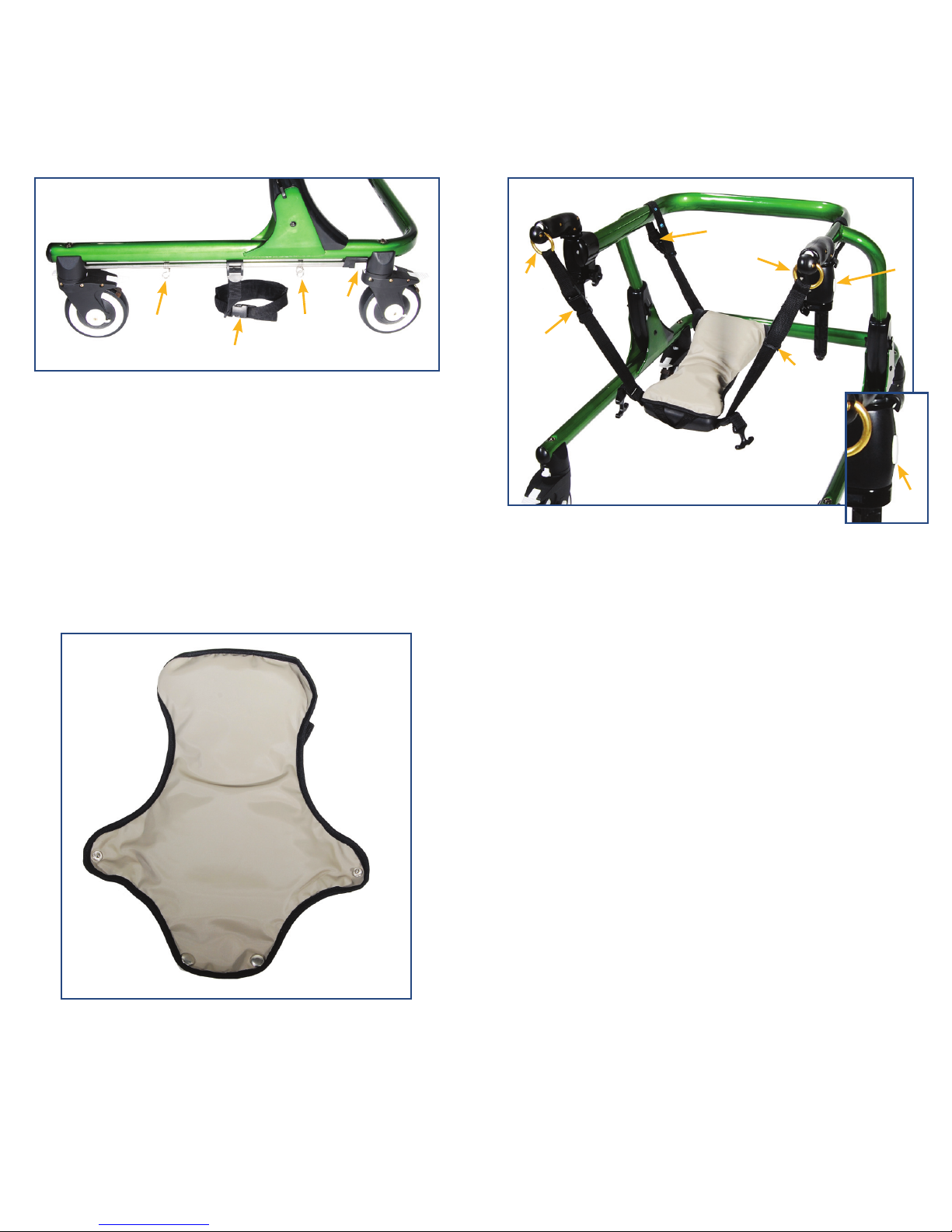

Ankle Prompts

Item #s TK 1060 S, TK 1060 M & TK 1060 L

Install the ankle prompts by inserting the end of rod into

caster slot, then pull back white trigger (O) and insert

intooppositecasterslot.Toadjustthestrideoftheuser,

press and slide the spring clips (P) to appropriate length.

Toadjustthesizeofanklestrapsusebuckleadjuster(Q).

P P

Hip Positioner & Pad

Item #s TK 1070 S & TK 1070

Install mounting bracket and handgrips at the back of the

handlebar. Attach the front of the hip positioner towards

the front of the handlebar using buckles (R). Attach the

rear of the hip positioner towards the rear of the handle-

bar by either attaching rings (S) to handgrips or remove

clamp and handgrips and loop straps over rear of handle-

bar.Adjustloopwithbuckles.

Hip positioner adjustments

Height - rear of the hip positioner - Push in button (T)

and slide handgrip to desired position. Release button

and move handgrip until it clicks into place.

Height – hip positioner – Raise or lower hip positioner by

adjustingthelengthofthetwofrontandtworearstraps.

Depth - Reposition mounting bracket on handlebar.

The hip positioner can be used with or without the pad.

To attach the hip pad, push the rear straps (U) of the hip

positioner through the holes at the back of the pad and

pull into place. Securely snap front and side flaps around

the hip positioner.

REAR

FRONT

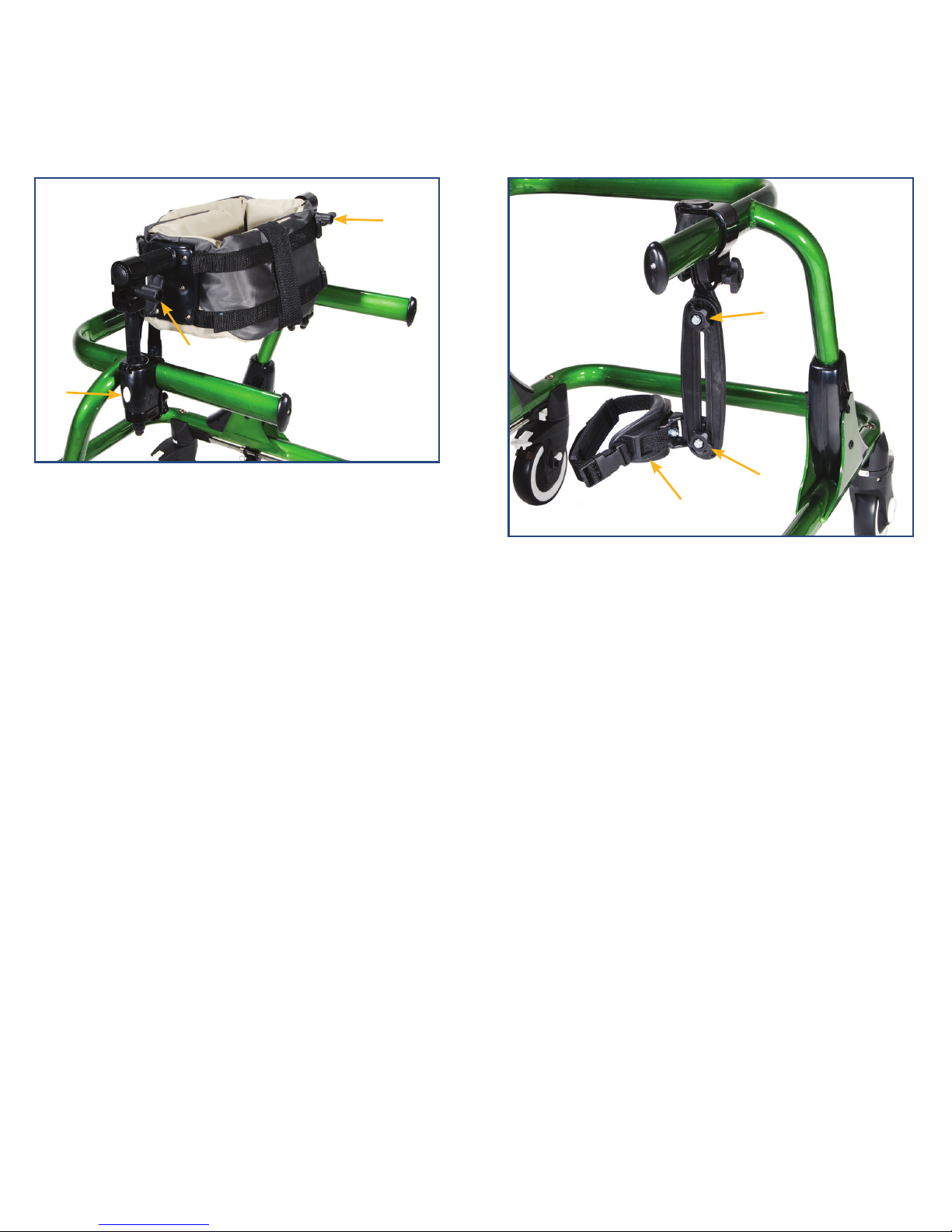

Trunk Support

Item # TK 1080 S, TK 1080 M & TK 1080 L

Install mounting bracket and post directly behind the

uprights. Loosen knobs (V) on the post and slide chest

prompt rods into the post at desired position. Tighten

knobs.

Trunk support adjustments

Thetrunksupporthastwoadjustablestrapsandbuckles

on each side. The front of the trunk support also has a

restraining loop to keep the pads together. Each strap is

independentlyadjustabletoadjustthesize,fitandangle

of the trunk support.

Height - Push in button (I) and slide post to desired posi-

tion. Release button and move post until it clicks into

place.

Width – Trunk support can be placed closer or farther

from the user by

• Looseningknobs(V)andslidingthetrunksupport

outward or inward.

• Placemountingbracketwiththeclampfacingtowards

the outside or inside of the handlebar

Depth – Reposition mounting bracket on handlebar.

Rotation – Loosen knobs (V) and tilt trunk support to

desired position. Tighten knobs.

Thigh Prompts

Item #s TK 1090 S & TK 1090 L

Install thigh prompt clamps on handlebar. It is advisable

to mount them behind the trunk support.

Thigh prompt adjustments

Height – Loosen knob (W) and slide thigh pad (X) up or

down to desired position. Tighten knob.

Width – Thigh pads can be placed closer or farther from

the user by

• Looseningknob(Y),adjustthighpadsinwardor

outward and tighten knob

• Placemountingbracketwiththeclampfacingtowards

the outside or inside of the handlebar.

Depth - Reposition mounting bracket on handlebar.

Rotation – Loosen knob (W), rotate the thigh pad and

tighten knob.

www.drivemedical.com
