Ultra-sorb®

Steam Dispersion Tube

Humidifier Panel

Installation, Operation,

and Maintenance Manual

For applications using steam from

a boiler or from any DRI-STEEM

steam generating humidifier.

US-IOM-0108.pdf 1 4/21/2010 11:34:49 AM

Page 2 • DRI-STEEM Ultra-sorb Steam Dispersion Panel Installation, Operation, and Maintenance Manual

Table of contents

Overview

Unpacking High-eciency tubes ...........................3

Field assembly of Model LH ...............................4

Field assembly of Model LV ...............................7

Installation

Selectingthelocation......................................10

Determinehumidierplacement............................11

Installationinacoldairstream.............................12

Mountinginahorizontalduct..............................13

Mountinginaverticalduct ................................14

Installationinsideanairhandlingunit.......................15

Supplyanddrainconnectionsanddimensions................16

Piping...................................................17

Mounting ...............................................19

Retrofitting an existing Ultra-sorb ..........................20

Performancedata.........................................22

Maintenance

Maintenance.............................................23

Troubleshootingguide.....................................24

Replacementparts........................................26

Warranty.........................................Backcover

US-IOM-0108.pdf 2 4/21/2010 11:34:56 AM

DRI-STEEM Ultra-sorb Steam Dispersion Panel Installation, Operation, and Maintenance Manual • Page 3

Unpacking High-efficiency tubes

CAUTION!

The High-efﬁciency tubes are sleeved in clear poly

ﬁlm for protection during processing, shipping,

and installation.

To prevent dirty insulating material, leave the clear

poly ﬁlm on until installation is complete.

Equally important, remove and discard the clear

poly ﬁlm before start-up by tearing it along the

perforations.

NOTE: If you have an Ultra-sorb without High-efficiency

dispersion tubes (non-insulated tubes), please skip to the next

page.

Unpacking

• Remove the dispersion assembly from the shipping container; be

careful not to bump or scrape the PVDF insulating material on

the dispersion tubes.

• Some dispersion panels are shipped unassembled by customer

request or by shipping necessity. Do not lay High-efficiency tubes

across or under anything that could compress or damage the

insulating material. Compressed insulating material has a reduced

R-value.

• Avoid bumping or snagging the PVDF insulating material.

Although PVDF is robust, rough handling can cause tears, which

could negatively impact performance.

• Before start-up, remove the clear poly film by tearing it along the

perforation. Do not use a knife or sharp object to remove the poly

film.

High-efficiency Tube option

Ultra-sorb dispersion assemblies with the

High-efficiency Tube option are designed to

produce significantly less dispersion-generated

condensate and airstream heat gain, which

reduces wasted energy by up to 85%. These

improvements are accomplished by reducing

the thermal conductivity of the tubes with

1/8" of polyvinylidene fluoride (PVDF)

insulating material on the outside of the tubes.

These assemblies require careful unpacking,

installation, and handling. If your dispersion

assembly has the High-efficiency Tube option,

be sure to read this section carefully.

Figure 3-1:

Ultra-sorb with the High-efficiency

Tube option

US-IOM-0108.pdf 3 4/21/2010 11:34:56 AM

Page 4 • DRI-STEEM Ultra-sorb Steam Dispersion Panel Installation, Operation, and Maintenance Manual

Field assembly of Model LH

Please read instructions while assembling

STEP 1 - Unpack

Unpack the Ultra-sorb components and verify that you have all

items on the packing list.

Note that both the supply header assembly and the condensate

header assembly have a ¾" half coupling drain connection on one

end. This will be the lower end of the installed dispersion assembly.

The supply header assembly has a steam inlet (nipple or tubing) on

the end opposite the drain connection.

Arrange the components on a large, flat working surface,

positioning them as indicated in Figure 4-1 (condensate header to

the left, supply header to the right).

OM-238-1

Mounting ﬂange

Dispersion tube

¾" pipe thread coupling

(DN 20) drain connection

Slip coupling without shoulder

¼" - 20 nut (8)

¾" pipe thread coupling

(DN 20) drain connection

Washer (8)

¼" - 20 nut (8)

Slip coupling

with shoulder

Steam inlet

Supply header assembly

Mounting ﬂange

Condensate header assembly

Tubelet

Figure 4-1:

Ultra-sorb Model LH

Table 4-1:

Ultra-sorb Model LH components

Description Qty.

Supply header assembly with shouldered

slip couplings 1

Condensate header assembly 1

Mounting flange 2

Dispersion tubes with slip couplings varies

¼ - 20 x ¾" bolt 8

¼ - 20 nut 8

¼ lock washer 8

US-IOM-0108.pdf 4 4/21/2010 11:34:57 AM

DRI-STEEM Ultra-sorb Steam Dispersion Panel Installation, Operation, and Maintenance Manual • Page 5

Field assembly of Model LH

OM-238-3

STEP 2 - Bolt the mounting ﬂanges to the supply header

assembly

Refer to Figure 5-1 and 5-2.

Attach the two mounting flanges to the supply header assembly as

indicated using ¼" - 20 bolts with the nuts finger tight.

STEP 3 - Insert the dispersion tubes

Refer to Figure 5-3. Insert the plain ends (no slip couplings)

of the dispersion tubes into the slip couplings already mounted

on the supply header assembly. The slip couplings are factory

lubricated; if well aligned during insertion, no further lubrication

should be needed. Push and twist the tube in until it bottoms out

on the internal shoulder of the slip coupling (see Figure 5-4).

CAUTION! Use care to avoid cutting the internal O-rings of the

slip couplings.

Dispersion tube

Supply header

assembly

Slip coupling with shoulder

OM-238-6

Shoulder

O-rings

OM-239

¼" - 20 bolts

Mounting ﬂange OM-238-7

O-rings

Figure 5-1:

Supply header assembly

Figure 5-2:

Detail view of mounting flange

Figure 5-3:

Dispersion tubes

Figure 5-4:

Slip coupling with shoulder

Figure 5-5:

Slip coupling without shoulder

OM-238-2

Drain connection

Washer and nut

Steam inlet

Supply header assembly

¼" - 20 bolt

Washer and nut

¼" - 20 bolt

Mounting ﬂange

Steam

inlet

US-IOM-0108.pdf 5 4/21/2010 11:34:57 AM

Page 6 • DRI-STEEM Ultra-sorb Steam Dispersion Panel Installation, Operation, and Maintenance Manual

OM-238-5

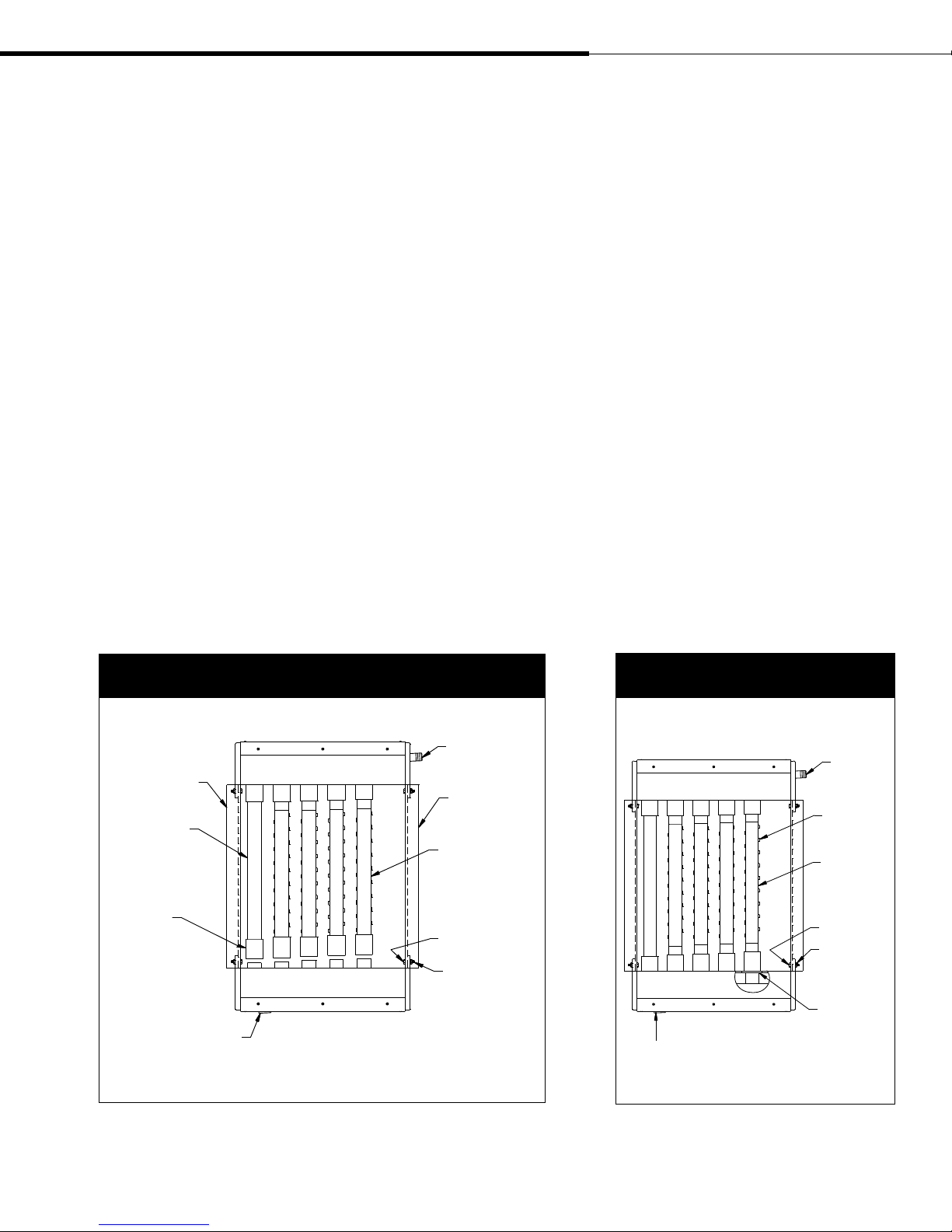

STEP 4 - Bolt the mounting ﬂanges to the condensate header

assembly

Refer to Figure 6-1. Push the slip couplings onto the dispersion

tubes flush with the tube ends. Make sure the drain connection is

properly oriented. Attach the mounting flanges using ¼" - 20 bolts,

and leave the nuts finger tight.

STEP 5 - Slide the slip couplings onto the condensate header as-

sembly and orient the tubelets

SUGGESTION: Gripping the drain connection with vise grip pliers

and applying a back and forth rolling motion to the header will

assist in sliding the slip couplings into place.

Refer to Figure 6-2. It may be necessary to push and twist the

slip couplings onto the condensate header. Again care must be

taken to avoid cutting the internal O-rings. Slide the slip couplings

on until they bottom out against the stop disc on the condensate

header. The steam tubelets must be aimed so that they discharge the

steam perpendicular to the airstream. Rotate the dispersion tubes as

needed.

After tightening the ¼" - 20 bolts at all 4 corners, the Ultra-sorb

panel is ready for installation. See page 10.

Stop disc Steam

inlet

Tubelet

Dispersion tube

Nut and washer (8)

¼" - 20 bolt (8)

Field assembly of Model LH

OM-238-4

Align coupling (without shoulder)

ﬂush with end of dispersion tube

Mounting ﬂange

¼" - 20 bolt

Dispersion tube

Mounting ﬂange

Drain connection

Washer

and nut

Figure 6-1:

Condensate header assembly

Figure 6-2:

Slip coupling placement

Steam

inlet

Condensate header assembly

Supply header assembly

Condensate header assembly

Supply header assembly

US-IOM-0108.pdf 6 4/21/2010 11:34:57 AM

DRI-STEEM Ultra-sorb Steam Dispersion Panel Installation, Operation, and Maintenance Manual • Page 7

Figure 7-1:

Ultra-sorb Model LV

Field assembly of Model LV

Please read instructions while assembling

STEP 1 - Unpack

Unpack the Ultra-sorb components and verify that you have all

items on the packing list.

Lay the components on a flat surface, and position the header

assemblies as shown in Figure 7-1. Orient the condensate header

assembly so the ¾" half coupling drain connection is to your left,

and orient the supply header assembly so the steam inlet (nipple or

tubing) is to your right.

OM-260-1

Slip coupling

with shoulder

Supply header

assembly Steam inlet

Tubelet

Dispersion tube

Mounting ﬂange

¼" - 20 bolt (8)

Washer (8)

¼" - 20 nut (8)

Slip coupling without shoulder

Condensate header

assembly

¾" pipe thread coupling

(DN 20) drain connection

Mounting ﬂange

Condensate drain

Table 7-1:

Ultra-sorb Model LV components

Description Qty.

Supply header assembly with shouldered

slip couplings 1

Condensate header assembly 1

Mounting flange 2

Dispersion tubes with slip couplings varies

Condensate drain tube 1

¼ - 20 x ¾" bolt 8

¼ - 20 nut 8

¼ lock washer 8

US-IOM-0108.pdf 7 4/21/2010 11:34:58 AM

Page 8 • DRI-STEEM Ultra-sorb Steam Dispersion Panel Installation, Operation, and Maintenance Manual

Field assembly of Model LV

STEP 2 - Bolt the mounting ﬂanges to the supply header

assembly

Refer to Figure 8-1 and 8-2. Attach the two mounting flanges

as indicated using ¼" - 20 bolts with the nuts only finger tightened.

STEP 3 - Insert the dispersion tubes

Refer to Figure 8-4. Insert the plain ends (no slip couplings) of

the dispersion tubes into the slip coupling already mounted on the

supply header assembly. The slip couplings are factory lubricated;

if well aligned during insertion, no further lubrication should be

needed. Push and twist the tube in until it bottoms out on the inter-

nal shoulder of the slip coupling. See Figure 8-3.

CAUTION! Use care to avoid cutting the internal O-rings of the

slip couplings.

OM-260-2

OM-260-3

¼" - 20 bolt

Washer and nut

Mounting

ﬂange

Steam

inlet

Steam

inlet

Slip coupling

with shoulder

Dispersion

tube

Condensate

drain tube

OM-238-6

Shoulder

O-rings

OM-239

¼" - 20 bolts

Mounting ﬂange

Figure 8-1:

Supply header assembly

Figure 8-2:

Detail view of mounting flange

Figure 8-4:

Dispersion tubes

Figure 8-3:

Detail view of slip coupling

Supply header assembly

US-IOM-0108.pdf 8 4/21/2010 11:34:58 AM

DRI-STEEM Ultra-sorb Steam Dispersion Panel Installation, Operation, and Maintenance Manual • Page 9

STEP 4 - Bolt the mounting ﬂanges to the condensate header

assembly

Refer to Figure 9-1. Push the slip couplings onto the dispersion

tubes flush with the tube ends. Make sure the drain connection is

properly oriented. Attach the mounting flanges using ¼" - 20 bolts,

and leave the nuts finger tight.

STEP 5 - Slide the slip couplings onto the condensate header as-

sembly and orient the tubelets

SUGGESTION: Gripping the drain connection with vise grip pliers

and applying a back and forth rolling motion to the header will

assist in sliding the slip couplings into place.

Refer to Figure 9-2. It may be necessary to push and twist the

slip couplings onto the condensate header. Again care must be

taken to avoid cutting the internal O-rings. Slide the slip couplings

on until they bottom out against the stop disc on the condensate

header. The tubelets must be aimed so that they discharge the

steam perpendicular to the airstream. Rotate the dispersion tubes as

needed.

After tightening the ¼" - 20 bolts at all 4 corners the Ultra-sorb

panel is ready for installation. See page 10.

OM-260-4 OM-260-5

Steam

inlet

Tubelet

Dispersion

tube

¼" - 20 bolt (8)

Washer

and nut

Stop disc

Drain connection

Steam inlet

Mounting ﬂange

Dispersion tube

¼" - 20 bolt

Washer and nut

Drain connection

Mounting ﬂange

Condensate drain

Slip coupling

(without shoulder)

ﬂush with end

of dispersion tube

Field assembly of Model LV

Figure 9-1:

Condensate header assembly

Figure 9-2:

Condensate header assembly

Supply header assembly

Condensate header assembly Condensate header assembly

US-IOM-0108.pdf 9 4/21/2010 11:34:58 AM

Page 10 • DRI-STEEM Ultra-sorb Steam Dispersion Panel Installation, Operation, and Maintenance Manual

Selecting the location

Ultra-sorb steam dispersion panels need a steam supply and a

method for trapping and removing condensate. See supply and

drain connections information on Page 16.

When selecting the location, first consideration should be given to

rapid, thorough absorption of the steam. The warmest air will most

readily absorb the steam.

The distance that unabsorbed steam will travel within a given

airstream has been cataloged by DRI-STEEM. See Figure 22-2.

A. You must install the Ultra-sorb panel in a location where the

water vapor being discharged will be absorbed by the airstream.

B. In general, place the Ultra-sorb panel where the air temperature

is capable of absorbing steam being discharged without

causing condensation at or after the unit. This will normally be

downstream of the heating coil or where the air temperature is

warmest.

C. Do not place the Ultra-sorb panel in an outside air intake unless

the air is tempered with a preheat coil.

D. Do not place the Ultra-sorb panel too near to the entrance of a

high-efficiency filter. The filter will remove the visible moisture

and become waterlogged. See Note 3 on page 22 for absorption

(non-wetting) distance.

E. Do not place the Ultra-sorb panel where discharged visible mist

will impinge directly on a metal surface.

Note: To prevent leakage, use HVAC caulking or a similar weather

sealant to seal all places where the Ultra-sorb installation hardware

and ttings penetrate the wall of the duct.

Installation

US-IOM-0108.pdf 10 4/21/2010 11:34:58 AM

Autres manuels pour Ultra-sorb LV

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DriSteem Humidificateur

DriSteem

DriSteem SINGLE-TUBE Series Manuel utilisateur

DriSteem

DriSteem Vaporstream Manuel utilisateur

DriSteem

DriSteem GTS Manuel utilisateur

DriSteem

DriSteem HUMIDI-TECH Manuel utilisateur

DriSteem

DriSteem GTS SERIES Manuel utilisateur

DriSteem

DriSteem HUMIDI-TECH Manuel utilisateur

DriSteem

DriSteem VAPORMIST Manuel utilisateur

DriSteem

DriSteem GTS Manuel utilisateur

DriSteem

DriSteem VAPORMIST Manuel

DriSteem

DriSteem VAPORSTREAM VLC Series Manuel utilisateur

DriSteem

DriSteem CRUV Manuel utilisateur

DriSteem

DriSteem VAPORSTREAM VLC Series Manuel utilisateur

DriSteem

DriSteem Ultra-sorb XV Instructions d'installation et d'utilisation

DriSteem

DriSteem XT Series Manuel utilisateur

DriSteem

DriSteem XTR Manuel utilisateur

DriSteem

DriSteem XT-10 Manuel utilisateur

DriSteem

DriSteem ULTRA-SORB Manuel utilisateur

DriSteem

DriSteem VAPORMIST Manuel utilisateur

DriSteem

DriSteem Vaporstream Manuel utilisateur

DriSteem

DriSteem XT Series Manuel utilisateur

DriSteem

DriSteem STS Manuel utilisateur

DriSteem

DriSteem GTS04 Manuel utilisateur

DriSteem

DriSteem GTS LX Series Manuel utilisateur

DriSteem

DriSteem 250 Manuel utilisateur

Manuels Humidificateur populaires d'autres marques

Boneco

Boneco H300 Manuel utilisateur

Bionaire

Bionaire CM1 Manuel

Air-O-Swiss

Air-O-Swiss AOS 7131 Manuel

KING

KING K 5002 Rainbow Manuel utilisateur

Crane

Crane EE-6902 Manuel utilisateur

Glaziar

Glaziar Ness Manuel utilisateur

Philips

Philips DreamStation Go Dimensions

Honeywell

Honeywell MISTMATE HUL520BC Manuel utilisateur

Stadler Form

Stadler Form Hera Manuel utilisateur

Hunter

Hunter 31206 Manuel utilisateur

TaoTronics

TaoTronics TT-AH004 Manuel utilisateur

adorini

adorini Cigar Heaven Manuel utilisateur

Lanaform

Lanaform Aroma Manuel utilisateur

Aprilaire

Aprilaire 800 Series Manuel utilisateur

Pyle

Pyle SereneLife PHUMDIF8 Manuel utilisateur

Trotec

Trotec B 200 Manuel utilisateur

Pure Humidifier

Pure Humidifier EC Series Manuel utilisateur

Crane

Crane EE-864 Manuel utilisateur
